CMT5-Wedge T5 Socket

Reliable Contact • Wide Compatibility • OEM Ready

1️⃣ Product Overview

The CMT5-Wedge T5 Socket is a high-reliability socket holder designed for T5 wedge-type LED bulbs.

As a key supporting component for wedge LED applications, it ensures stable electrical connection, easy installation, and long-term durability in automotive environments.

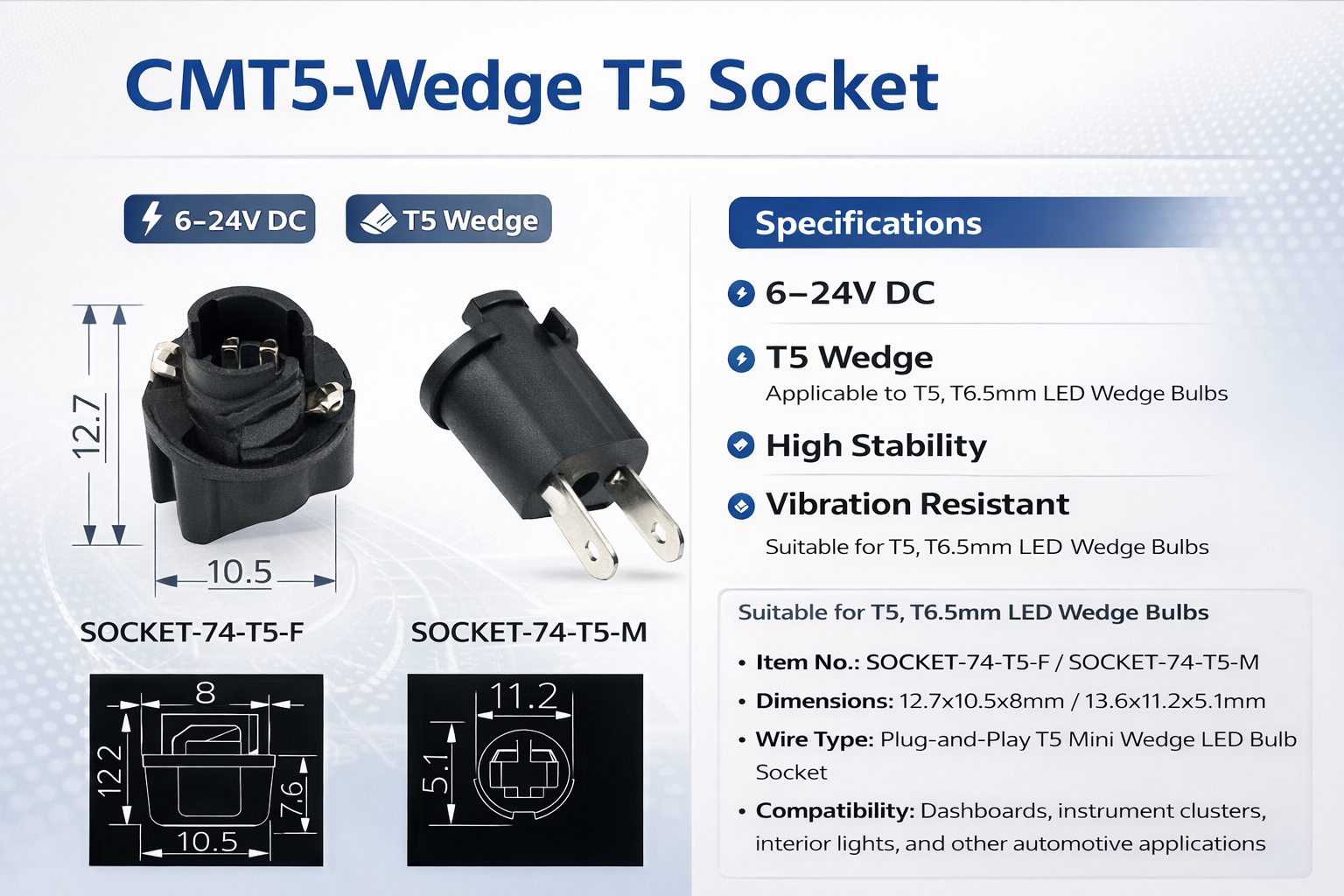

Available in two structures:
Socket F (Twist-Lock Type) and Socket M (Plug-in Type)
to meet different installation requirements.

2️⃣ Wide Voltage Compatibility

Supports 6V / 12V / 24V DC systems, ensuring stable operation across:

• Passenger vehicles
• Trucks & buses (24V systems)
• Commercial and industrial applications

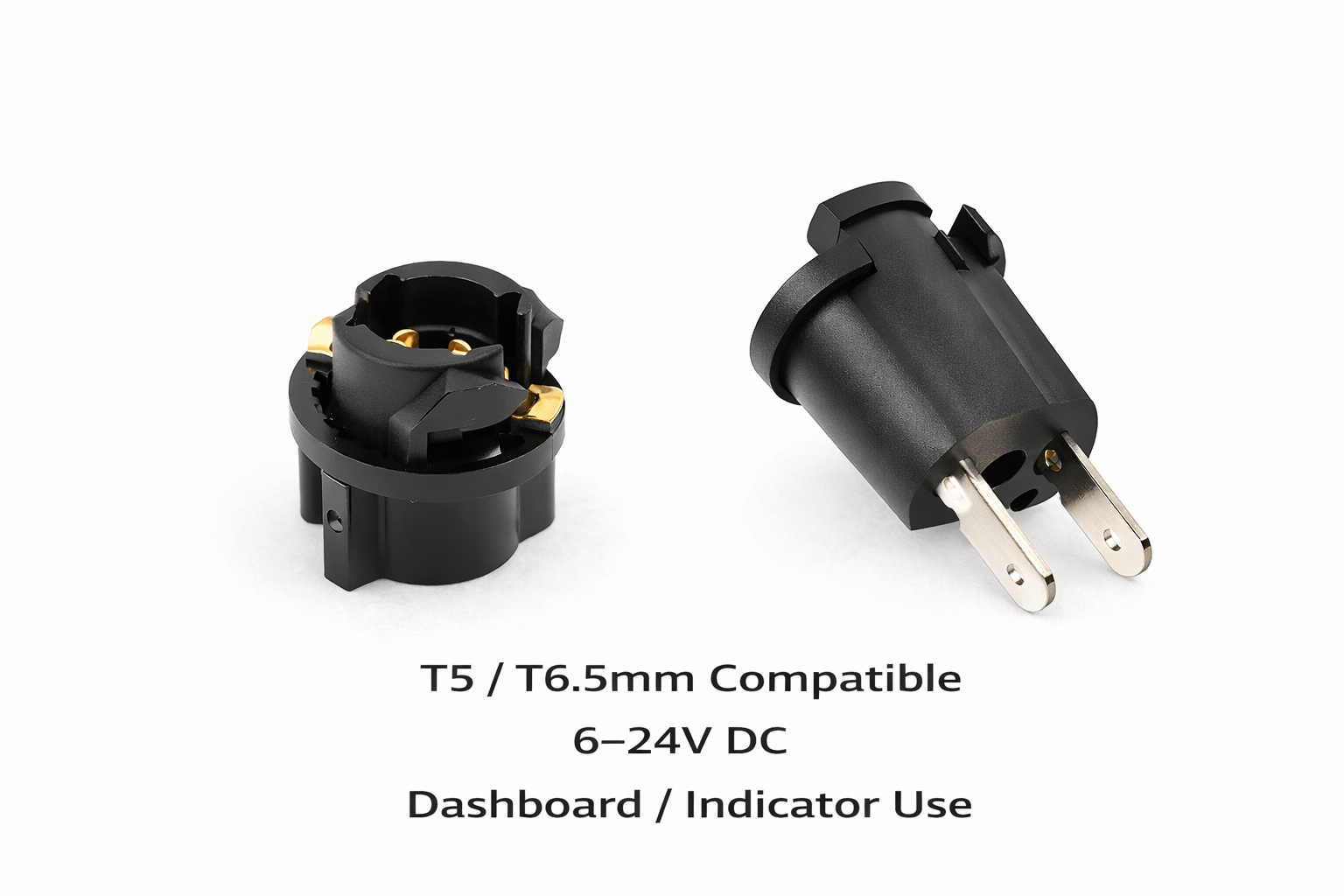

3️⃣ T5 Wedge Compatibility

Designed specifically for:

• T5 LED bulbs

👉 Ideal for dashboard and miniature indicator lighting applications

4️⃣ Copper Alloy Spring Contact Design 🔥

Equipped with high-quality copper alloy spring contacts:

• Excellent conductivity
• High elasticity and strong contact force
• Stable and reliable electrical connection
• Reduced voltage drop

👉 Ensures long-term performance and safety in automotive use

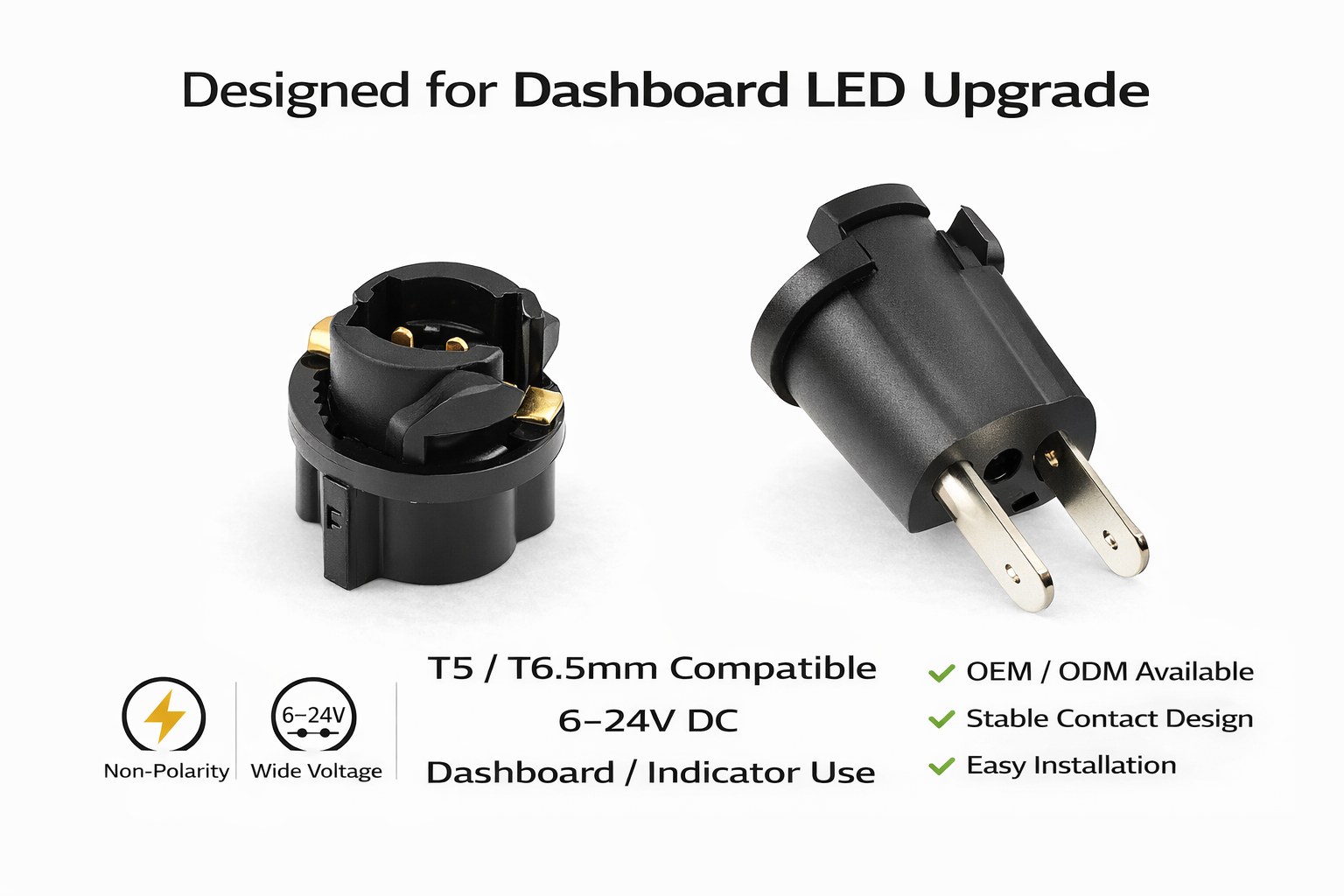

5️⃣ Dual Structure Options

Two socket types available:

• Socket F – Twist-lock structure (dashboard mounting)
• Socket M – Plug-in terminal structure

👉 Flexible selection for different installation designs

6️⃣ Durable Automotive-Grade Construction

• High-strength insulated plastic housing
• Corrosion-resistant metal components
• Designed for harsh automotive environments

7️⃣ High Vibration Resistance

Engineered for:

• Trucks & buses
• Heavy-duty applications

👉 Maintains stable connection under vibration and shock

8️⃣ OEM & Customization Ready

• Adjustable contact structure
• Custom design available
• Suitable for OEM / ODM projects

9️⃣ Key Applications

• Dashboard lights
• Indicator lights
• Signal lights
• License plate lighting
• Interior / cabin lighting

💡 Positioning

👉 This product is a core supporting component for your
T5 Wedge LED product series

✔ Enhances installation flexibility
✔ Improves system reliability
✔ Increases overall product value
