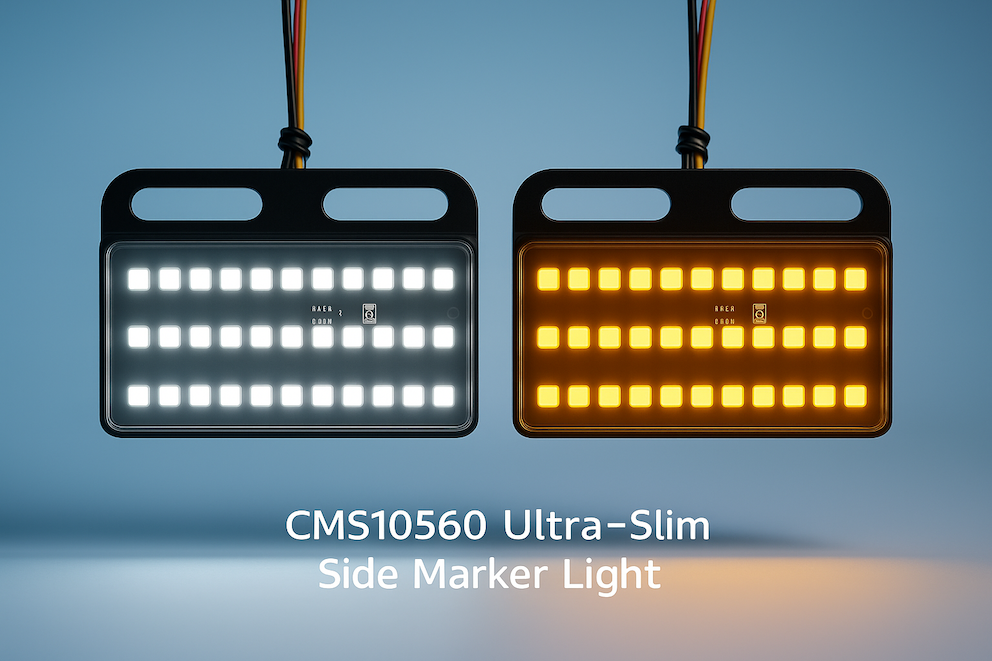

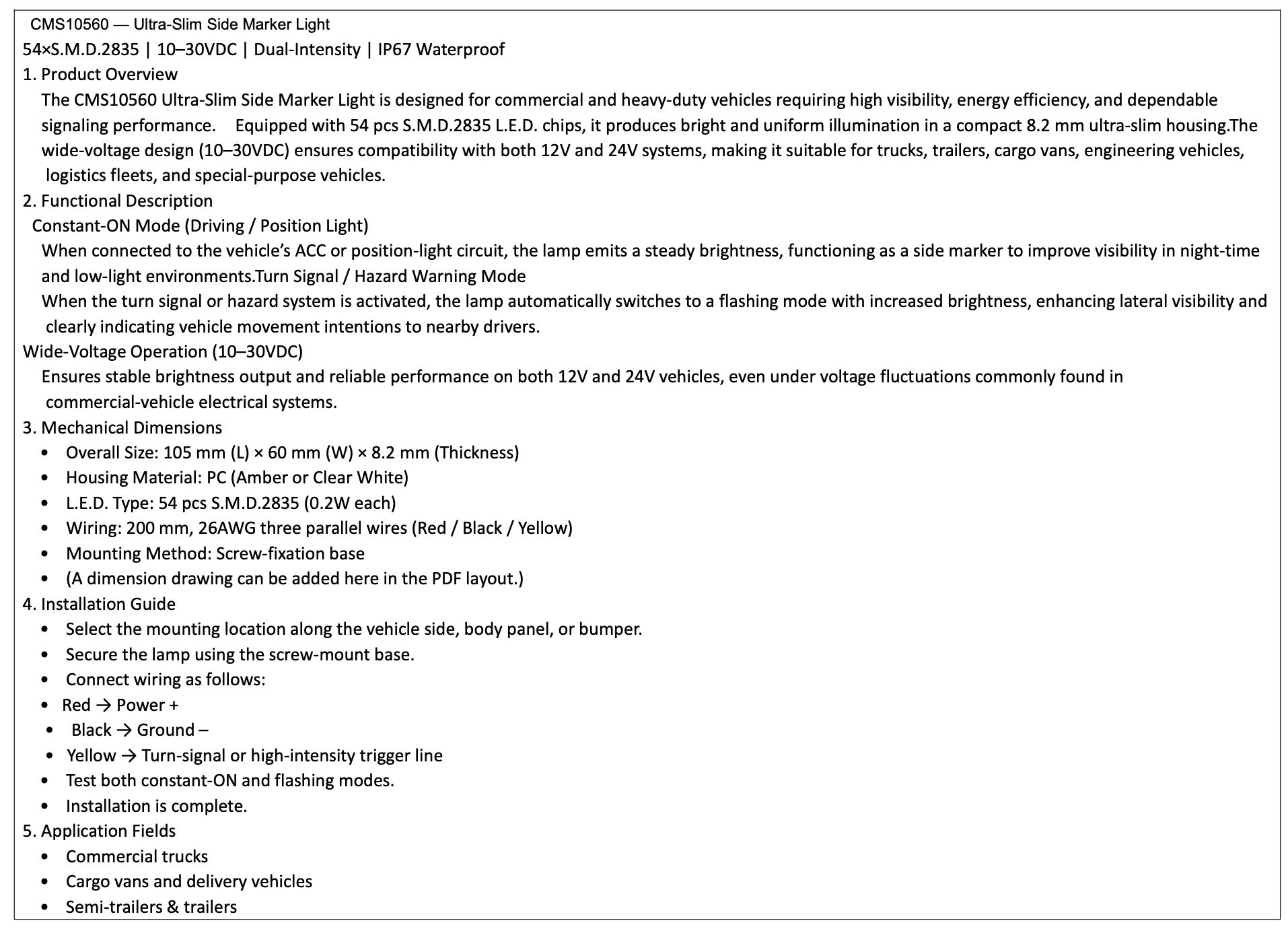

CMS10560 — Ultra-Slim Side Marker Light

         CMS10560 — Ultra-Slim Side Marker Light


CMS10560 — Ultra-Slim Side Marker Light

54×S.M.D.2835 | 10–30VDC | Dual-Intensity | IP67 Waterproof

1. Product Overview

The CMS10560 Ultra-Slim Side Marker Light is designed for commercial and heavy-duty vehicles requiring high visibility, energy efficiency, and dependable signaling performance.
Equipped with 54 pcs S.M.D.2835 L.E.D. chips, it produces bright and uniform illumination in a compact 8.2 mm ultra-slim housing.
The wide-voltage design (10–30VDC) ensures compatibility with both 12V and 24V systems, making it suitable for trucks, trailers, cargo vans, engineering vehicles, logistics fleets, and special-purpose vehicles.

2. Functional Description

Constant-ON Mode (Driving / Position Light)

When connected to the vehicle’s ACC or position-light circuit, the lamp emits a steady brightness, functioning as a side marker to improve visibility in night-time and low-light environments.

Turn Signal / Hazard Warning Mode

When the turn signal or hazard system is activated, the lamp automatically switches to a flashing mode with increased brightness, enhancing lateral visibility and clearly indicating vehicle movement intentions to nearby drivers.

Wide-Voltage Operation (10–30VDC)

Ensures stable brightness output and reliable performance on both 12V and 24V vehicles, even under voltage fluctuations commonly found in commercial-vehicle electrical systems.

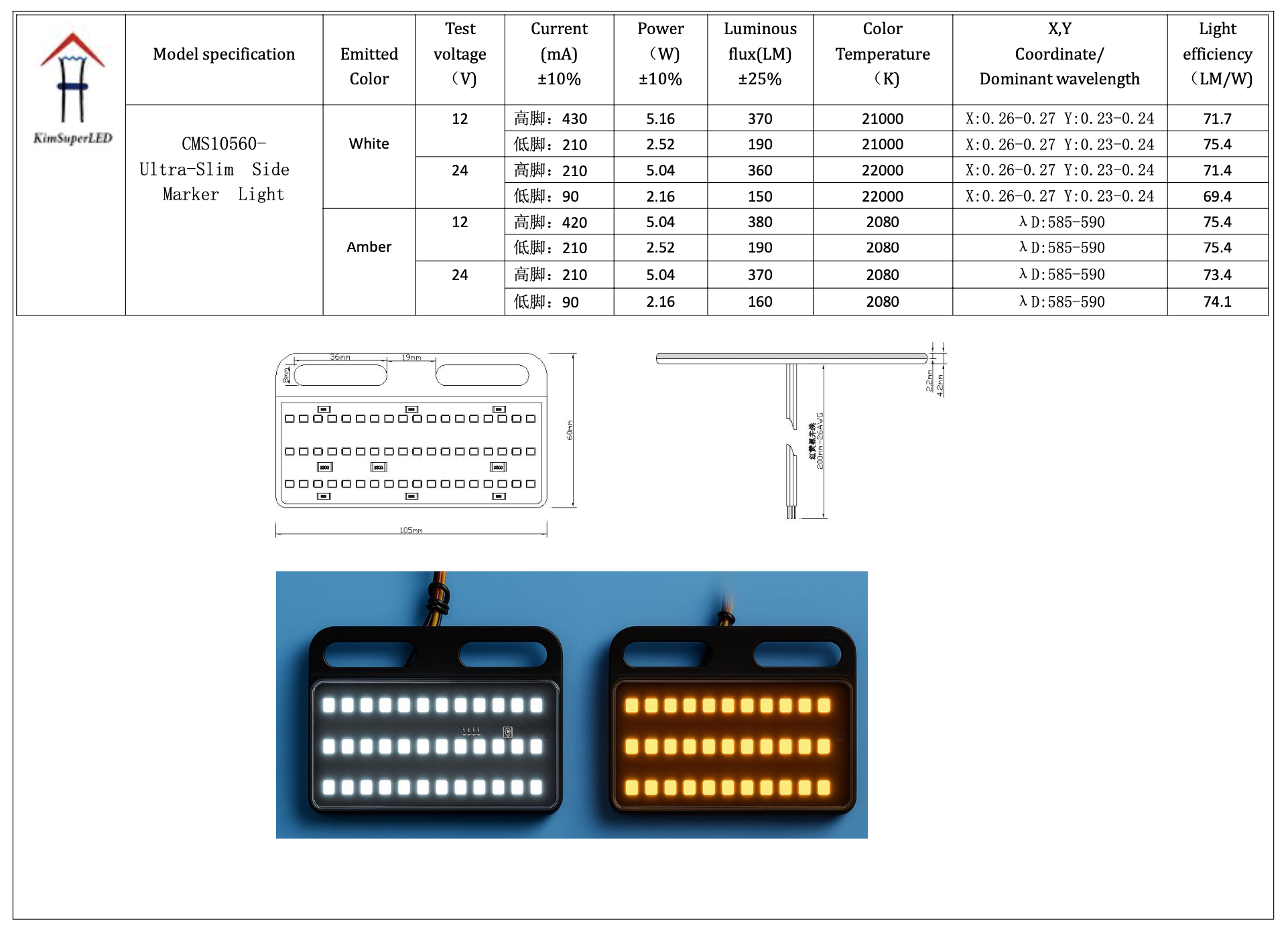

3. Mechanical Dimensions

  • Overall Size: 105 mm (L) × 60 mm (W) × 8.2 mm (Thickness)
  • Housing Material: PC (Amber or Clear White)
  • L.E.D. Type: 54 pcs S.M.D.2835 (0.2W each)
  • Wiring: 200 mm, 26AWG three parallel wires (Red / Black / Yellow)
  • Mounting Method: Screw-fixation base
  • (A dimension drawing can be added here in the PDF layout.)

4. Installation Guide

  1. Select the mounting location along the vehicle side, body panel, or bumper.
  2. Secure the lamp using the screw-mount base.
  3. Connect wiring as follows:
    • Red → Power +
    • Black → Ground –
    • Yellow → Turn-signal or high-intensity trigger line
  1. Test both constant-ON and flashing modes.
  2. Installation is complete.

5. Application Fields

  • Commercial trucks
  • Cargo vans and delivery vehicles
  • Semi-trailers & trailers

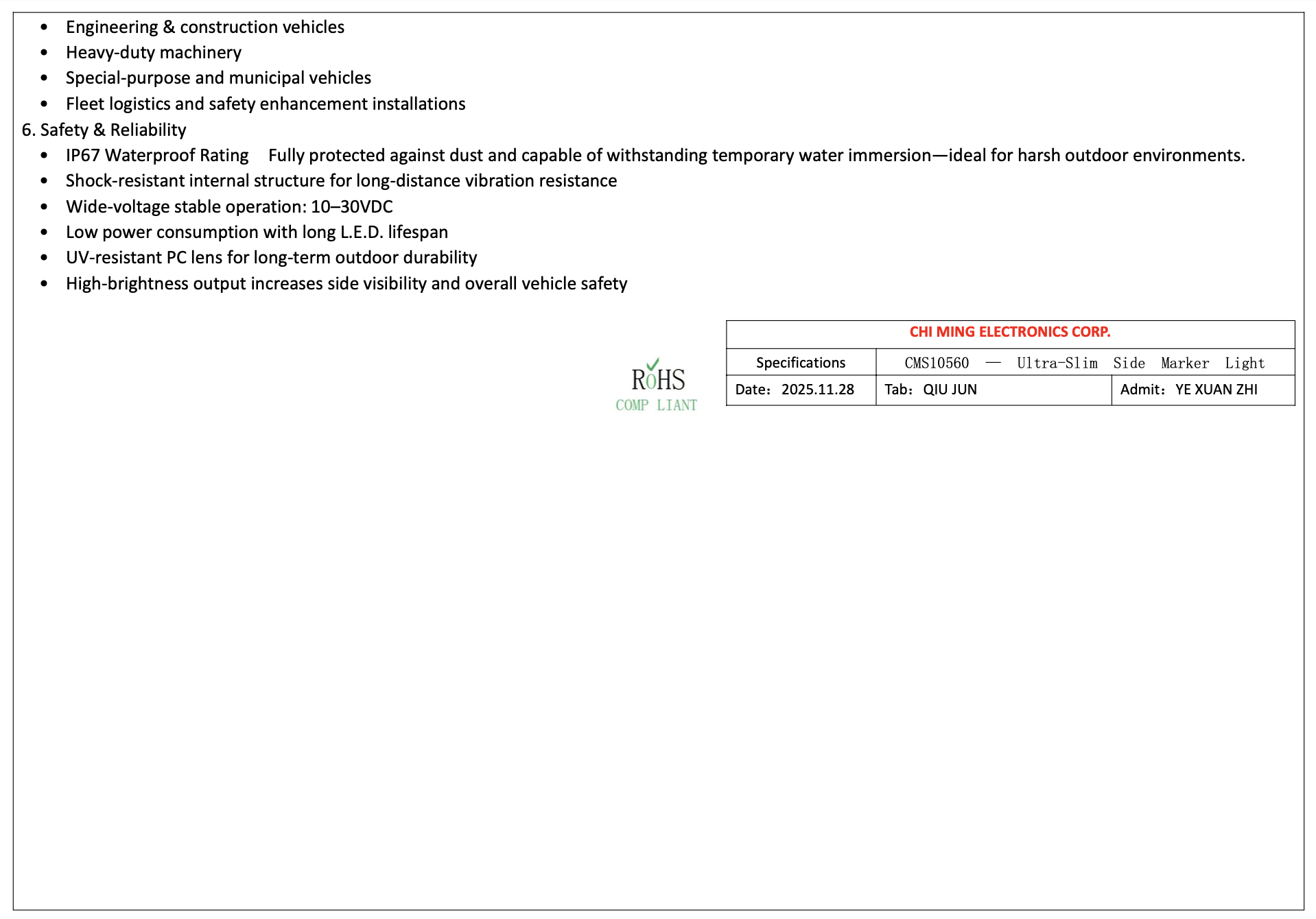

  • Engineering & construction vehicles
  • Heavy-duty machinery
  • Special-purpose and municipal vehicles
  • Fleet logistics and safety enhancement installations

6. Safety & Reliability

  • IP67 Waterproof Rating
    Fully protected against dust and capable of withstanding temporary water immersion—ideal for harsh outdoor environments.
  • Shock-resistant internal structure for long-distance vibration resistance
  • Wide-voltage stable operation: 10–30VDC
  • Low power consumption with long L.E.D. lifespan
  • UV-resistant PC lens for long-term outdoor durability
  • High-brightness output increases side visibility and overall vehicle safety
