CMB5024-LED 1156 T24 BA15S HP 4
🔧 CMB5024-LED 1156 T24 BA15S HP 4
High Power LED Turn Signal Bulb | 2670LM | Active Cooling | Engineered for Commercial Vehicles
🔷 Product Features
1️⃣ Advanced Thermal Structure
The CMB5024-LED 1156 adopts a high-efficiency thermal management structure engineered for stable high-power operation.
Built with:
- Flexible PCB thermally bonded with pure copper
- Tightly integrated aluminum heat sink module
- Electroplated aluminum cooling structure
This advanced design ensures:
- Excellent heat transfer efficiency
- Stable luminous output
- Improved thermal conductivity
- Extended product lifespan
👉 Designed for heavy-duty and high-temperature vehicle environments.
2️⃣ Active Cooling System
Equipped with a built-in top cooling fan to enhance airflow and heat dissipation.
Features:
- Active cooling fan inside
- Enhanced air convection
- Improved thermal stability
- Maintains optimal operating temperature
- Supports continuous high-brightness performance
👉 Critical for maintaining stable 2670LM output.
3️⃣ 18W High Power Ceramic LED Technology
Built with:
- 4 pcs high-power ceramic packaged LEDs
- Total power consumption: 18W
Advantages:
- Higher luminous efficiency
- Stronger light penetration
- Excellent thermal resistance
- Long-term operational reliability
4️⃣ 360° Full Angle Illumination
Optimized optical structure delivers:
- Wide 360° beam angle
- Uniform light distribution
- Improved signal visibility
- Reduced dark spots
👉 Ideal for automotive turn signal applications.
5️⃣ High Brightness & Stable Output
- Maximum luminous flux: Up to 2670LM
- High luminous efficiency: Up to 138LM/W
- Stable PWM constant current output
- Excellent visibility during daytime and nighttime driving
👉 Significantly brighter than traditional incandescent bulbs.
6️⃣ PWM Constant Current Driver
Integrated PWM constant current module provides:
- Stable light output
- Flicker-free performance
- Better voltage regulation
- Enhanced LED protection
👉 Ensures consistent performance under voltage fluctuation.
7️⃣ 10–30V DC Wide Voltage Design
Wide voltage compatibility supports:
- Passenger vehicles
- Trucks & buses
- Commercial vehicles
- Industrial vehicle systems
Operating Voltage:
- 10–30V DC
👉 Suitable for both 12V and 24V vehicle platforms.
8️⃣ CANbus Decoder Compatibility
Built-in CANbus decoding function helps:
- Reduce dashboard warning errors
- Improve vehicle compatibility
- Minimize hyper flash issues
👉 Engineered for modern vehicle electrical systems.
9️⃣ Superior Mechanical Reliability
Designed with:
- Full aluminum structure
- Electroplated cooling body
- High vibration resistance
- Shock-resistant construction
👉 Built for harsh commercial vehicle environments.

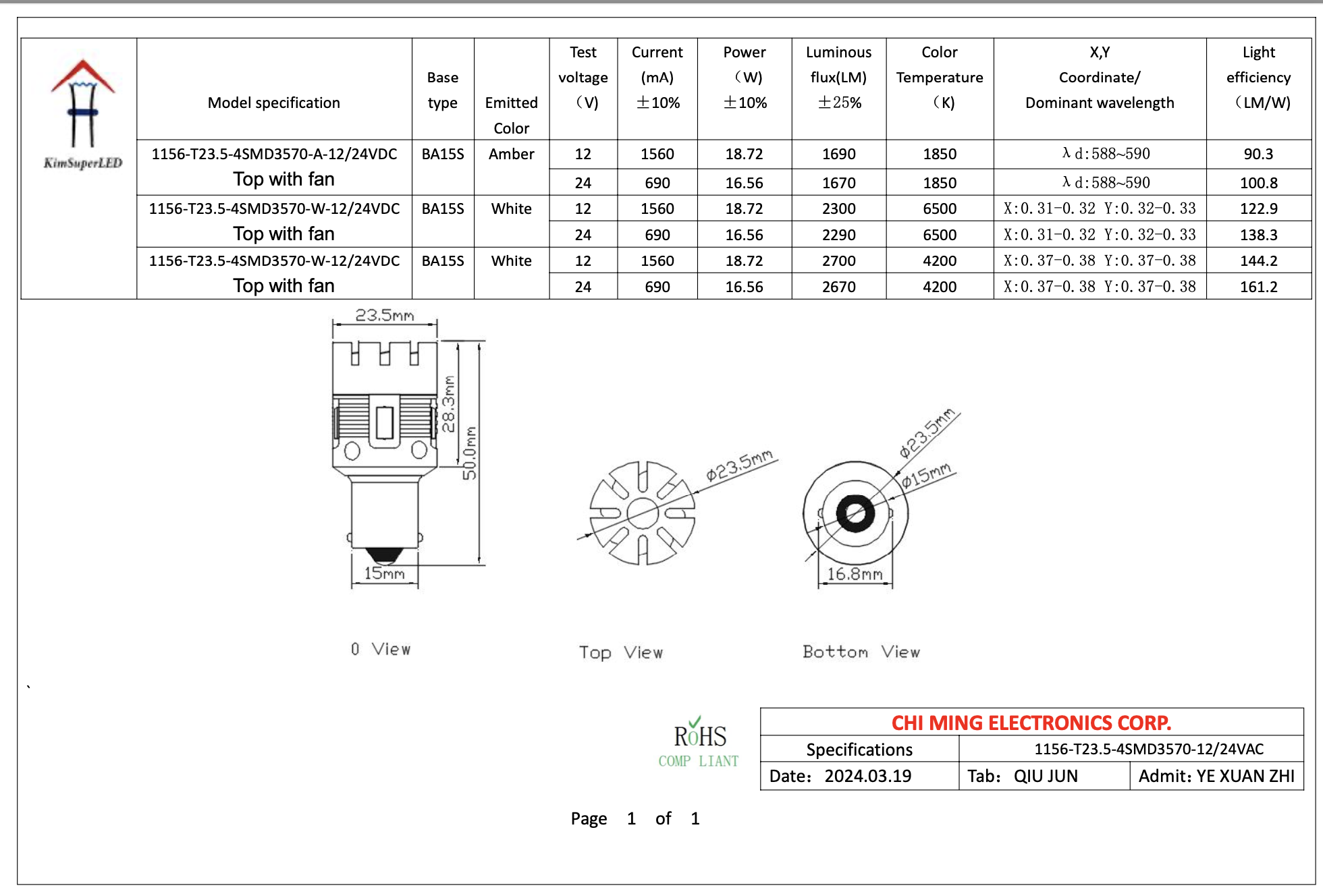

🔟 Socket Type
Base Type:
- BA15S / 1156
Please confirm:
- Socket type
- Product dimensions
- Vehicle compatibility
before installation.
💡 Color Options
Available LED Colors:
- Cool White
- Warm White
- Amber
⚠️ Important Notice
The CMB5024-LED 1156 is designed specifically for:
✔ Vehicle Turn Signal Applications
This model features:
✔ Built-in CANbus decoding function
Please verify:
- Base specification
- Product dimensions
before ordering.
🛠 OEM / ODM Service
OEM, ODM, and customized project development are welcome.
Chi Ming Electronics Corp. provides:
- Professional automotive LED manufacturing
- Stable production capability
- Strict quality control
- Customized engineering solutions
📩 Contact us for OEM & commercial vehicle lighting projects.
