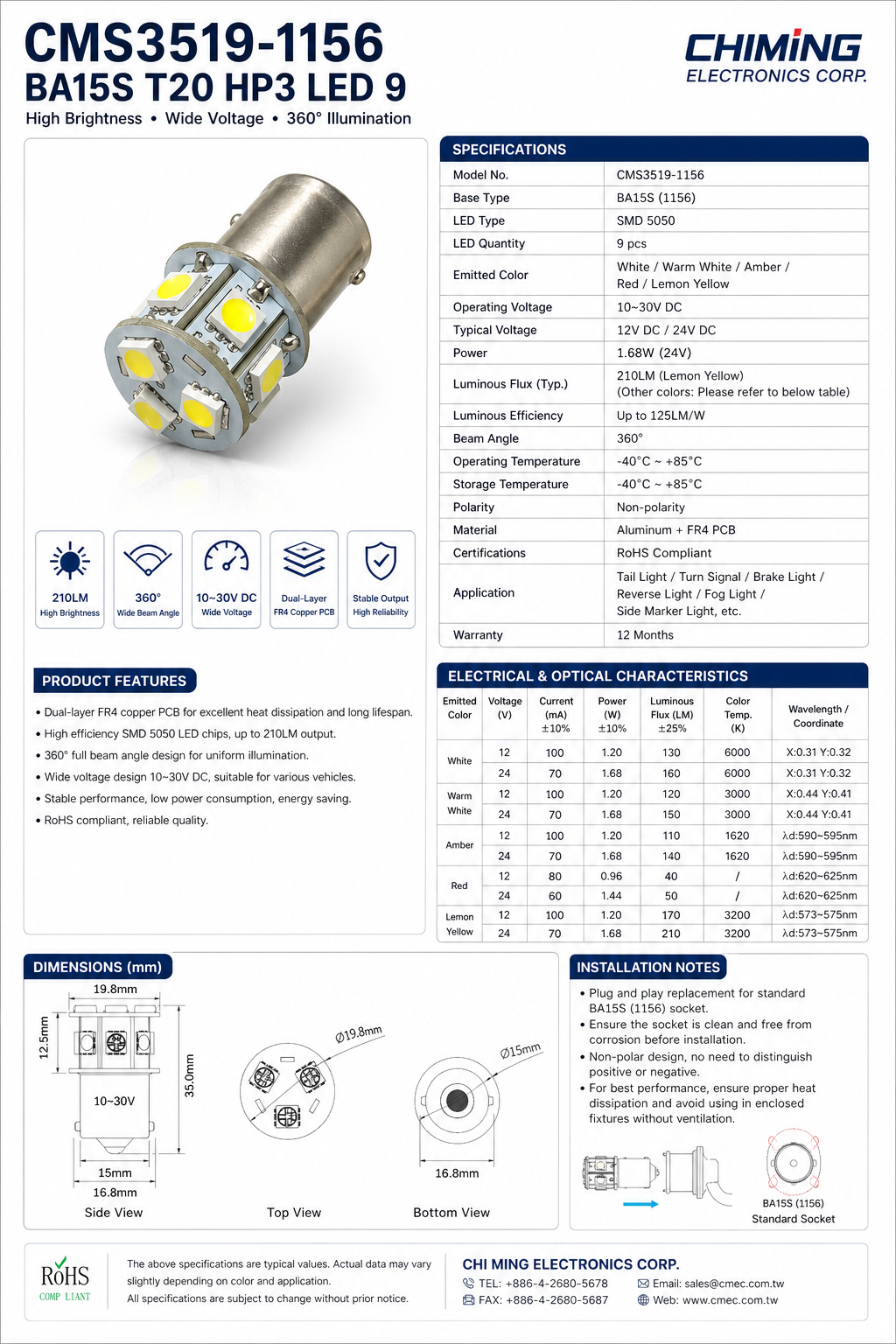

🔷 CMS3519-1156 BA15S T20 HP3 LED 9

High Brightness • Wide Voltage • 360° Illumination

🔹 High Brightness & High Efficiency

The CMS3519-1156 BA15S T20 HP3 LED 9 is engineered to deliver superior lighting performance with a luminous output of up to 210 lumens.

Designed for efficiency and stability, it provides bright, clear illumination while maintaining low power consumption. The optimized LED configuration ensures consistent light output without flickering.

🔹 Advanced Thermal Management

Built with a dual-layer FR4 copper PCB, this model offers excellent heat dissipation performance.

The enhanced thermal structure allows:

• Faster heat transfer
• Improved LED lifespan
• Stable long-term operation

👉 Ensures reliable performance even in demanding vehicle environments.

🔹 Wide Voltage Design (10–30V DC)

Supporting a 10–30V DC wide voltage range, this LED bulb is compatible with various vehicle electrical systems, especially 24V commercial trucks.

• Stable output across voltage fluctuations
• Suitable for passenger vehicles and heavy-duty applications
• High reliability for long-term use

🔹 360° Full Beam Illumination

Featuring a 360-degree wide beam design, the LED layout ensures uniform light distribution in all directions.

• Eliminates dark spots
• Enhances visibility and safety
• Ideal for signal and rear lighting applications

🔹 Wide Application Range

This model is widely used in automotive lighting systems, including:

• Tail Lights
• Turn Signal Lights
• Brake Lights
• Reverse Lights
• Side Marker Lights

👉 A cost-effective upgrade solution for various vehicle lighting needs.

🔹 Durable & Reliable Construction

Equipped with 9 pcs high-quality SMD5050 LEDs, combined with a stable circuit design, this product ensures:

• Consistent brightness output
• Resistance to vibration
• Long service life

Manufactured using high-temperature solder paste and advanced reflow soldering technology, guaranteeing excellent durability and quality stability.

🔹 Installation & Compatibility

• Base Type: BA15S (1156)
• Non-polarity design for easy plug-and-play installation
• No modification required for most applications

⚠️ Note:
For turn signal applications, additional load resistors or compatible flasher relays may be required to prevent hyper flashing.

🔹 Compact Design

• Dimensions: L35mm × W20mm
• Optimized for easy installation in confined spaces

🔹 Key Advantages

✔ Up to 210LM High Brightness
✔ Dual-layer FR4 Copper PCB for superior heat dissipation
✔ 10–30V DC Wide Voltage Design
✔ 360° Uniform Illumination
✔ High Reliability & Cost-Effective Solution

🔻 Important Notice

Please confirm the bulb model, base type, and dimensions before installation to ensure compatibility with your vehicle.

🚀 OEM READY

Bulk Supply Available • Contact Us for Project Integration
