🔧 L.E.D. CMB4220-LED T20 BA15S HP 3

High Efficiency • Aluminum Thermal Design • Wide Voltage Stability

🔷 Product Overview

The CMB4220-LED T20 BA15S HP 3 is a high-performance LED lighting solution engineered for automotive and commercial vehicle applications.

Designed with an aluminum PCB tightly bonded to an aluminum module, this structure ensures excellent heat dissipation and enhanced luminous efficiency.

Combined with a T20 PC plastic housing, it delivers stable, high-brightness output with superior durability, making it ideal for demanding environments.

💡 High Brightness & Stable Output

• Up to 285 Lumens
• Consistent and uniform light output
• Enhanced visibility for signal and indicator applications

🔧 Advanced Thermal Structure

• Aluminum PCB + Aluminum Module design
• High thermal conductivity bonding for efficient heat transfer
• Excellent heat dissipation extends LED lifespan
• Stable performance under continuous operation

⚡ Wide Voltage Design

• Supports 10–30V DC
• Compatible with passenger vehicles and 24V commercial systems
• Stable output under voltage fluctuations

🛡️ High Reliability Construction

• High-temperature soldering process for LED modules
• Strong resistance to vibration and mechanical stress
• Designed for harsh automotive environments
• Long lifespan up to 50,000 hours

🌈 Multiple Color Options

Available in:

• White
• Amber
• Warm White
• Red
• Green
• Blue

✔ Custom colors available upon request

🚗 Wide Range of Applications

Suitable for:

• Tail Lights
• Brake Lights
• Turn Signals
• Reverse Lights
• Side Marker Lights
• Trailer & Commercial Vehicle Lighting

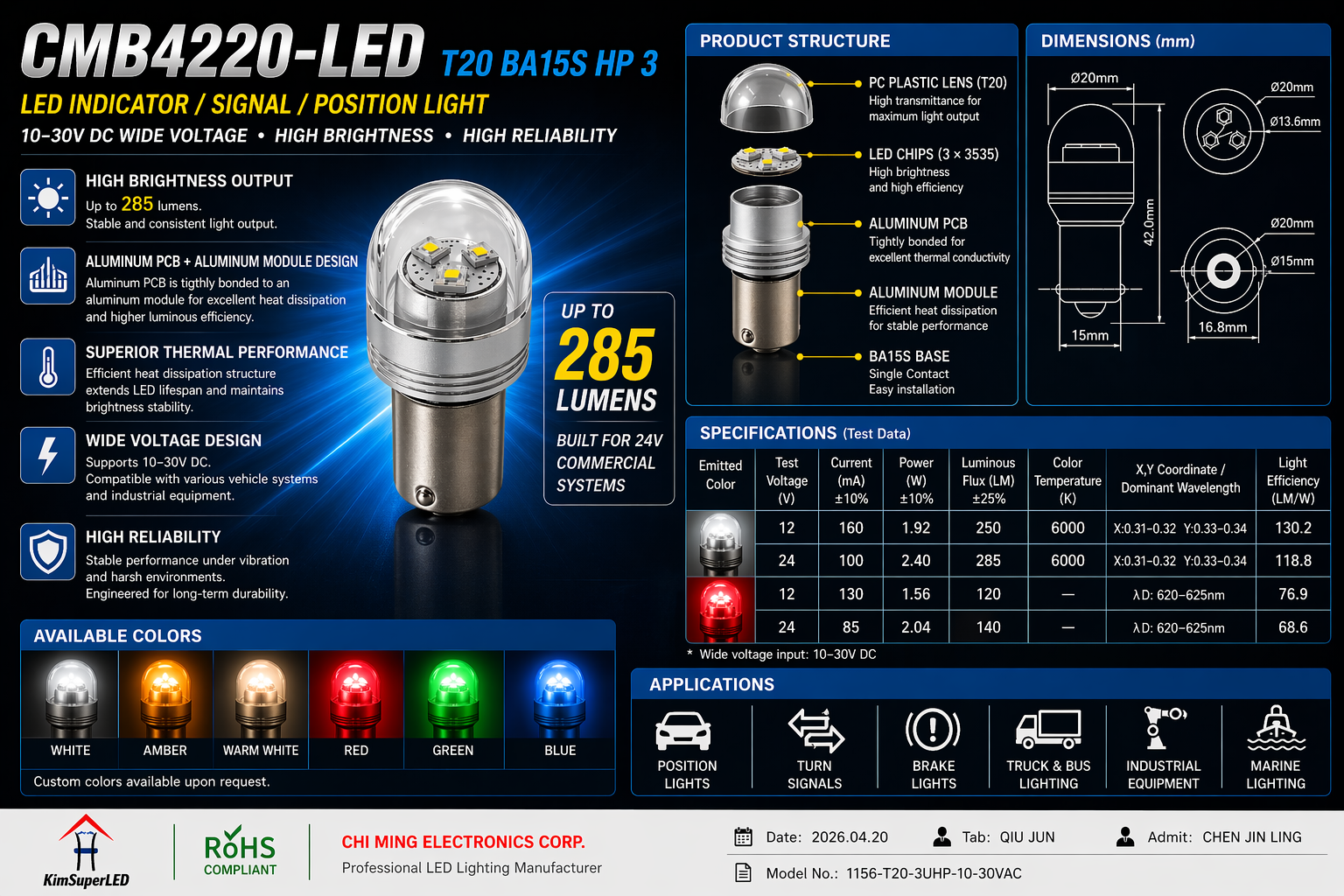

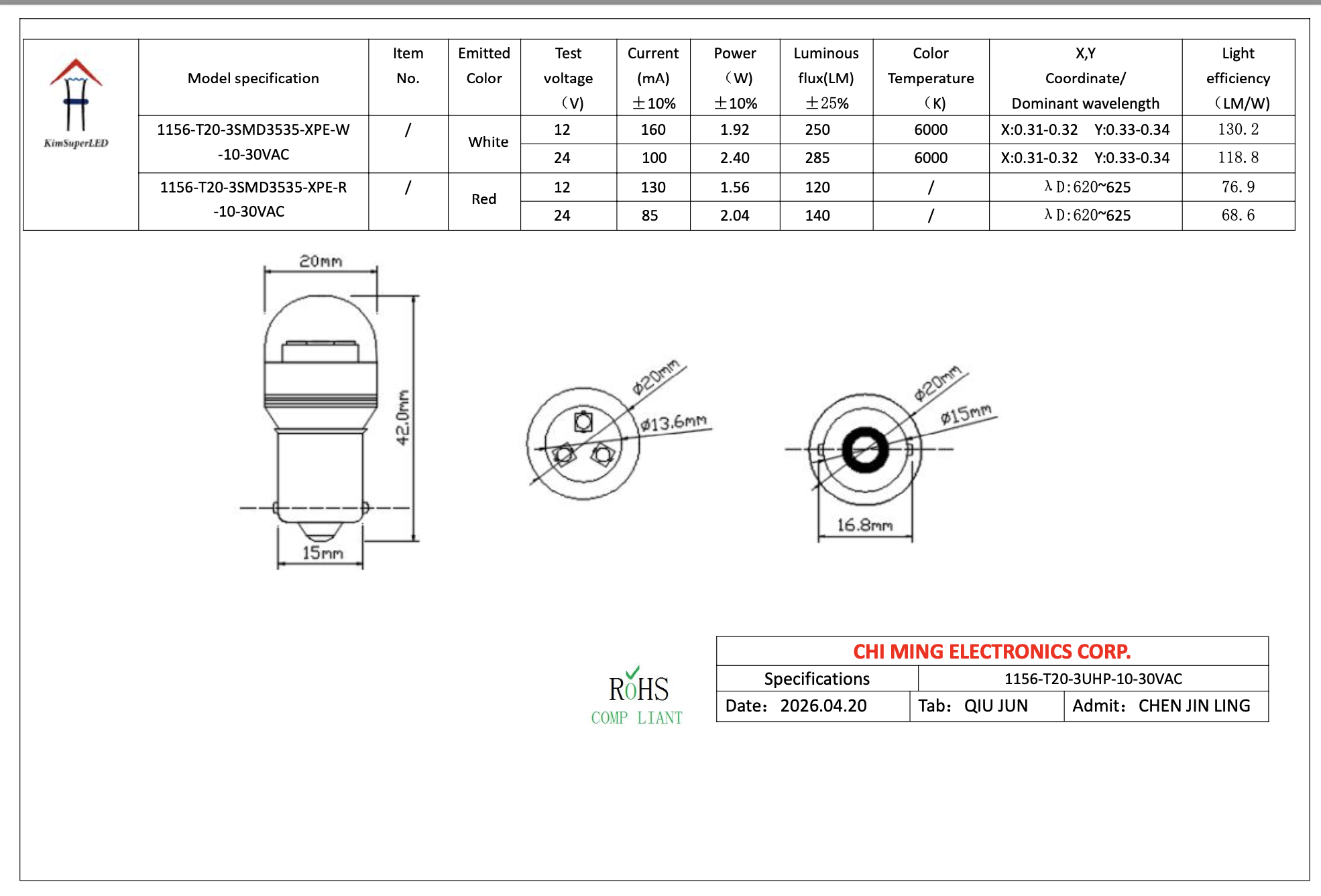

⚙️ Performance Specifications

• Power Consumption: ~2.4W
• Luminous Flux: Up to 285LM
• Voltage Range: 10–30V DC
• Base Type: BA15S (1156)
• Structure: Aluminum Module + PC Lens

🔧 Easy Installation

• Standard BA15S base (1156 compatible)
• Direct replacement for conventional bulbs
• Plug-and-play installation

🛡️ Durability & Stability

• Higher brightness than traditional bulbs
• Stable output over long-term use
• Engineered for automotive-grade reliability

💥 Key Selling Point

High cost-performance ratio. One of our best-selling models.
OEM / ODM available. Bulk supply ready.

⚠️ Important Notice

Please confirm bulb size and socket compatibility before installation.

Up to 285LM. Built for 24V Commercial Systems.
