🔧 L.E.D. CMB4520-LED T20 BA15S HP 2

Flip-Chip Technology • High Efficiency • 10–30V DC

🔷 Product Overview

The CMB4520-LED T20 BA15S HP 2 is a high-efficiency LED solution engineered for automotive and commercial vehicle applications.

Featuring advanced Flip-Chip LED technology, this model delivers superior brightness, enhanced thermal performance, and stable long-term operation.

Designed with a fluorescent PC housing, it improves light conversion efficiency while maintaining durability and reliability—making it a unique and high-value solution from Chi Ming Electronics.

💡 Flip-Chip LED Technology

• High direct-emission structure
• Larger emitting surface area
• Improved luminous efficiency
• Wire-free design for better reliability
• Excellent heat dissipation performance

👉 Maximizes brightness while reducing thermal stress

🌟 Fluorescent PC Housing Design

• High-quality PC material with fluorescent additive
• Enhanced yellow-green luminous efficiency
• Better light diffusion and visibility
• Anti-yellowing and durable structure

👉 Exclusive design for improved light output performance

⚡ Wide Voltage Design

• Supports 10–30V DC
• Compatible with passenger vehicles and 24V commercial trucks
• Stable output under voltage fluctuation

🔥 Advanced Thermal Structure

• LED tightly bonded to aluminum substrate
• Efficient heat transfer design
• Stable output under continuous operation
• Extended lifespan and reliability

🚛 Applications

Suitable for a wide range of vehicle lighting:

• Tail Lights
• Brake Lights
• Turn Signal Lights
• Reverse Lights
• Side Marker Lights
• Commercial & Fleet Vehicles

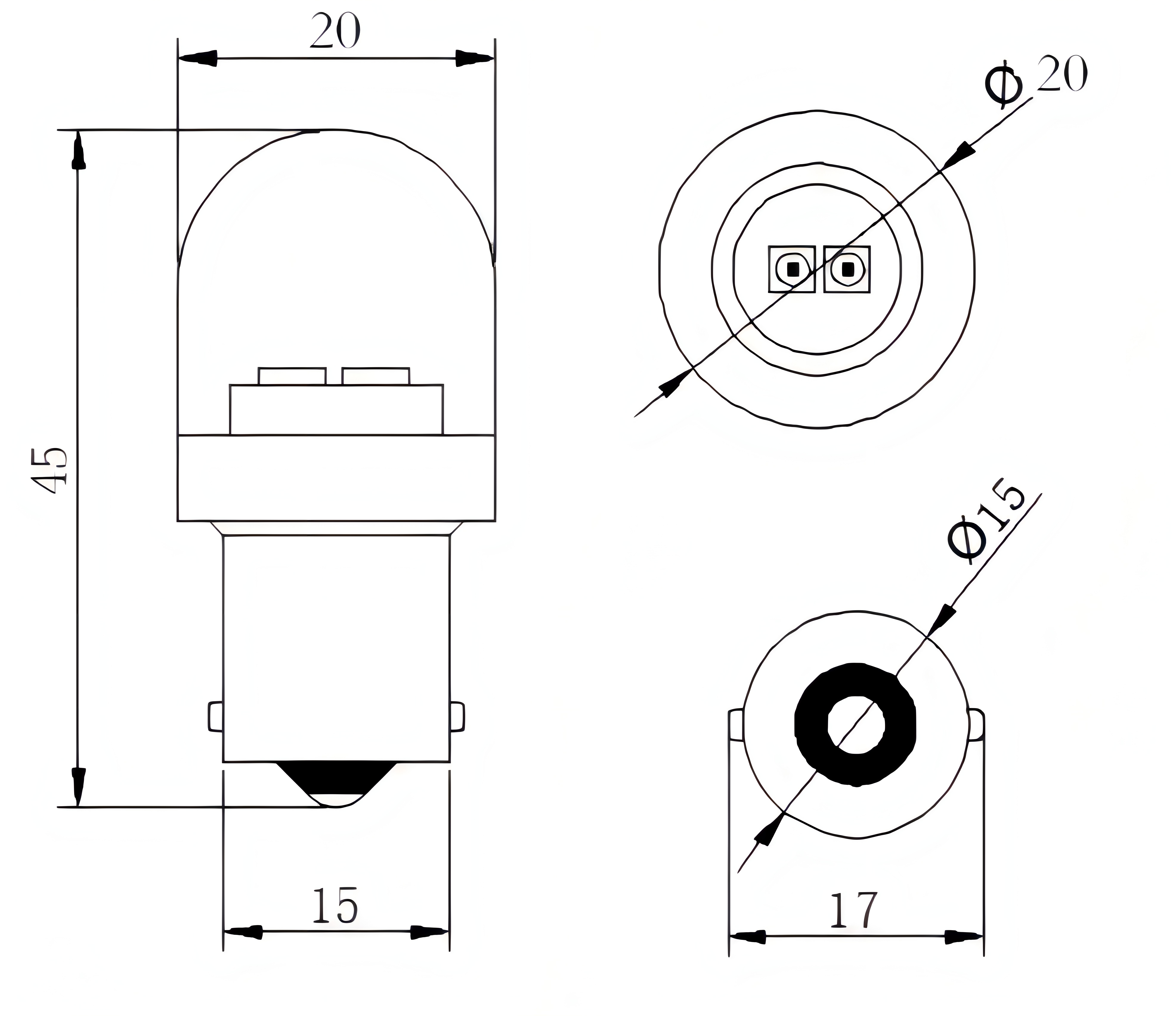

⚙️ Performance Specifications

• Power Consumption: —
• Brightness: Up to 200 Lumens
• Voltage: 10–30V DC
• Base Type: BA15S (1156)

🛡️ Durability & Stability

• High brightness vs traditional bulbs
• Stable long-term performance
• Automotive-grade reliability

💥 Key Selling Point

Exclusive Fluorescent Flip-Chip Design
High brightness • Superior heat dissipation • Cost-effective solution

📞 Call to Action

OEM READY • BULK SUPPLY AVAILABLE
For OEM & Distributor Inquiries, Contact Us Now
