CMB3818-G18 67 BA15S HP 6
🔧 CMB3818-G18 67 BA15S HP 6
High Power BA15S LED • G18 Glass • 10–30V DC Wide Voltage
🔷 Product Overview
The CMB3818-G18 67 BA15S HP 6 is a high-performance automotive LED designed for commercial vehicles and multi-purpose lighting applications.
Engineered with advanced thermal structure and premium G18 glass housing, this model delivers stable brightness, superior heat dissipation, and long-term reliability, making it an ideal upgrade from traditional bulbs.
💡 Key Features
🔥 Advanced Thermal Structure
Built with a flexible PCB thermally pressed onto alloy metal tabs, tightly bonded to an aluminum module.
This multi-layer structure ensures:
- Efficient heat transfer from LED chips
- Enhanced heat dissipation performance
- Stable light output under continuous operation
- Extended product lifespan
💎 G18 Glass Housing
Equipped with a clear G18 glass cover:
- Resistant to yellowing over time
- Improved thermal conductivity
- Maintains long-term optical clarity
- Enhances overall LED performance
👉 Glass Makes the Difference.
⚡ High Brightness & Stable Output
- Luminous Flux: Up to 250LM
- Power Consumption: 1.92W
- Beam Angle: 180°
Provides strong illumination with consistent and reliable output, suitable for demanding environments.
🔌 Wide Voltage Design (10–30V DC)
- Compatible with 12V & 24V systems
- Ideal for commercial vehicles & fleet applications
- Ensures stable performance under voltage fluctuations
👉 Engineered for 24V Commercial Vehicle Systems
🔄 Non-Polarity Design
- BA15S single-contact base
- Plug-and-play installation
- No polarity concern during installation
🚛 Applications
Suitable for a wide range of vehicle and industrial uses:
- Tail Lights
- Brake Lights
- Turn Signal Lights
- Reverse Lights
- Side Marker Lights
- Parking Lights
- Corner Lights
- Emergency & Warning Lights
- Truck & Commercial Vehicle Lighting
- Industrial Machinery Indicators
- Marine Signal Lighting

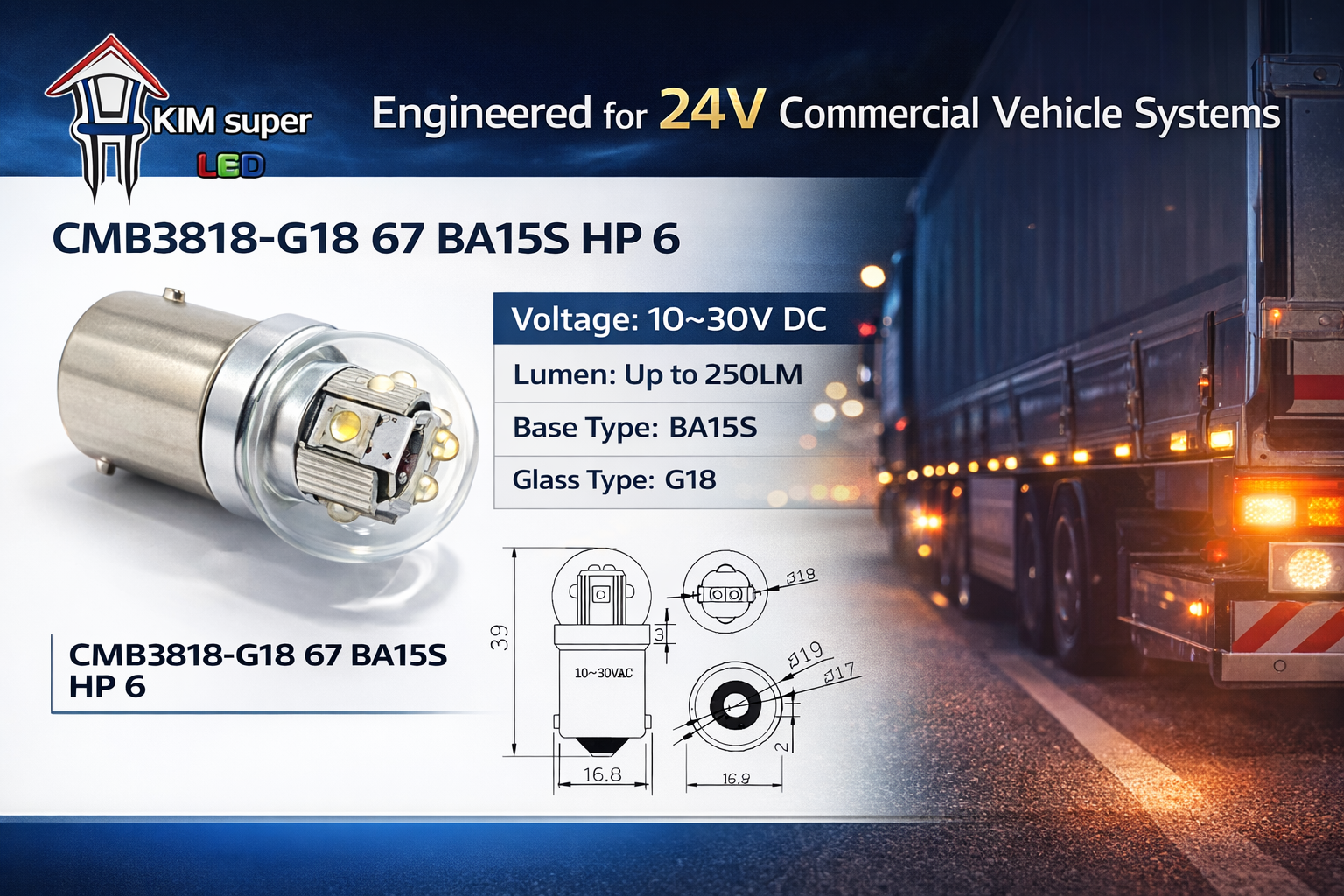

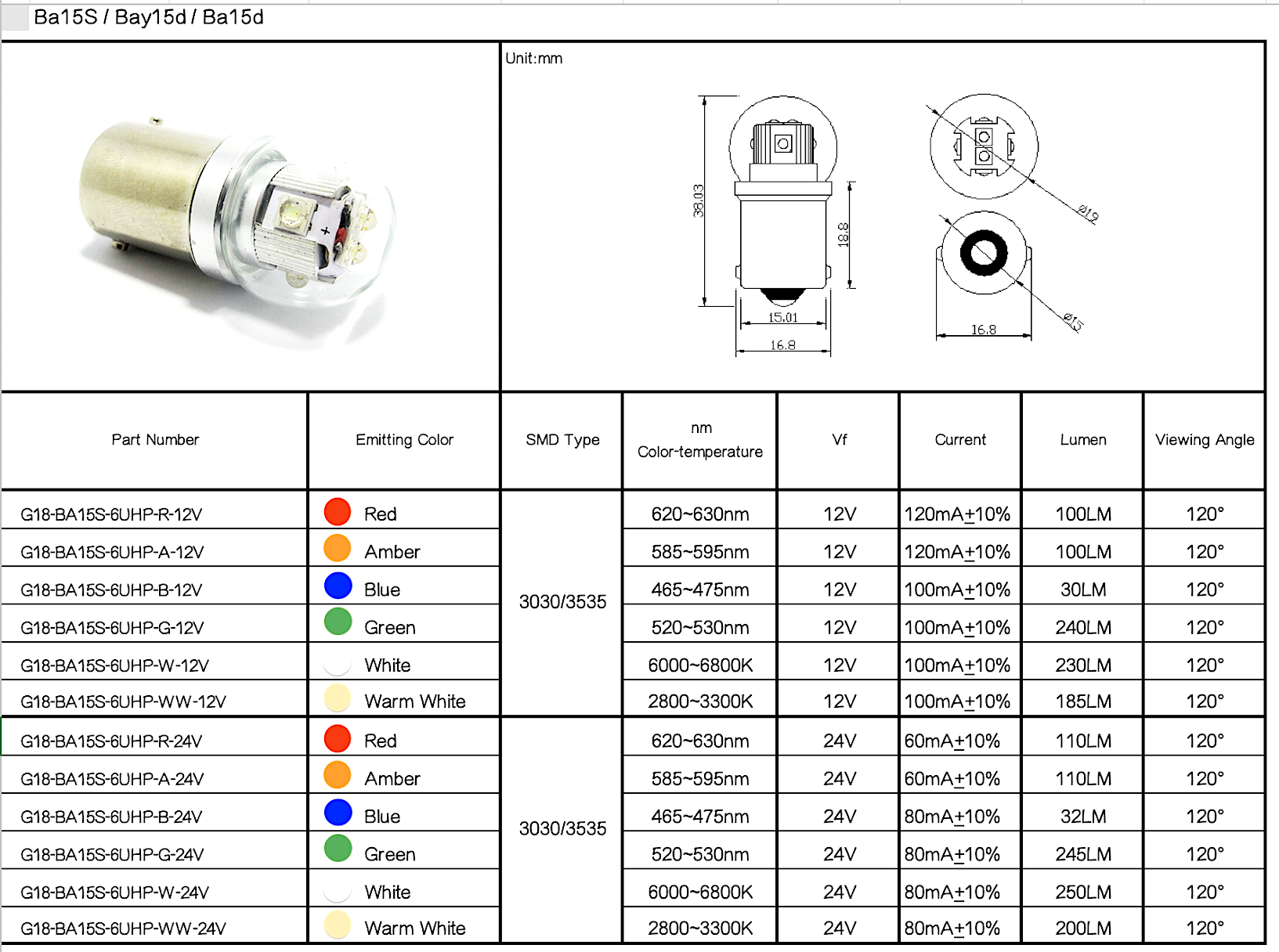

📊 Specifications
| Item | Specification |
|---|---|
| Model | CMB3818-G18 67 BA15S HP 6 |
| Base Type | BA15S |
| Voltage | 10–30V DC |
| Power | 1.92W |
| Lumen Output | Up to 250LM |
| Beam Angle | 180° |
| Lifespan | Up to 50,000 hours |
| Material | Aluminum + Flexible PCB + G18 Glass |
| Feature | Non-Polarity |
🛡️ Performance & Reliability
- Excellent heat dissipation
- Vibration-resistant design
- Energy-saving & eco-friendly
- Stable output under long-hour operation
- High durability for harsh environments
⚠️ Installation Notice
- Please confirm bulb size and base type before purchase
- Ensure input voltage is within 10–30V DC range
- Refer to product marking before installation
