🔧 CMB4720-1156 BA15S T20 HP 6

High Power LED | 388LM | 360° Output | Engineered for 24V Commercial Vehicles

🔷 Product Features

1️⃣ Advanced Thermal Structure 🔥

Designed with an aluminum PCB (Metal Core PCB) combined with a dual-layer lighting structure:

• Lower layer: LEDs project light onto a mirror-reflective surface, creating softer and more uniform illumination
• Upper layer: Integrated with an aluminum heat sink block for efficient thermal dissipation

This structure ensures:
✔ Efficient heat transfer
✔ Stable light output under continuous operation
✔ Extended product lifespan

👉 Ideal for heavy-duty and high-temperature environments

2️⃣ Focused PC Lens Design 💡

Equipped with a top-mounted PC optical lens:

✔ Concentrated light projection
✔ Increased luminous intensity
✔ Improved signal visibility

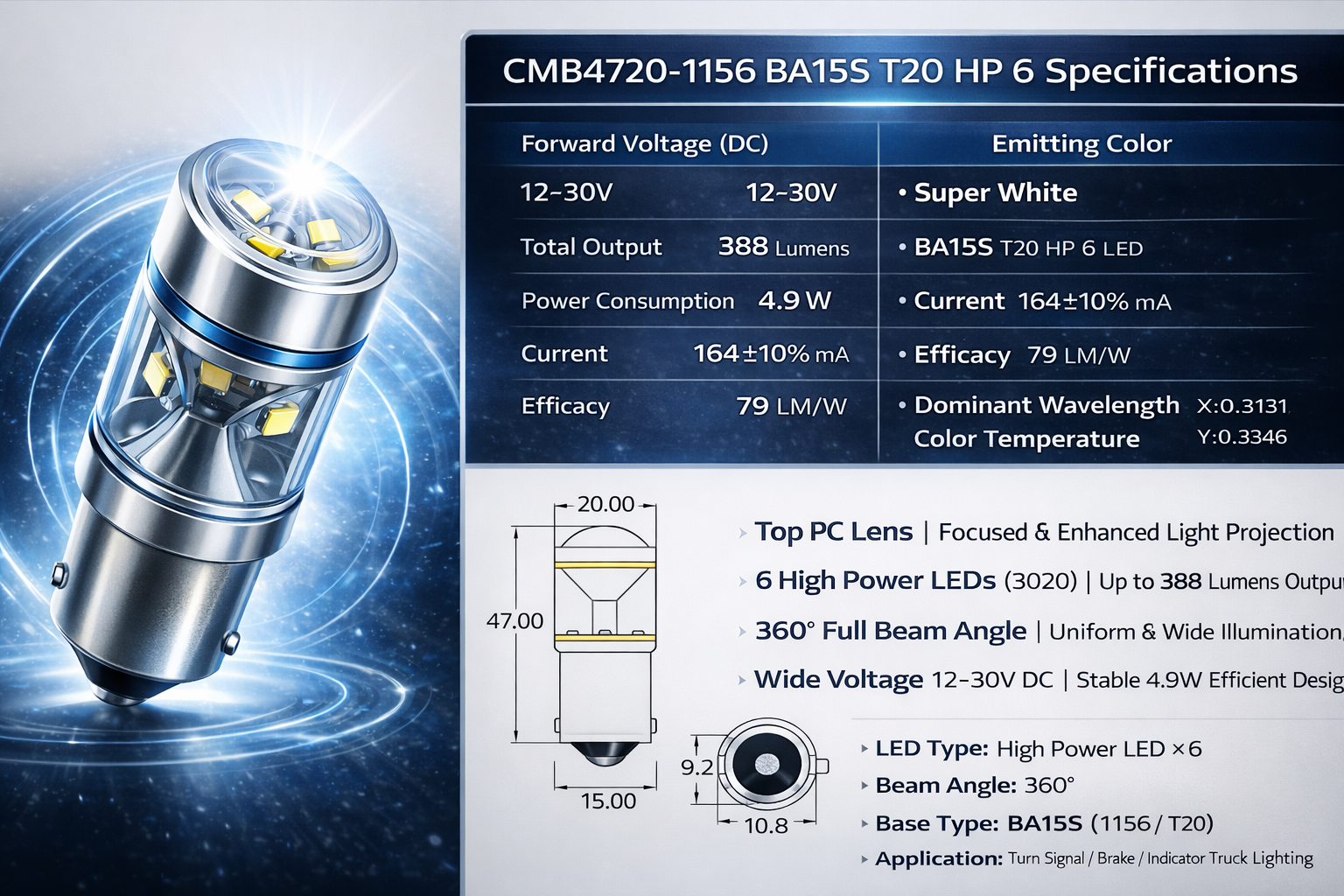

3️⃣ High Power & Stable Output ⚡

• Power Consumption: 4.9W
• Luminous Flux: Up to 388LM

Provides significantly higher brightness compared to traditional incandescent bulbs, with stable and reliable performance.

4️⃣ Dual Optical Design (Soft + Focused Light) 🌐

Innovative dual lighting system:

✔ Lower reflective light → Soft & uniform illumination
✔ Upper lens-focused light → Enhanced brightness & penetration

👉 Balanced output for both visibility and comfort

5️⃣ Durable PC Protective Housing 🛡️

The outer structure is protected by a PC lampshade housing:

✔ Impact-resistant
✔ Anti-vibration
✔ Enhanced structural strength

👉 Suitable for rugged commercial vehicle environments

6️⃣ Optimized Heat Dissipation 🧊

• Aluminum PCB + aluminum housing
• Enhanced thermal path design

Ensures:
✔ Lower operating temperature
✔ Consistent brightness
✔ Long-term durability

7️⃣ Strong Vibration Resistance 🚛

Full aluminum structural design provides:

✔ High mechanical strength
✔ Excellent resistance to shock and vibration

👉 Perfect for truck and heavy-duty applications

8️⃣ Wide Voltage Design 🌍

Supports 10–30V DC, suitable for:

• Passenger vehicles
• Trucks & buses (24V systems)
• Commercial & industrial vehicles

👉 Stable performance under voltage fluctuations

9️⃣ 360° Wide Beam Output 🌐

• Full-angle illumination design
• Eliminates dark spots
• Enhances safety and visibility

🚗 Applications

Ideal for:

• Turn Signal Lights
• Brake Lights
• Tail / Running Lights
• Reverse Lights
• Indicator & Position Lights

🔌 Socket Type

1156 – BA15S Base

🌈 Color Options

Available in:

• White
• Warm White
• Red
• Amber
• Lemon Yellow
• Green
• Blue
• Custom OEM Colors

💡 Key Advantages

✔ 388LM High Brightness Output
✔ 360° Full Beam Angle
✔ Dual Optical System (Reflective + Focused Lens)
✔ Aluminum PCB Thermal Design
✔ 10–30V Wide Voltage Compatibility
✔ Engineered for 24V Commercial Vehicles

⚠️ Installation Note

When replacing incandescent bulbs with high-power LEDs, hyper-flashing may occur.
A load resistor is recommended if necessary.

📞 OEM / Inquiry

We are committed to providing solutions that meet your exact requirements.
Feel free to contact us for OEM / ODM customization.
