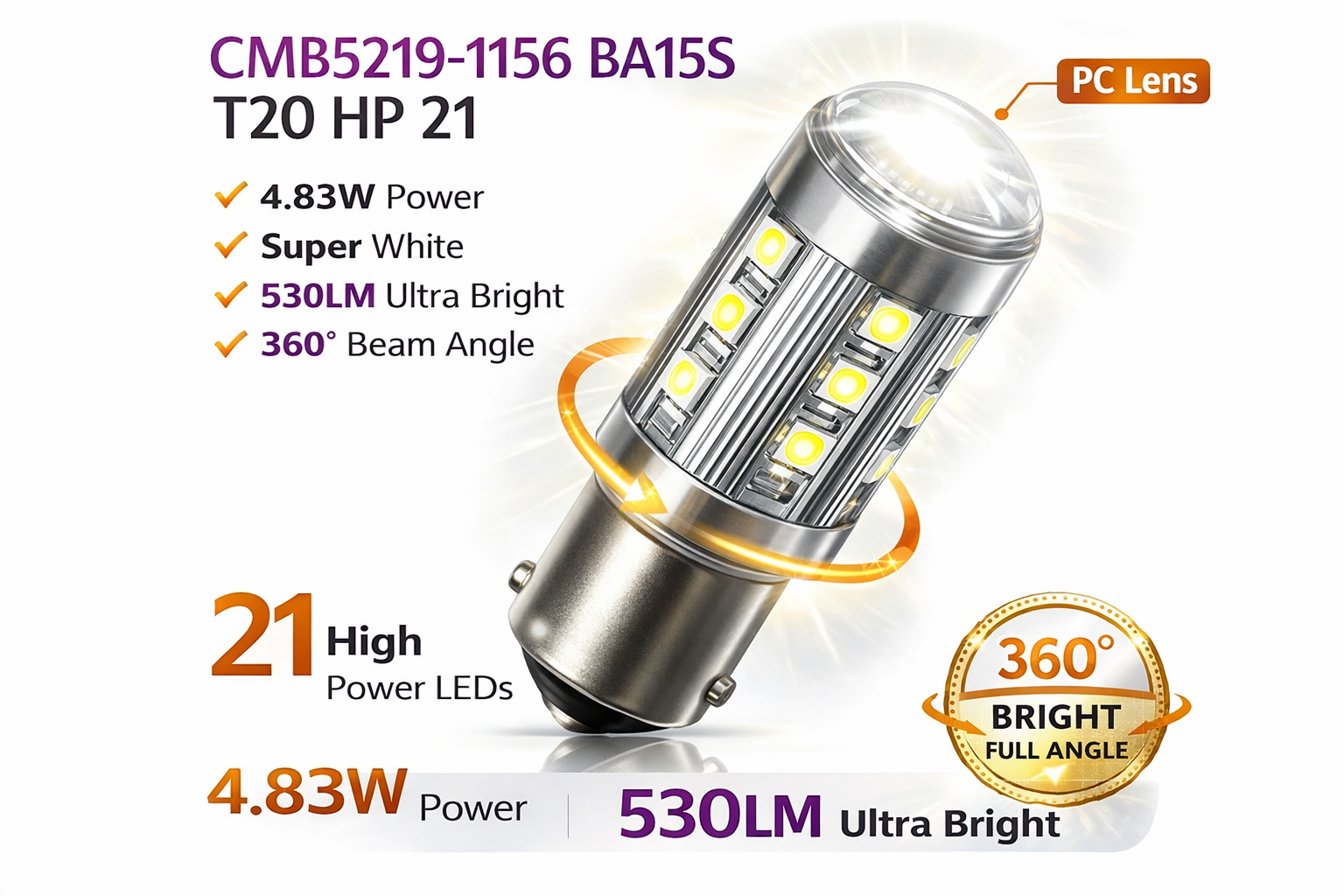

🔧 CMB5219-1156 BA15S T20 HP 21

High Power LED | 530LM | 360° Output | Engineered for 24V Commercial Vehicles

🔷 Product Features

1️⃣ Advanced Thermal Structure 🔥

Engineered with a flexible PCB thermally pressed onto an alloy metal plate,
tightly bonded to an aluminum module and enclosed within a full aluminum housing.

This multi-layer structure ensures:

• Efficient heat transfer from LED chips
• Superior heat dissipation performance
• Stable output under continuous operation
• Extended service life

👉 Designed for heavy-duty & high-temperature environments

2️⃣ Focused PC Lens Design 💡

Equipped with a top-mounted PC optical lens:

• Concentrated light projection
• Higher luminous intensity
• Enhanced visibility for signaling applications

3️⃣ High Power & Stable Output ⚡

• Power Consumption: 4.83W
• Luminous Flux: Up to 530LM

Delivers significantly higher brightness than traditional bulbs with stable performance.

4️⃣ Wide Voltage Design 🌍

Supports 10–30V DC, suitable for:

• Passenger vehicles
• Trucks & buses (24V systems)
• Commercial & industrial vehicles

👉 Reliable under fluctuating voltage conditions

5️⃣ Optimized Heat Dissipation 🧊

• Full aluminum housing
• Enhanced thermal path design

Ensures:

• Lower operating temperature
• Consistent light output
• Long-term durability

6️⃣ Strong Vibration Resistance 🚛

Integrated aluminum structure provides:

• High mechanical stability
• Excellent shock & vibration resistance

👉 Perfect for heavy-duty truck applications

7️⃣ 360° Wide Beam Output 🌐

• Full-angle illumination design
• Eliminates dark spots
• Improves visibility & safety

8️⃣ Wide Range of Applications

Ideal for:

• Turn Signal Lights
• Brake Lights
• Tail / Running Lights
• Reverse Lights
• Indicator & Position Lights

9️⃣ Socket Type

• 1156 – BA15S Base

🌈 Color Options

Available in:

• White
• Warm White
• Red
• Amber
• Lemon Yellow
• Green
• Blue
• Custom Colors (OEM available)

💡 Key Advantages

✔ 530LM Ultra High Brightness
✔ 360° Full Beam Output
✔ Advanced Thermal Design (Flexible PCB + Aluminum Module)
✔ 10–30V Wide Voltage Compatibility
✔ Engineered for 24V Commercial Vehicles

⚠️ Installation Note

When replacing incandescent bulbs with high-power LEDs, hyper-flashing may occur.
A load resistor is recommended for proper operation.

🛒 Purchase Reminder

Please confirm before installation:

• Base type (BA15S)

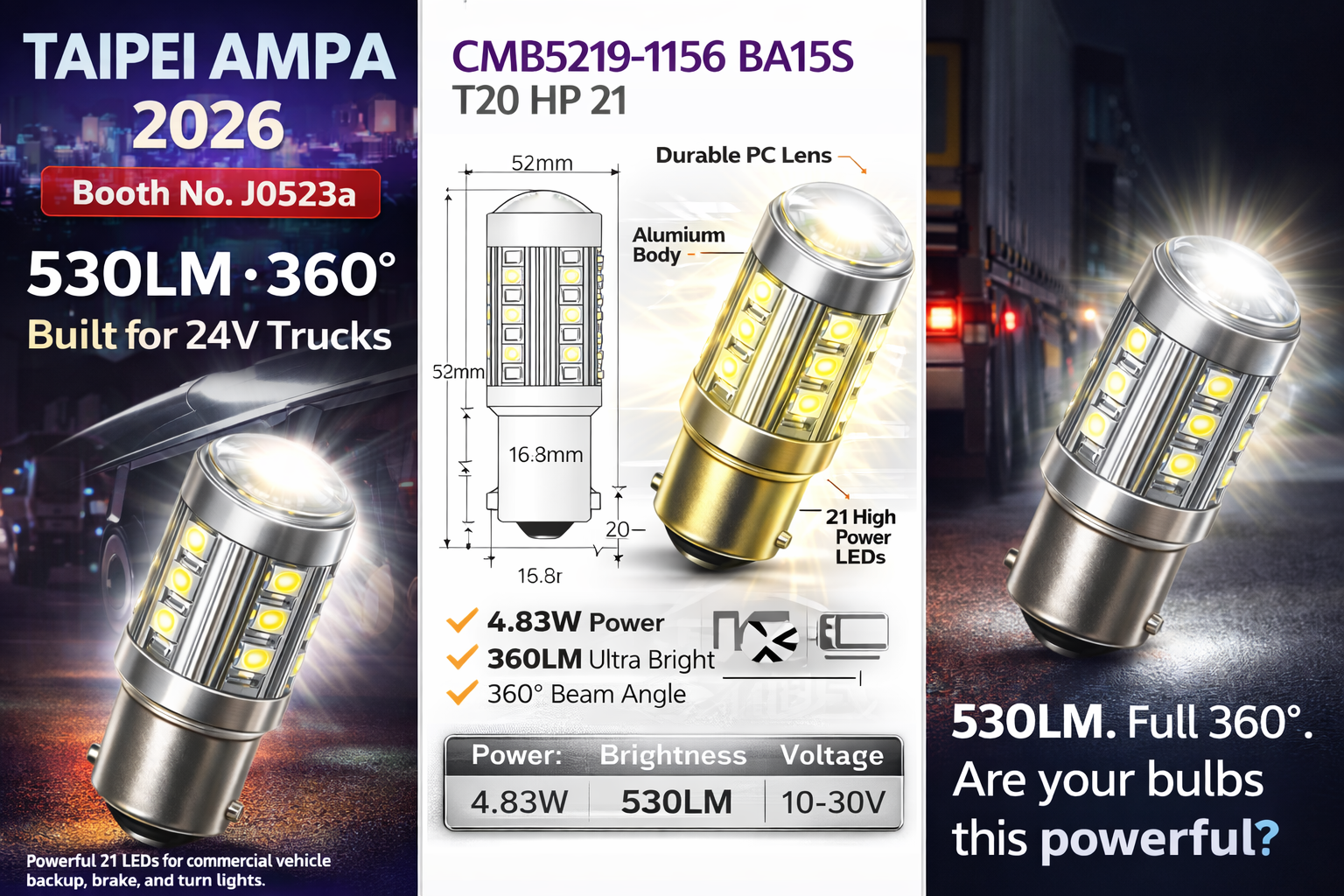

• Product dimensions
