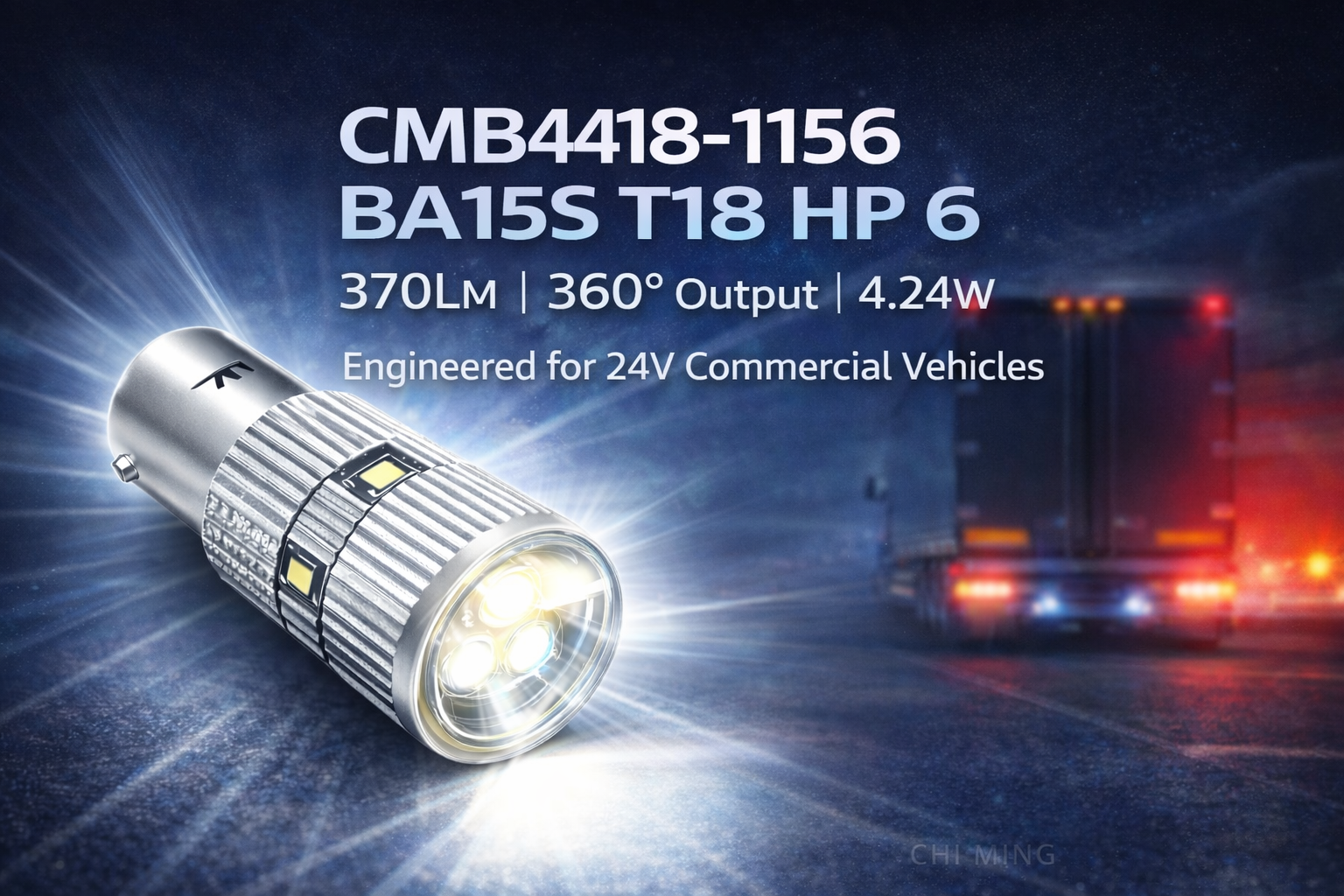

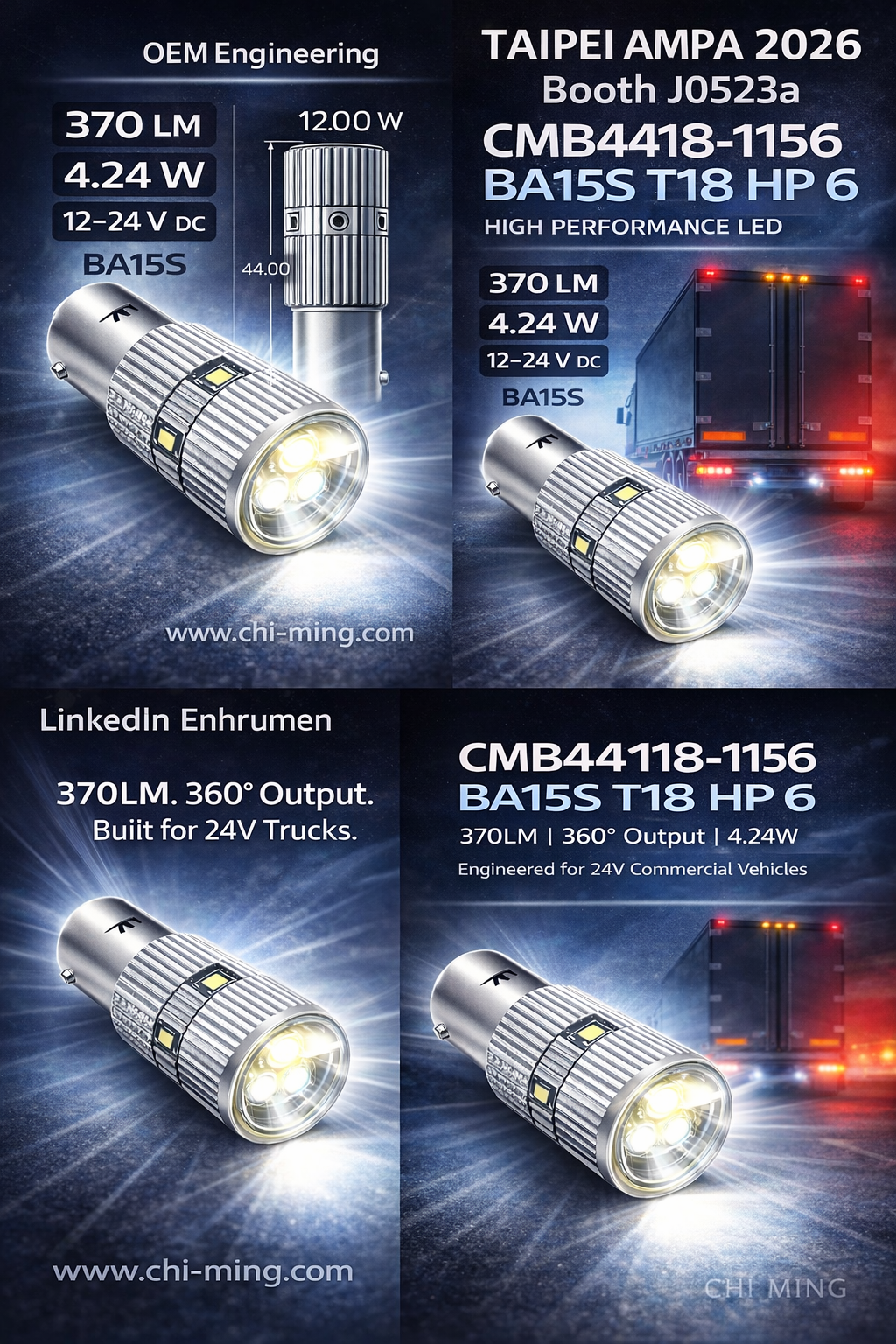

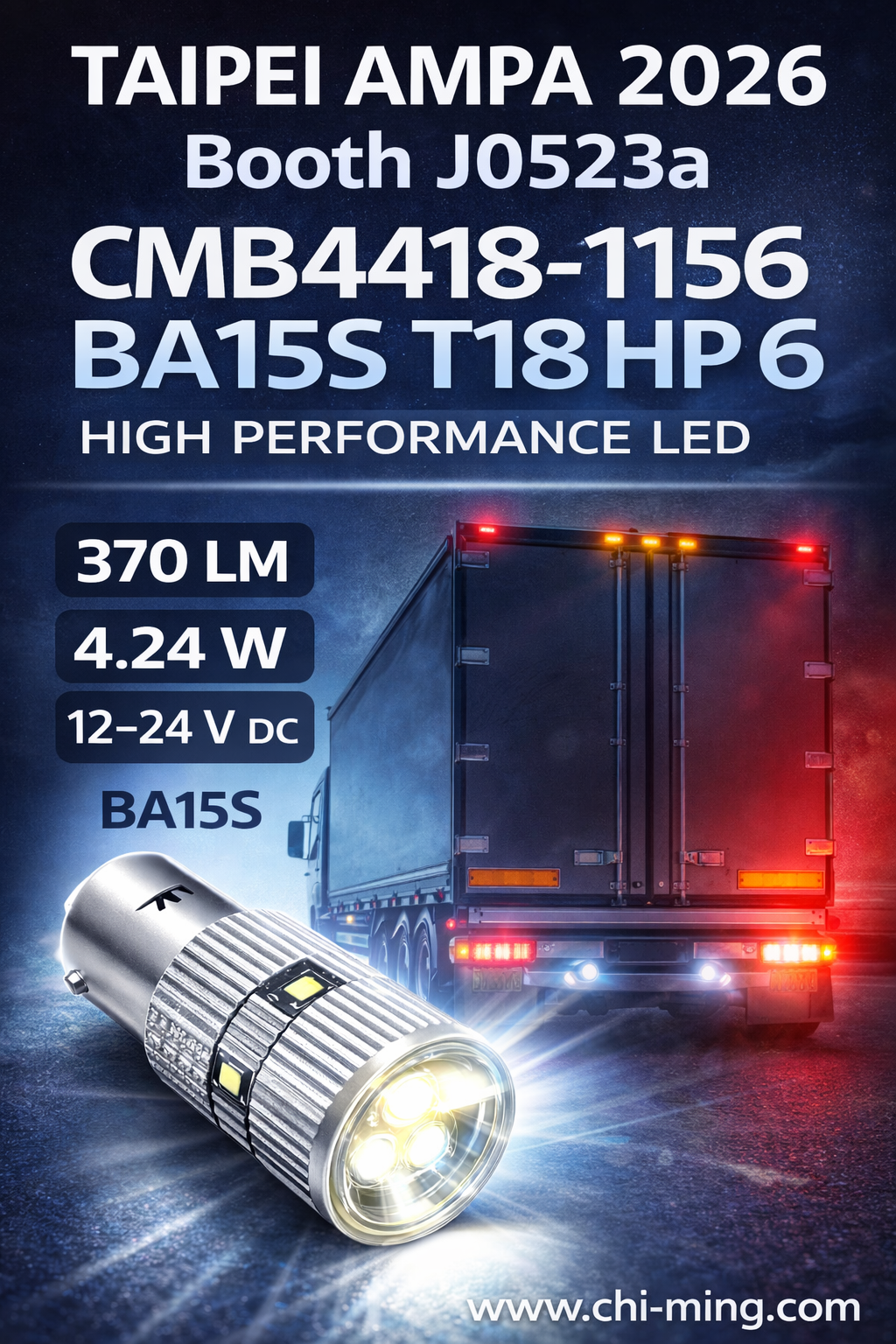

🔧 CMB4418-1156 BA15S T18 HP 6

High Power LED | 360° Output | Engineered for 24V Commercial Vehicles

🔷 Product Features

1️⃣ Advanced Thermal Structure

Designed with a flexible PCB thermally pressed onto an alloy metal plate, tightly bonded to an aluminum module and secured by an outer aluminum housing.

This multi-layer thermal structure ensures:

• Efficient heat transfer from LED chips
• Superior heat dissipation performance
• Stable light output under continuous operation
• Extended product lifespan

👉 Engineered for heavy-duty and high-temperature environments

2️⃣ Focused PC Lens Design

Equipped with a top PC optical lens, allowing:

• More concentrated light projection
• Enhanced brightness intensity
• Improved visibility for signal applications

3️⃣ High Power & Stable Output

• Power Consumption: 4.24W
• Luminous Flux: Up to 370LM

Delivers high brightness with stable output, significantly outperforming traditional incandescent bulbs.

4️⃣ Wide Voltage Design

Supports 10–30V DC, making it ideal for:

• Passenger vehicles
• Trucks & buses (24V systems)
• Commercial and industrial applications

👉 Reliable performance across varying voltage conditions

5️⃣ Superior Heat Dissipation

• Aluminum housing structure
• Optimized thermal path design

Ensures:

• Lower operating temperature
• Consistent luminous performance
• Long-term reliability

6️⃣ Strong Vibration Resistance

The integrated aluminum structure provides:

• Excellent mechanical stability
• High resistance to vibration and shock

👉 Perfect for trucks and heavy-duty vehicles

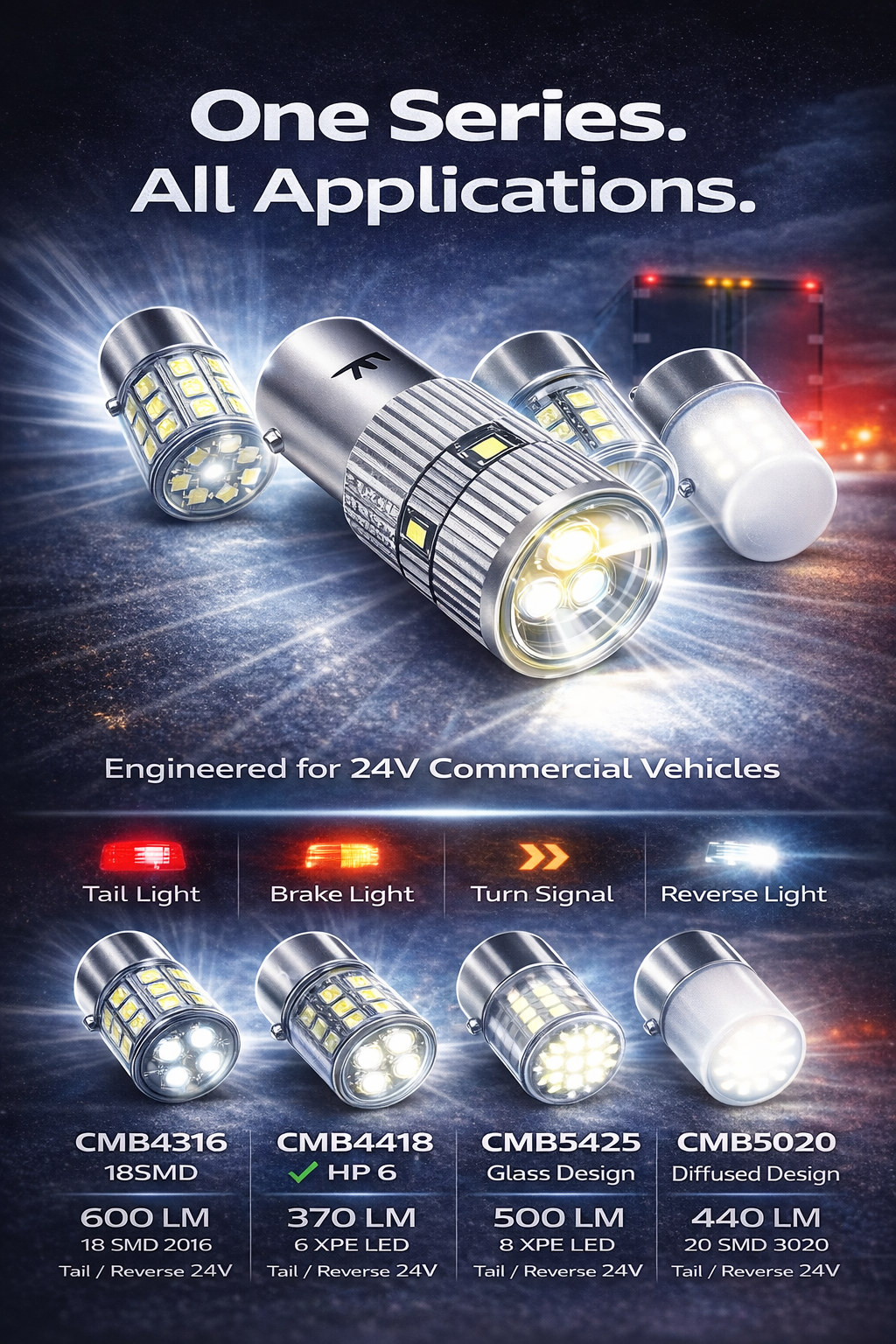

7️⃣ Wide Range of Applications

Suitable for:

• Turn Signal Lights
• Brake Lights
• Tail / Running Lights
• Reverse Lights
• Indicator & Position Lights

8️⃣ Socket Type

1156 – BA15S Base

💡 Key Advantage Summary

✔ 370LM High Brightness
✔ 360° Wide Output
✔ Advanced Thermal Design
✔ 10–30V Wide Voltage
✔ Built for 24V Commercial Vehicles

⚠️ Installation Note

When replacing incandescent bulbs with high-power LEDs, hyper-flashing may occur.
A load resistor is recommended to ensure normal flashing operation.

🛒 Purchase Reminder

Please confirm:

• Base type (BA15S)

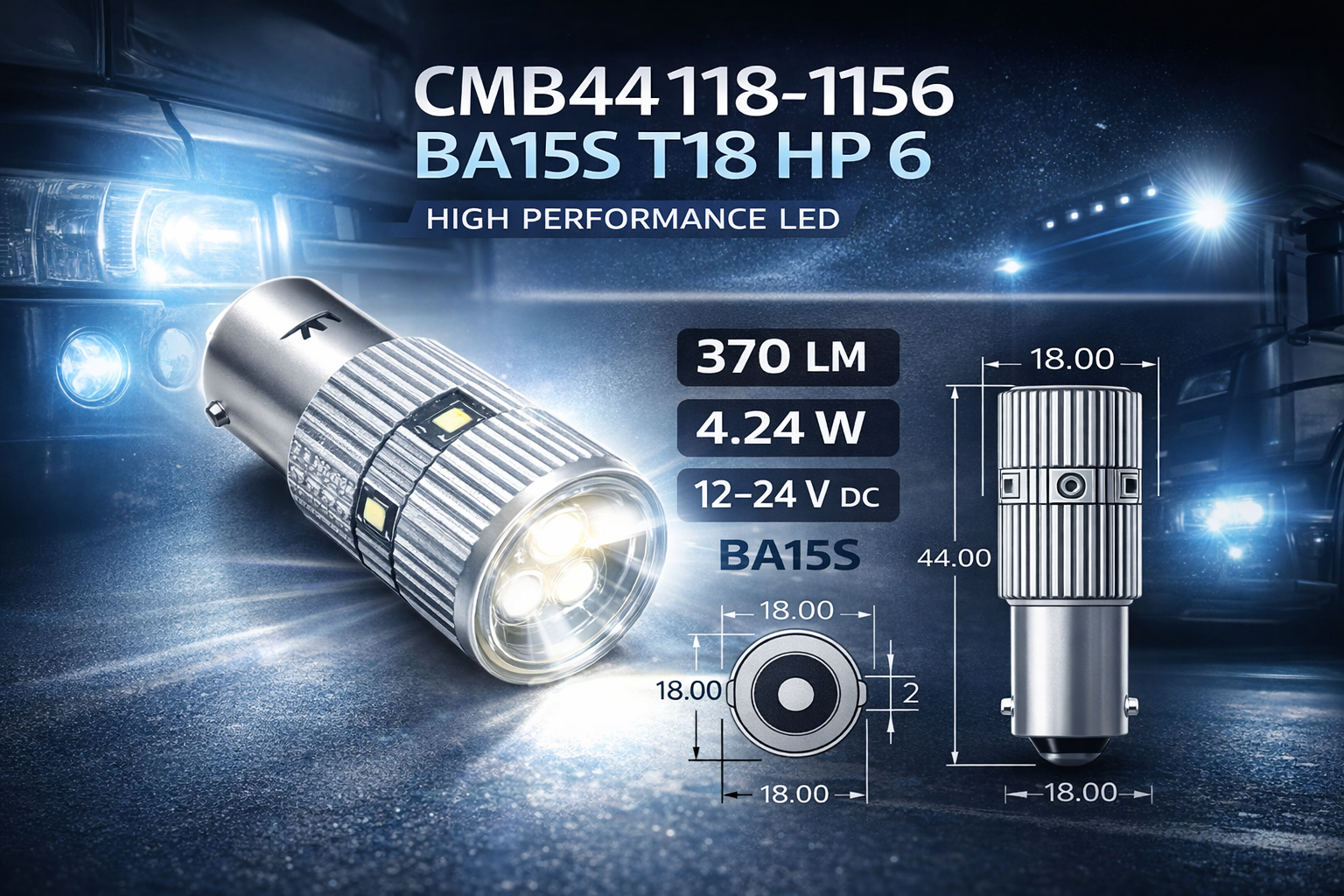

• Product dimensions

before installation.
