🔧 L.E.D. CMB5020-1156 BA15S T20 HP 3

Wide Beam • PC Diffused Lens • High Reliability

🔷 Product Overview

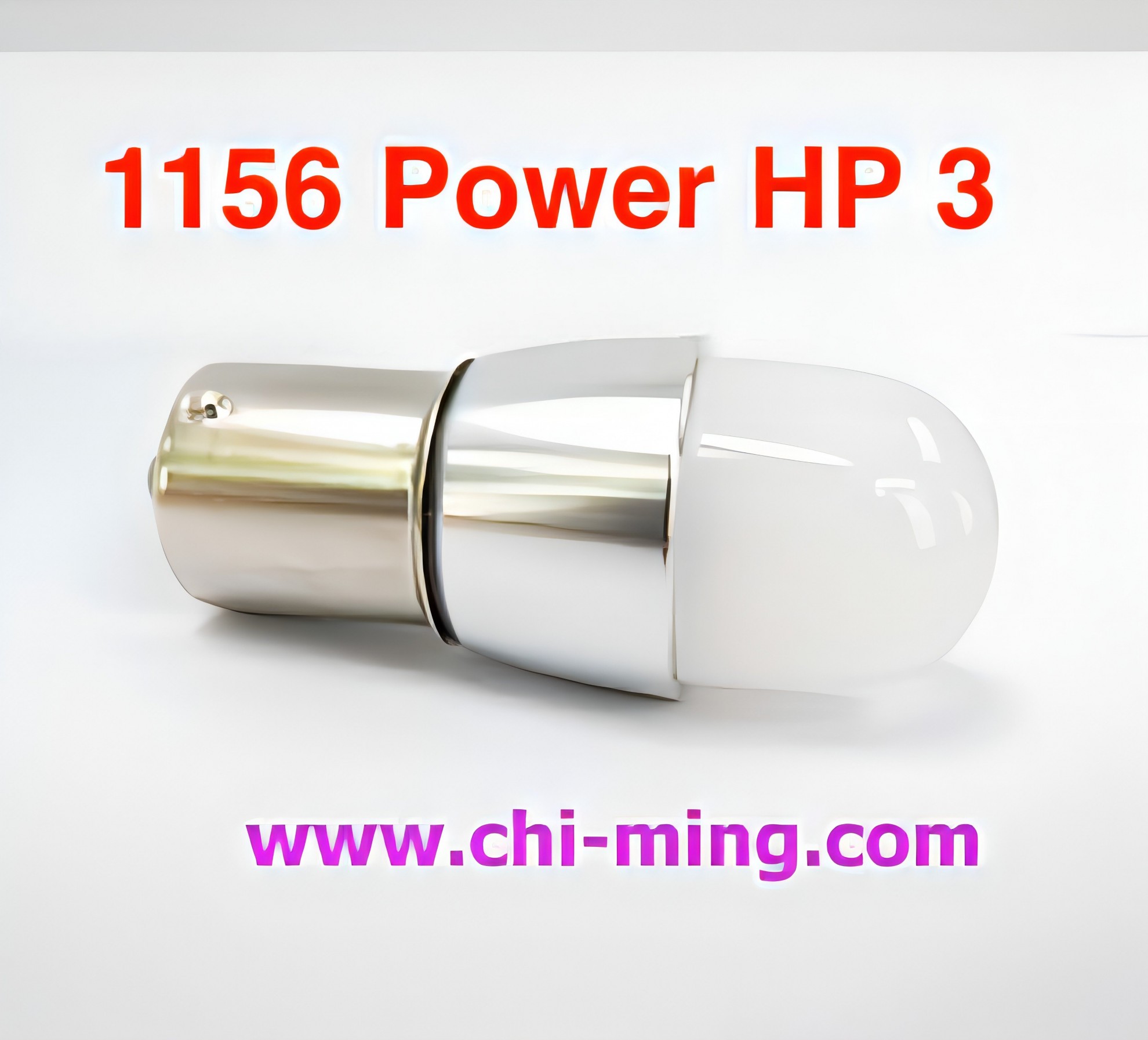

The CMB5020-1156 BA15S T20 HP 3 is a high-reliability LED lighting solution designed for automotive and commercial vehicle applications.

Featuring a frosted PC diffused lens, this model delivers a soft, uniform light output with a wide 180° beam angle, ensuring improved visibility and enhanced lighting performance.

Engineered with robust internal structure and optimized thermal design, it provides stable operation, excellent durability, and long service life even under demanding environments.

💡 PC Diffused Lens Design

Equipped with a high-quality frosted PC housing:

• Soft and uniform light distribution
• Wide beam angle up to 180° illumination
• Reduced glare with improved visual comfort
• Impact-resistant and durable structure

⚡ Wide Voltage Design

• Supports 10–30V DC systems
• Suitable for both passenger vehicles and 24V commercial trucks
• Stable performance under voltage fluctuation

🔥 High Reliability Structure

• LED modules fully assembled using high-temperature soldering process
• Strong resistance to vibration and mechanical stress
• PCB tightly bonded with aluminum heat sink using high thermal conductivity adhesive
• Excellent heat dissipation ensures long lifespan up to 50,000 hours

🌈 Multiple Color Options

Available in multiple emitting colors:

• White
• Red
• Amber
• Green
• Blue

✔ Custom colors can also be developed based on customer requirements for specific applications.

🚗 Wide Range of Applications

Designed for multiple automotive lighting uses:

• Tail Lights
• Brake Lights
• Turn Signal Lights
• Reverse Lights
• Side Marker Lights
• Trailer & Commercial Vehicle Lighting

⚙️ Performance Specifications

• Power Consumption: 2.26W
• Brightness: Up to 180 Lumens
• Beam Angle: 180° Wide Beam
• Color: Multi-color Options Available
• Base Type: BA15S (1156)

🔧 Easy Installation

• Standard BA15S base (1156 compatible)
• Direct replacement for conventional bulbs
• Plug-and-play installation

🛡️ Durability & Stability

• Higher brightness than traditional bulbs
• Stable light output over long-term use
• Designed for automotive-grade environments

⚠️ Important Notice

Please confirm bulb size and socket compatibility before purchase to ensure proper installation.
