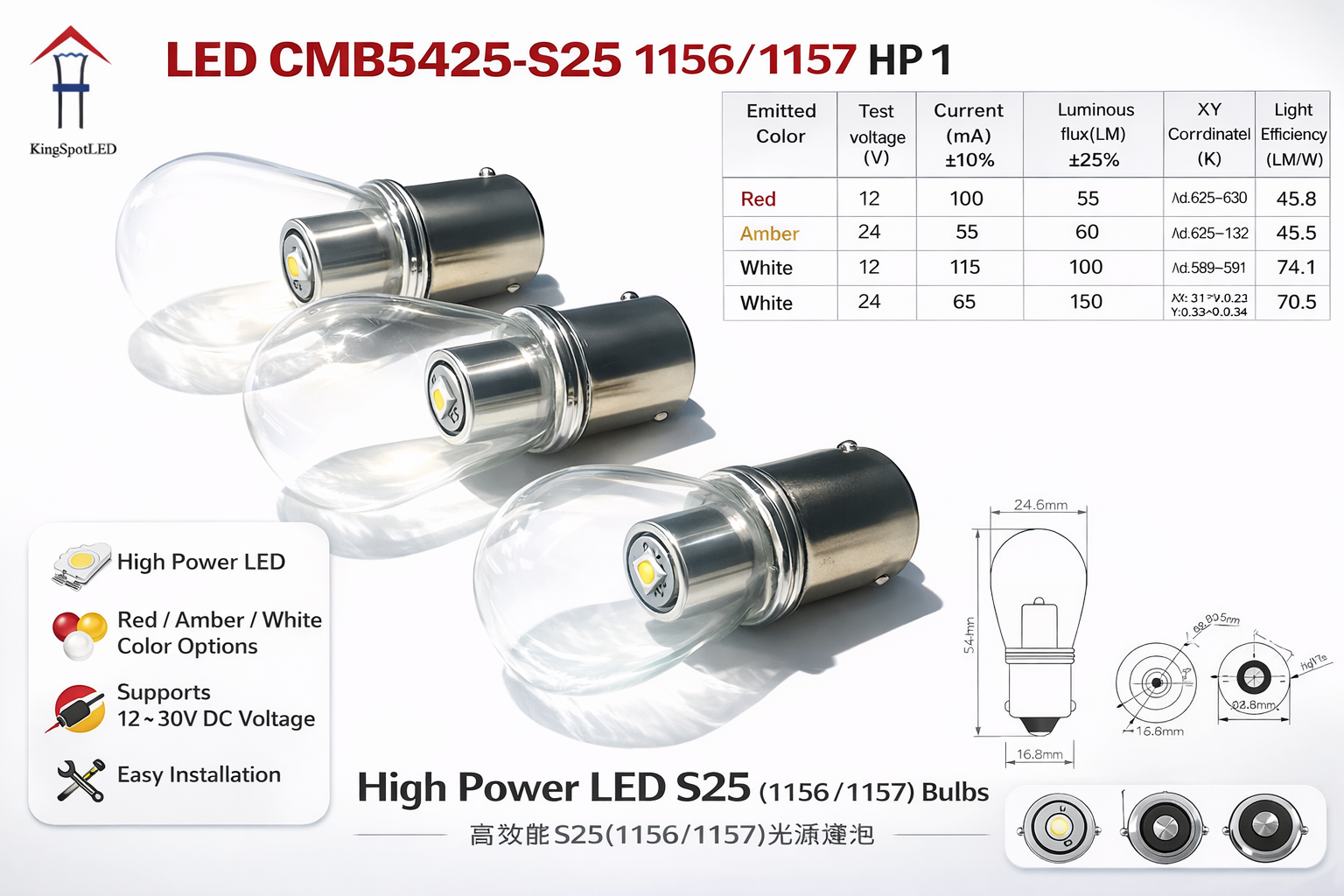

CMB5425-LED S25 1156/1157 HP 1

🔧 L.E.D. CMB5425-LED S25 1156/1157 HP 1

Reliable Performance • Glass Protection • High Cost-Performance

🔷 Product Overview

The CMB5425-LED S25 1156/1157 HP 1 is a high-reliability LED solution designed for automotive and commercial vehicle applications.

Engineered with a glass lampshade structure, this model delivers excellent heat dissipation, stable light output, and long-term durability.

With its high cost-performance ratio, this product has become a long-term, repeat-order model among global customers, proving its reliability in real-world applications.

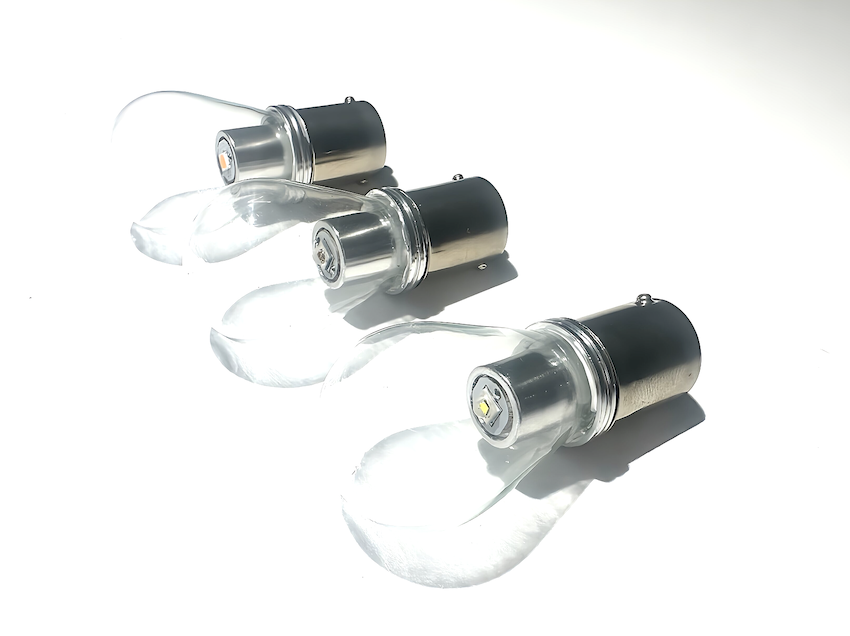

💡 Glass Lampshade Protection

Equipped with a high-transparency glass housing:

• Effectively prevents sulfide contamination
• UV-resistant – no yellowing over time
• Maintains structural stability under high temperatures
• Enhances heat dissipation for longer lifespan

⚡ Wide Voltage Design

• Supports 12–30V DC/AC
• Stable performance across passenger vehicles, trucks, and heavy-duty systems

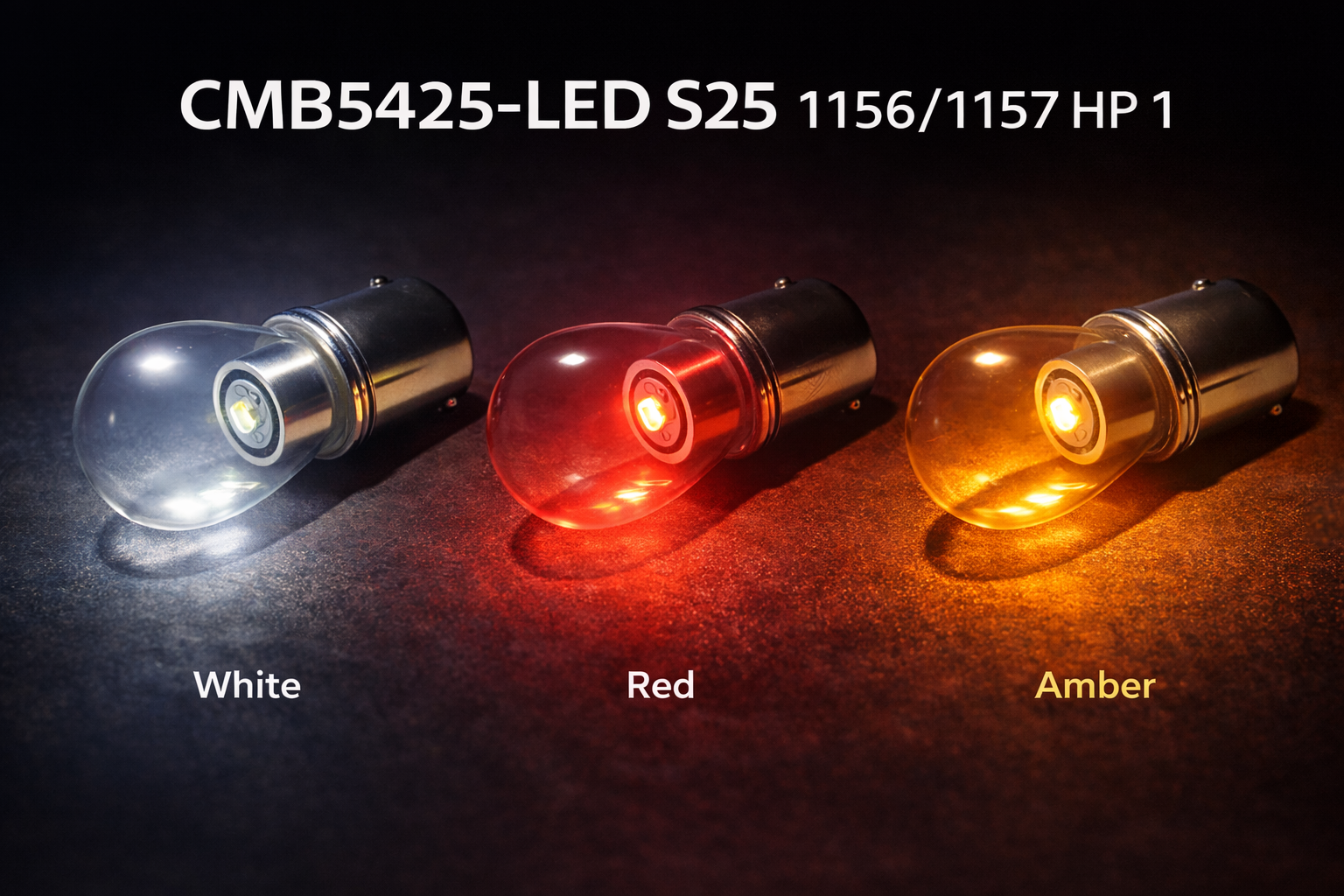

🟠 Amber LED with High-Efficiency Phosphor

• Advanced amber phosphor technology
• Higher brightness and luminous efficiency
• Consistent and stable light output

🚗 Multiple Applications

Suitable for a wide range of vehicle lighting:

• Turn Signal Lights
• Brake Lights
• Running Lights
• Daytime Running Lights (DRL)
• Reverse Lights
• Side Marker Lights
• Trailer Lights
• Emergency & Warning Lights

🔥 High Power & Efficiency

• Power Consumption: 1.56W
• Brightness: Up to 150 Lumens
• Optimized balance between brightness and energy saving

🔧 Easy Installation

• Standard S25 base (1156 / 1157 compatible)

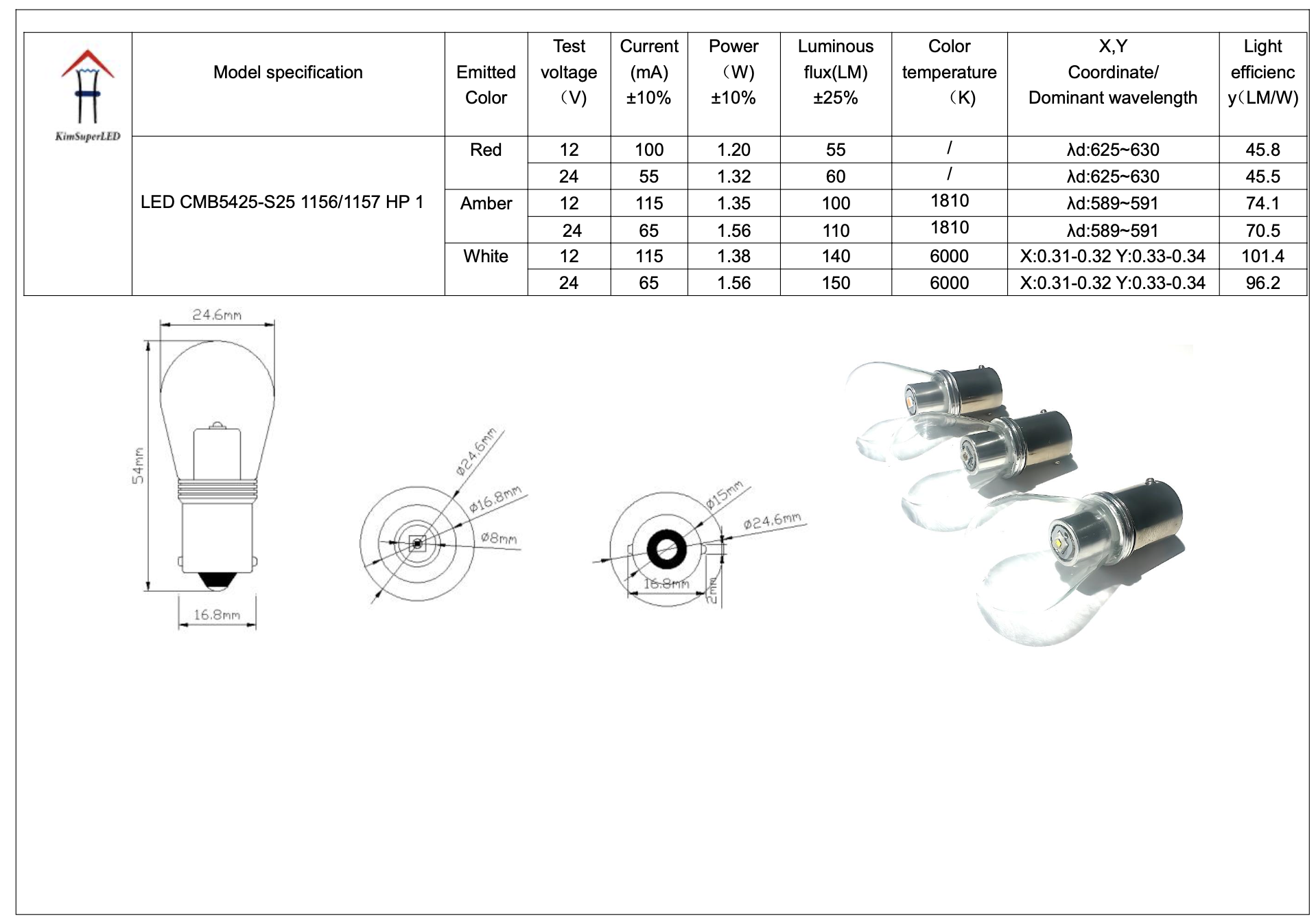

• Dimensions: Ø25mm × 54mm (±1mm)
• Direct replacement with existing sockets

🛡️ Stable & Durable

• Higher brightness than traditional bulbs
• Long lifespan with stable output
• Designed for demanding automotive environments

⚠️ Important Note

For turn signal applications, a load resistor or flasher relay may be required to prevent hyper flashing.
