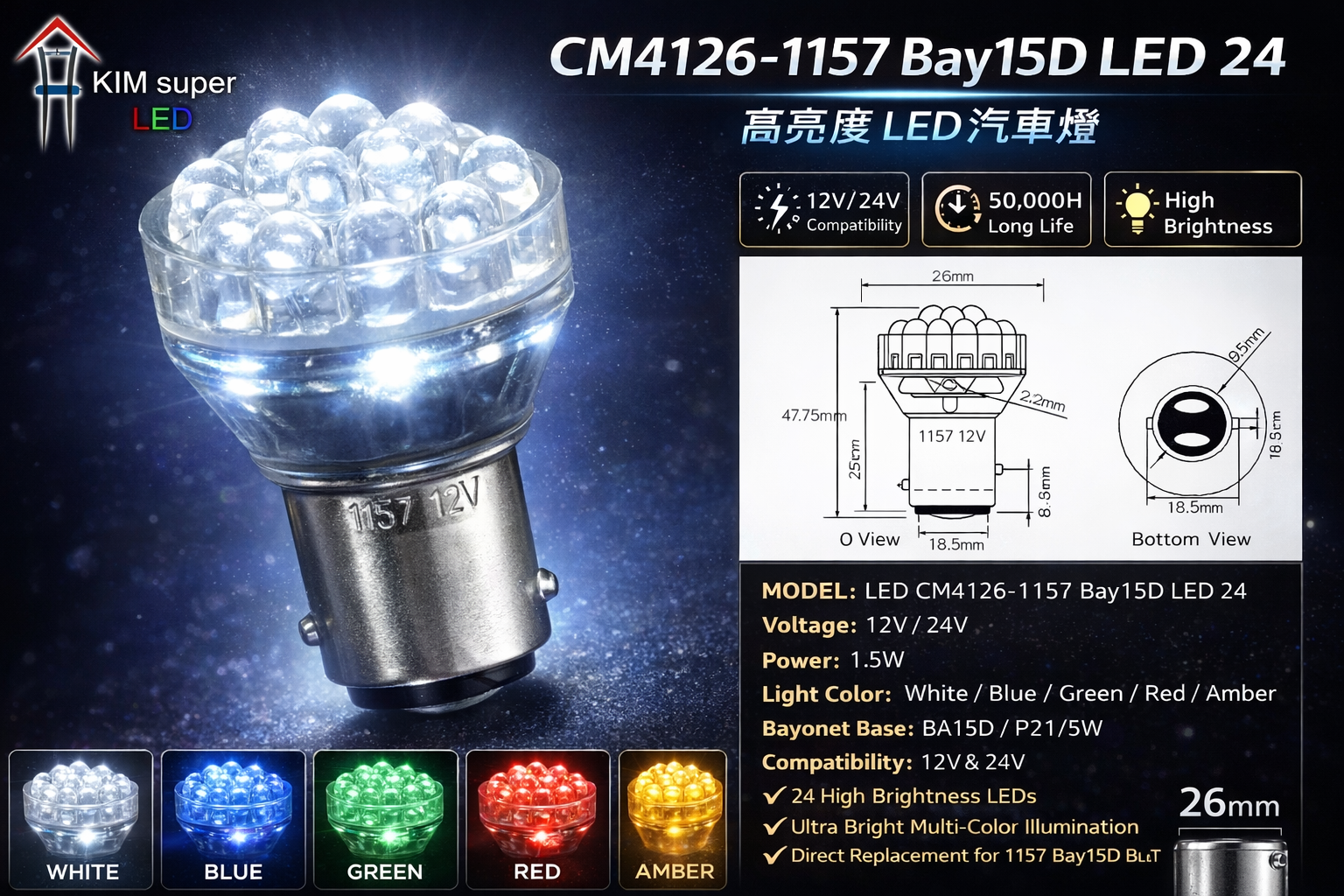

CM4126-LED 1157 Bay15D 24

High-Density 24 LED Stop / Brake Lamp

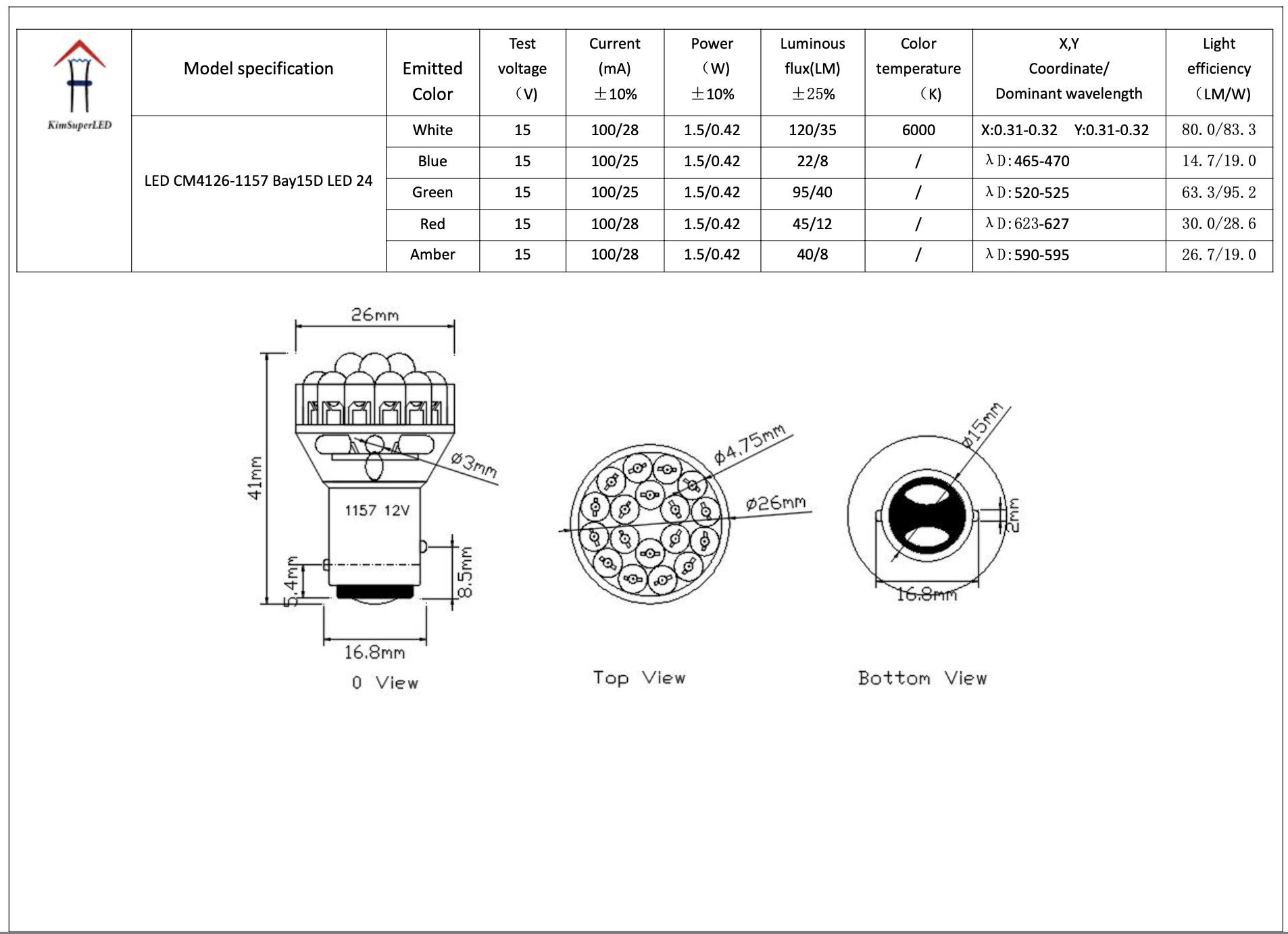

🔹 Base Specification – BAY15D Dual-Contact Design

This model uses BAY15D bayonet base with dual-contact configuration.

✔ Base Type: BAY15D (1157 Standard)
✔ Dual contact bottom design (positive terminals)
✔ Offset bayonet pins (two different heights)

📌 Pin Structure Explanation:

• Lower pin (shorter offset pin) → Tail / Position Light (Low intensity)

• Higher pin (taller offset pin) → Brake Light (High intensity)

The offset pin design prevents incorrect installation and ensures correct brake/tail light function.

⚠ Important Notice Before Purchase:
Please confirm your vehicle’s bulb socket type, base size, and pin configuration before ordering.
Socket dimensions and pin height specifications may vary depending on vehicle model and trim.

🔹 Core Technical Features

1️⃣ 24 High-Brightness LEDs – 200% Brighter

Uniform 360° light output
Up to 200% brighter than traditional incandescent bulbs

2️⃣ Dual-Layer LED Structure

Enhanced heat dissipation
Improved structural reliability
Long-term performance stability

3️⃣ 6 Side-Emitting LEDs

Wide-angle beam pattern
Improved reflector compatibility
Stronger rear visibility

4️⃣ High-Temperature PC Lens

Shock-resistant
Vibration-resistant
High heat tolerance
Stable uniform light diffusion

5️⃣ Voltage Options

Available in 12VDC or 24VDC versions
Rated voltage marked clearly on base

⚠ Exceeding rated voltage may damage the bulb.

6️⃣ Long Life Performance

Power: 1.5W
Equivalent to 21W incandescent
Lifespan: 50,000 Hours

Energy-saving and environmentally friendly design.

7️⃣ Proven Market Product

✔ Multiple color options available
✔ Custom manufacturing available
✔ Mass production for many years
✔ Highly recognized by global customers
