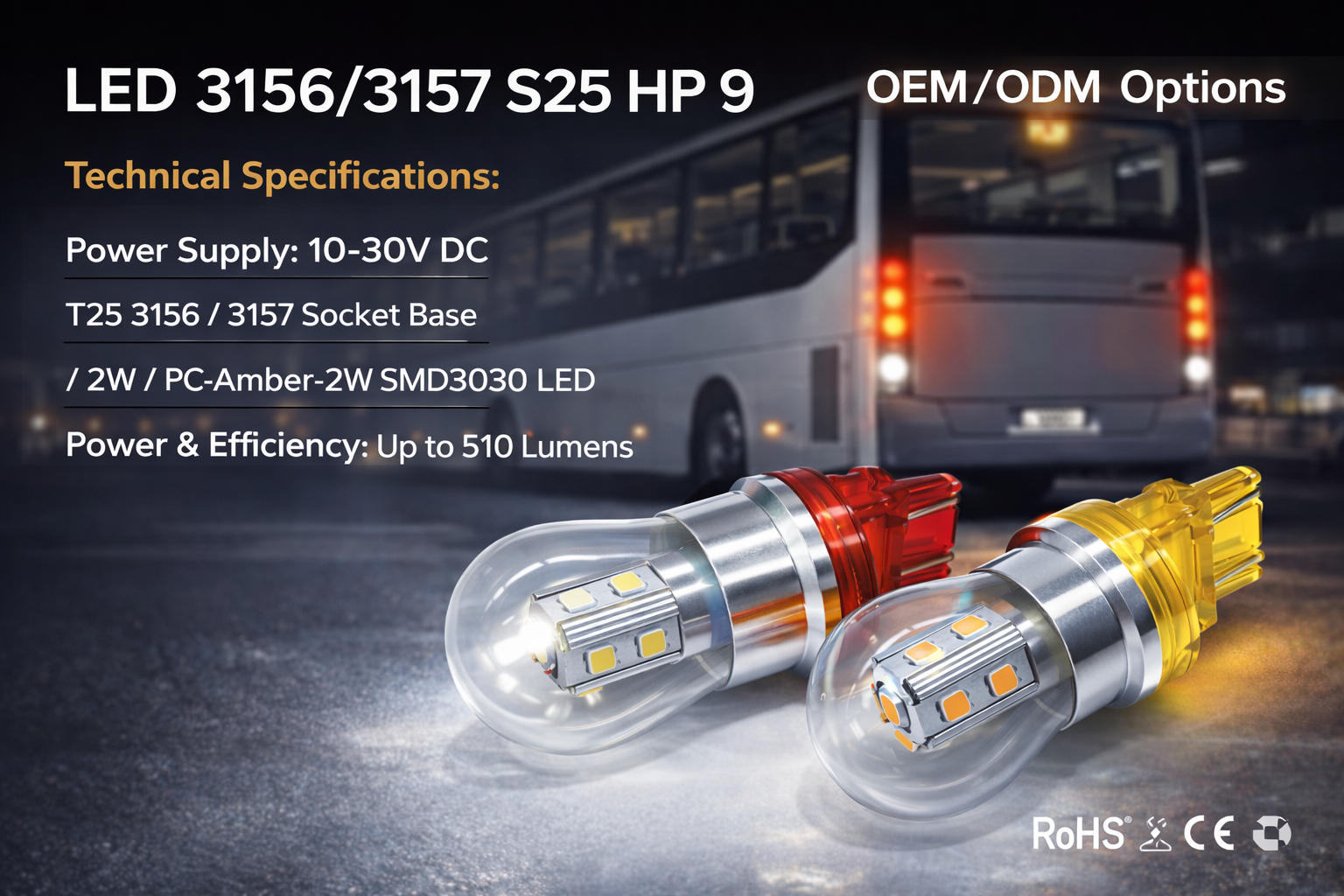

CMW6225-LED 3156/3157 S25 HP 9

🔹 Advanced Engineering Design for Commercial Vehicles

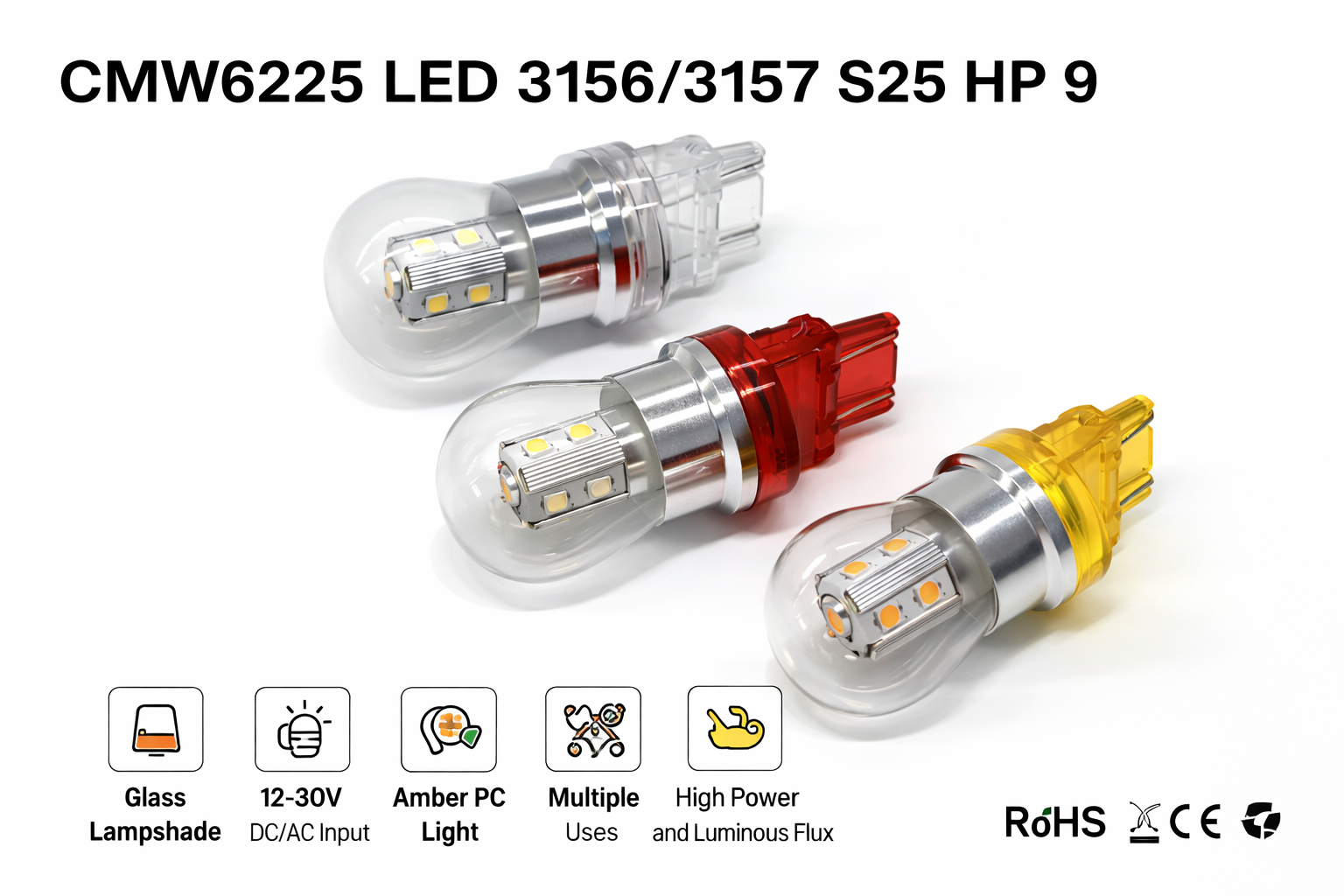

1. Glass Lampshade Construction

Equipped with a high-transparency glass bulb housing, preventing yellowing over time and eliminating sulfide-related light attenuation.
The glass structure enhances thermal dissipation efficiency, ensuring superior luminous performance and long-term optical stability.

2. Advanced Thermal Management System

Built with a flexible PCB thermally bonded to a metal alloy substrate, tightly integrated with a pure aluminum heat sink.
This structure forms a highly stable and high-output light source with excellent heat conduction efficiency.

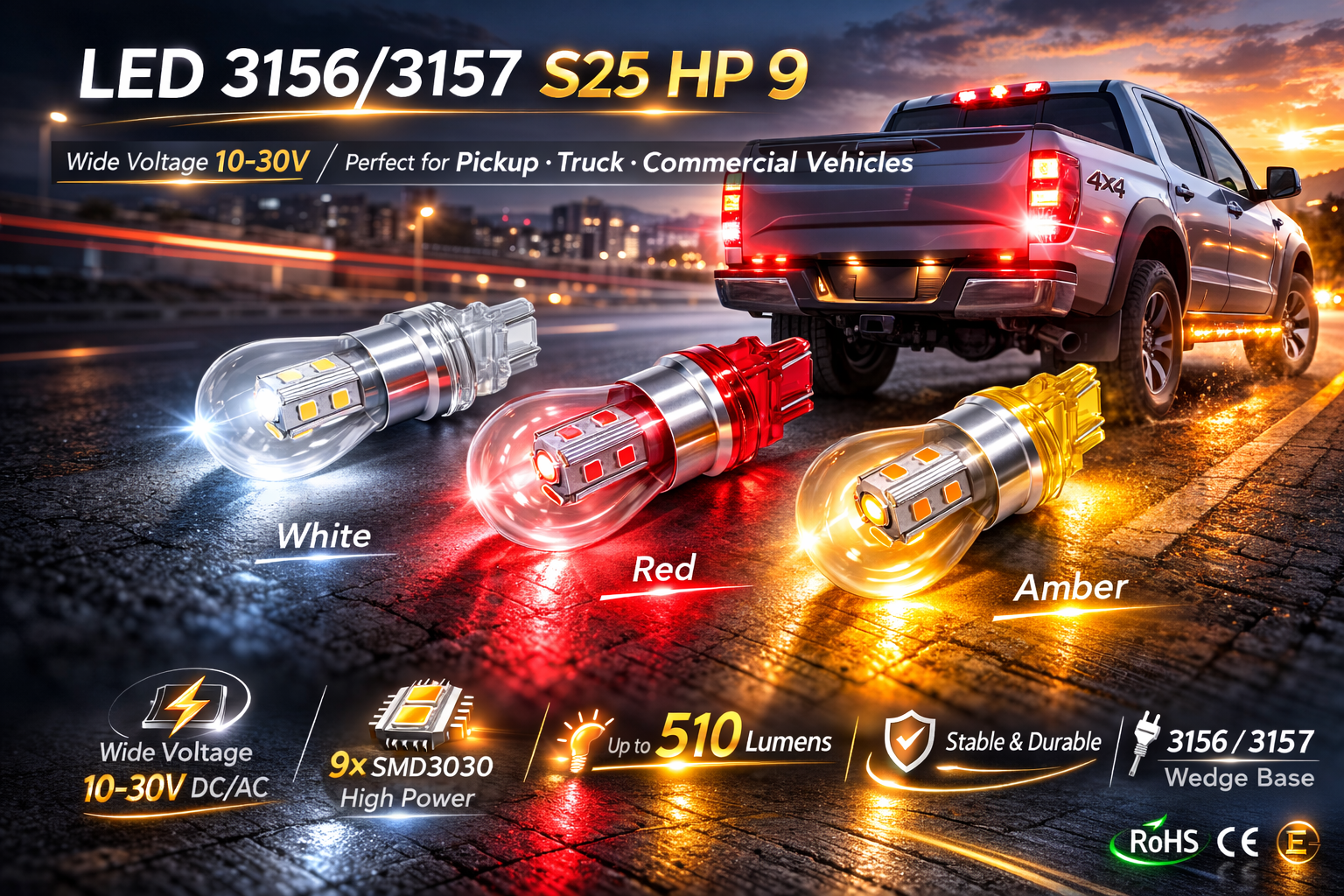

3. Wide Voltage & Protection Design

• Operating Voltage: 10–30VDC

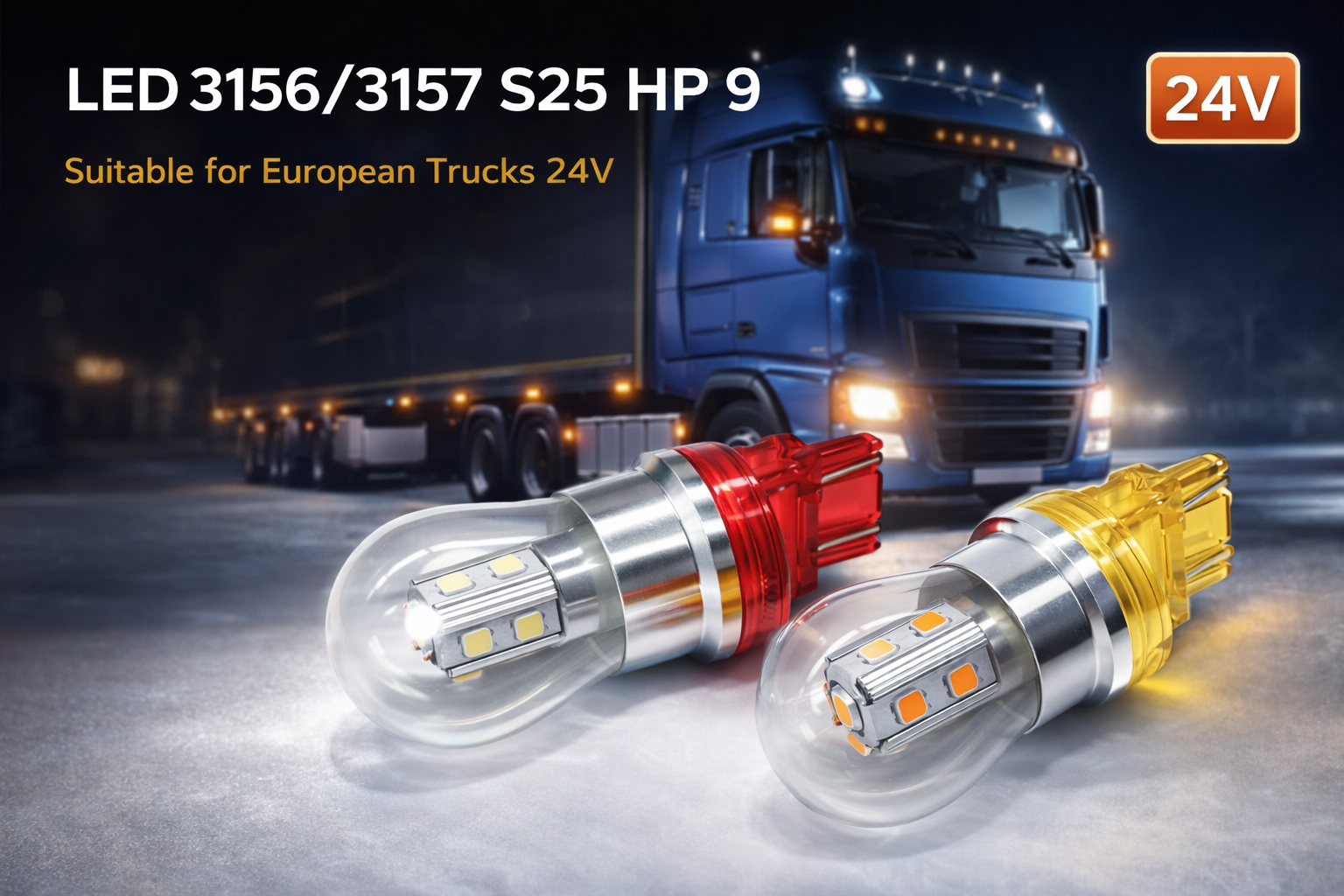

• Suitable for 12V / 24V vehicle systems

• Built-in lightning protection design

• Anti-surge circuit protection

• Stable output under voltage fluctuation

4. EMC & Reliability Tested

• Passed EMC interference testing

• Anti-vibration design

• High-temperature resistant structure

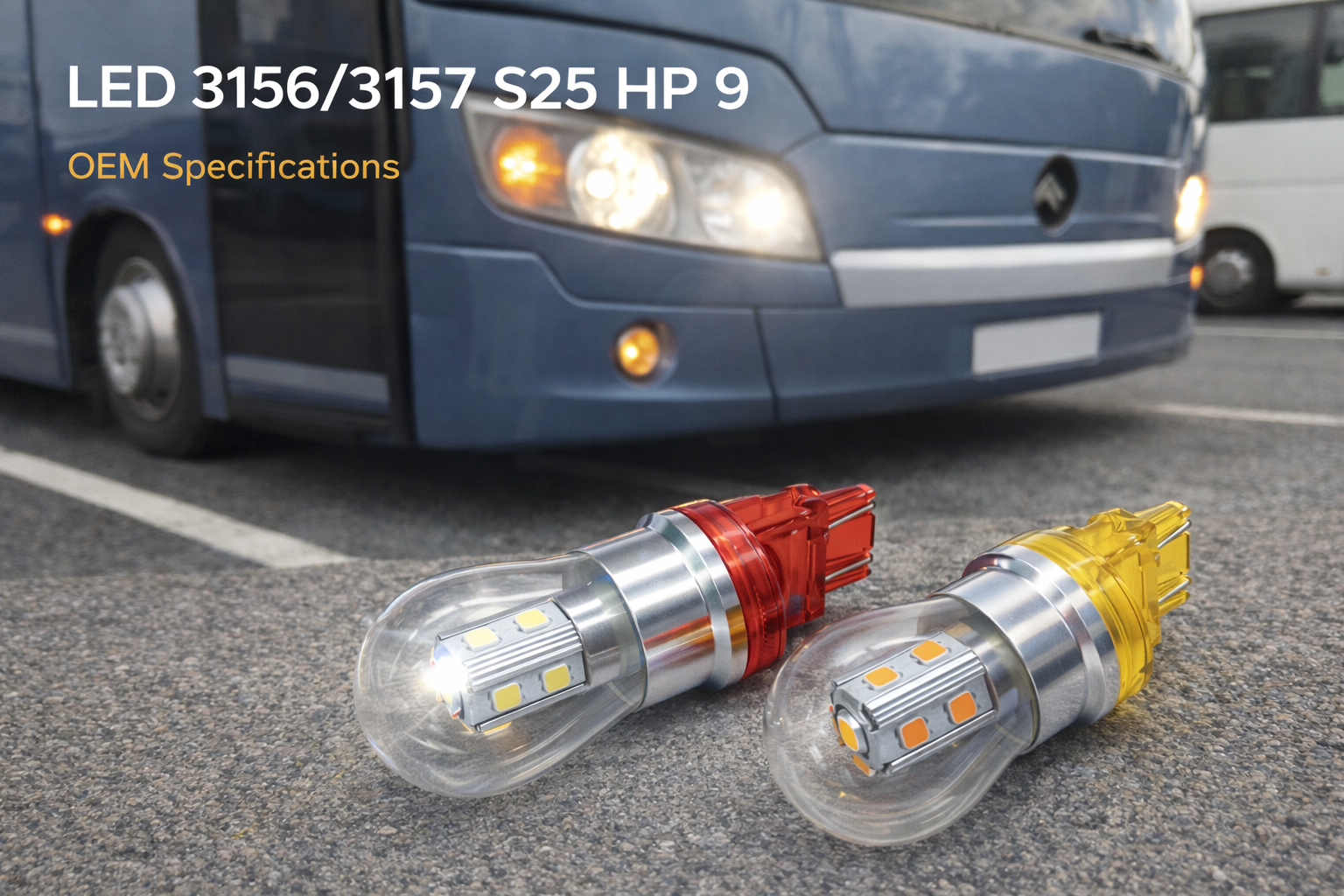

• Engineered for commercial and heavy-duty vehicle environments

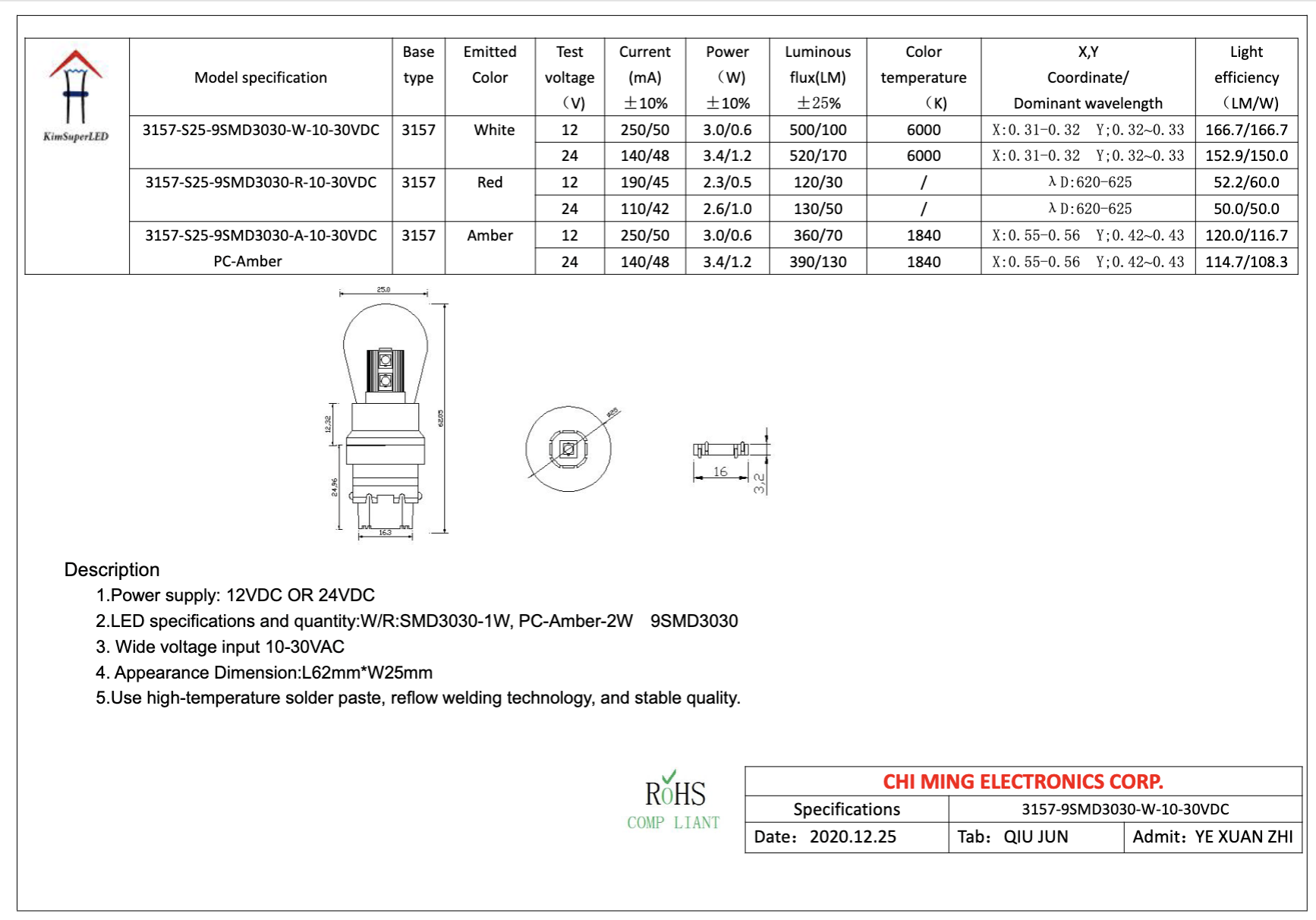

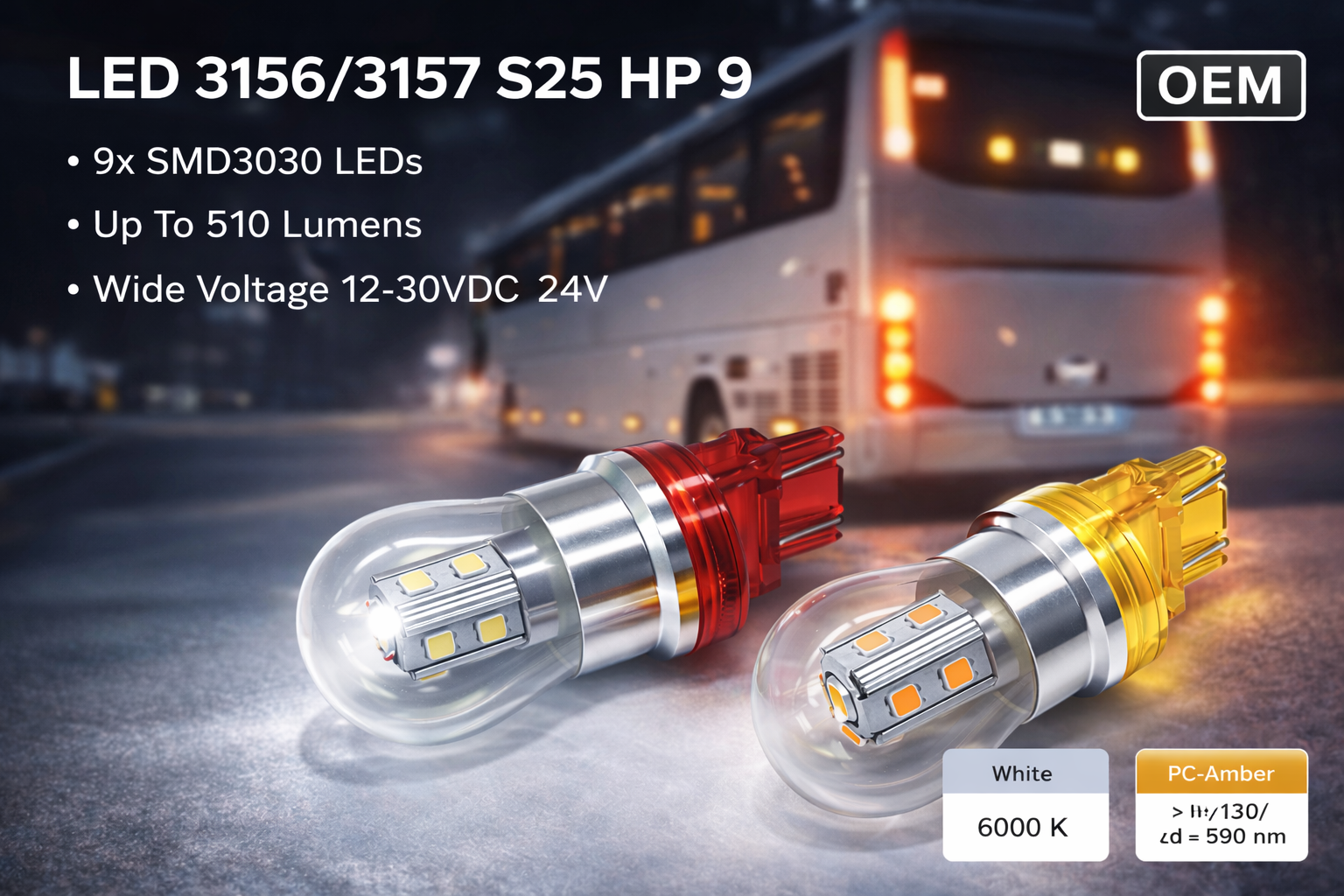

5. High Power & Efficiency

• Power Consumption: 3.4W

• Luminous Output: Up to 510 Lumens

• 9x SMD3030 High-Power LEDs
  Delivers superior brightness with optimized luminous efficiency.

6. PC Amber Turn Signal Option

Turn signal version uses PC-Amber material, enhancing amber light purity and luminous efficiency for improved signaling visibility.

7. Applications

Suitable for:

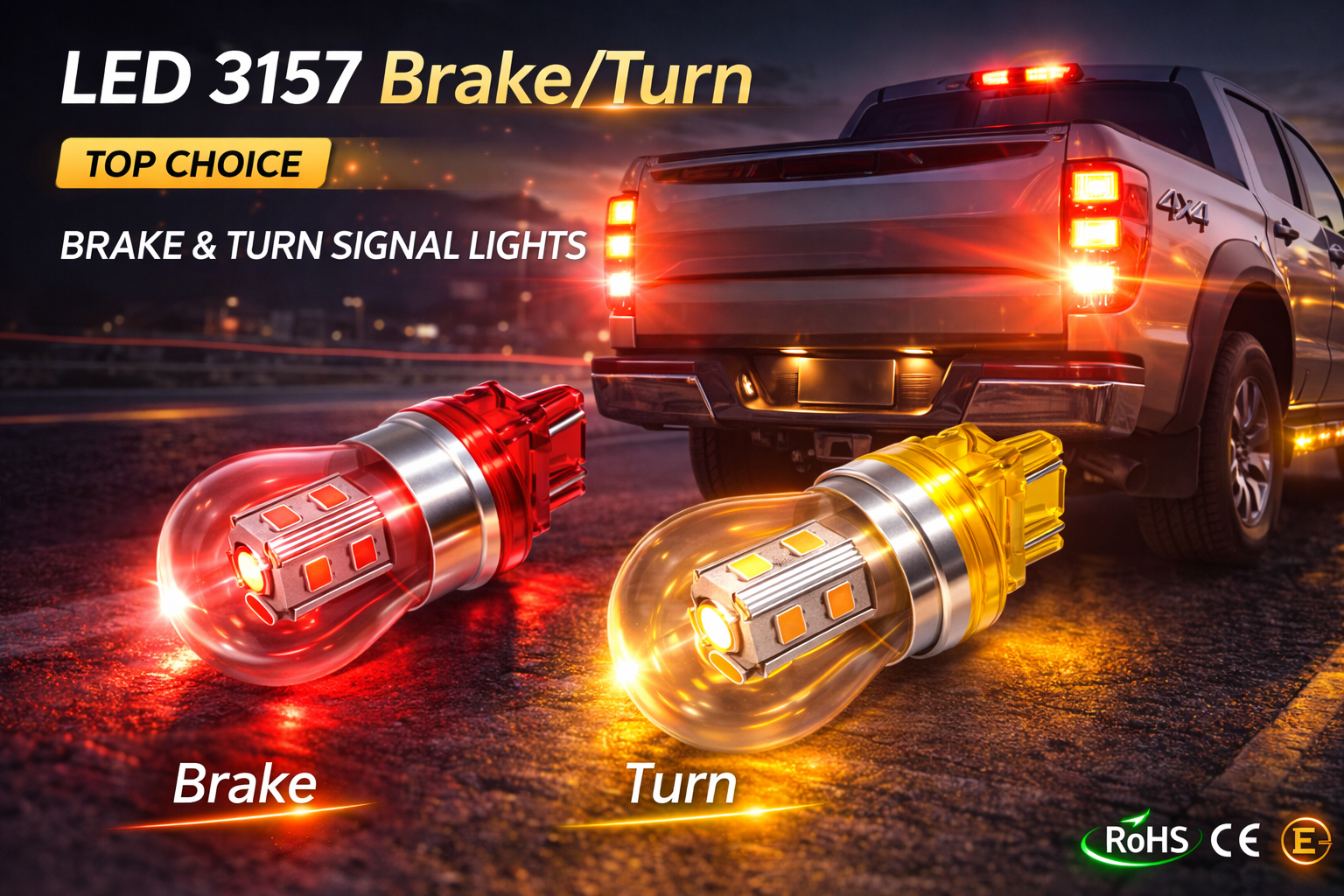

• Brake Lights

• Turn Signals

• Position Lights

• Running Lights

• Commercial Truck & Bus Lighting Systems

8. Installation Note

Designed for 3156 / 3157 wedge base.
For turn signal applications, a load resistor or compatible flasher relay may be required to prevent hyper flashing.
