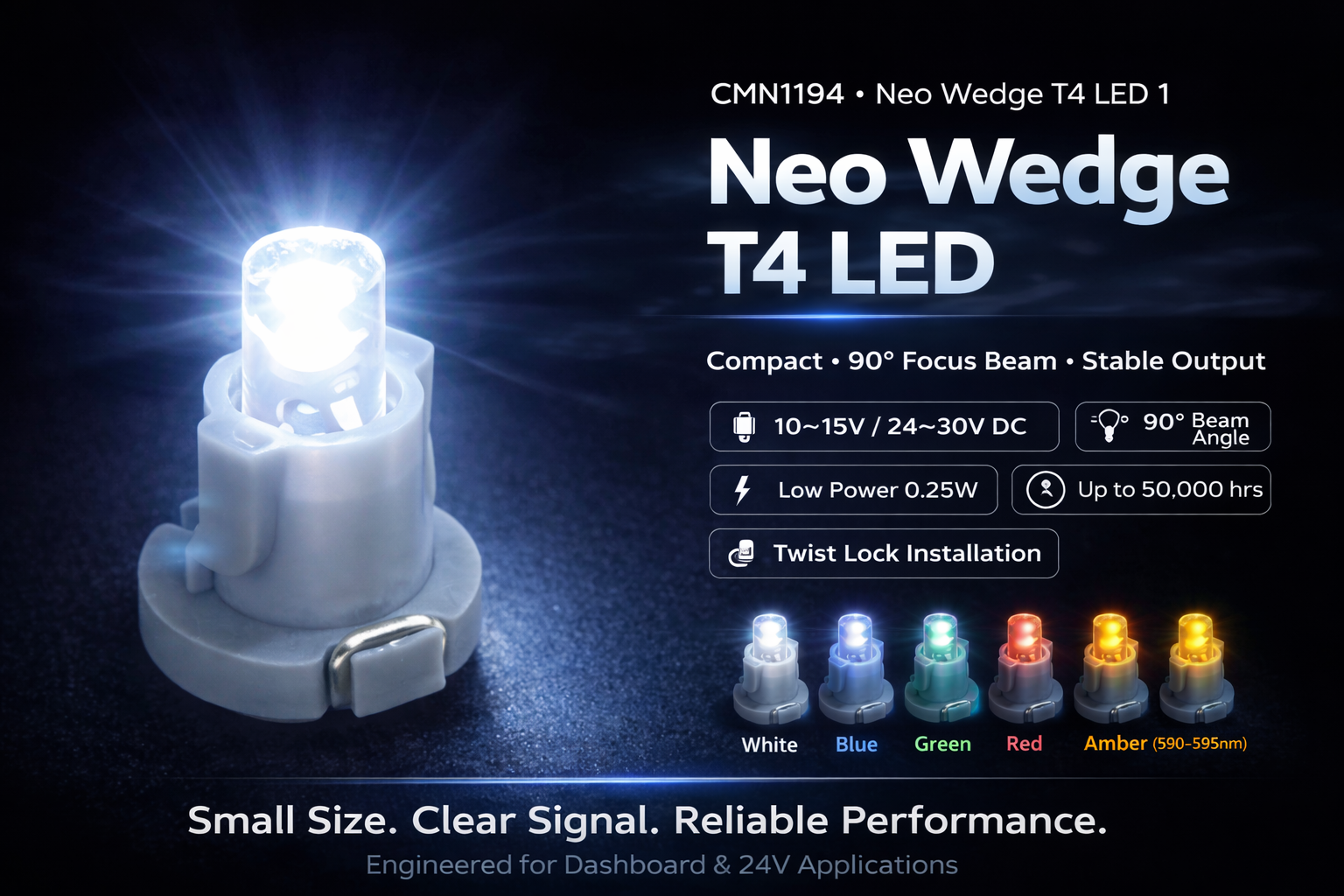

🚀 CMN1194 – T4 Neo Wedge LED 1

Flat-tipped LED • 90° Wide Angle • Multi-Color Indicator

🔷 Product Overview

The CMN1194 – T4 Neo Wedge LED 1 is a high-efficiency automotive indicator light engineered for clear signal visibility and stable performance across dashboard and panel applications.

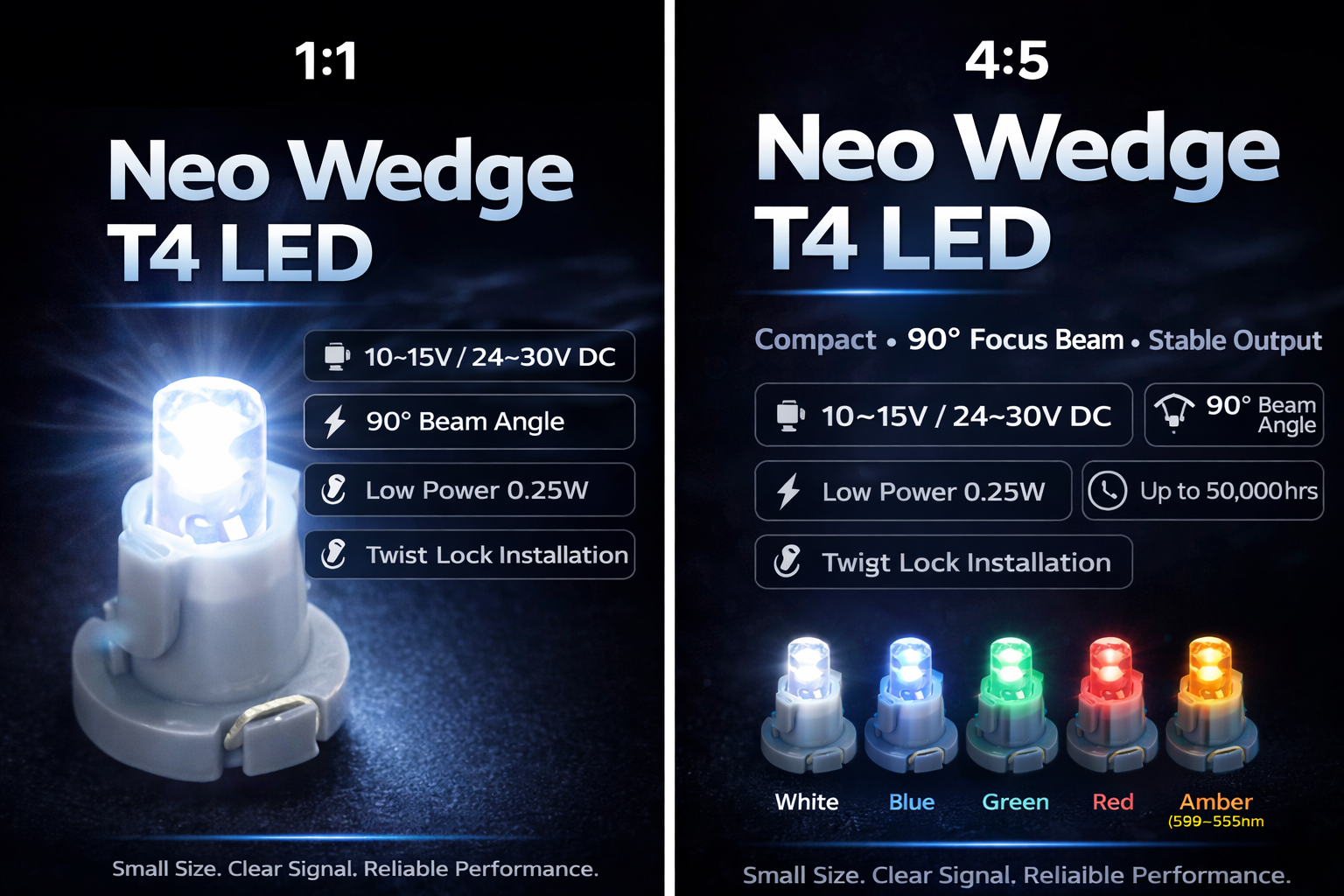

Featuring a flat-tipped LED structure, this model provides a wide 90° viewing angle, ensuring uniform light distribution and enhanced readability for instrument clusters and control panels.

Designed for both 10–15VDC and 24–30VDC systems, the CMN1194 is ideal for passenger vehicles, trucks, buses, and commercial fleets.

With over 10 years of continuous production and market validation, this model remains one of our best-selling and most trusted solutions, highly recognized by global customers for its reliability and cost-performance ratio.

⚙️ Key Features

💡 Flat-Tipped LED Design

• Single flat-tipped LED structure
• Wide 90° illumination angle
• Soft, uniform light output for clear signal indication

🌈 Pure Multi-Color Output

Available in:

• Red
• Amber
• Green
• Blue
• White

✔ True color emission without filters
✔ High color purity for accurate signal recognition

⚡ Dual Voltage Compatibility

Supports:

• 10–15VDC (Passenger vehicles)
• 24–30VDC (Truck & commercial vehicles)

✔ Stable brightness
✔ Reliable current control
✔ Optimized for 24V truck systems

🔥 Durable & Heat-Resistant Construction

• High-temperature PC housing
• High-temperature soldering design
• Pure copper alloy terminals
• Excellent vibration resistance

✔ Built for harsh automotive environments

🔧 Precise Fit & Easy Installation

• Neo Wedge T4 base
• Compact structure
• Easy twist-lock installation

✔ Suitable for various dashboard and panel systems

🚗 Applications

Widely used in:

• Instrument cluster lighting
• Dashboard gauge illumination
• Indicator & warning lights
• Interior lighting systems
• HVAC control panels
• Commercial vehicle dashboards

⚠️ Safety Indication Function

• 🔴 Red / Amber → Warning signals (abnormal conditions)
• 🟢 Green → Normal operation status

✔ Enhances driving safety and signal clarity

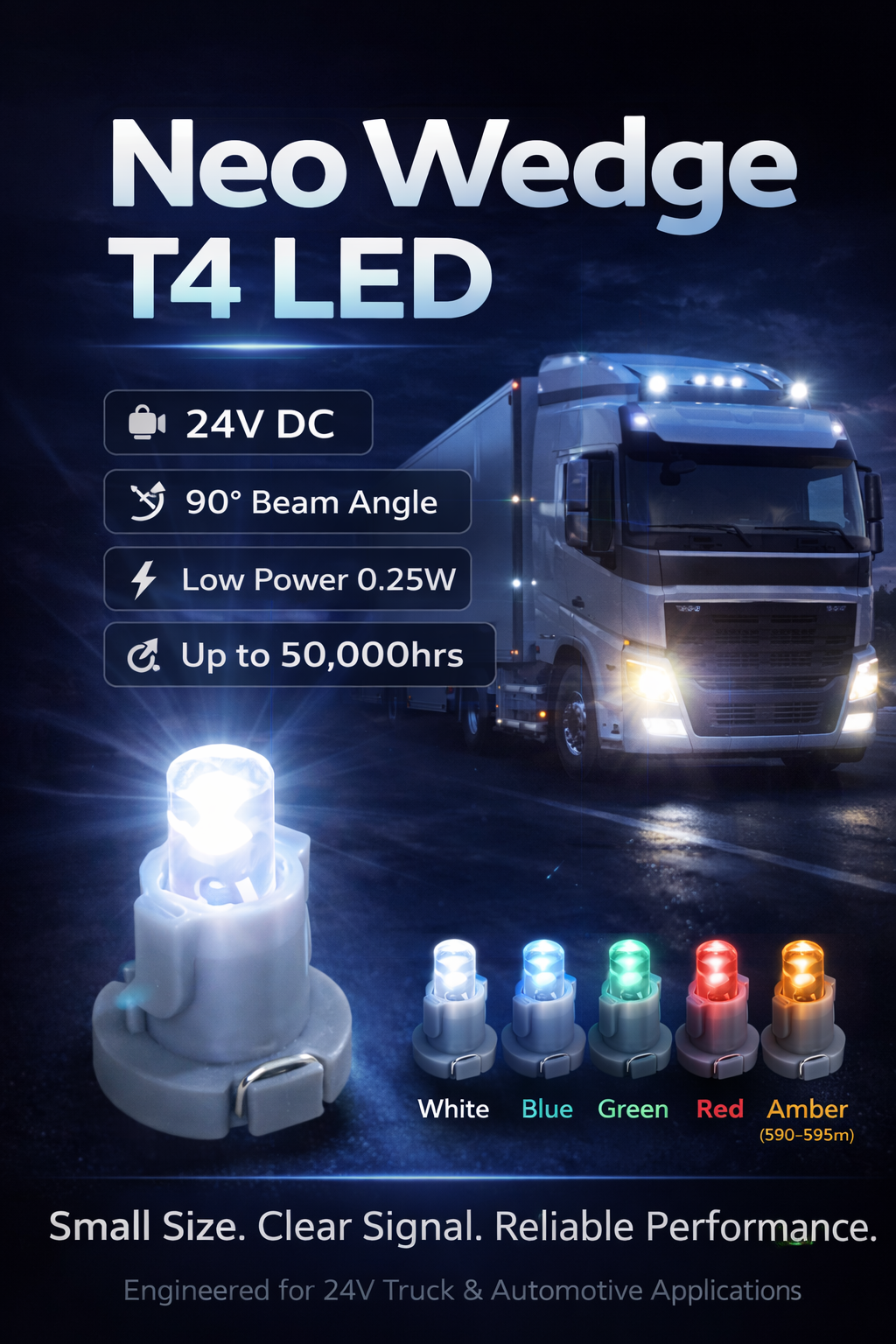

🚛 24V DC Application (Key Selling Point)

The CMN1194 is specifically optimized for 24V DC systems, making it ideal for:

• Trucks
• Buses
• Fleet vehicles
• Industrial control panels

✔ Stable output under continuous 24V operation
✔ No flickering or brightness fluctuation
✔ Designed for long-term commercial use

⚠️ Important Note

This product is NOT a wide-voltage design.
The 24V version is independently engineered to ensure optimal performance in dedicated 24V systems.

📊 Performance Advantages

• High luminous efficiency
• Stable signal output
• Wide-angle visibility
• Long service life
• Excellent cost-performance ratio

👉 A proven best-selling model with over a decade of market success

📞 Ordering Notice

Before purchasing, please confirm:

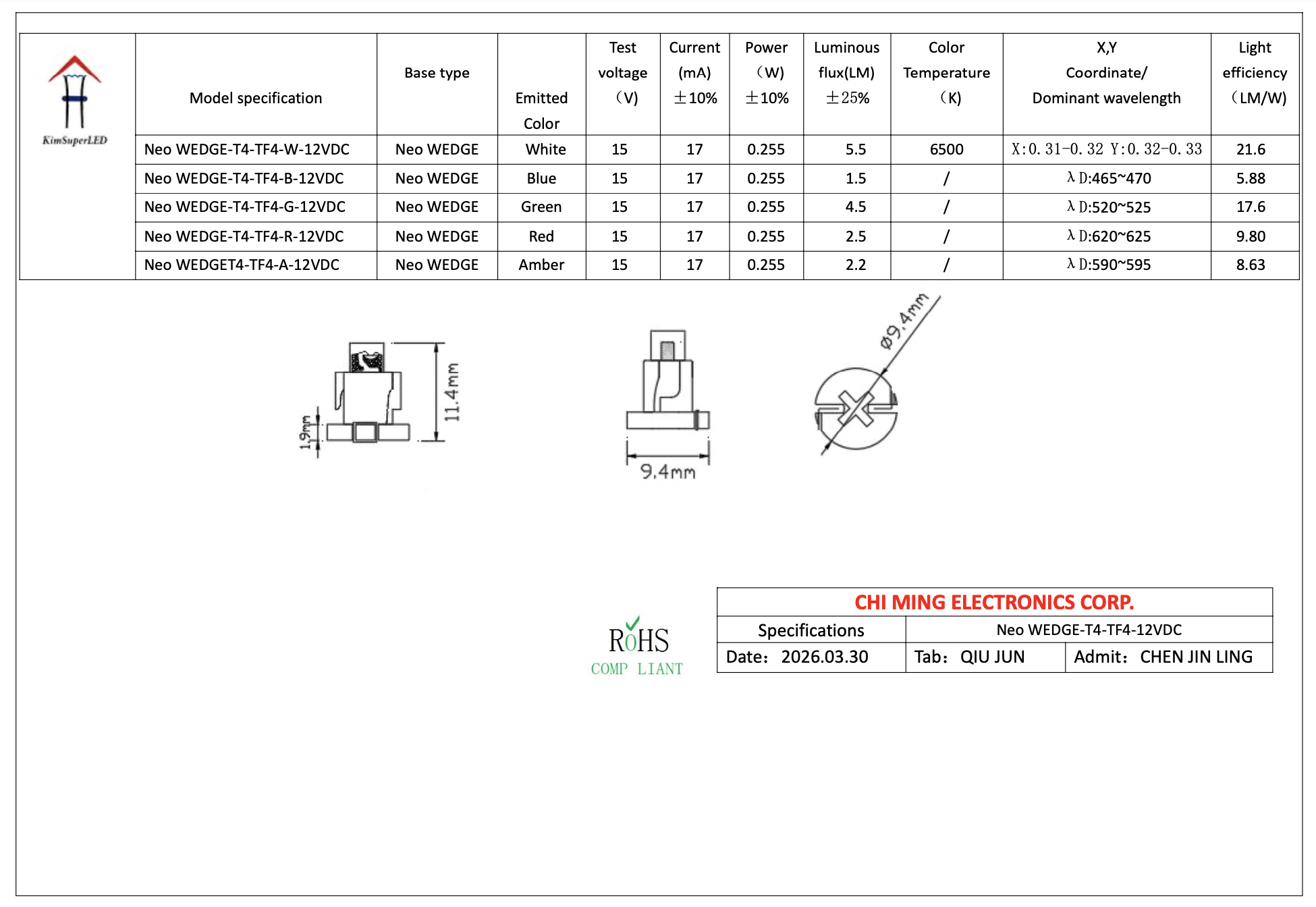

• Base type (Neo Wedge T4)
• Installation dimensions

👉 For OEM / bulk orders, please contact us for technical consultation and customization support.
