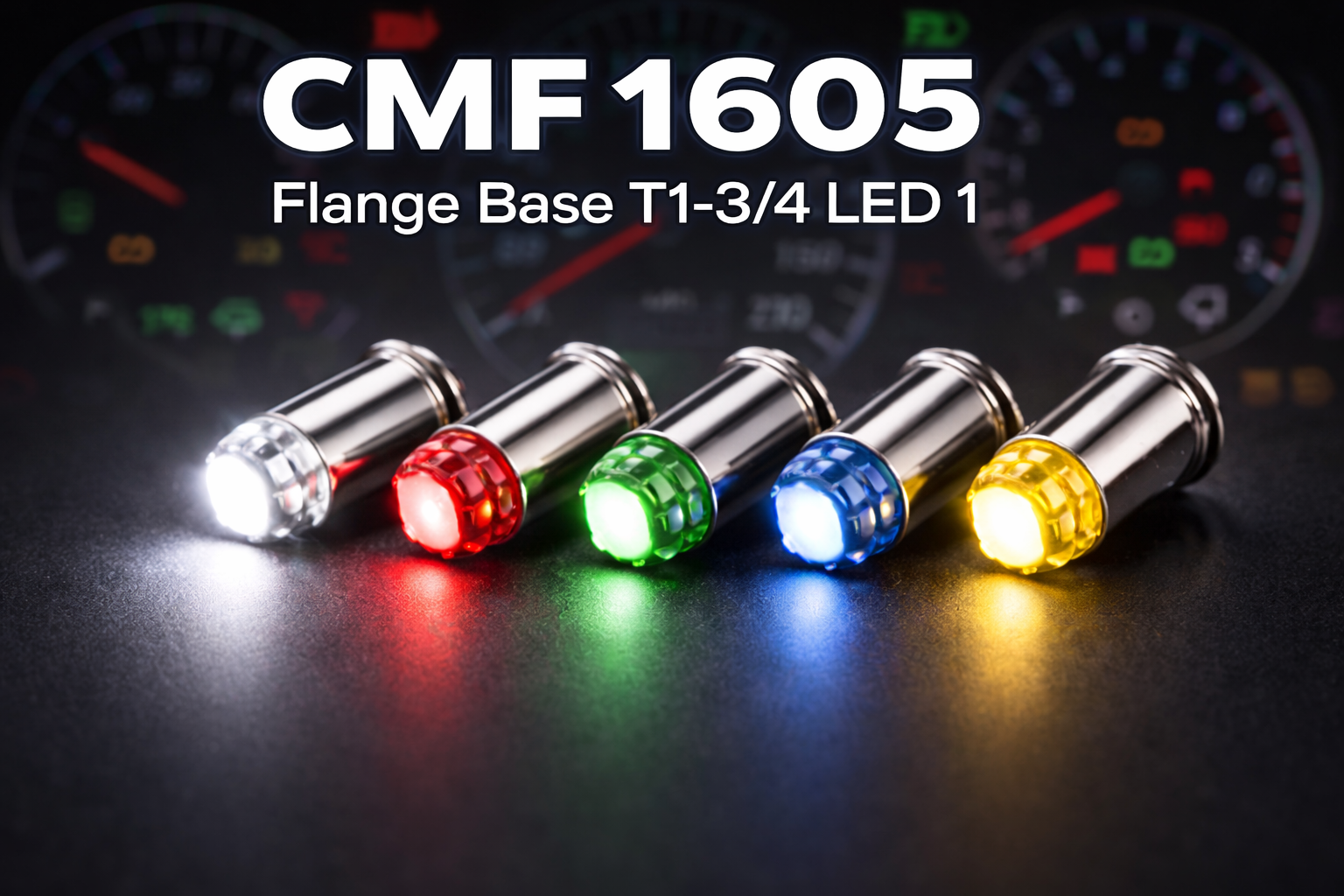

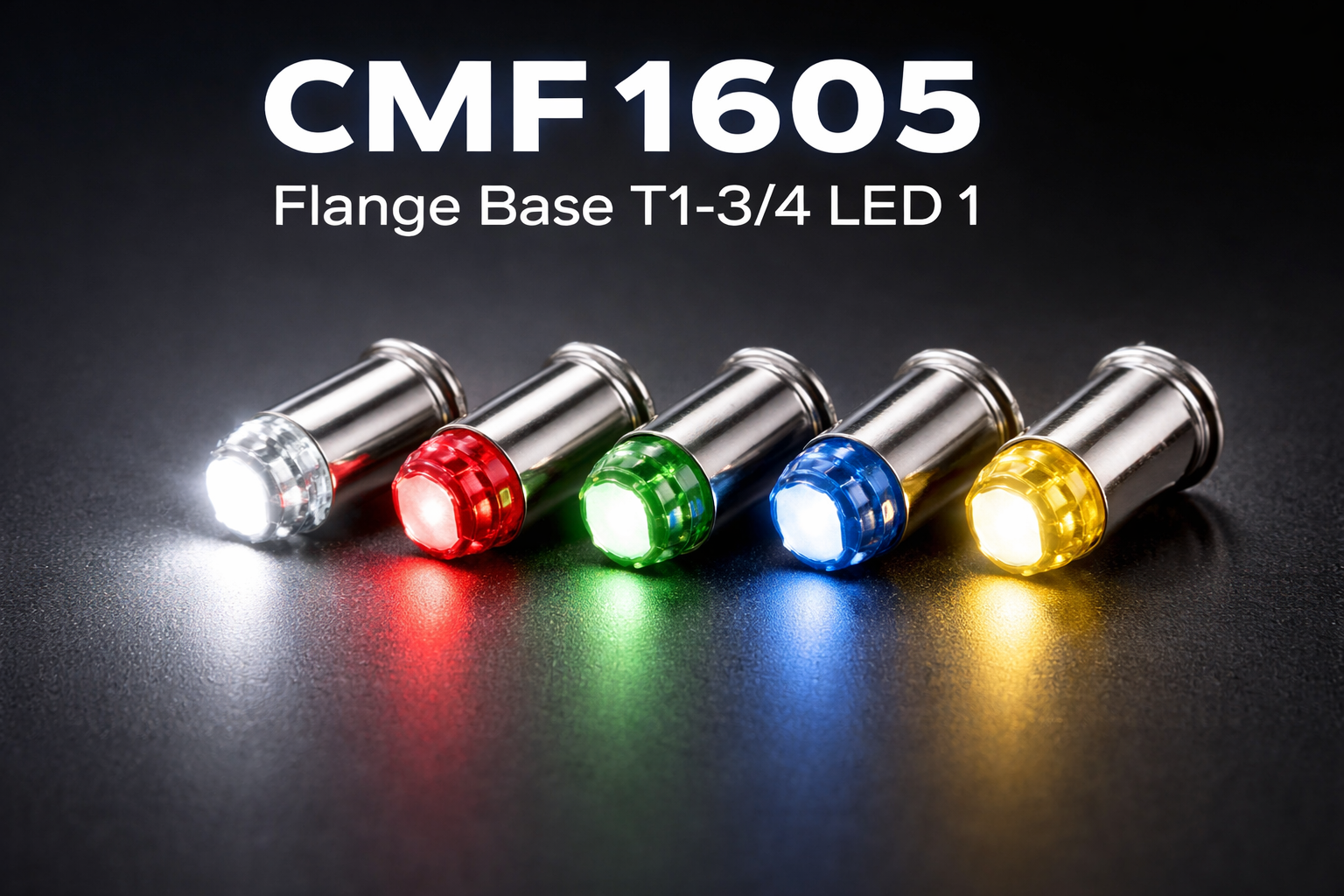

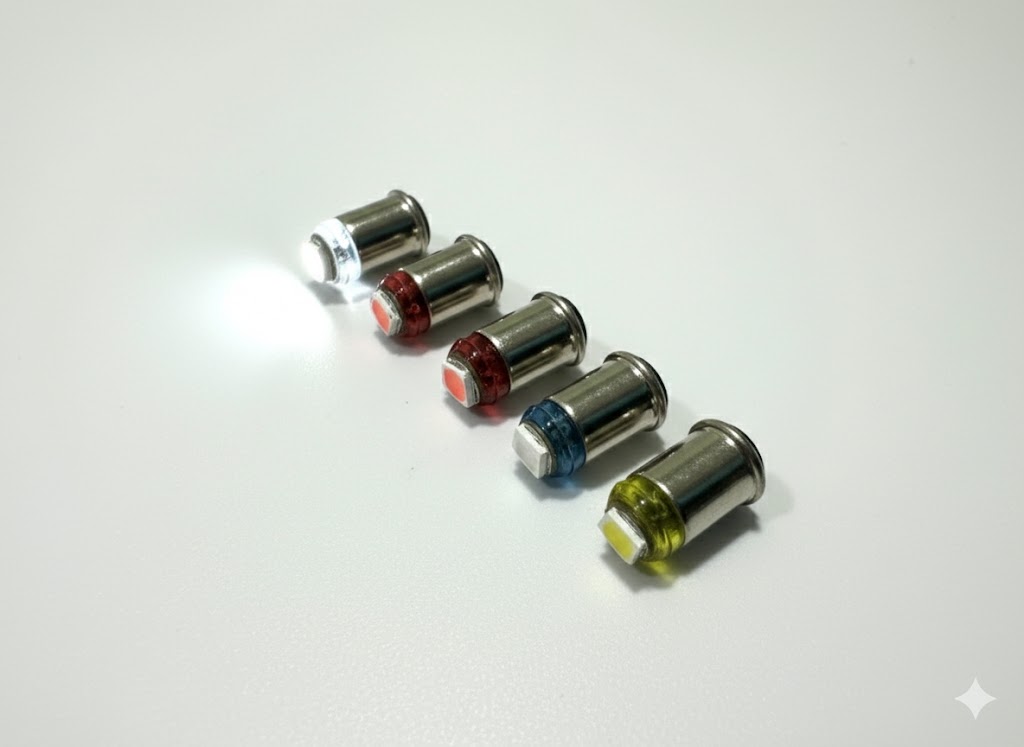

CMF1605-Flange Base T1-3/4 LED 1
L.E.D. CMF1605-Flange Base T1-3/4 LED 1 – Dashboard Lights

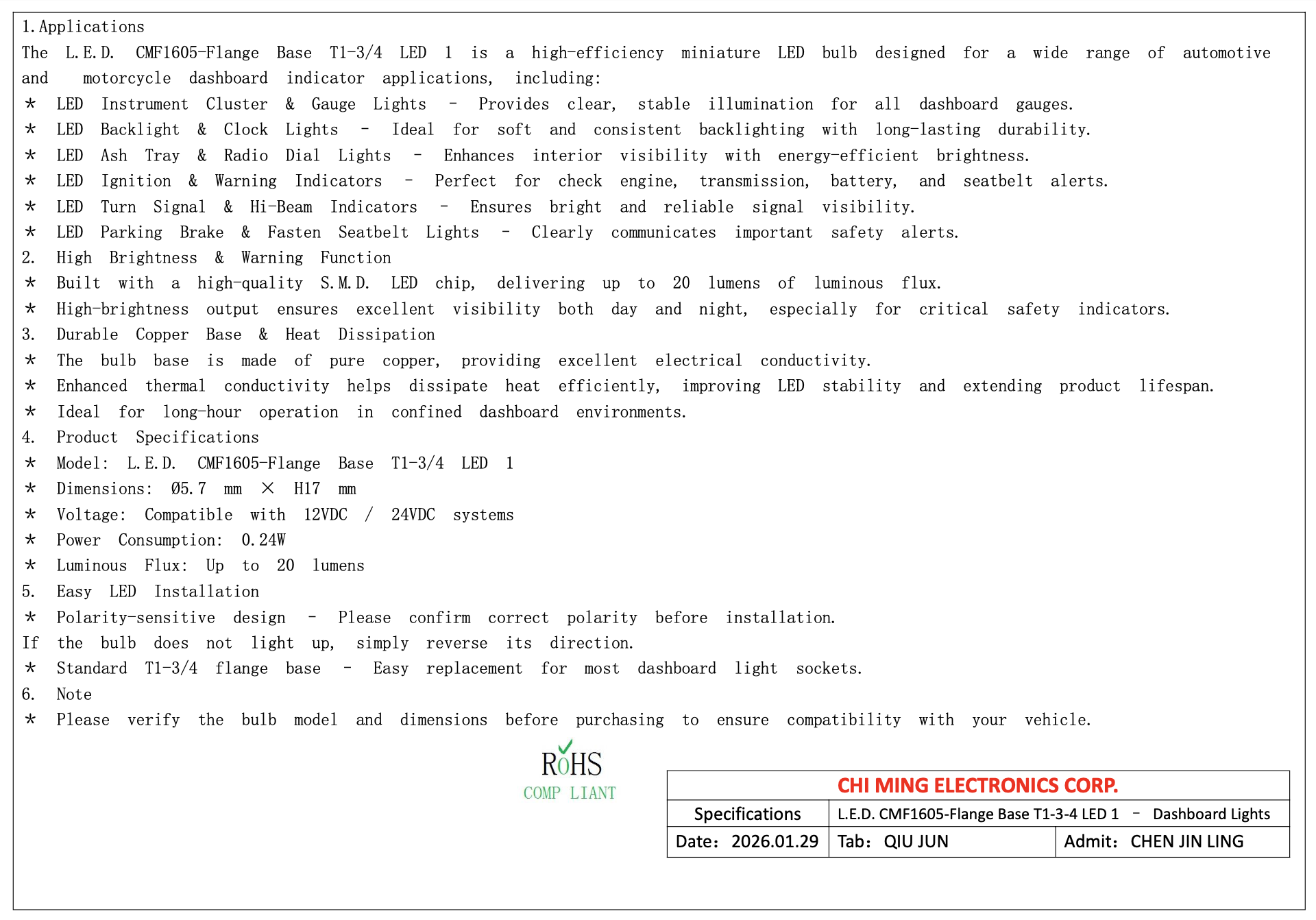

1. Applications
The L.E.D. CMF1605-Flange Base T1-3/4 LED 1 is a high-efficiency miniature LED bulb designed for a wide range of automotive and motorcycle dashboard indicator applications, including:
＊ LED Instrument Cluster & Gauge Lights – Provides clear, stable illumination for all dashboard gauges.
＊ LED Backlight & Clock Lights – Ideal for soft and consistent backlighting with long-lasting durability.
＊ LED Ash Tray & Radio Dial Lights – Enhances interior visibility with energy-efficient brightness.
＊ LED Ignition & Warning Indicators – Perfect for check engine, transmission, battery, and seatbelt alerts.
＊ LED Turn Signal & Hi-Beam Indicators – Ensures bright and reliable signal visibility.
＊ LED Parking Brake & Fasten Seatbelt Lights – Clearly communicates important safety alerts.
2. High Brightness & Warning Function
＊ Built with a high-quality S.M.D. LED chip, delivering up to 20 lumens of luminous flux.
＊ High-brightness output ensures excellent visibility both day and night, especially for critical safety indicators.
3. Durable Copper Base & Heat Dissipation
＊ The bulb base is made of pure copper, providing excellent electrical conductivity.
＊ Enhanced thermal conductivity helps dissipate heat efficiently, improving LED stability and extending product lifespan.
＊ Ideal for long-hour operation in confined dashboard environments.

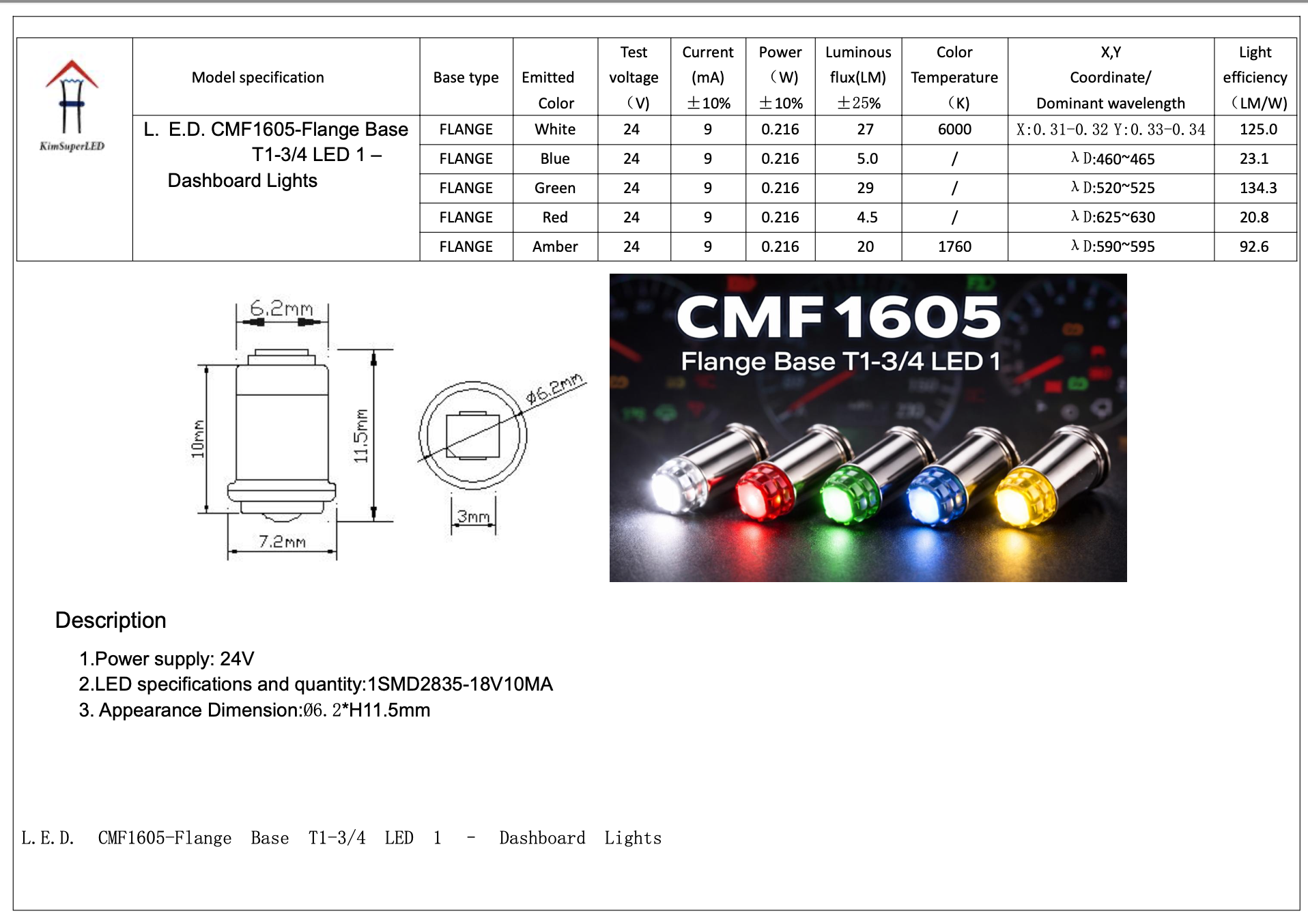

4. Product Specifications
＊ Model: L.E.D. CMF1605-Flange Base T1-3/4 LED 1
＊ Dimensions: Ø5.7 mm × H17 mm

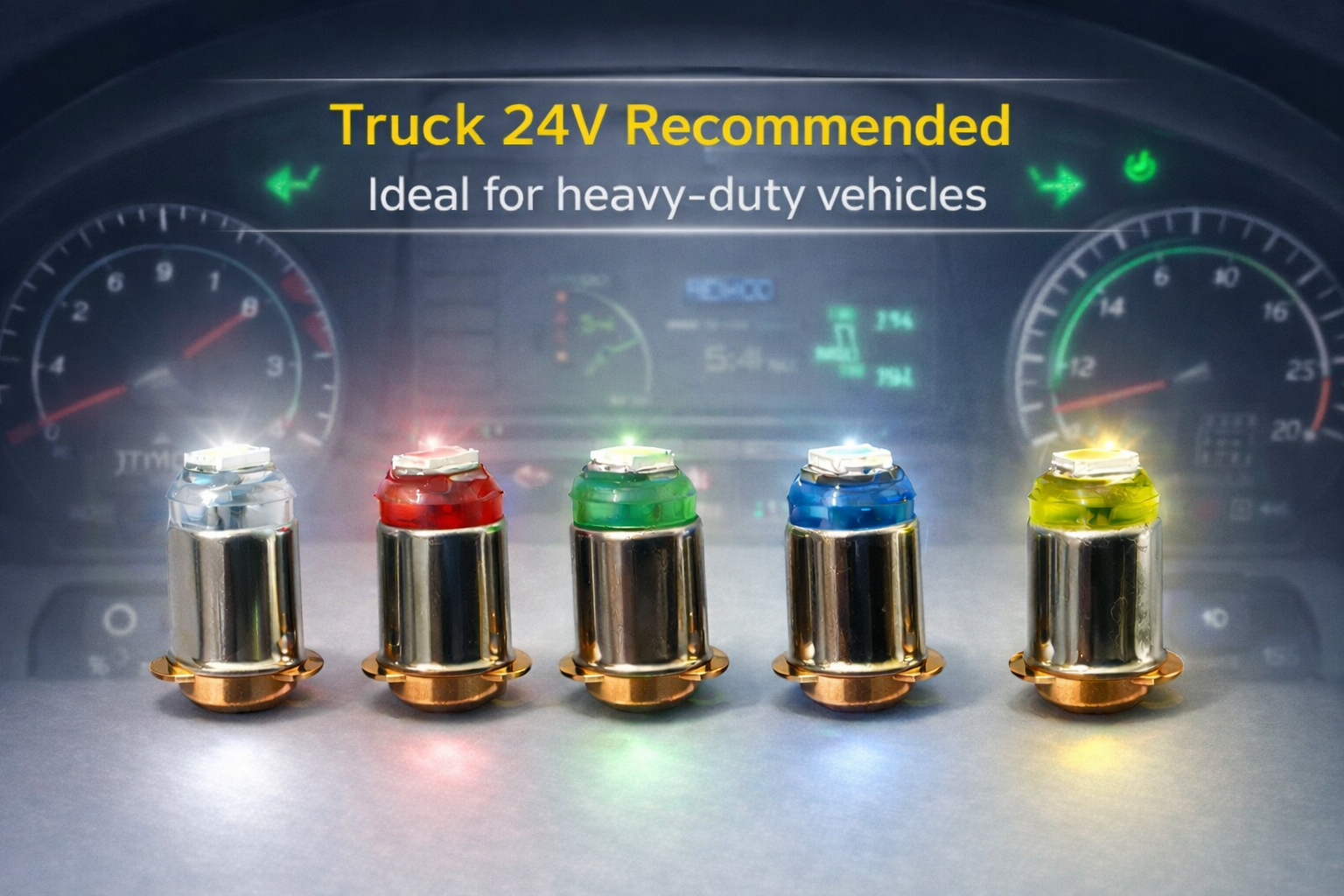

＊ Voltage: Compatible with 12VDC / 24VDC systems
＊ Power Consumption: 0.24W
＊ Luminous Flux: Up to 20 lumens
5. Easy LED Installation
＊ Polarity-sensitive design – Please confirm correct polarity before installation.
If the bulb does not light up, simply reverse its direction.
＊ Standard T1-3/4 flange base – Easy replacement for most dashboard light sockets.
6. Note
＊ Please verify the bulb model and dimensions before purchasing to ensure compatibility with your vehicle.
