CM1757-74 T5 LED 1

Applications

The LED CM1757-74 T5 LED 1 Dashboard Lights are designed for automotive and motorcycle dashboard indicator applications, including:

1. LED Instrument Cluster & Gauge Lights – Provides clear, uniform, and stable LED illumination for dashboard gauges.

2. LED Backlight & Clock Lights – Ideal for soft, consistent backlighting in instrument panels.

3. LED Ash Tray & Radio Dial Lights – Enhances interior visibility with energy-efficient LED lighting.

4. LED Ignition & Warning Indicators – Suitable for check engine, transmission, battery, and seatbelt warning indicators.

5. LED Turn Signal & Hi-Beam Indicators – Ensures crisp and dependable LED signaling.

6. LED Parking Brake & Fasten Seatbelt Indicators – Delivers bright and long-lasting LED alerts for essential safety notifications.

High Brightness & Warning Function

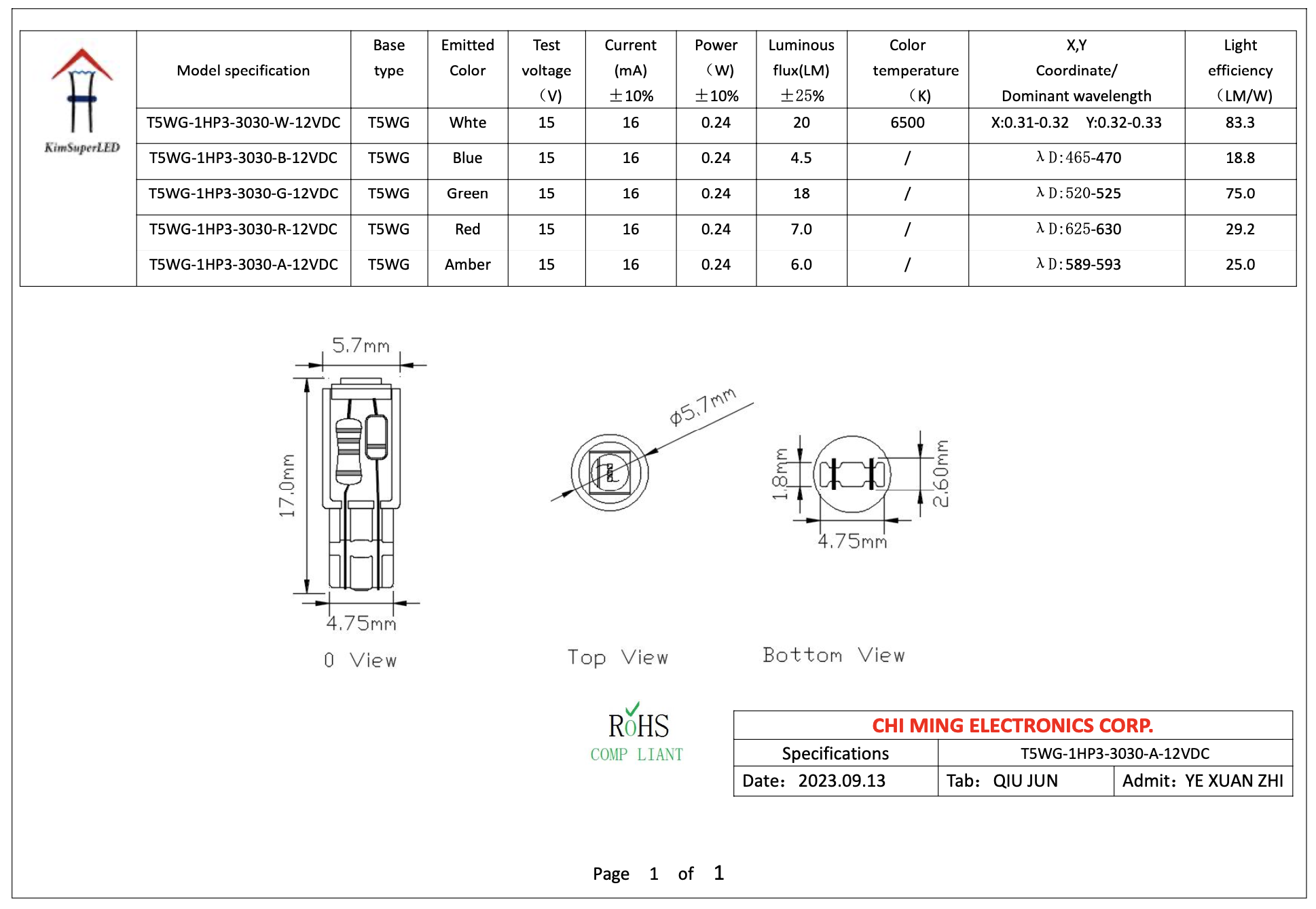

Built with a high-intensity LED chip, the CM1757-74 T5 LED 1 delivers up to 22 lumens of luminous flux.

The high-brightness LED output ensures excellent visibility in both daytime and nighttime conditions, making it ideal for safety-critical dashboard warning applications.

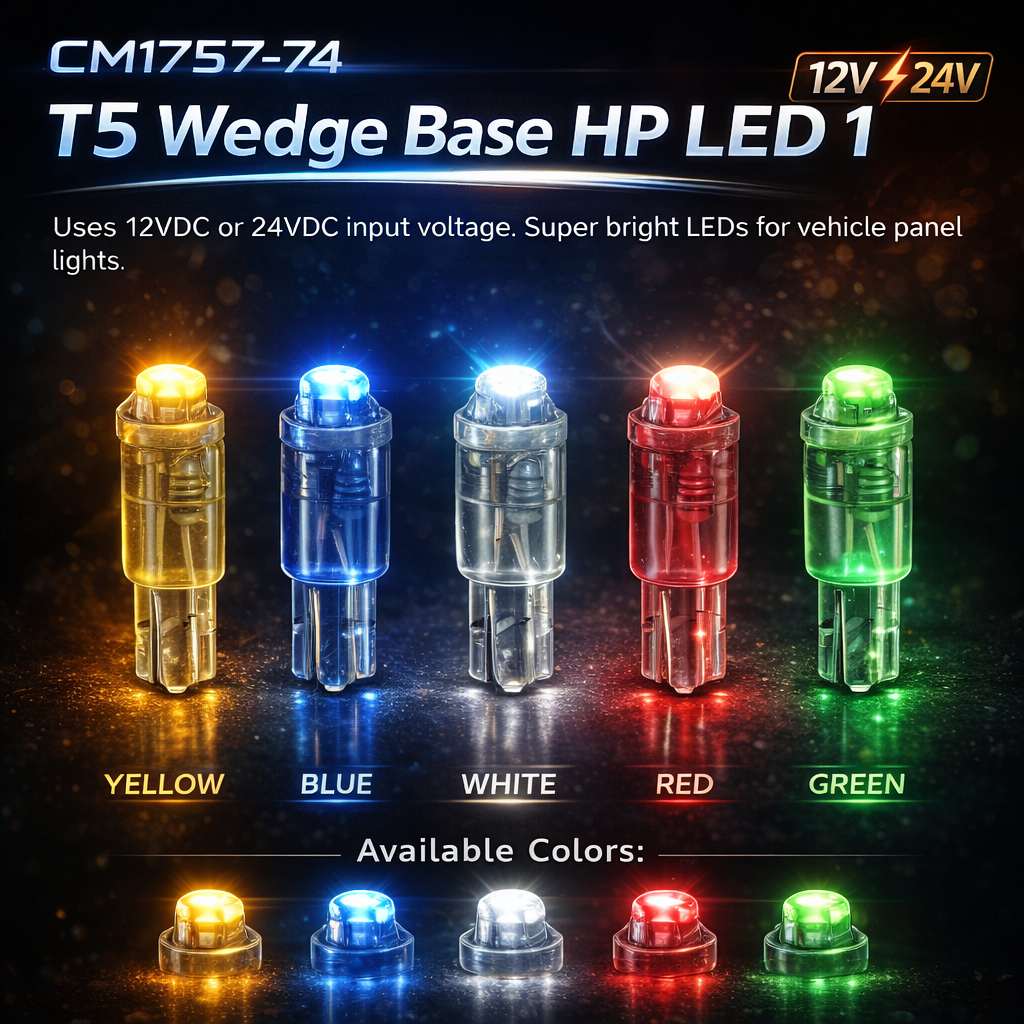

Voltage Options & Manufacturing Focus

• Primary Production Specification: 24V DC
  Optimized for trucks, commercial vehicles, buses, and special-purpose vehicles.

• Optional Version: 12V DC
  Available for passenger vehicles and motorcycles.

• OEM / ODM Support
  Custom voltage configurations and specifications are available upon request to meet specific customer or project requirements.

Easy LED Installation

• Polarity-sensitive LED design – Ensure correct polarity during installation.

• If the LED does not illuminate, simply reverse the installation direction.

Note

Before purchasing or installation, please confirm the LED model, voltage specification (24V DC / 12V DC), and dimensions to ensure compatibility with your application.
