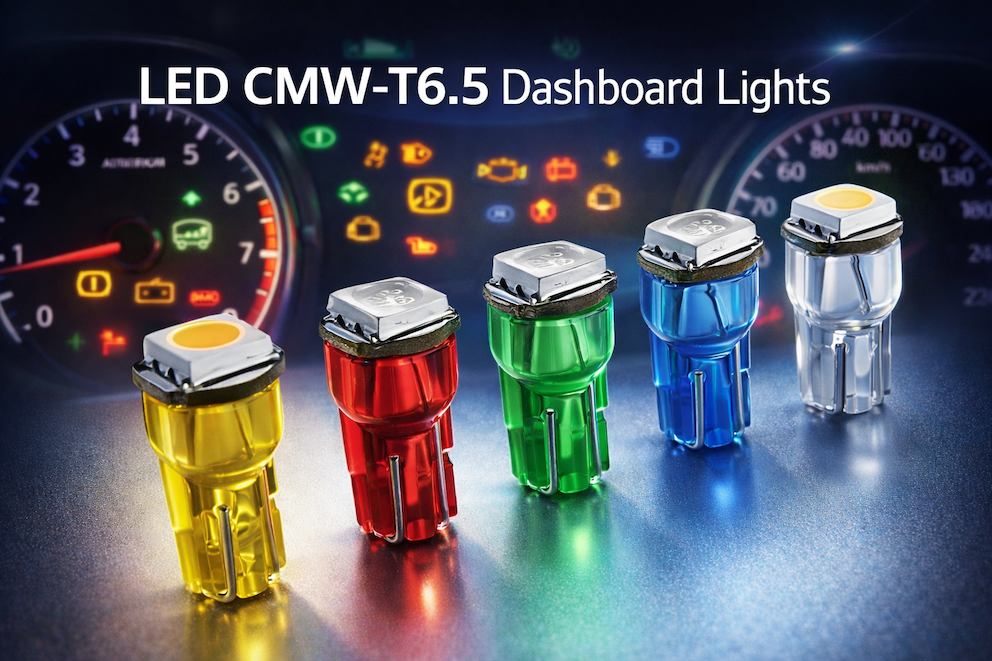

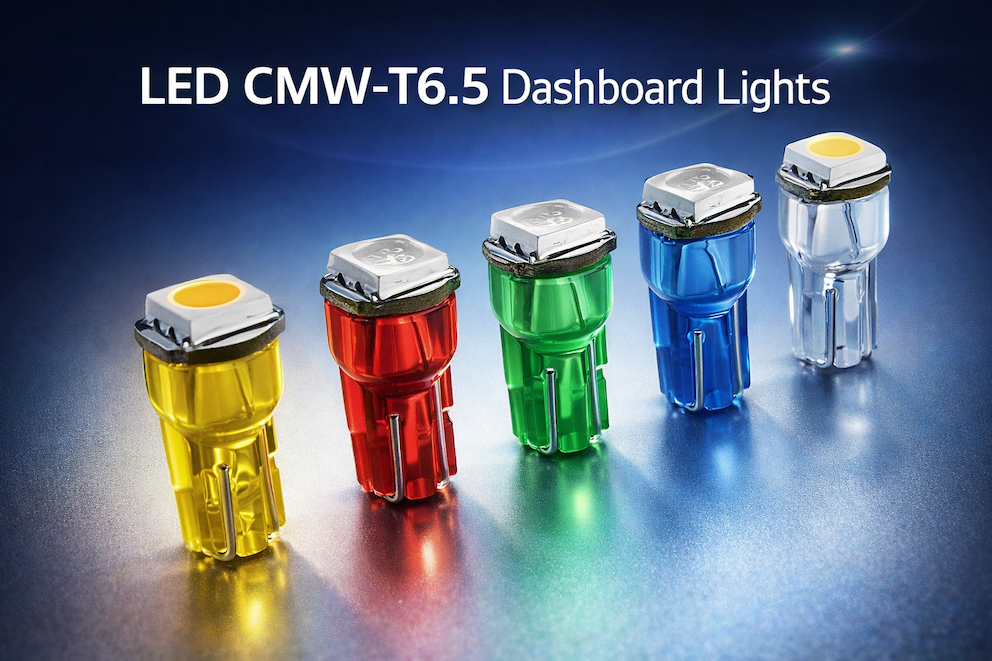

LED CMW1668-T6.5 Dashboard Lights



LED CMW1668-T6.5 Dashboard Lights

Applications:

The LED CMW1668-T6.5 Dashboard Lights are versatile LED lighting solutions designed for a wide range of automotive and motorcycle dashboard indicator applications, including:

  1. LED Instrument Cluster & Gauge Lights – Delivers clear and stable LED illumination across all dashboard gauges.

  2. LED Backlight & Clock Lights – Perfect for subtle backlighting using reliable LED technology.

  3. LED Ash Tray & Radio Dial Lights – Enhances interior visibility with energy-efficient LED brightness.

  4. LED Ignition & Warning Indicators – Ideal for check engine, transmission, and seatbelt alerts using bright LED signals.

  5. LED Turn Signal & Hi-Beam Indicators – Ensures crisp signaling with dependable LED performance.

  6. LED Parking Brake & Fasten Seatbelt Lights – Bright and long-lasting LED alerts for essential safety notifications.


High Brightness & Warning Function:

  • Built with a high-intensity LED chip, this dashboard light delivers up to 22 lumens of luminous flux.

  • The high-brightness LED output ensures strong warning visibility both day and night, making it ideal for safety-critical applications.


Voltage Options & Custom Manufacturing:

  • Standard version: 12V DC automotive application

  • Optional version: 24V DC available for manufacturing and production, suitable for trucks, commercial vehicles, and special-purpose vehicles.

  • Custom voltage configuration can be provided upon request for OEM / ODM projects.


Easy LED Installation:

  • Polarity-sensitive LED design: Ensure correct polarity before installation.
    If the LED does not light up, simply reverse its direction.


Note:

  • Before purchasing, please confirm the LED light model, voltage specification (12V DC / 24V DC), and dimensions to ensure compatibility with your application.
