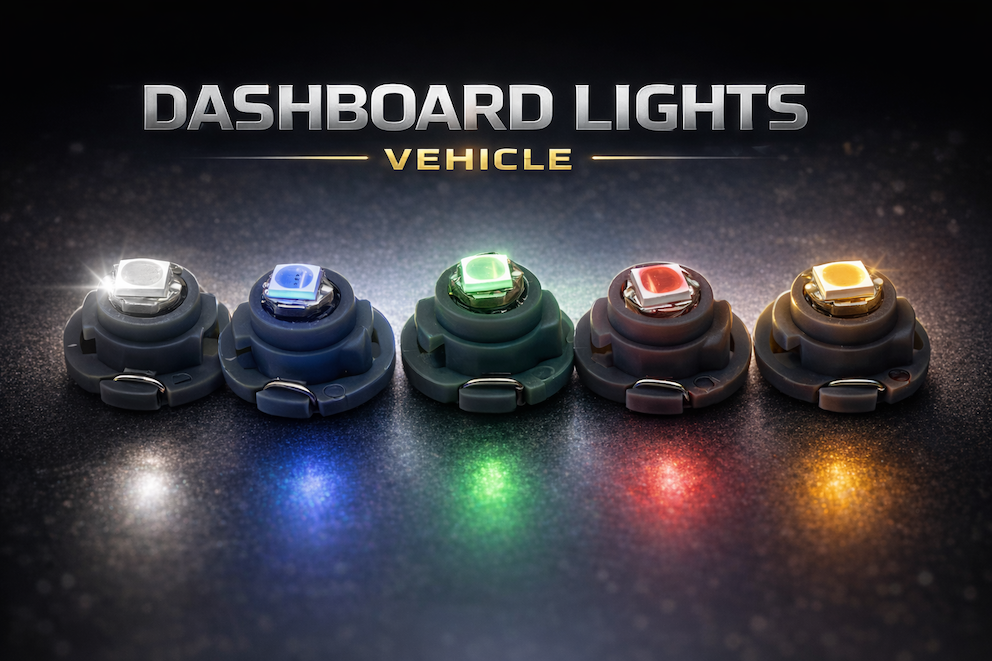

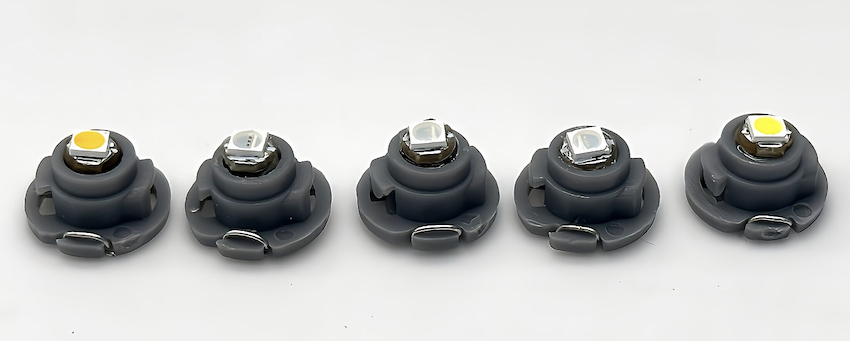

LED CMN8013-Neo Wedge Light

LED CMN8013-Neo Wedge Light (T3 / T4 / T5)

1. Upgraded 3030 Chips – High-quality SMD3030 with 3 chips in series, ensuring durable, bright, and stable illumination.

2. Premium Material & Heat Dissipation – High-quality PC material for the base, providing better heat management and durability.

3. Precise Fit & Compatibility – Neo wedge Ø12.5mm × H8.0mm, designed for Neo Wedge T5 vehicle applications.

4. Versatile Automotive Applications – Ideal for instrument cluster panel lights, dashboard gauge lights, indicator bulbs, interior lights, and DC climate control bulbs.

5. Safety Warning Function – When a vehicle has an issue, the instrument light illuminates yellow or red as a warning signal; under normal conditions, it emits green for clear status indication.

6. Model & Color Options – Available in multiple colors for various vehicle instrument lighting needs, enhancing both safety and aesthetics.


   24V DC Application Emphasis

   Designed for 24V DC Vehicle Systems

   This Neo Wedge LED series includes dedicated 24V DC models, specifically engineered for 24V DC automotive and commercial vehicle electrical systems.

   Important:
   This product is NOT a wide-voltage design.
   The 24V DC version is independently designed and manufactured, with optimized electrical parameters, current control, and luminous output for stable operation under 24V DC conditions.

   Stable Performance at 24V DC

7. Optimized for continuous operation at 24V DC

8. Stable brightness and reliable current control

9. Suitable for trucks, buses, commercial vehicles, and industrial automotive panels

10. Specification Reference

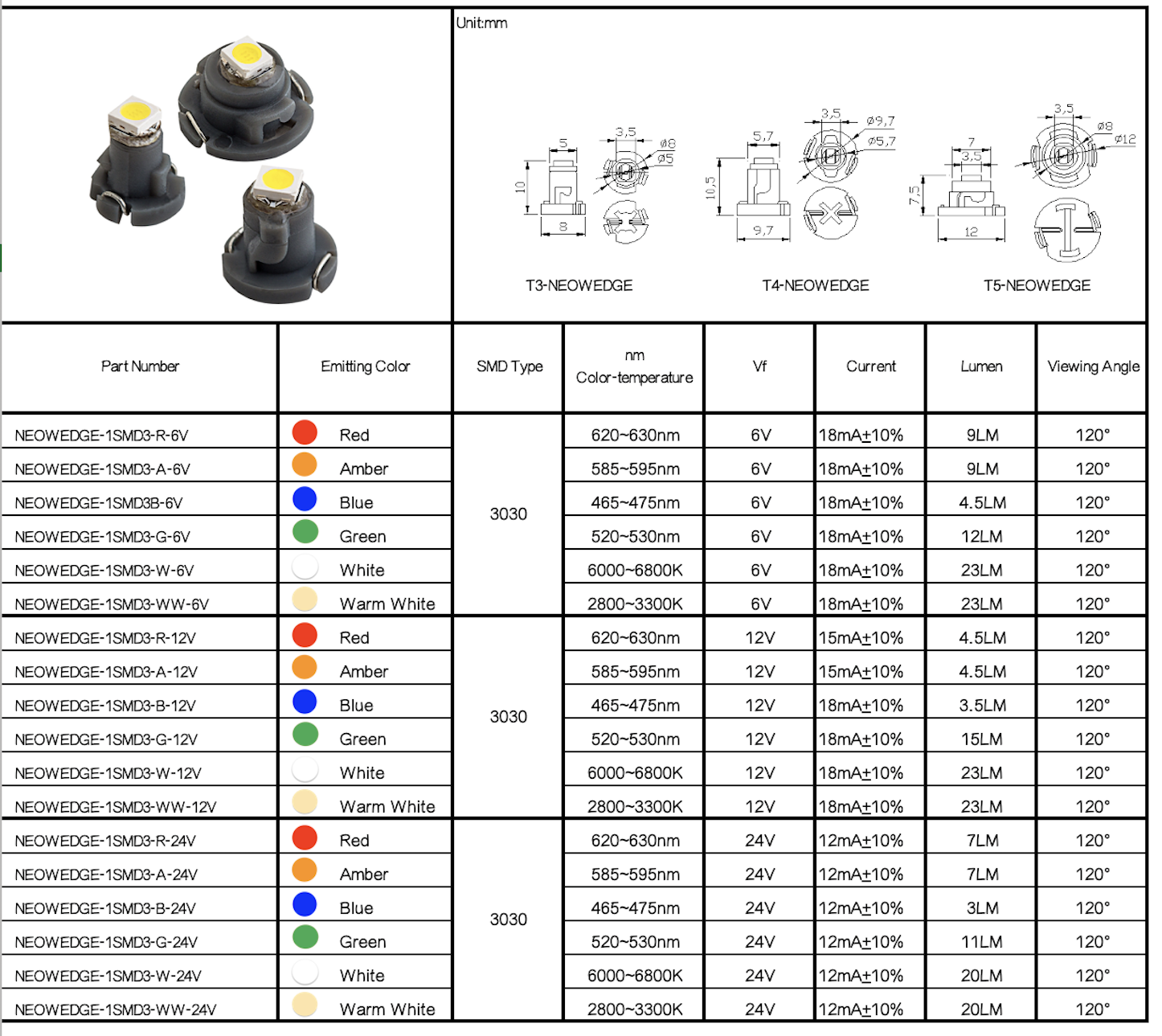

    Mechanical dimensions (Neo Wedge T3 / T4 / T5) and luminous flux (lumen output) for 24V DC models are clearly listed in the specification table by individual part numbers.
