LED CMS12064 – Truck Side Marker Lights

Ultra-Slim | Diamond Lens | 180° Wide Beam | IP67 | 10–30VDC

1. Product Overview

The LED CMS12064 Truck Side Marker Lights are ultra-slim, high-visibility lighting solutions designed for commercial trucks, trailers, and heavy-duty vehicles.

With a total thickness of only 10mm, this model features a compact, low-profile structure ideal for modern vehicle integration and space-limited installations.

Equipped with a PC diamond-pattern lens, the CMS12064 delivers a wide 180° beam angle, ensuring uniform illumination without glare.

Built with 54 high-efficiency SMD2835 LEDs, the product offers:

• High luminous flux
• Stable light output
• Excellent heat dissipation

With IP67 waterproof protection, strong vibration resistance, and EMC compliance, it is designed for reliable operation in harsh environments.

This product supports OEM / ODM customization, including size, shape, color, and lighting functions, with fast prototyping available.

2. Key Features & Advantages

Ultra-Slim Design (10mm Thickness)

Compact structure for seamless vehicle integration and modern styling.

PC Diamond Lens

Enhanced light diffusion with uniform output and improved durability.

180° Wide Beam Angle

Provides maximum side visibility without glare, improving driving safety.

High Brightness & Stable Output

54 pcs SMD2835 LEDs ensure strong luminous performance with consistent output.

Wide Voltage Compatibility (10–30VDC)

Suitable for both 12V and 24V vehicle systems.

IP67 Waterproof & Dustproof

Fully sealed design for outdoor and harsh environments.

Excellent Heat Dissipation

Stable performance and extended LED lifespan.

EMC Compliance

No electromagnetic interference with vehicle systems.

High Vibration Resistance

Reliable performance under heavy-duty vehicle conditions.

3. Smart Lighting Function

Constant ON Mode

When connected to position lights, the lamp provides steady illumination for side visibility.

Sequential Flashing Mode

When connected to turn signal circuits, the lamp activates dynamic sequential flashing, enhancing signaling and safety.

4. Mechanical Specifications

(Reference design – customizable)

• Dimensions: 105 mm (L) × 60 mm (W) × 10 mm (Thickness)
• LED Type: 54 pcs SMD2835 (0.2W each)

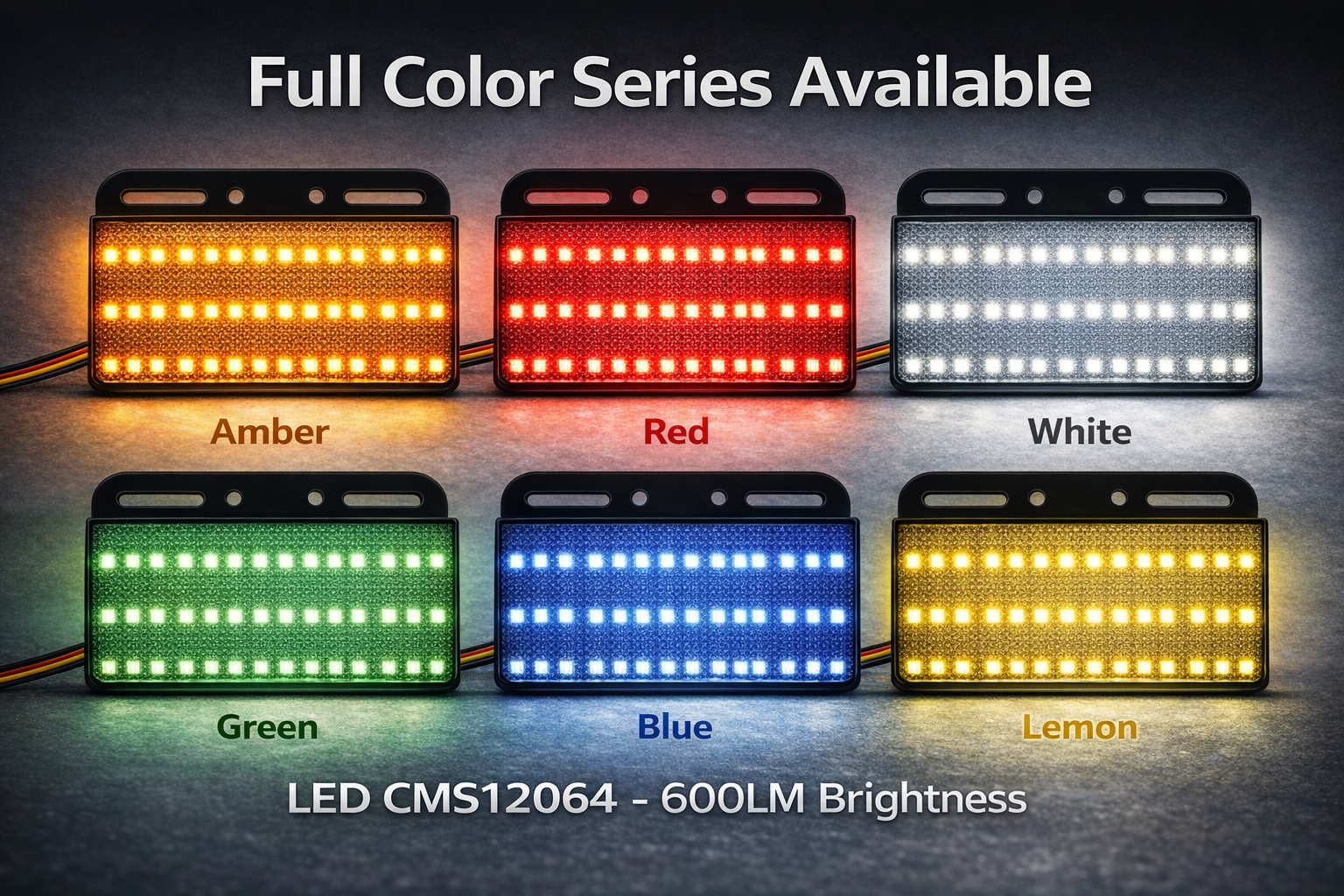

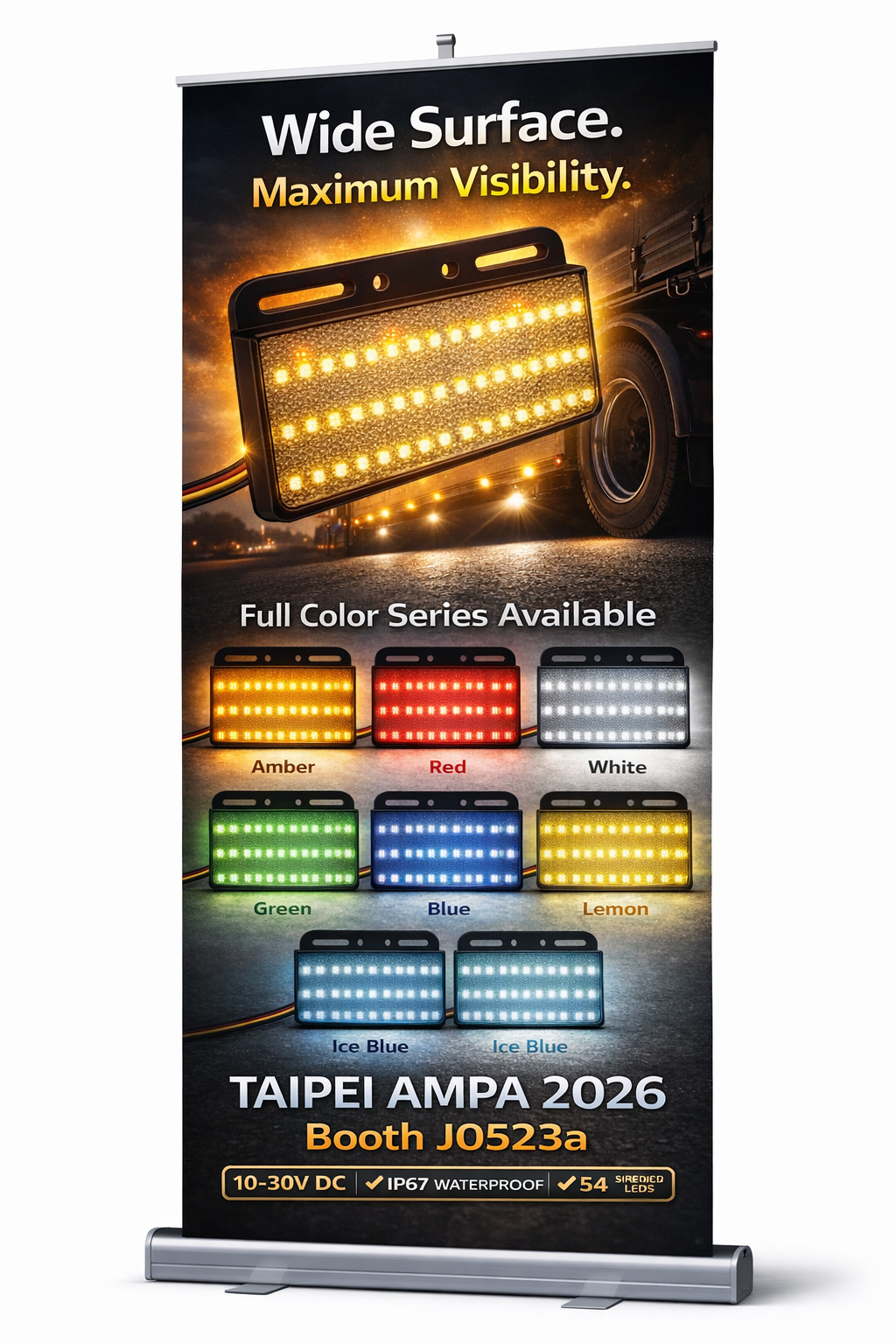

• Lens Material: PC (Diamond Pattern / Custom Colors Available)
• Input Voltage: 10–30VDC
• Wiring: 200 mm, 26AWG, 3-wire (Red / Black / Yellow)
• Mounting: Screw-fixation base

5. Installation Guide

1. Select mounting position (side panel / bumper / body)
2. Fix the lamp using screw mounts
3. Connect wiring:
   • Red → Power (+)
   • Black → Ground (–)
   • Yellow → Turn signal / flashing trigger
4. Test constant and flashing modes
5. Installation completed

6. Applications

• Commercial trucks
• Trailers & semi-trailers
• Logistics vehicles
• Construction & engineering vehicles
• Heavy-duty equipment
• Municipal & special-purpose vehicles

👉 Suitable for:

• Side marker lights
• Rear lights
• Safety warning lighting

7. Safety & Reliability

• IP67 waterproof & dustproof
• Shock-resistant structure
• Wide voltage stability (10–30VDC)
• UV-resistant PC lens
• Long lifespan with low power consumption
• High visibility for enhanced road safety

8. OEM / ODM Customization

The CMS12064 is a fully customizable platform product:

✔ Size & structure customization
✔ Lens color & housing design
✔ LED layout & brightness tuning
✔ Flashing patterns (steady / strobe / sequential)
✔ Branding & private labeling

🚀 Fast sampling available for OEM projects
