LED CMS1056 – Truck Side Marker Lights

Ultra-Slim | Customizable Design | IP67 Waterproof | 10–30VDC

1. Product Overview

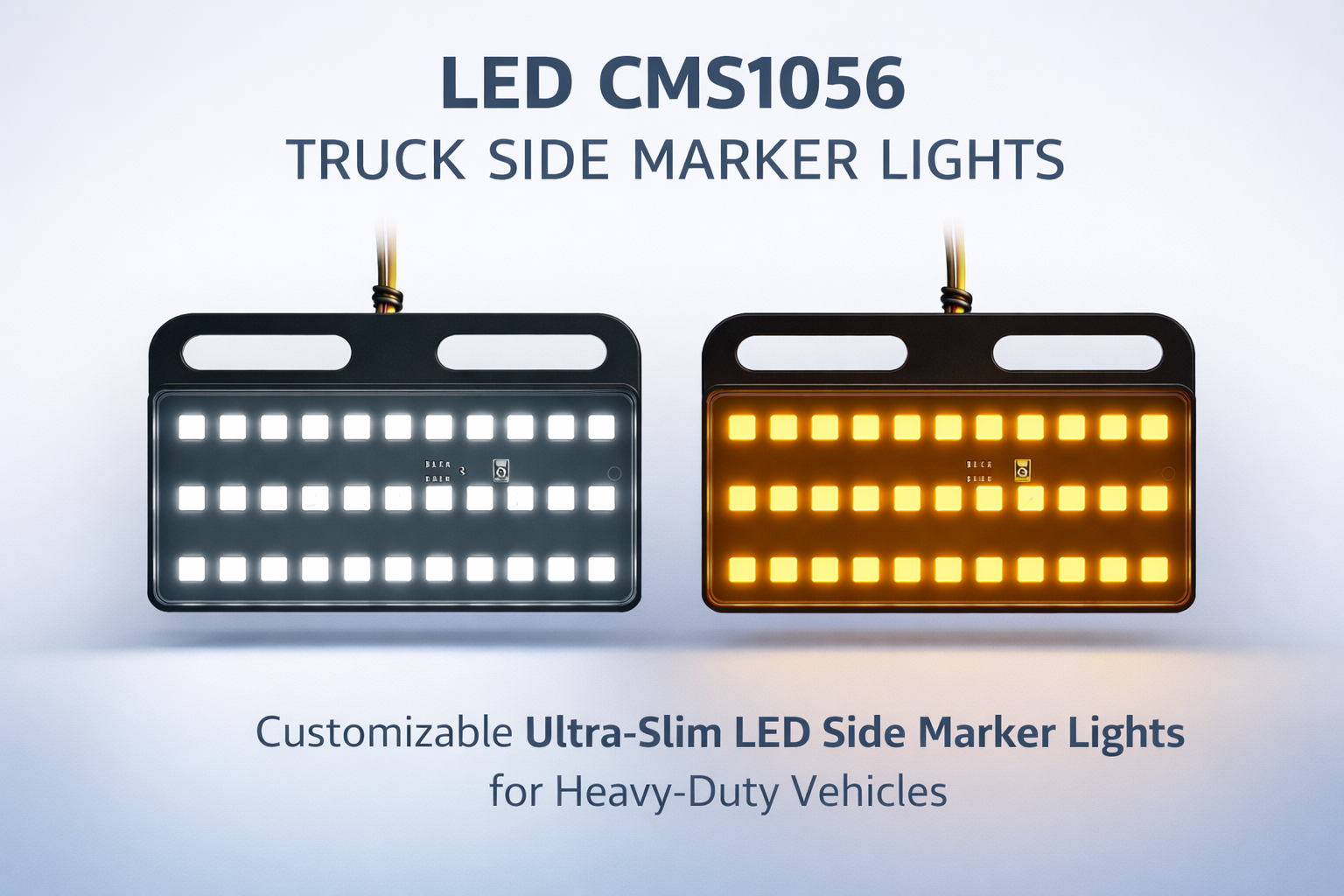

The LED CMS1056 Truck Side Marker Lights are ultra-slim, high-visibility lighting solutions designed for commercial trucks, trailers, and special-purpose vehicles.

Featuring a low-profile structure and flexible design architecture, the CMS1056 series can be customized in size, shape, housing style, LED layout, and flashing patterns to meet specific customer requirements.

Equipped with high-efficiency S.M.D.2835 LEDs, this product delivers uniform brightness, low power consumption, and excellent durability.
With a wide-voltage input range of 10–30VDC and an IP67 waterproof rating, the CMS1056 is suitable for both 12V and 24V vehicle systems operating in demanding outdoor environments.

This is a fully customizable OEM / ODM product, and rapid prototyping is available upon request.
Customers are welcome to contact us for technical consultation—we respond quickly and efficiently.

2. Key Features & Customization Capabilities

  • Ultra-Slim Design
    Slim housing structure optimized for modern vehicle styling and space-limited installations.

  • Customizable Dimensions & Appearance
    Size, thickness, housing shape, lens color, and overall appearance can be customized according to customer specifications.

  • Programmable Flashing Modes
    LED lighting behavior—including steady light, flashing, sequential, or special warning patterns—can be customized based on application needs.

  • Wide Voltage Compatibility (10–30VDC)
    Stable performance on both 12V and 24V systems, suitable for mixed vehicle fleets.

  • IP67 Waterproof Protection
    Fully sealed construction ensures reliable operation in rain, dust, mud, and harsh outdoor conditions.

  • Fast Sampling & Development
    Rapid prototyping and sample production available for OEM / ODM projects.

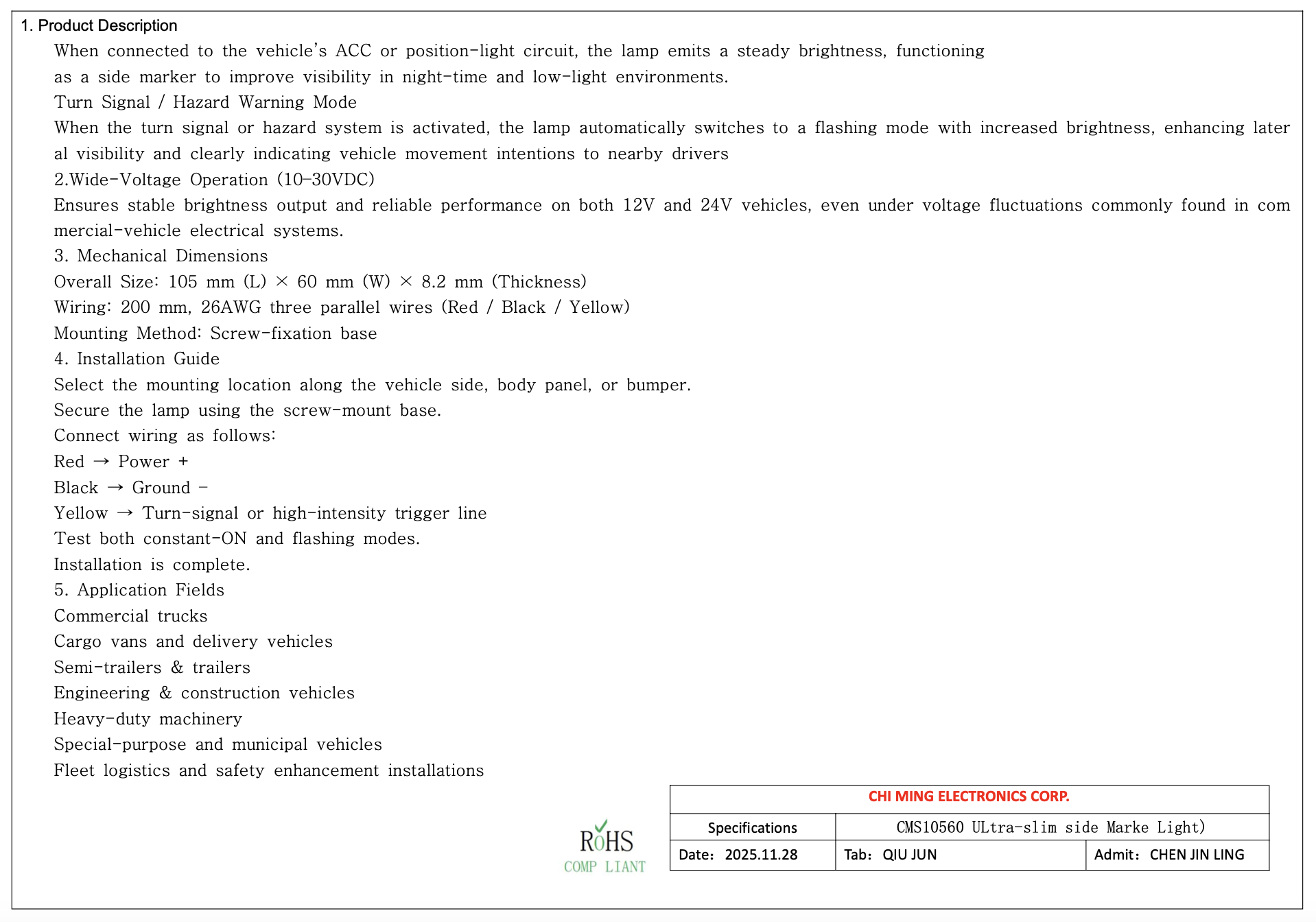

3. Functional Description

Constant-ON Mode (Position / Marker Light)
When connected to the vehicle’s position light or ACC circuit, the lamp provides steady illumination, improving side visibility in low-light and night-time conditions.

Flashing / Warning Mode
When triggered by turn signals or warning circuits, the lamp switches to a flashing or high-intensity mode, enhancing lateral visibility and signaling vehicle movement to surrounding traffic.

Stable Wide-Voltage Operation
Designed to maintain consistent brightness and reliable operation under voltage fluctuations common in commercial vehicle electrical systems.

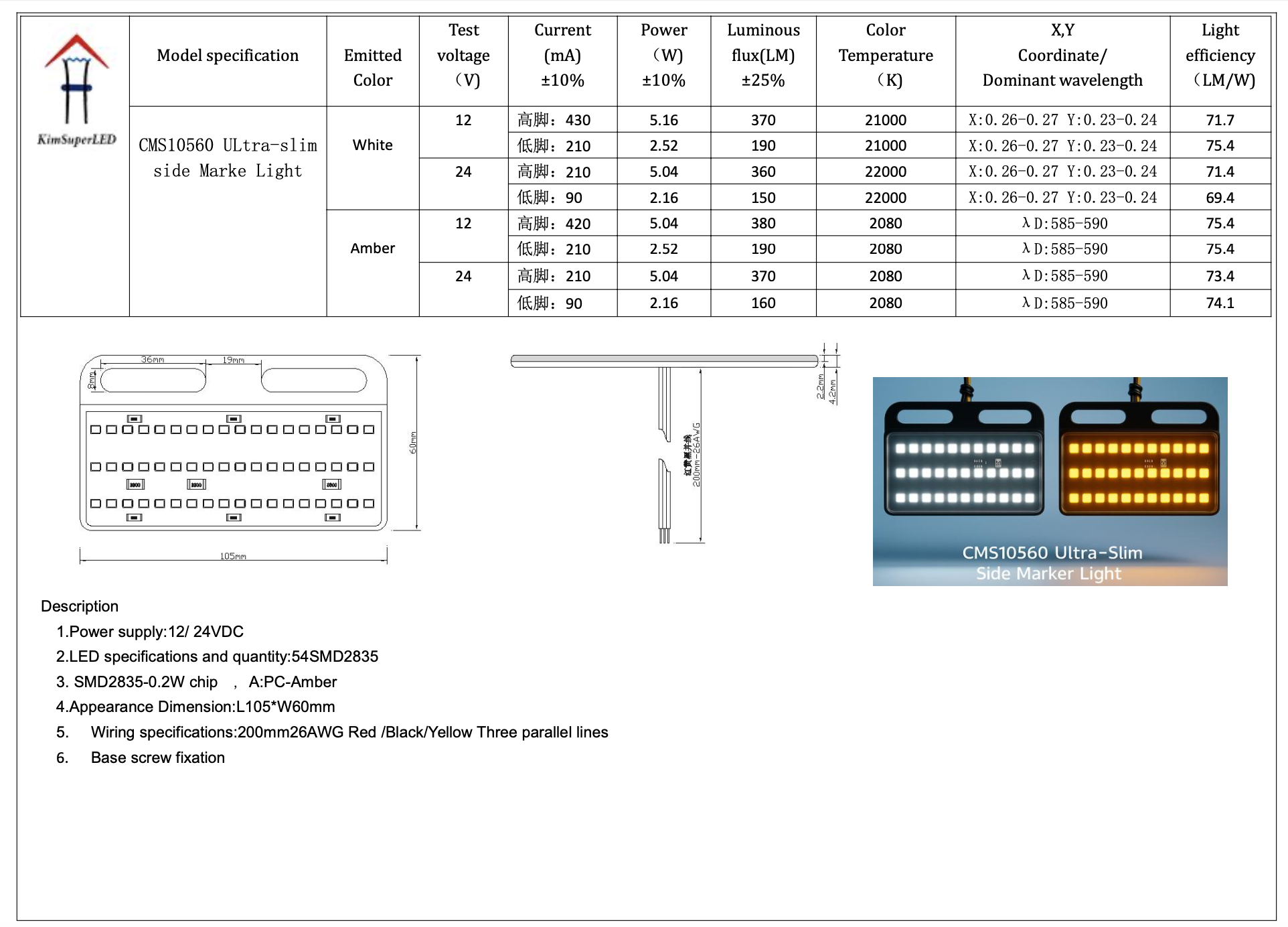

4. Mechanical Specifications

(Standard reference design – customizable)

  • Dimensions: 105 mm (L) × 60 mm (W) × 8.2 mm (Thickness)

  • L.E.D. Type: 54 pcs S.M.D.2835 (0.2W each)

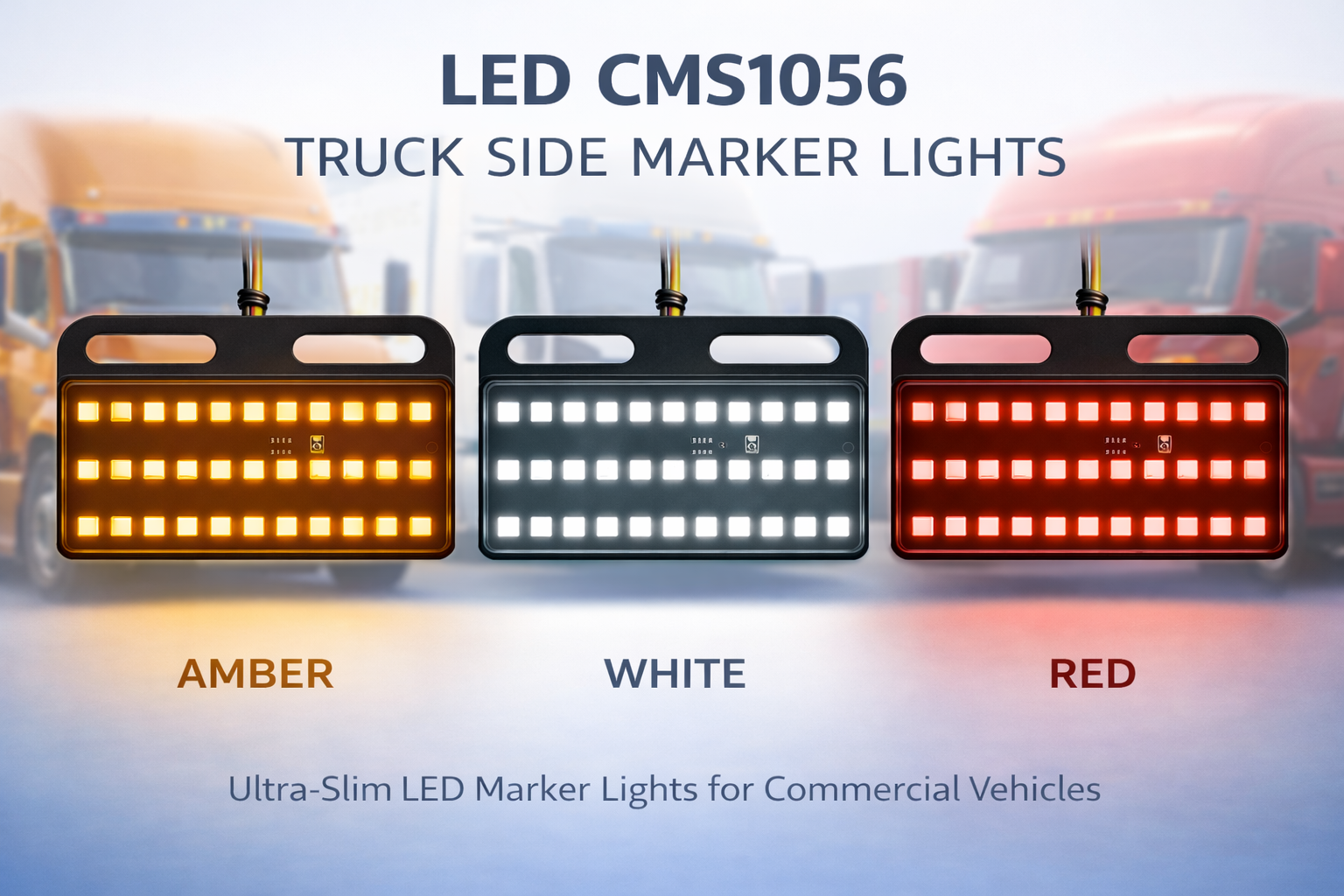

  • Housing Material: PC (Amber or Clear / Custom colors available)

  • Input Voltage: 10–30VDC

  • Wiring: 200 mm, 26AWG, 3-wire (Red / Black / Yellow)

  • Mounting: Screw-fixation base
    (Customized dimensions and designs available upon request.)

5. Installation Guide

  1. Select the mounting position on the vehicle side, body panel, or bumper.

  2. Secure the lamp using the screw-mount base.

  3. Connect wiring:

    • Red → Power (+)

    • Black → Ground (–)

    • Yellow → Flashing / high-intensity trigger

  4. Test both steady and flashing functions.

  5. Installation completed.

6. Application Fields

  • Commercial trucks

  • Cargo vans & logistics vehicles

  • Trailers & semi-trailers

  • Engineering & construction vehicles

  • Heavy-duty machinery

  • Special-purpose & municipal vehicles

  • Fleet safety and visibility enhancement

7. Safety & Reliability

  • IP67 waterproof & dustproof protection

  • Shock-resistant internal structure for vibration resistance

  • Wide-voltage stable operation (10–30VDC)

  • Low power consumption with long LED lifespan

  • UV-resistant PC lens for outdoor durability

  • High-brightness output improves side visibility and vehicle safety

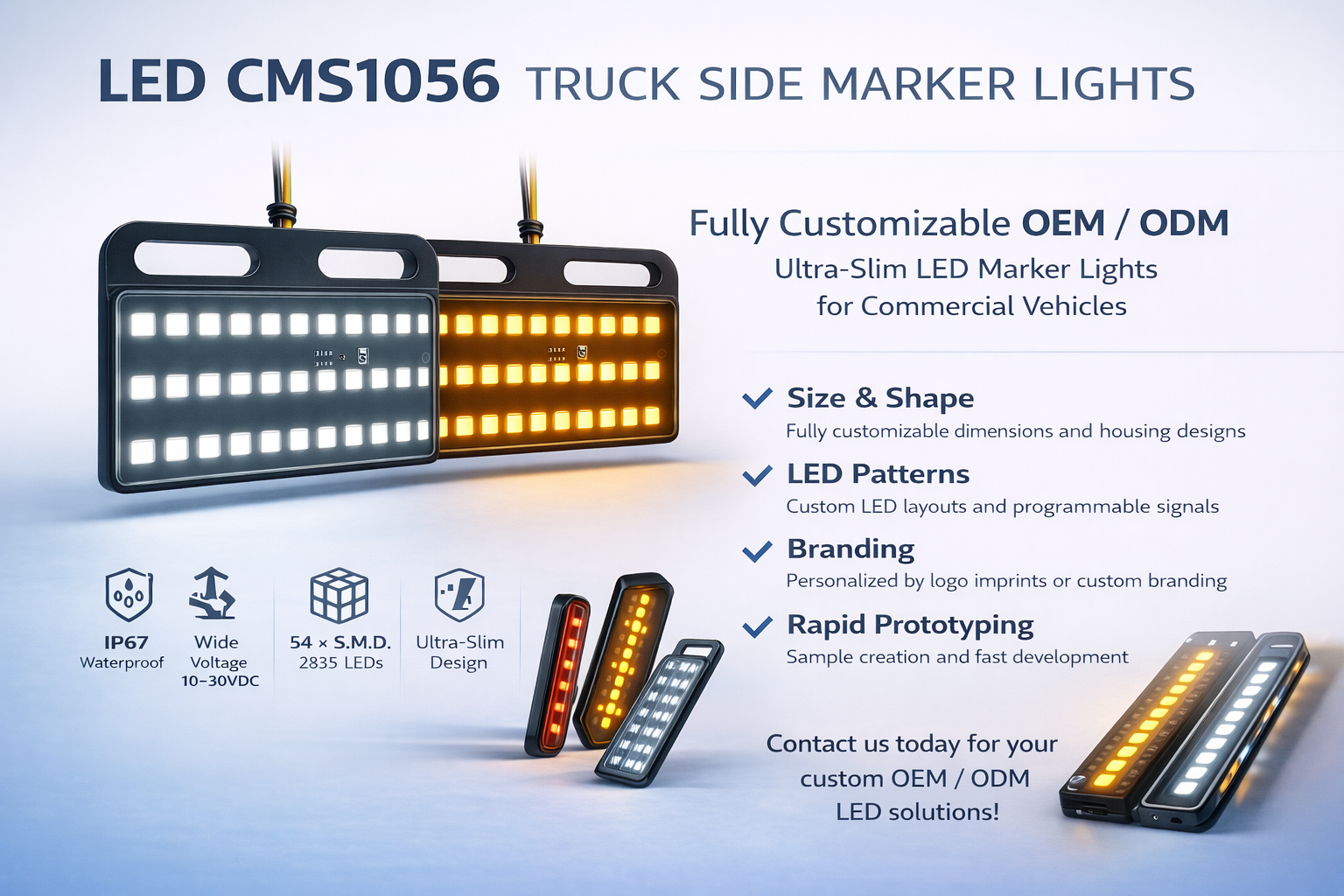

8. OEM / ODM Support

The LED CMS1056 Truck Side Marker Lights are designed as a fully customizable platform product.
We support custom size, shape, LED configuration, flashing patterns, and branding, with fast sampling and responsive technical support.

📞 Contact us today to discuss your project—our team will respond promptly.
