CM5006W-LED COB Soft Strip Light
CM5006W – LED COB Soft Strip Light

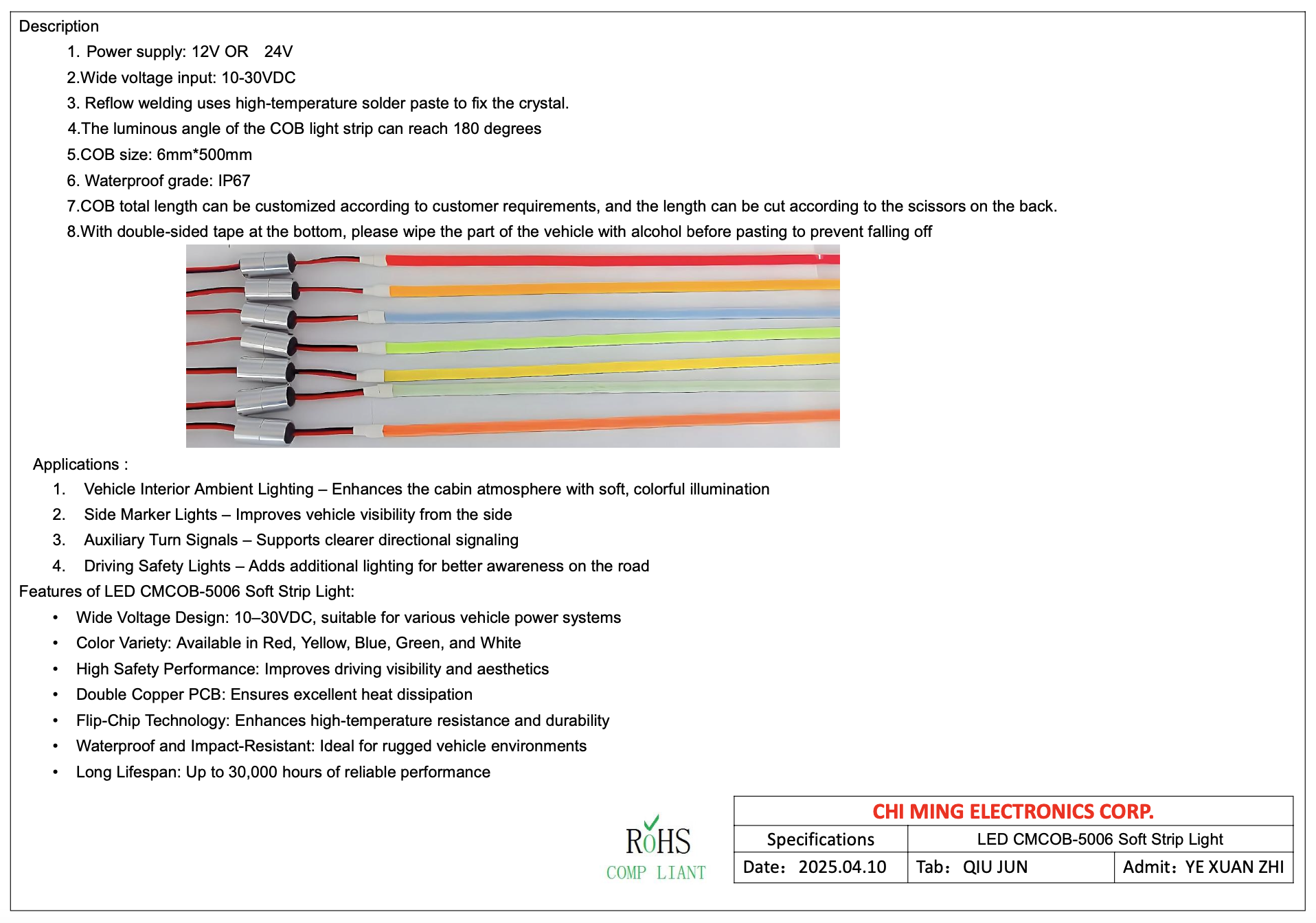

📄 Product Description

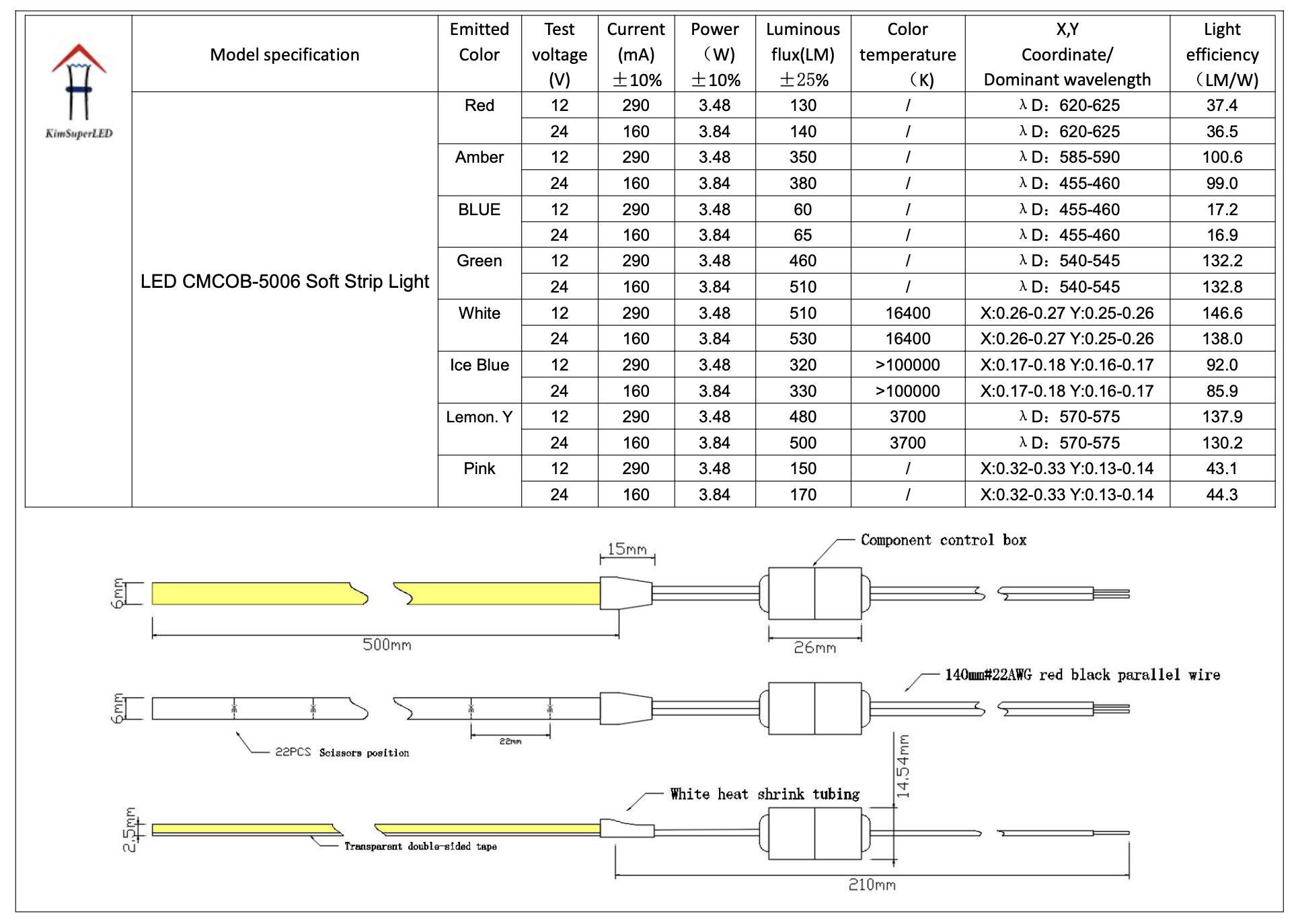

Power Supply: 12V / 24V DC
Wide Voltage Design: 10–30VDC, compatible with various vehicle electrical systems
COB Width: 5mm slim profile
Customizable Lengths: 300mm, 500mm, 1000mm, 1500mm or longer upon request
High Brightness Output: Provides uniform 180° wide beam illumination
Advanced Reflow Welding: High-temperature solder bonding ensures secure LED structure
Waterproof Rating: IP67 – suitable for outdoor and rugged environments
Durability: Excellent vibration resistance and high-temperature endurance
Easy Installation: 3M double-sided adhesive backing for fast and secure mounting
Engineered for long-term vehicle applications with proven reliability and strong customer trust.
🚛 Applications
-
Vehicle Interior Lighting
-
Cabin Ambient Decoration
-
Vehicle Contour Outline Lighting
-
Side Marker & Safety Indication
-
Auxiliary Ground / Underbody Lighting
-
Commercial Vehicle Illumination
-
Interior Decorative Light Bars
💡 Key Features
Wide Voltage Compatibility (10–30VDC)
Stable performance across 12V and 24V systems.
Slim 5mm COB Design
Flexible, seamless light line with clean appearance.
Uniform 180° Light Output
Continuous linear illumination without visible LED dots.
Double Copper PCB
Enhanced heat dissipation and structural durability.
Flip-Chip Technology
Improved high-temperature resistance and long service life.
IP67 Waterproof & Impact Resistant
Designed for demanding automotive environments.
Long Lifespan
Up to 50,000 hours of reliable operation.
High Customer Confidence
Widely recognized for stable quality and dependable performance.
📌 Installation Reminder
This product is equipped with 3M double-sided adhesive backing.
Before installation, please ensure the mounting surface is clean and dry.
Use alcohol wipes to remove dust and oil to guarantee strong adhesion and prevent detachment.
