CMS3003 – LED COB Soft Strip Lights

📄 Product Overview

Power Supply: 12VDC or 24VDC (Please specify when ordering)
Ultra-Slim Design: Only 3mm width, compact and highly flexible for narrow installation spaces
High Brightness COB Technology: Advanced flip-chip reflow soldering enhances heat resistance, stability, and long-term durability
Beam Angle: 180° wide-angle illumination for smooth and uniform light output
PCB Structure: Double-layer copper PCB ensures superior current flow and heat dissipation

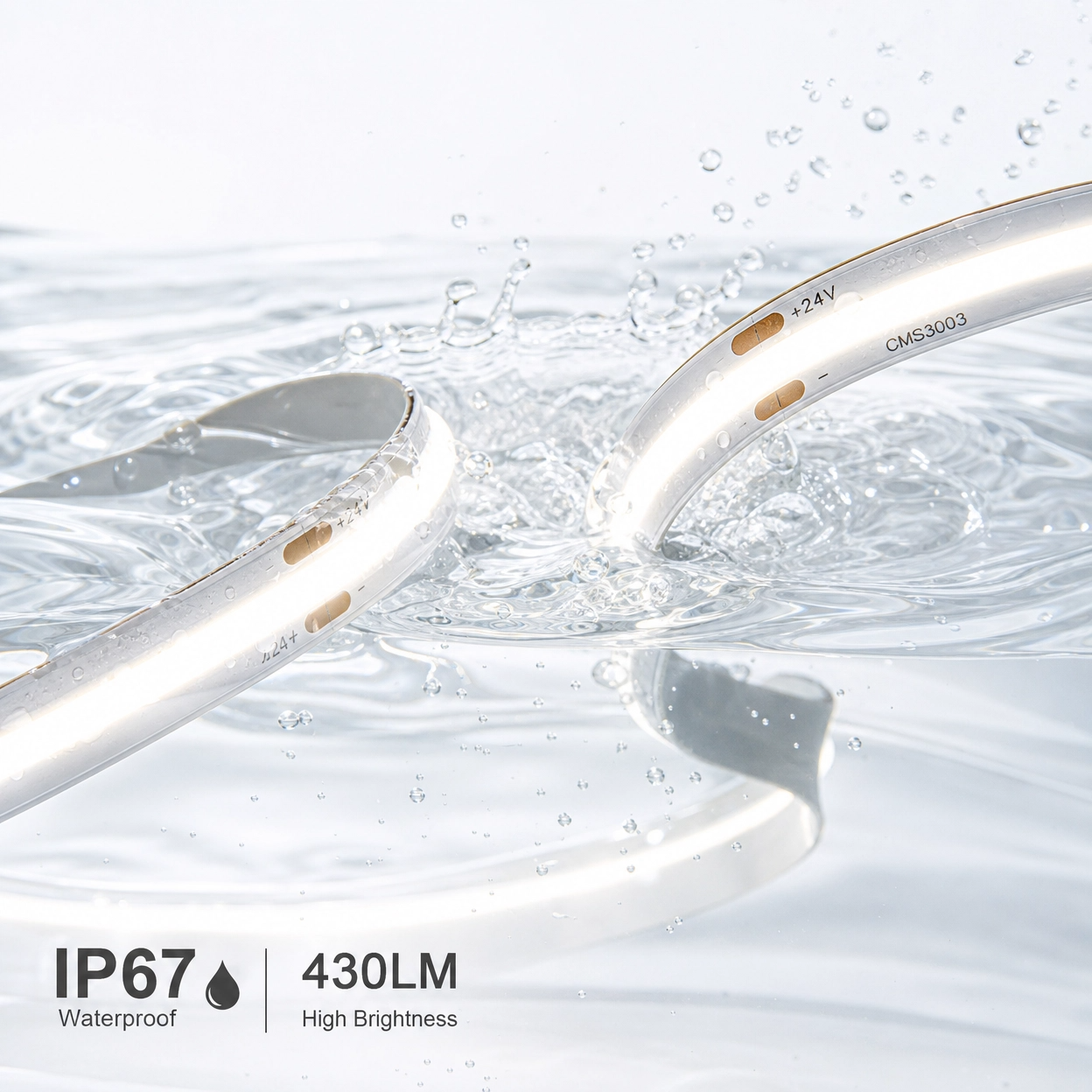

Waterproof Level: IP67 rated – suitable for outdoor, underbody, and rugged vehicle environments
Mounting: High-quality 3M double-sided adhesive backing for quick and easy installation
Encapsulation: Special phosphor-infused silicone gel improves waterproofing and light consistency
Durability: Excellent vibration resistance and high-temperature tolerance
Quality Assurance: Strict manufacturing control ensures reliability and performance consistency

Trusted by customers worldwide for durability, brightness, and stable performance.

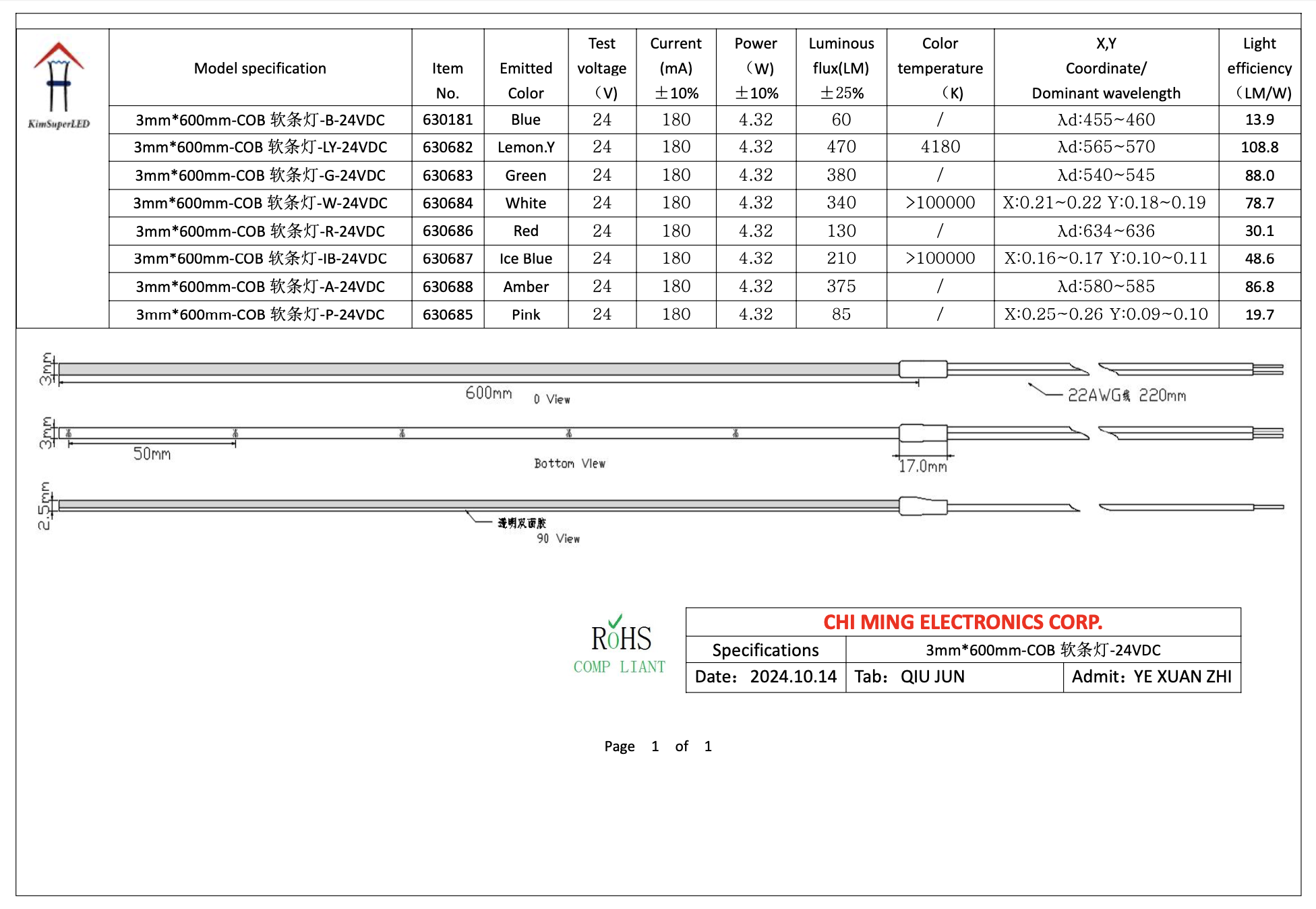

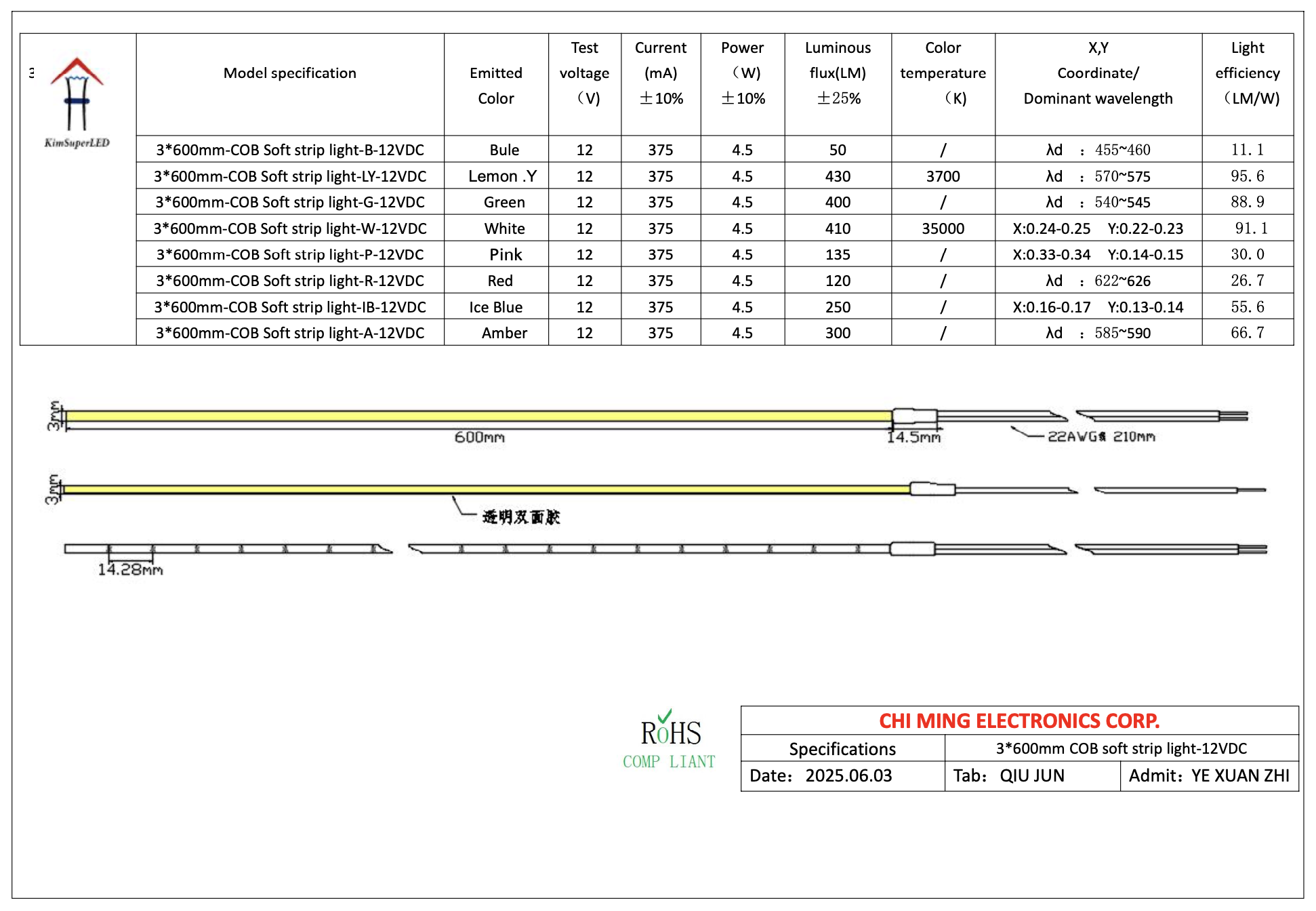

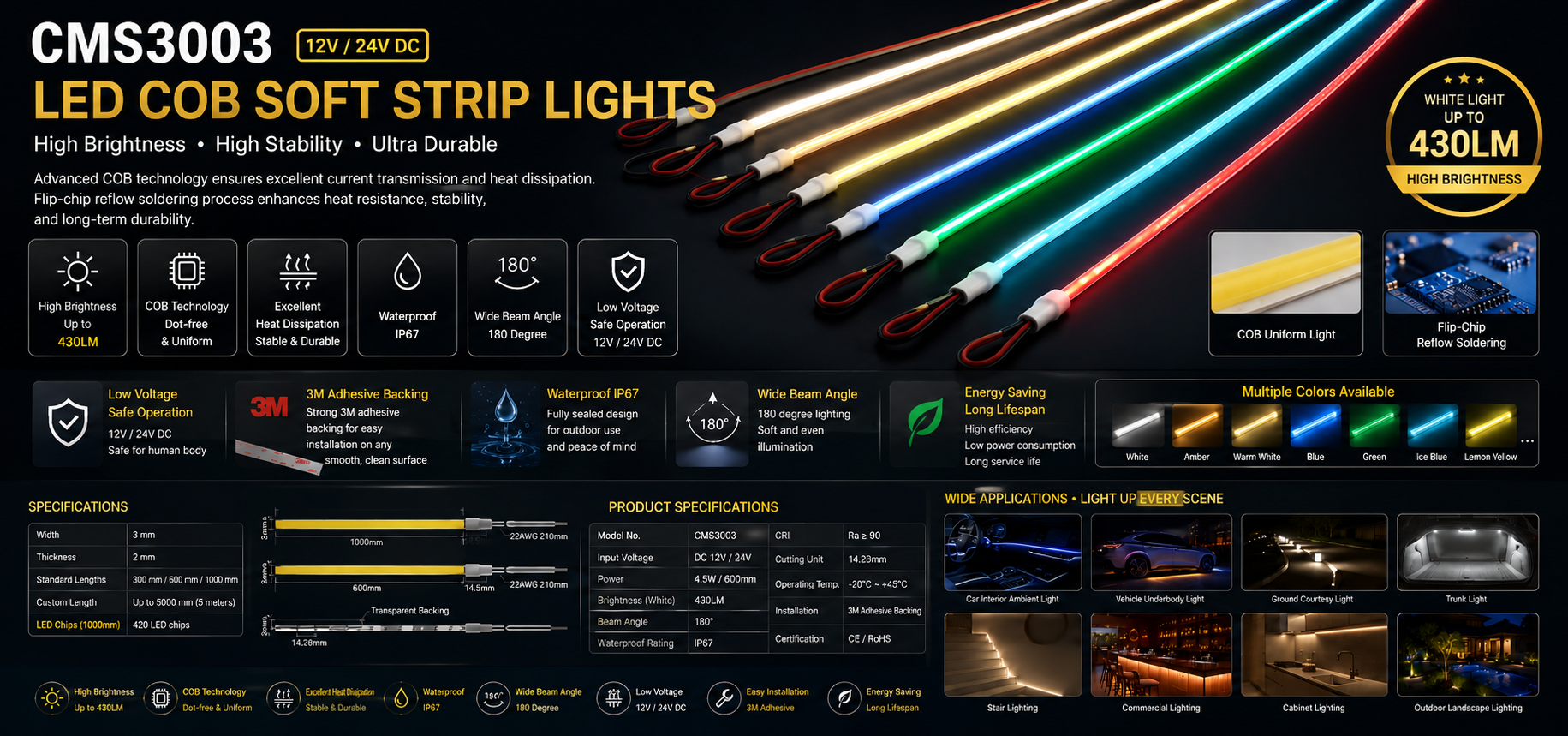

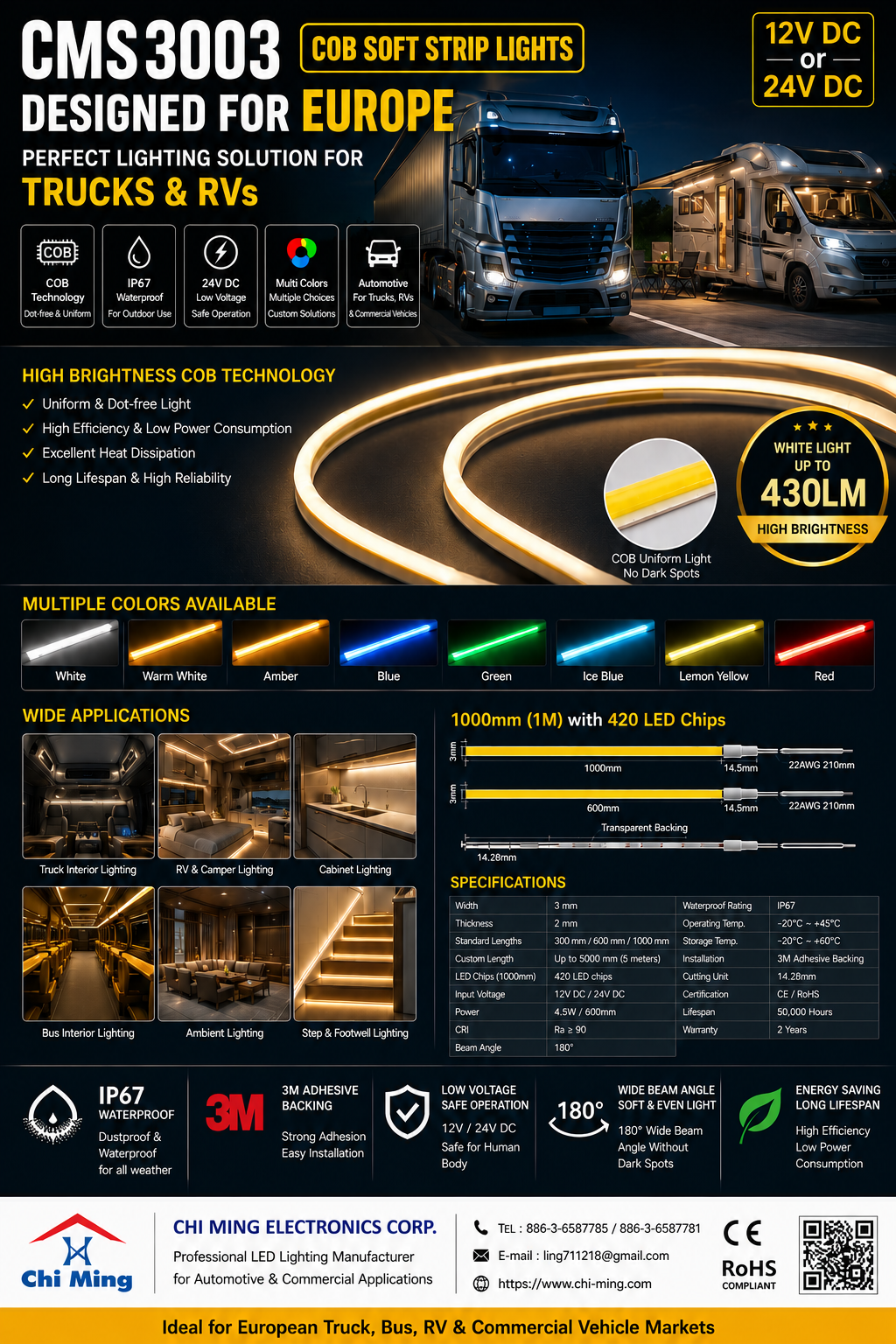

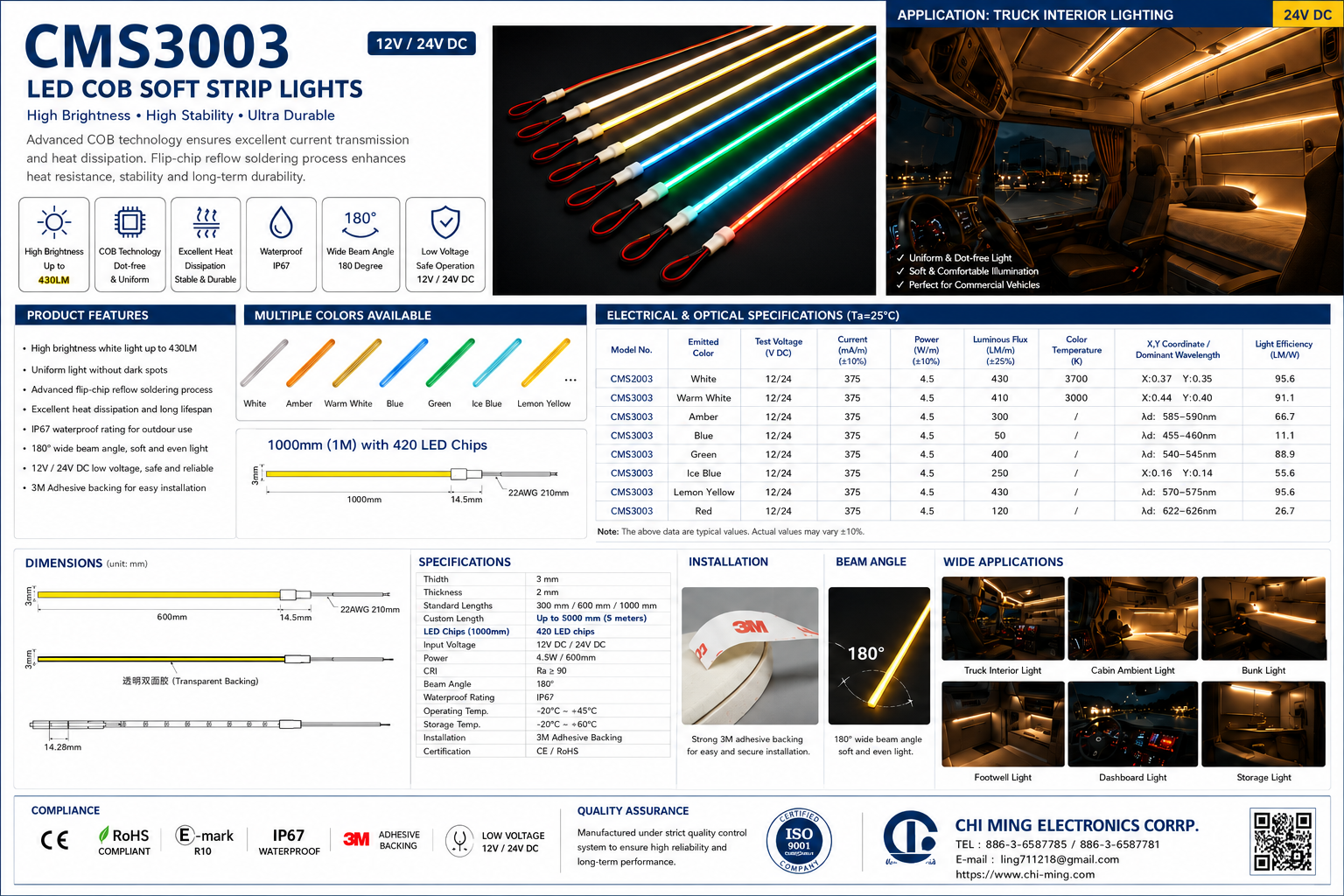

📐 Specifications

• Width: 3 mm

• Thickness: 2 mm

• Standard Lengths: 300 mm / 600 mm / 1000 mm

• Custom Length: Up to 5000 mm (5 meters)

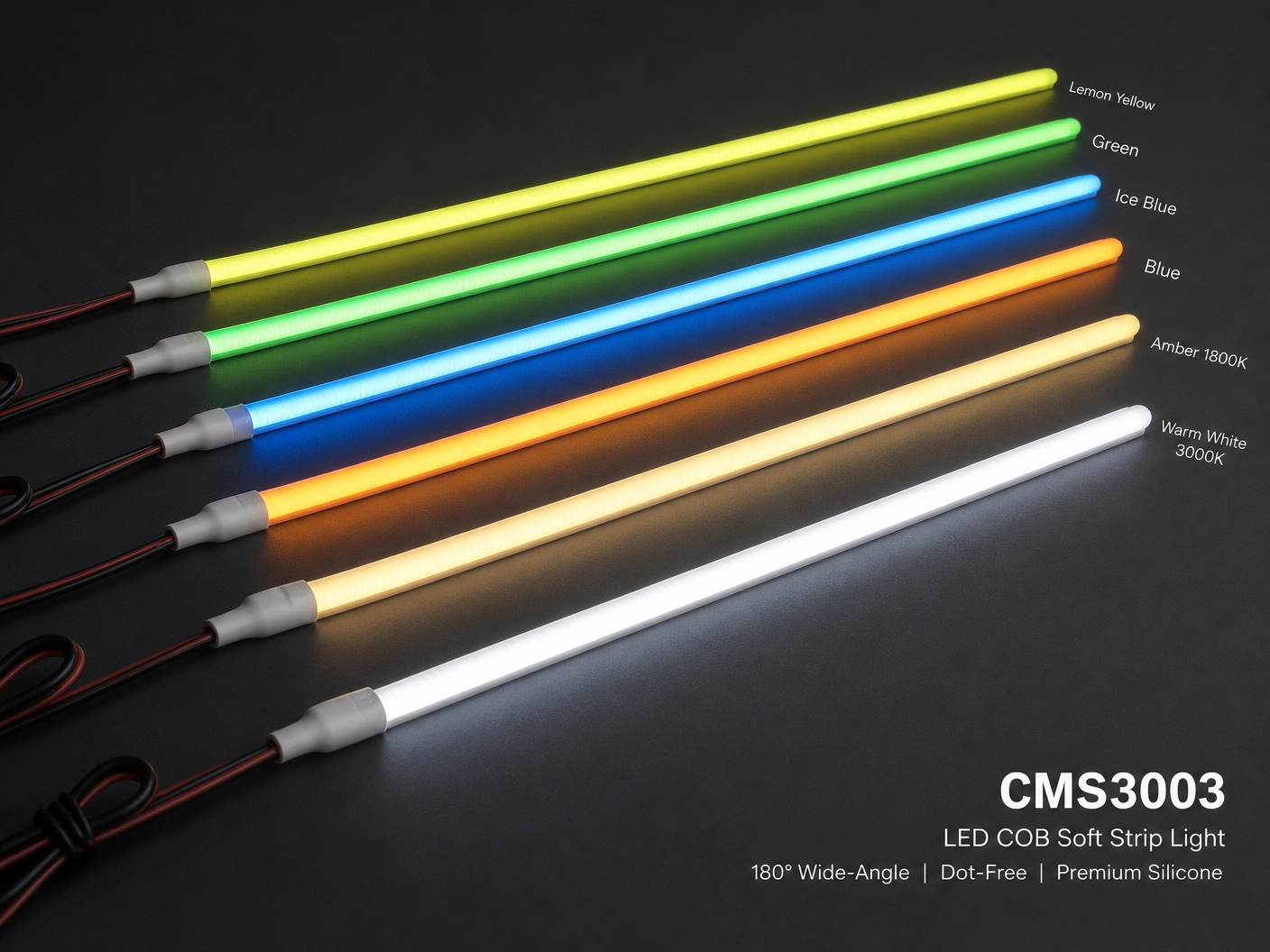

• Available Colors: Red, Yellow, Blue, Green, White, Pink, Ice Blue, Lemon Yellow

🔧 Applications

Designed for multiple vehicle lighting applications:

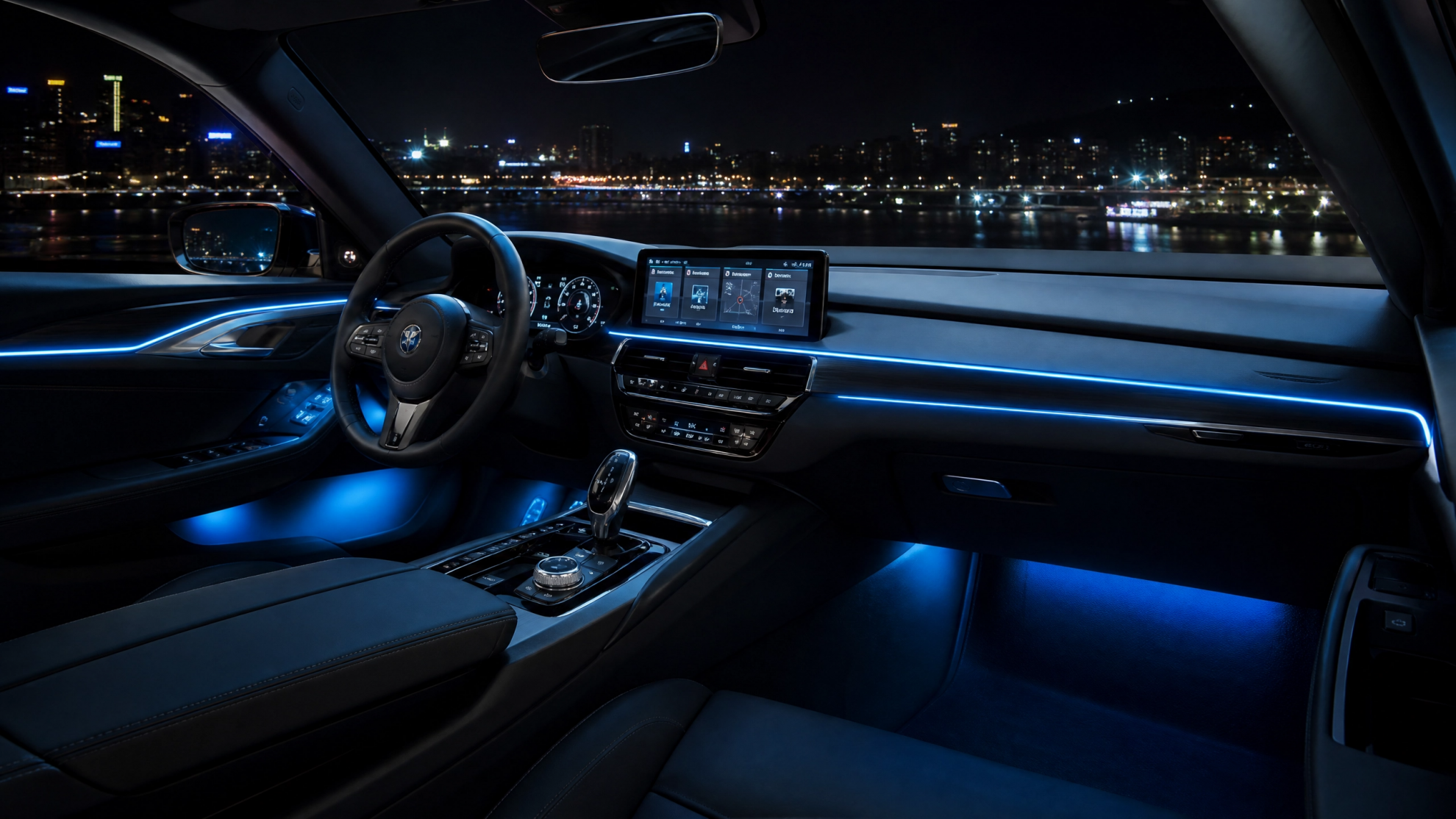

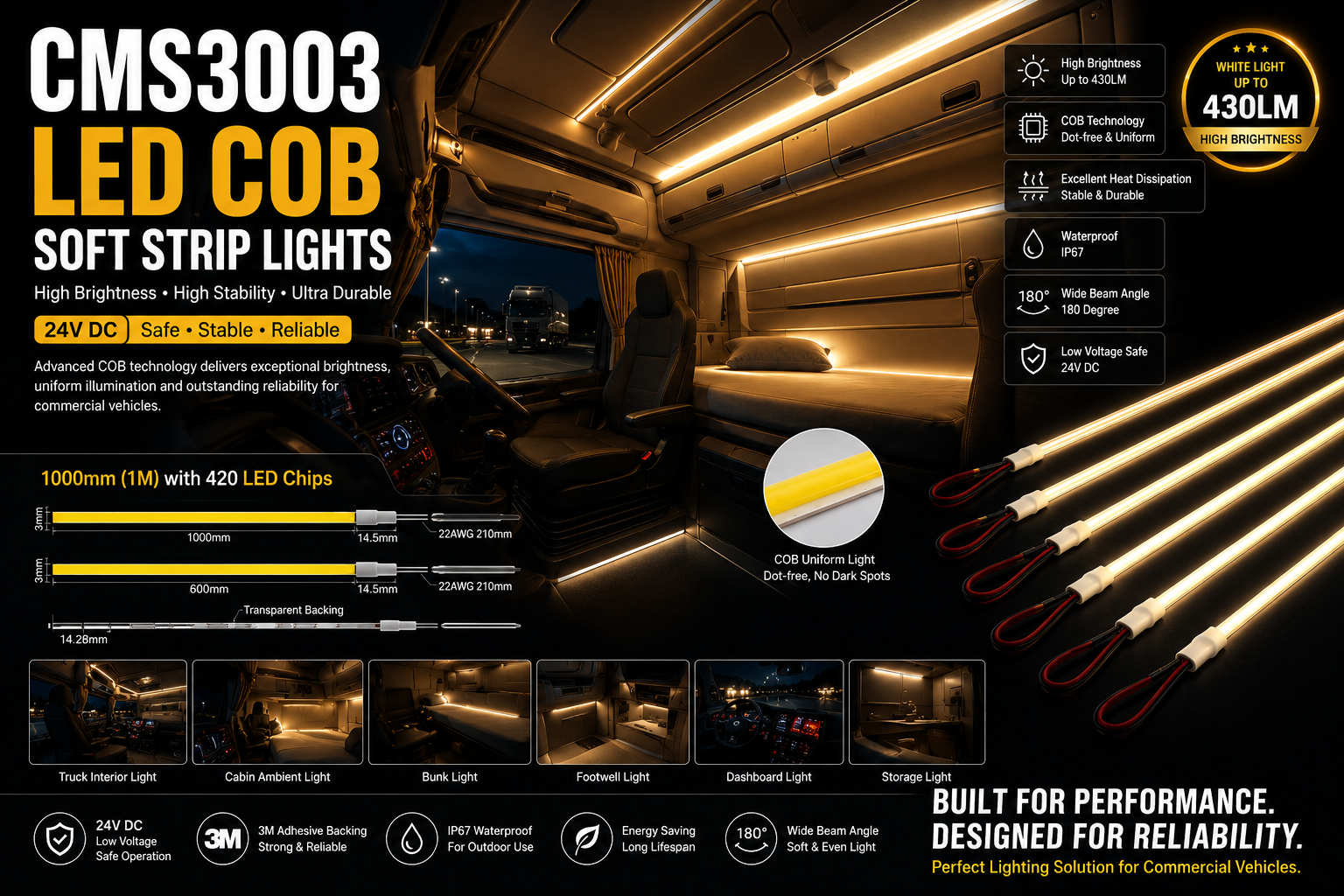

• Interior cabin lighting

• Vehicle contour / outline marking

• Interior decorative ambient lighting

• Underbody ground lighting

• Side marker lighting

• Auxiliary safety lighting

Its slim 3mm structure makes it ideal for hidden or narrow installation areas.

💡 Key Features

＊ Wide voltage compatibility (12V / 24V systems)
＊ High-brightness COB LED technology
＊ IP67 waterproof & dustproof
＊ Excellent shock and vibration resistance
＊ High temperature resistance
＊ Over 50,000 hours lifespan
＊ Easy installation with 3M adhesive backing
＊ Flexible and customizable for OEM / ODM projects

📌 Installation Notes

＊＊ Clean and dry the installation surface with alcohol before mounting.
＊＊ Press firmly along the full length to ensure maximum adhesion performance.
