CMD8008-LED Down Light SMD 21
CMD8008-LED Down Light SMD 21
Vehicle Interior & Ambient Lighting Solution
The CMD8008-LED Down Light SMD 21 is a professional low-voltage LED interior light specially designed for vehicle cabin lighting, RV lighting, marine interior lighting, and commercial vehicle applications.

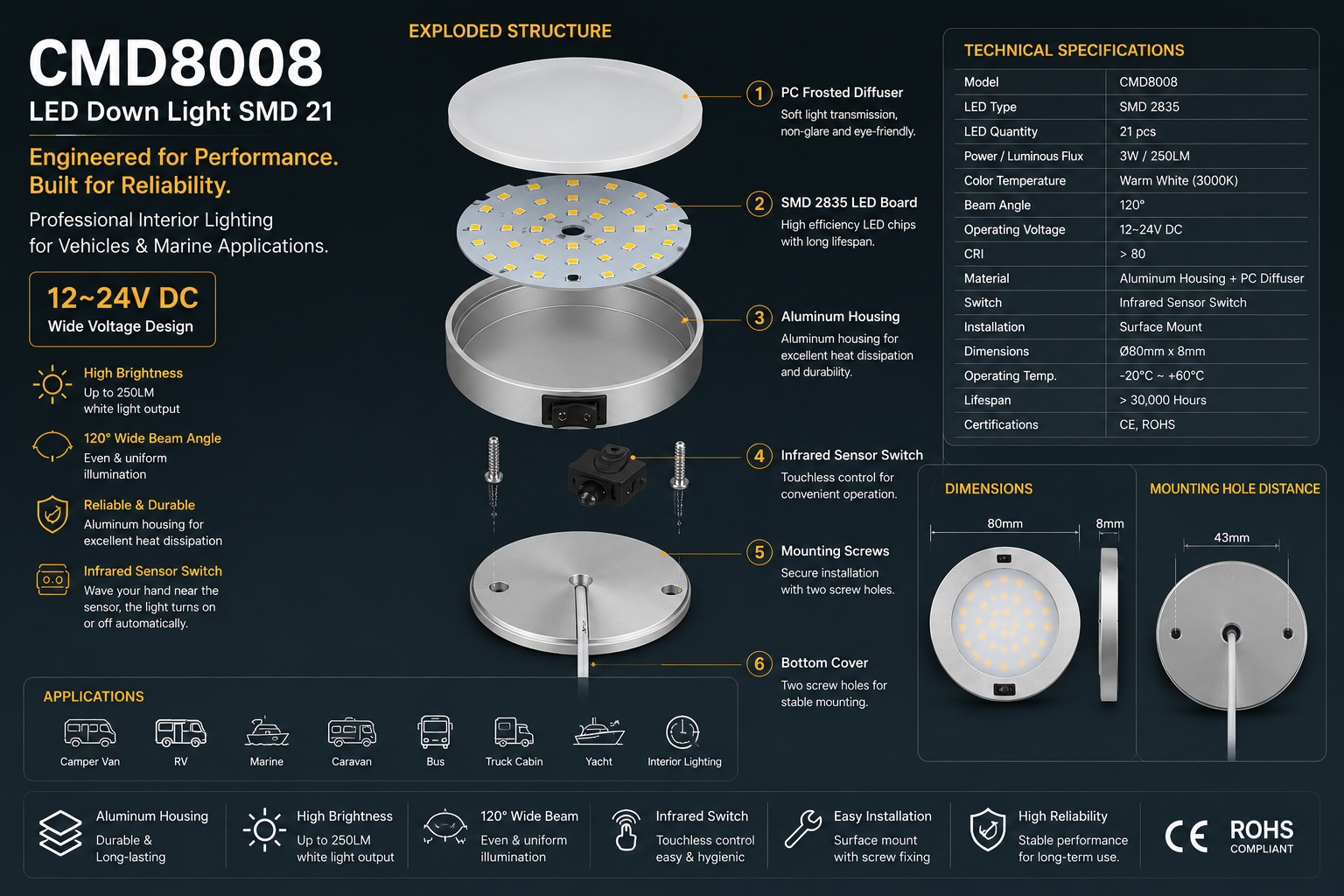

Engineered with an aluminum PCB tightly bonded to an aluminum module, the CMD8008 delivers excellent thermal dissipation, stable illumination output, and long operational lifespan even under demanding vehicle environments.
The outer structure combines a durable aluminum housing with a frosted PC diffuser, producing soft, comfortable, non-glare illumination ideal for interior ambient lighting applications.
Equipped with an advanced infrared sensor switch, the light can automatically turn ON or OFF by sensing the temperature of a user’s hand, providing touchless and convenient operation.
The rear aluminum cover includes two mounting holes, allowing secure screw-fixed installation for improved stability in moving vehicles.
With a wide voltage input of 10–30V DC, high reliability, and multiple lighting color options, the CMD8008 is an ideal lighting solution for RVs, camper vans, buses, trucks, marine cabins, and utility vehicles.
Key Features
1. Wide Voltage Design (10–30V DC)
Designed for low-voltage vehicle systems:
- Trucks
- Buses
- Camper Vans
- RVs
- Caravans
- Marine Cabins
- Commercial Vehicles
- Utility Vehicles
- Yacht Interior Lighting
- Truck Cabin Lighting
Ensures stable operation under vehicle voltage fluctuations.
2. Infrared Sensor Switch
Built-in infrared sensor switch allows touchless control.
Features:
- Hand temperature sensing activation
- Automatic ON/OFF operation
- Hygienic and convenient
- Modern smart-lighting experience
- Easy operation in dark environments
Perfect for:
- Camper vans
- RV bedrooms
- Bus interiors
- Marine cabins
- Night lighting applications
3. Soft Non-Glare Illumination
The frosted PC diffuser provides:
- Soft light output
- Uniform illumination
- Reduced glare
- Comfortable ambient lighting
- Better eye comfort during long use
Ideal for:
- Passenger cabins
- Reading lights
- Sleeping areas
- Dining areas
- Interior ambient lighting
4. High-Efficiency Heat Dissipation
The structure adopts:
- Aluminum PCB thermal bonding
- Aluminum heat sink module
- Stable thermal conduction system
Benefits include:
- Stable light output
- Extended LED lifespan
- Long continuous operation
- High reliability under vibration environments

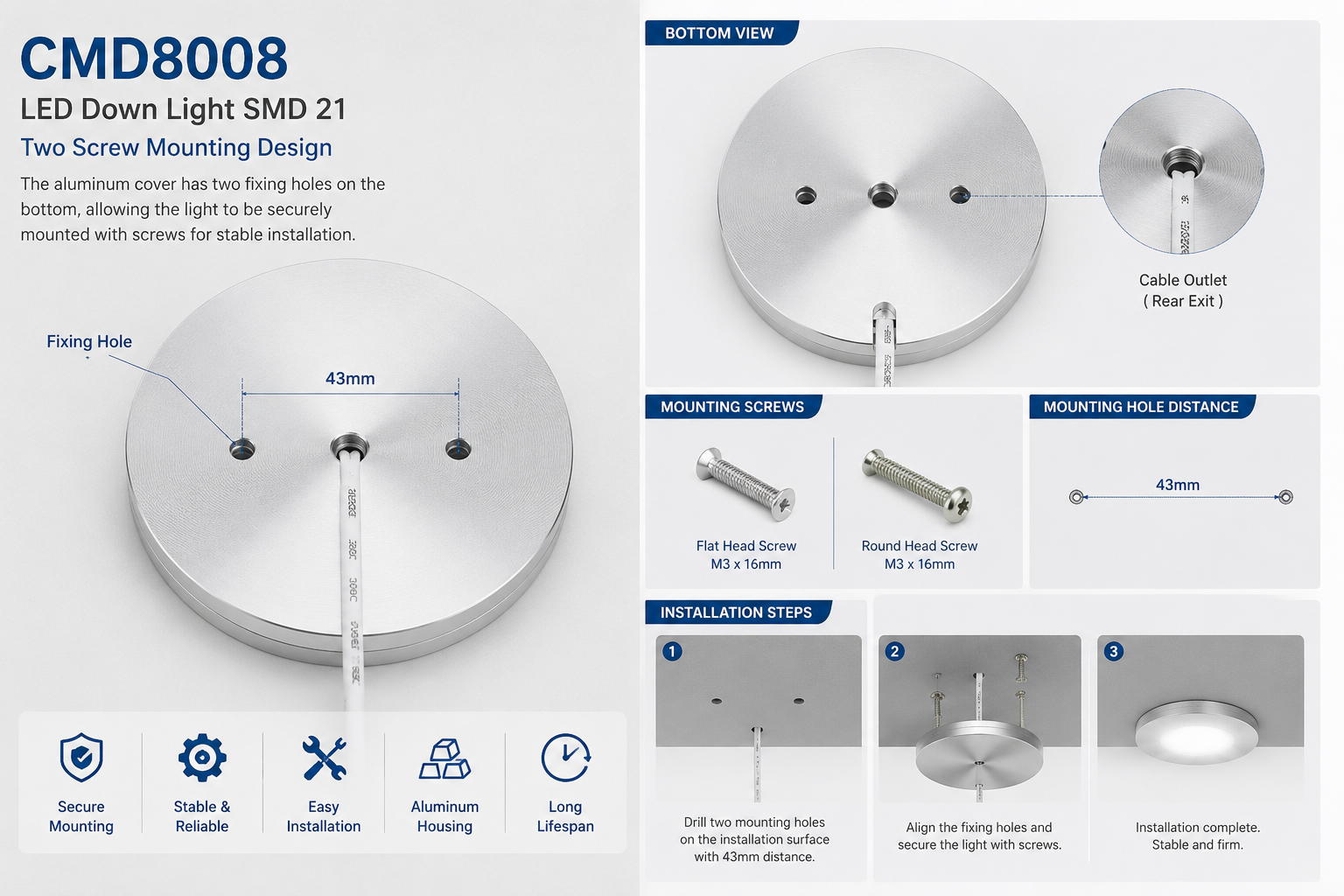

5. Screw-Fixed Mounting Design
The bottom aluminum cover includes two fixing holes for secure installation.
Advantages:
- Stable mounting
- Easy installation
- Vibration resistance
- Suitable for moving vehicles
Installation areas:
- RV ceilings
- Bus interiors
- Truck cabins
- Marine ceilings
- Cargo compartments
- Caravan lighting systems
6. Multiple Lighting Color Options
Available colors include:
- White
- Warm White
- Amber
- Custom colors upon request
Suitable for:
- Functional lighting
- Mood lighting
- Decorative lighting
- Night ambient lighting

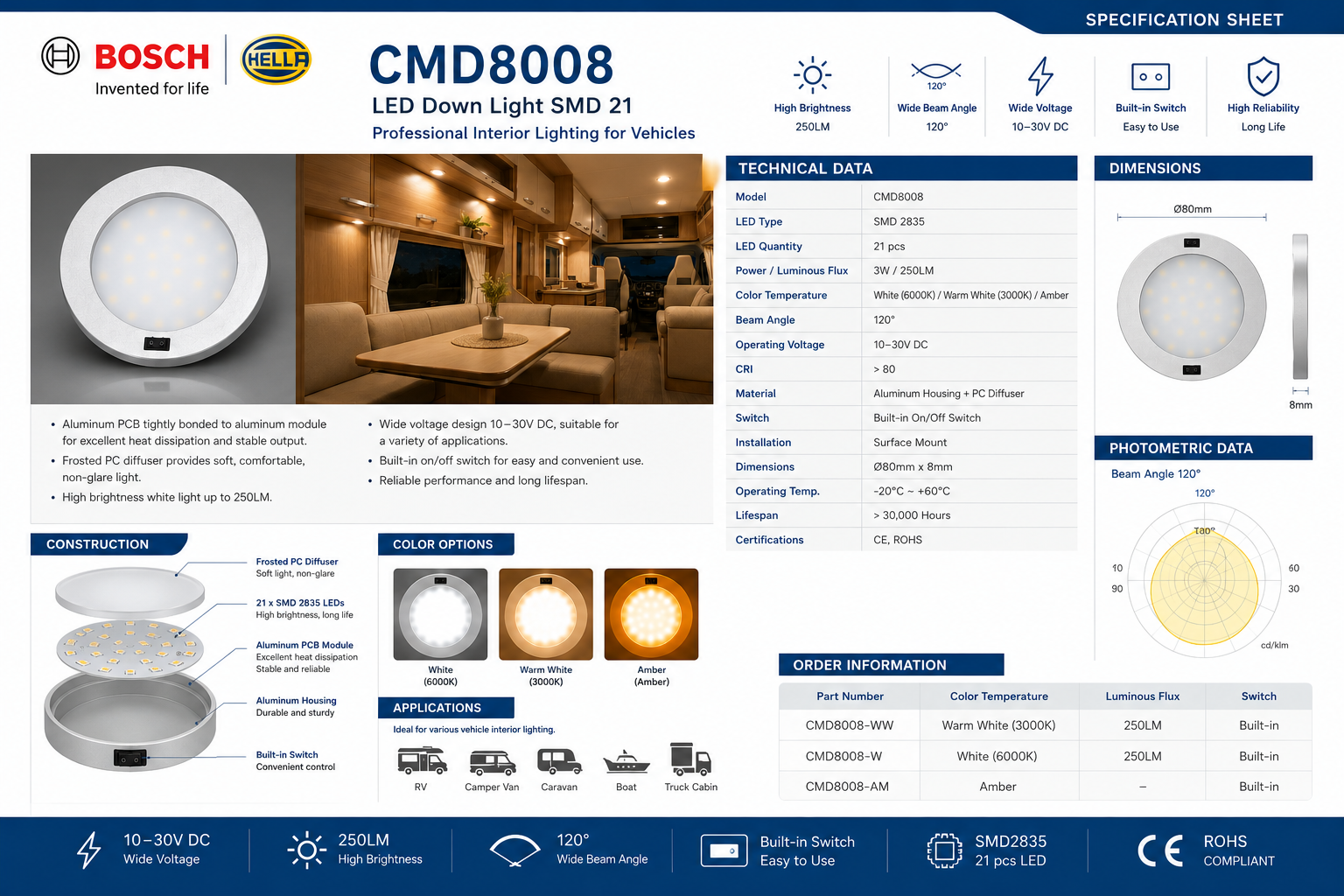

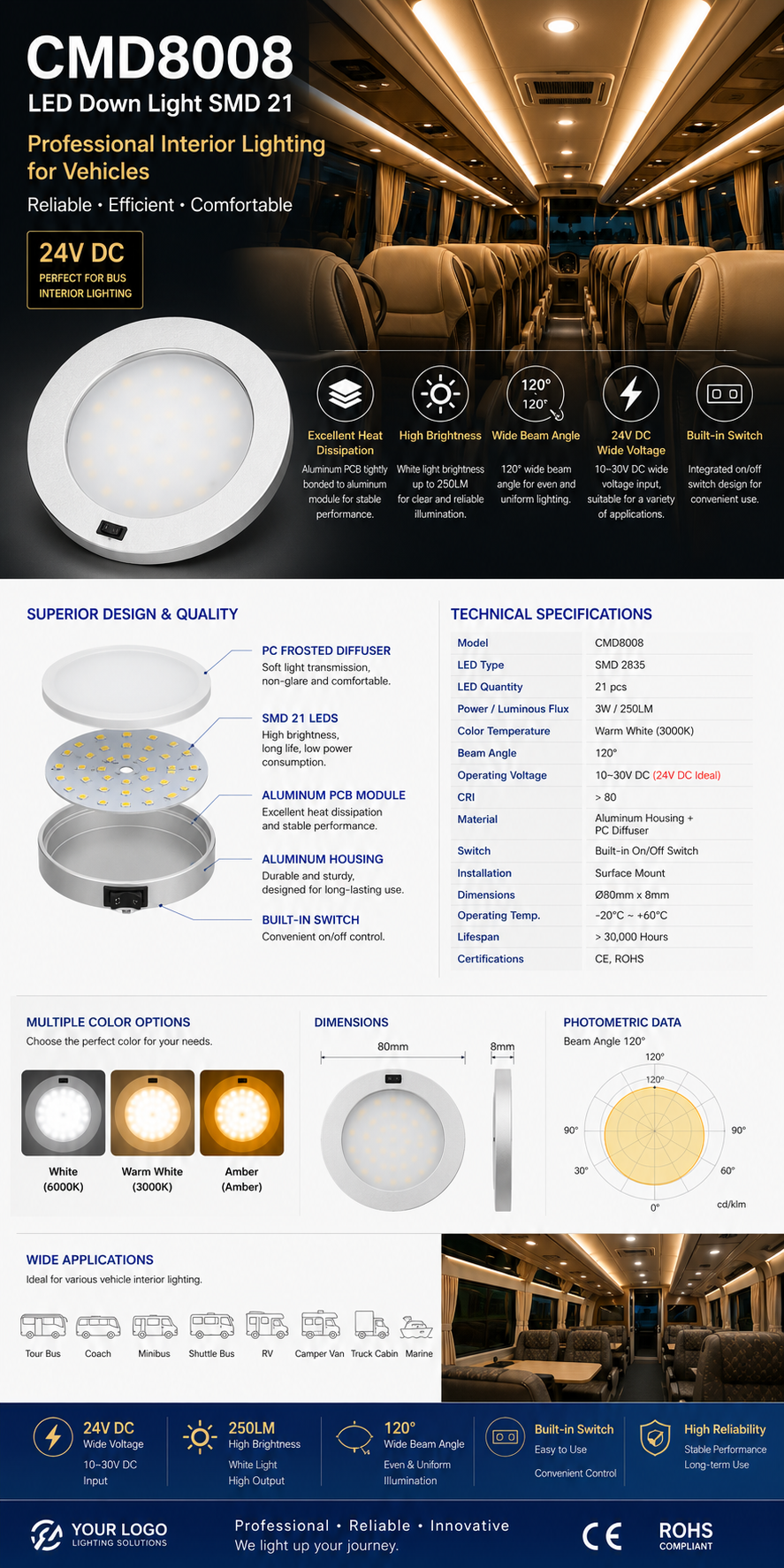

Specifications
| Item | Specification |
|---|---|
| Model | CMD8008-LED Down Light SMD 21 |
| LED Type | SMD2835 |
| LED Quantity | 21 pcs |
| Power | 3W |
| Luminous Flux | Up to 250LM |
| Input Voltage | 10–30V DC |
| Beam Angle | 120° |
| CRI | >80 |
| Housing Material | Aluminum Housing + Frosted PC Diffuser |
| Switch Type | Infrared Sensor Switch |
| Mounting | Screw Fixed Installation |
| Dimensions | Ø80mm × 8mm |
| Certifications | CE, ROHS |
Applications
Vehicle Interior Lighting
- Truck cabin lighting
- Bus passenger lighting
- RV interior lighting
- Camper van ceiling lighting
- Caravan lighting systems
Marine & Yacht Lighting
- Boat cabin lighting
- Yacht interior lighting
- Marine utility lighting
Ambient & Mood Lighting
- Warm ambient lighting
- Reading lighting
- Bed area lighting
- Dining table lighting
Utility & Commercial Lighting
- Cargo compartment lighting
- Maintenance lighting
- Utility vehicle interior lighting
