🔷 CMF1031-LED SV8.5 FESTOON SMD 4

🔹 Product Description

💡 High Efficiency & Focused Illumination

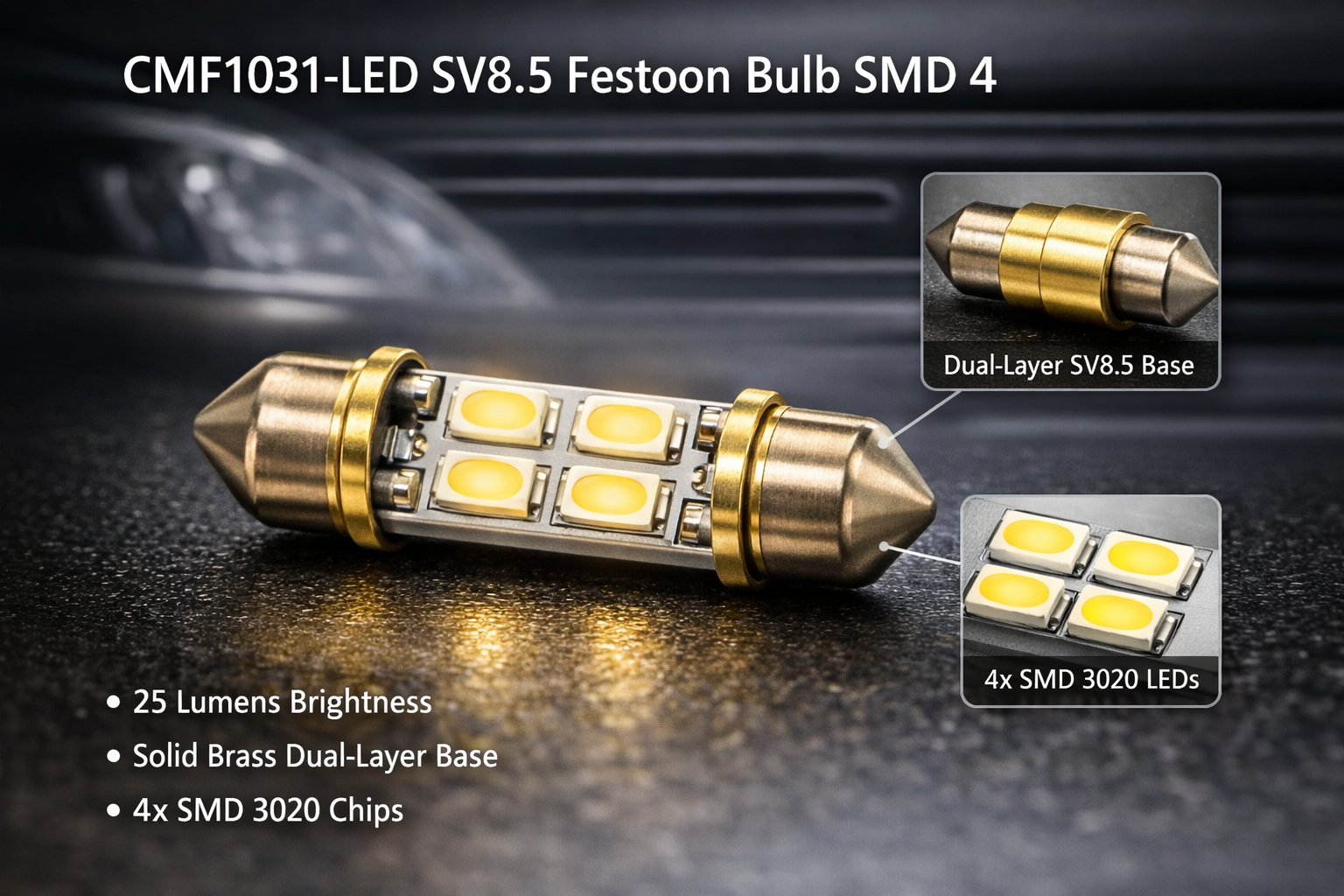

The CMF1031-LED SV8.5 Festoon Bulb SMD 4 is designed with 4 pcs SMD 3020 LEDs, delivering up to 25 lumens of stable and efficient output.

With its directional downward light design, this model provides concentrated illumination that can fully replace traditional incandescent festoon bulbs.

👉 Ideal for interior and auxiliary lighting applications with clear visibility and reduced light loss

⚡ Stable & Reliable Performance

Engineered with an optimized circuit structure, this model ensures:

• Consistent brightness
• Low heat generation
• Long-term stable operation

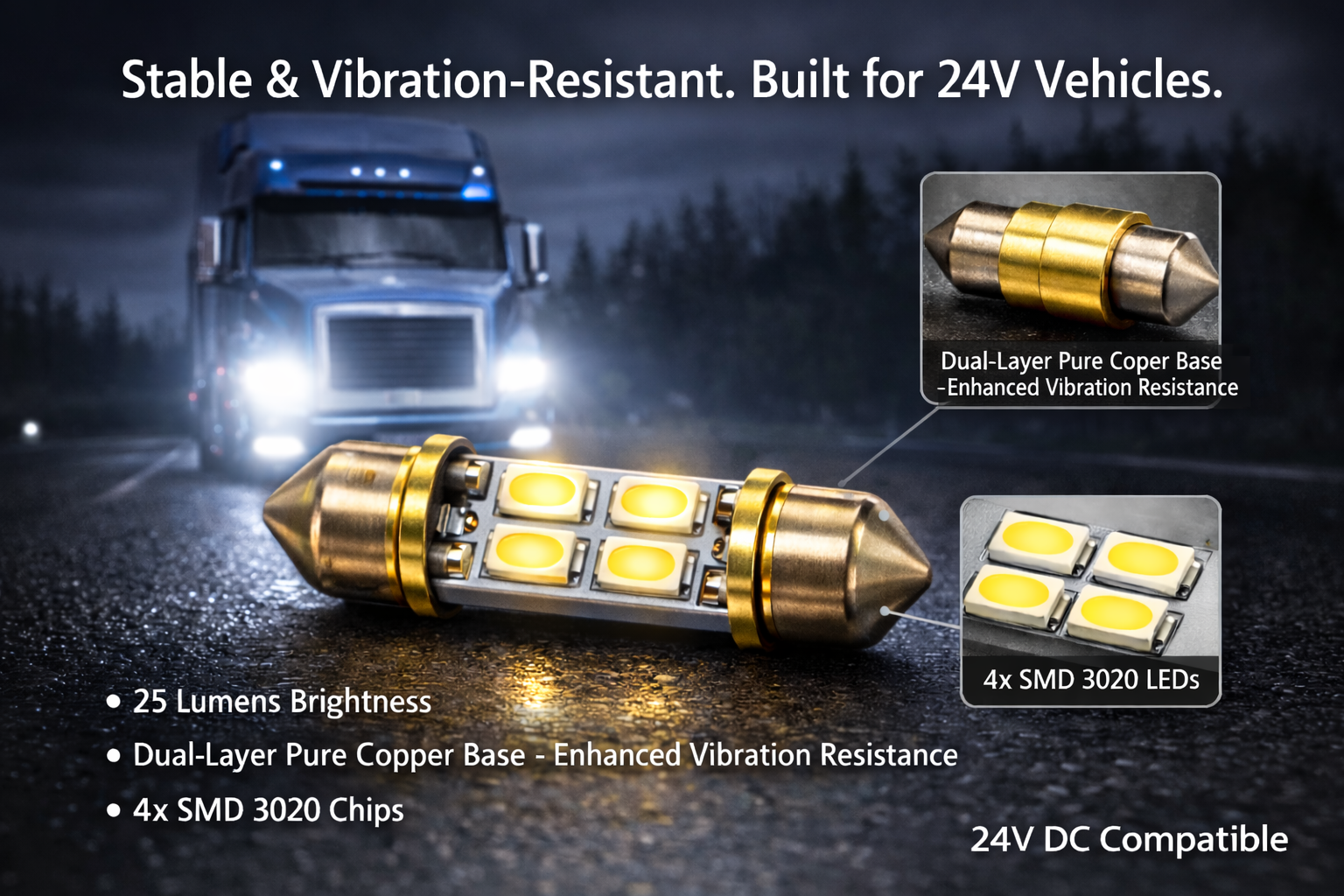

👉 Suitable for both passenger vehicles and 24V commercial truck systems

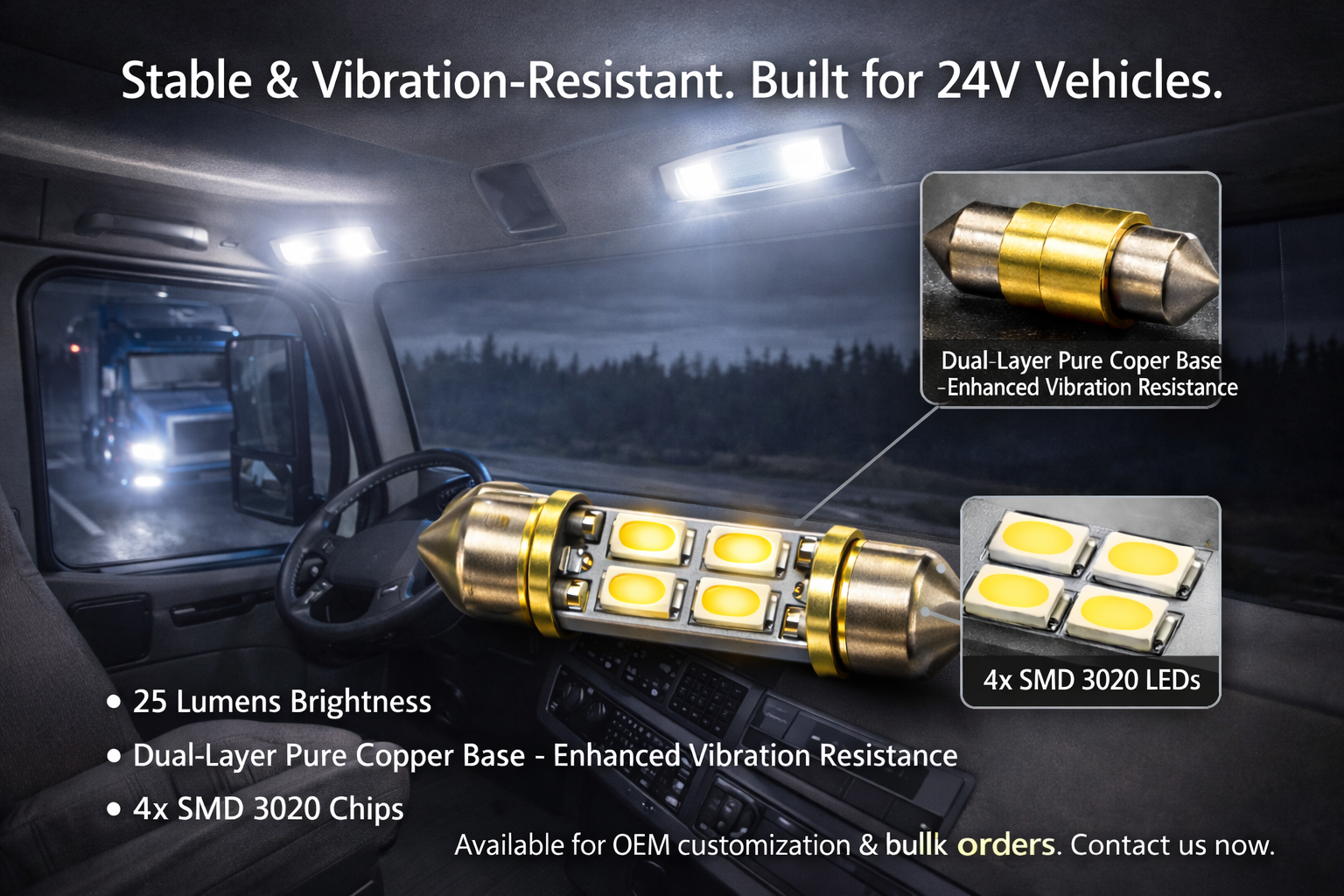

🔧 Reinforced Dual Copper Structure

Equipped with a dual-layer pure copper SV8.5 end cap, offering:

• Superior mechanical strength
• Enhanced heat dissipation
• Stable electrical conductivity
• Excellent vibration resistance

👉 Exclusive reinforced structure by Chi Ming Electronics
👉 Designed for heavy-duty and long-term use environments

🚨 Single Voltage Design

This model is available in:

• 12V DC version
• 24V DC version

❌ Not interchangeable between voltage systems

👉 Voltage is clearly marked on the base to prevent incorrect installation

💰 Proven Reliability & Cost-Effective Solution

• Mass production with stable quality
• One of the most widely used festoon sizes
• Excellent performance-to-cost ratio

👉 A trusted solution for OEM and aftermarket replacement markets

🚗 Most Popular Size for Vehicles

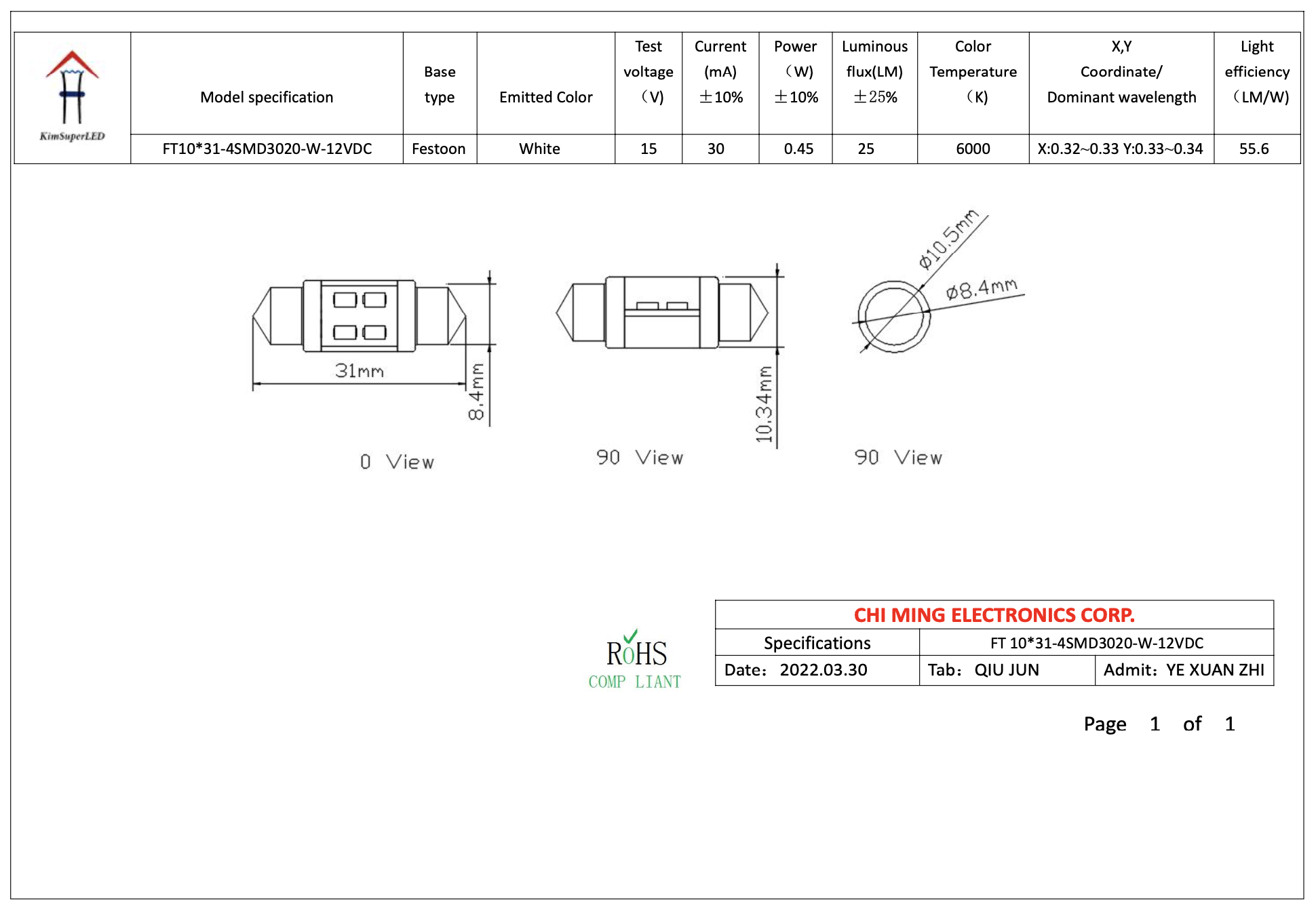

📐 Dimensions:

• Width: 10 mm
• Length: 31 mm

👉 31mm is one of the most commonly used sizes for cars and trucks
👉 High compatibility across a wide range of vehicle interior applications

🚗 Versatile Applications

Suitable for:

• Vanity mirror lights
• Reading lights
• License plate lights
• Dome lights
• Map lights
• Door courtesy lights

👉 Fully compatible with SV8.5 festoon sockets

🌈 Color Options

• 6000K Cool White (Standard)
• 2700K Warm White
• Custom colors: Red / Amber / Green / Blue

🔌 Easy Installation

• Plug-and-play design
• No rewiring required

⚠️ Note

Please confirm correct voltage and size before installation.

📩 OEM / ODM Support

For custom specifications, private labeling, or bulk orders,
please contact us directly.
