CM1228-LED G4 SMD 12

🔧 CM1228-LED G4 SMD 12 – Product Description (
Upgraded Version)

High Brightness & Advanced LED Design

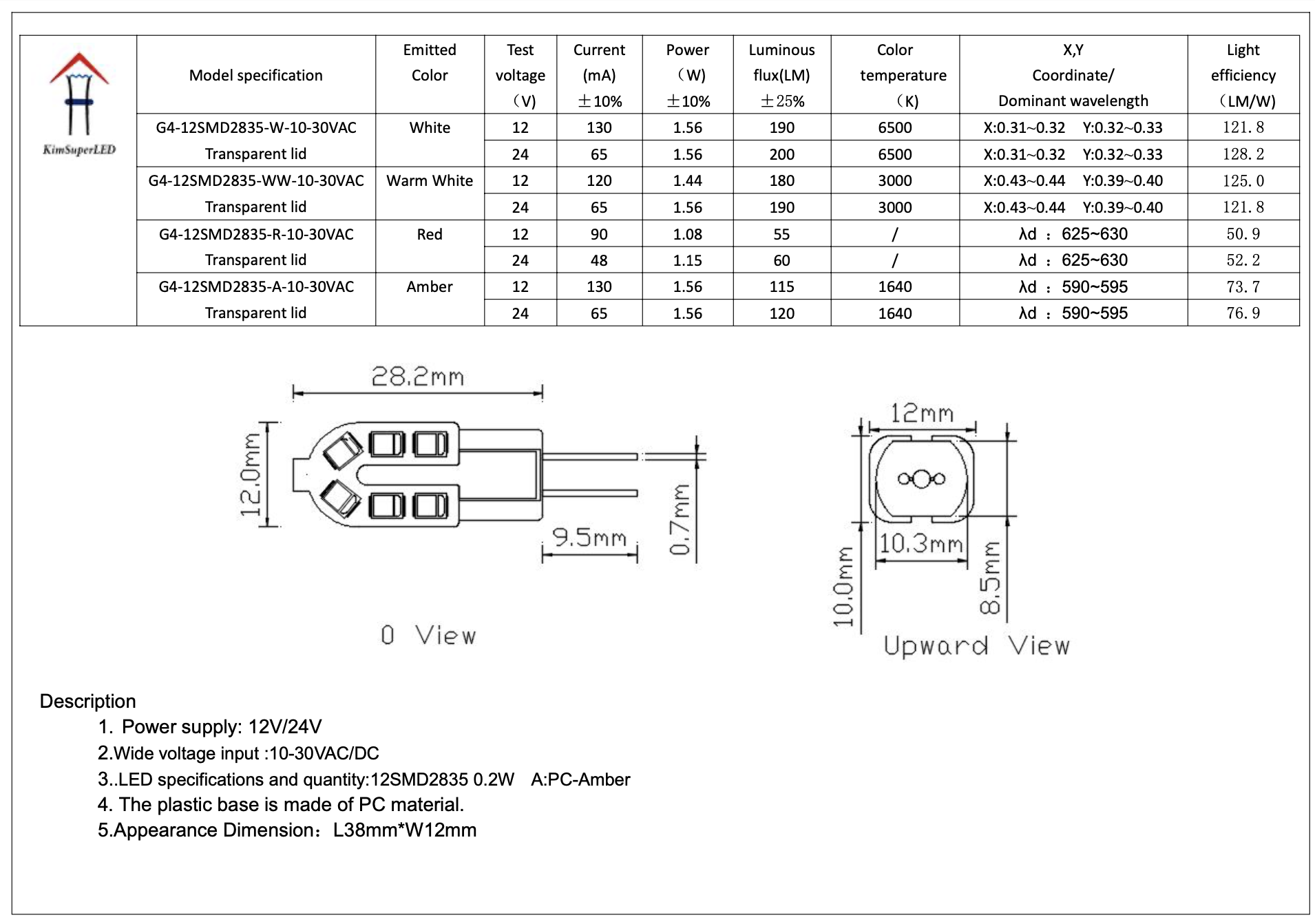

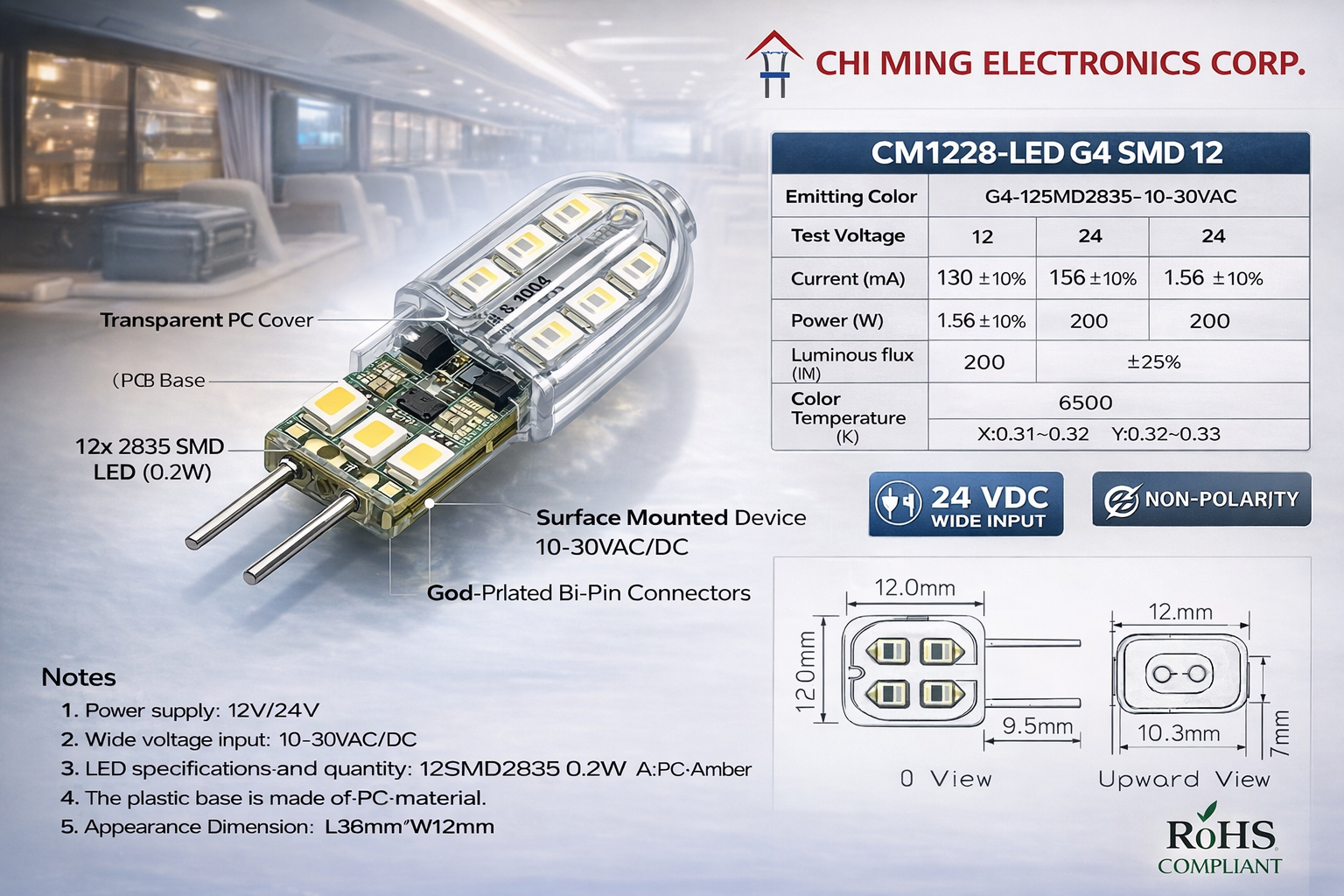

The CM1228-LED G4 SMD 12 is built with high-performance 2835 SMD LEDs, delivering outstanding luminous efficiency with brightness up to 200 lumens.
Engineered for stable output and long-term reliability, it ensures consistent illumination in demanding environments.

Wide Voltage & Non-Polarity Design

Designed with a 10–30V DC wide voltage input, this LED bulb is fully compatible with both 12V and 24V vehicle systems.
The non-polarity design allows easy installation without concern for positive or negative orientation.

Optimized Thermal Management

Featuring a carefully engineered heat dissipation structure, the CM1228 ensures:

• Stable luminous performance

• Reduced heat buildup

• Extended lifespan

This makes it ideal for continuous operation in enclosed or high-temperature environments.

High Efficiency & Cost Performance

With a power consumption of only 1.56W, this LED provides:

• High brightness output (200LM)

• Lower energy consumption

• Excellent cost-performance ratio

👉 One of our best-selling models, widely trusted by customers.

Applications

Suitable for a wide range of interior and vehicle lighting applications:

• Camper / RV interior lighting

• Bus & commercial vehicle cabin lighting

• Cabinet lighting

• Display lighting

• Decorative & ambient lighting

• Retail and hospitality environments

✔ Compatible with standard G4 socket fixtures

Easy Installation

• Plug-and-play replacement

• Direct upgrade from traditional halogen G4 bulbs

• No rewiring required

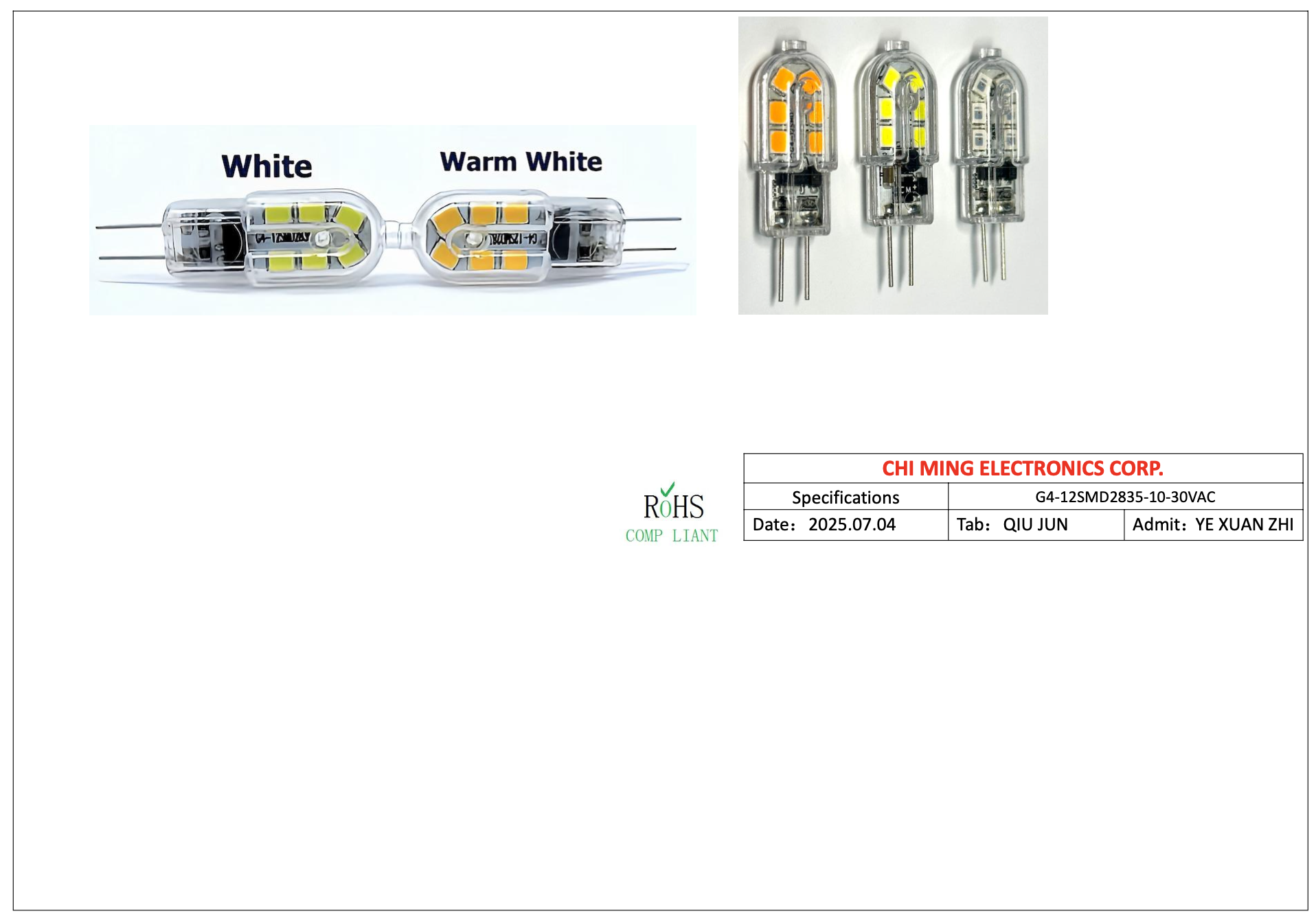

Color Options

• 6000K Cool White

• 2700K Warm White

• Custom colors available: Red, Amber, Green, Blue, etc.

Customization & Support

Custom specifications and color options are available upon request.
👉 OEM / ODM projects welcome. Please contact us for more details.
