CMFH1031-LED SV8.5 FESTOON HP 4

1. High Brightness & Performance

Equipped with high-efficiency LEDs and a precision optical design, this festoon bulb delivers up to 150 lumens, providing more than 3× higher luminous efficiency compared to traditional incandescent festoon bulbs.

Designed for automotive applications requiring bright, stable, and uniform illumination.

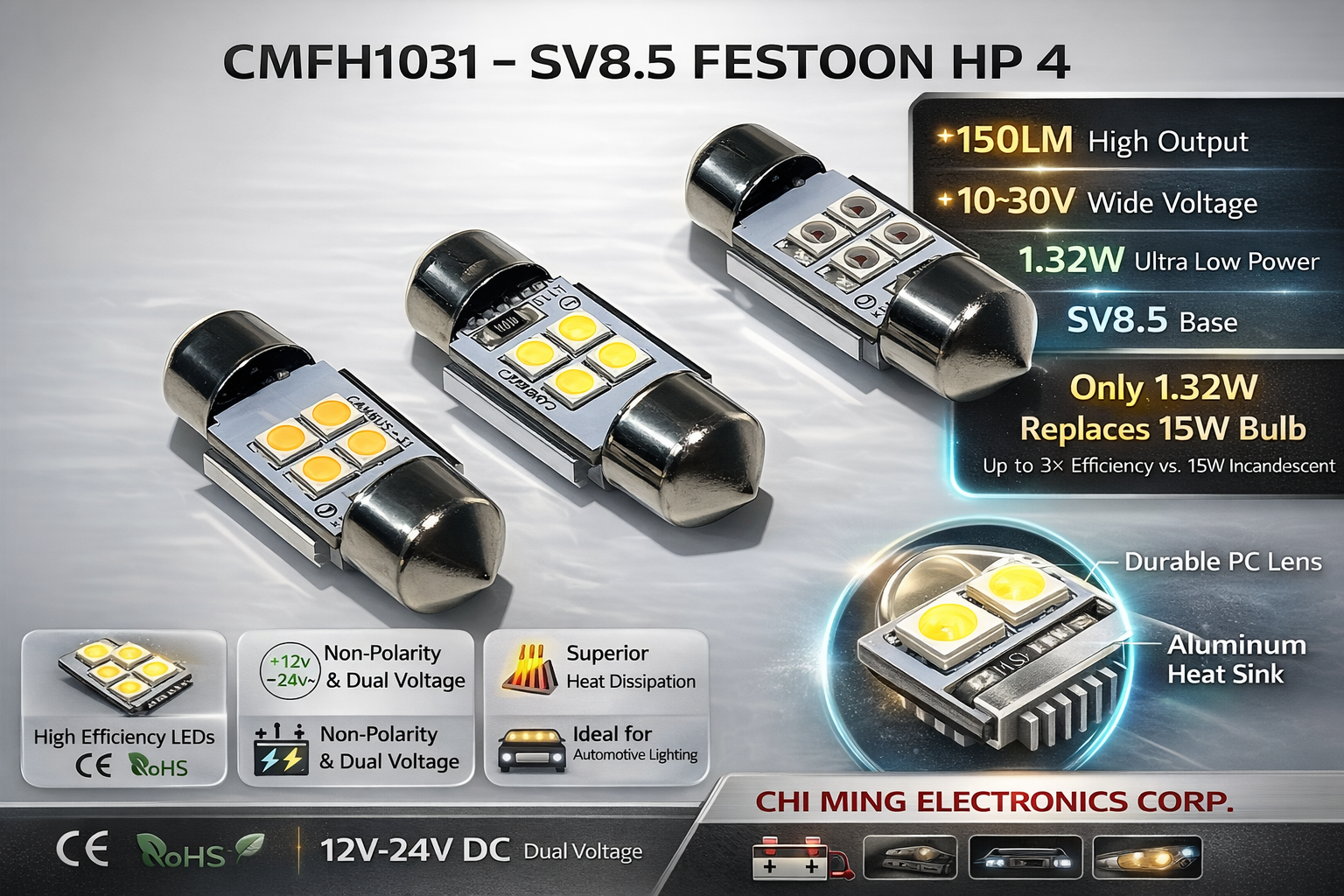

2. Advanced Thermal Structure (FR4 + Aluminum Design) 🔥

Constructed with a high-quality FR4 double-sided copper PCB, tightly bonded to a pure aluminum heat sink.

This advanced structure ensures:

• Excellent heat dissipation

• Stable luminous output

• Extended product lifespan

Ideal for continuous operation in high-temperature environments.

3. Anti-Vibration & Reliable Assembly

Manufactured using environmentally friendly high-temperature soldering, ensuring strong structural integrity.

• Excellent anti-vibration performance

• Suitable for trucks, buses, and commercial vehicles

• Maintains stable performance under harsh conditions

4. Wide Voltage & Non-Polarity Design

Supports a wide 10–30V DC input range, compatible with:

• 12V passenger vehicles

• 24V trucks & buses

Non-polarity design allows easy installation in either direction, improving installation efficiency.

5. Energy-Efficient High Output

Consumes only 1.32W while delivering 150LM output.

👉 Equivalent to ~15W incandescent bulb
👉 Up to 90% energy saving

6. Wide Application Range

Suitable for various automotive lighting applications:

• Interior lights (dome, roof, footwell)

• License plate lights

• Trunk / cargo lights

• Side marker lights

• Courtesy lights

7. Easy Plug & Play Installation

Designed to match standard festoon size for direct replacement:

• No rewiring required

• Quick installation

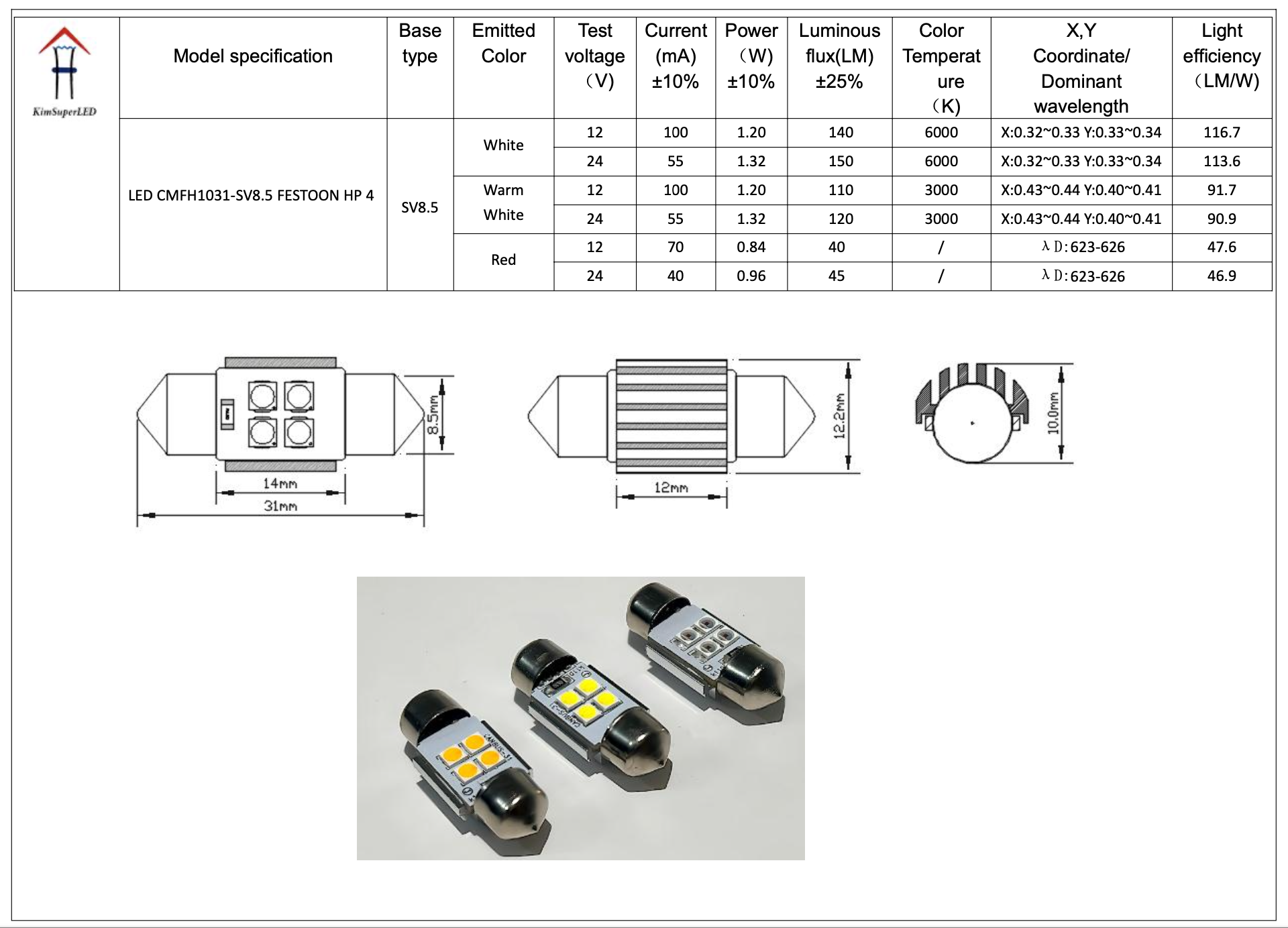

Dimensions:
Width: 12mm × Length: 31mm (SV8.5)

8. Color Options

• 6000K Cool White (standard)

• 2700K Warm White (soft & comfortable)

Custom colors available:
Red / Yellow / Green / Blue

⚠️ Note

Please confirm the correct bulb size and model before installation.
For compatibility or OEM customization, feel free to contact us.
