🔷 CM1531-SV8.5 FESTOON LED 9

High-Performance Automotive Interior Light

🔹 Specific Applications

The CM1531-SV8.5 FESTOON LED 9 is widely used in:

＊License Plate Light
＊Interior Map Light
＊Dome Light
＊Trunk / Cargo Lighting
＊Side Door Courtesy Light
＊Dashboard & Instrument Lighting
＊Reading Light
＊Glove Box Light
＊Parking Light
＊Ground / Step Lighting

🔹 Key Features

✔ Focused Beam Design (30°)

Designed with a narrow 30° beam angle, delivering:
・Concentrated illumination
・Improved visibility for targeted lighting
・Reduced light dispersion

👉 Ideal for:

• Reading lights

• Interior focused lighting

• License plate illumination

• Ground / step lighting

✔ High Brightness & Stability

Equipped with 9 high-efficiency LEDs, providing:
・Up to 60 lumens
・Stable luminous output
・Consistent performance over time

✔ Enhanced Thermal Management

Innovative structure with 3mm lead spacing between LED pins and PCB:

・Improved heat dissipation
・Reduced thermal accumulation
・Enhanced reliability
・Stable light output during continuous operation

✔ Anti-Vibration Structure (PC Housing Fixation) ⭐

The LEDs are securely fixed with a PC (polycarbonate) protective housing, offering:

・Excellent vibration resistance
・Mechanical stability under harsh conditions
・Protection against external impact
・Long-term durability in automotive environments

👉 特別適合：

• Trucks

• Buses

• Commercial vehicles

✔ Energy Efficient

・Low power consumption: 0.75W
・Reduced energy consumption
・Extended service life

✔ Wide Voltage Compatibility

・Supports 12V / 24V DC systems
・Suitable for:

• Passenger vehicles

• Trucks

• Buses

• Fleet applications

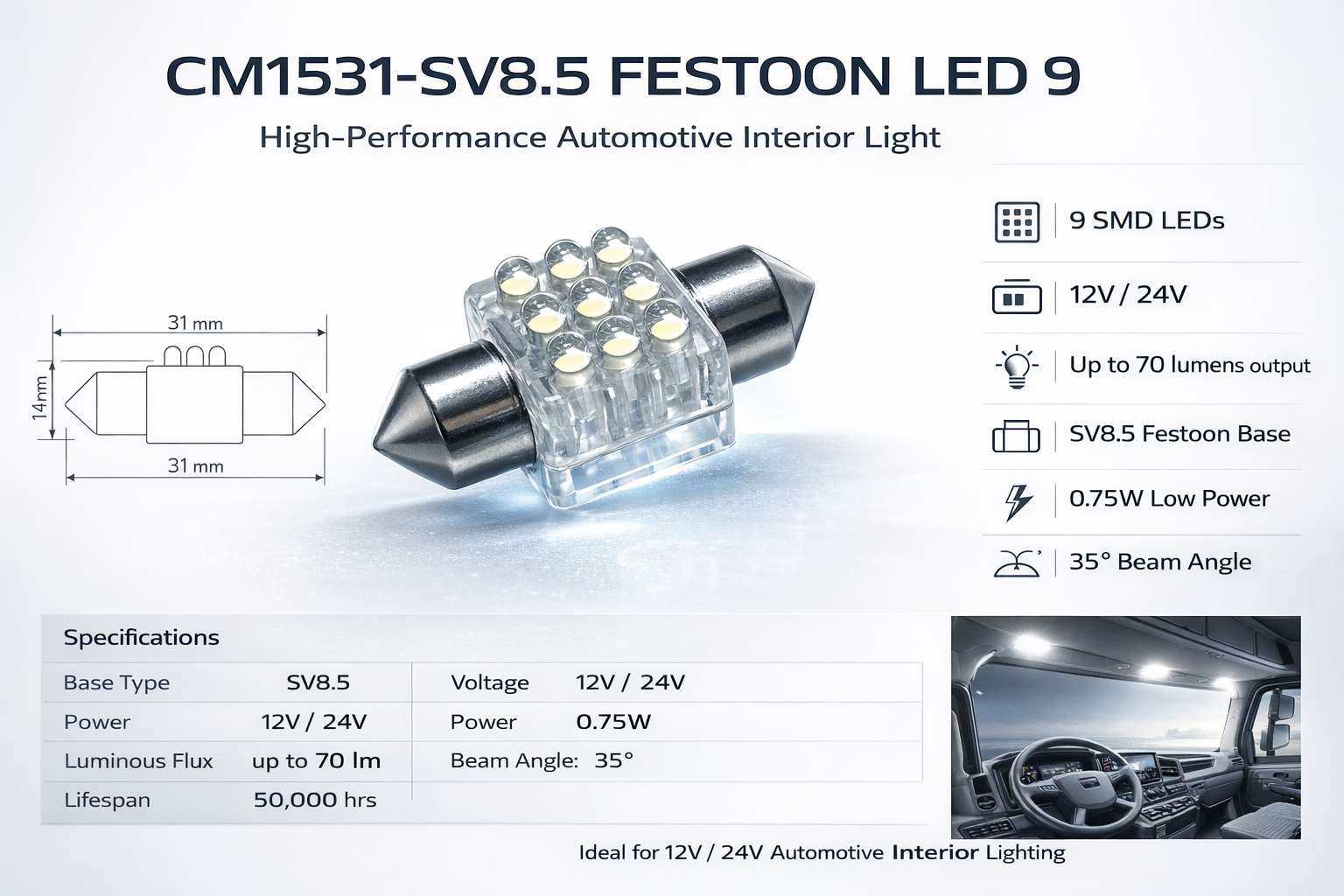

🔹 Mechanical Dimensions

・Length: 31 mm
・Width: 14.5 mm
・Base Type: SV8.5 Festoon

🔹 Design Advantages

・Compact & easy installation
・High resistance to vibration environments
・Optimized for automotive-grade durability

⚠ Important Notice

Please confirm model, size, and voltage compatibility before installation.
This product uses SV8.5 festoon base.
