CMT86020-LED T8 Tubes Light

Vehicle Interior & Utility Lighting

The CMT86020-LED T8 Tubes Light is specially designed for low-voltage vehicle lighting systems, operating within a wide input range of 10–30V DC.

This LED tube provides stable, high-efficiency illumination for a wide variety of automotive and commercial vehicle applications.

With power ratings from 6W to 10W, the CMT86020 combines high brightness, excellent thermal performance, and durable construction, making it suitable for demanding vehicle environments.

⚠ Important Notice:
This product is designed exclusively for low-voltage DC systems (10–30V DC).
Do not connect to high-voltage power sources, as this may cause instant damage to the LED light.

Key Features

1. Wide Voltage Low-Voltage Design

Designed for 10–30V DC operation, compatible with:

• Trucks

• Buses

• Pickup trucks

• RVs and camper vans

• Commercial and utility vehicles

Ensures stable performance under typical vehicle voltage fluctuations.

2. Non-Polarity Design

The CMT86020-LED T8 Tube Light features a non-polarity electrical design, allowing installation without concern for positive or negative wiring orientation.

Benefits include:

• Easy installation

• Reduced wiring errors

• Faster maintenance and replacement

Ideal for vehicle lighting systems.

3. Rounded Safety End Design

Both ends of the tube are designed with smooth rounded edges, eliminating sharp corners and improving safety during installation inside vehicles.

4. High-Efficiency Aluminum Heat Dissipation

The housing is constructed with high-quality aluminum, providing excellent heat dissipation.

This structure ensures:

• Stable luminous output

• Long continuous operation

• Improved LED lifespan

5. Mounting Base for Easy Installation

The tube is equipped with a bottom mounting base, allowing the light to be securely fixed in various vehicle locations.

Suitable installation areas include:

• Truck cabins

• Bus passenger areas

• RV interiors

• Cargo compartments

6. Multiple LED Color Options

Available in several lighting colors, suitable for functional lighting or ambient mood lighting:

• White

• Warm White

• Green

• Amber

• Pink

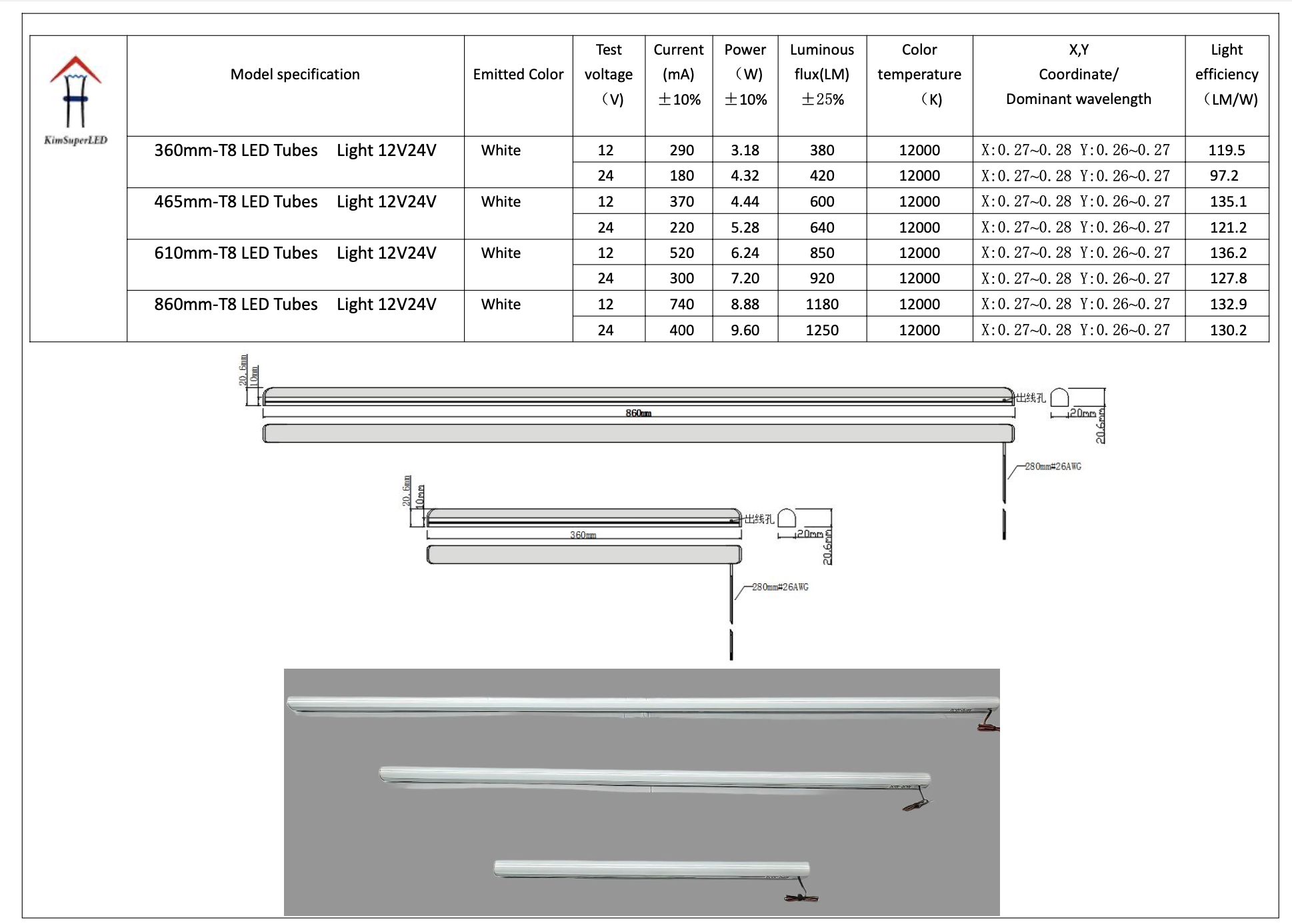

Specifications

Power:
6W – 10W

Input Voltage:
10–30V DC

Luminous Flux

• 360 mm — 400 lm

• 465 mm — 600 lm

• 610 mm — 900 lm

• 860 mm — 1200 lm

Width:
20 mm

Housing:
Aluminum heat sink structure

Applications

Interior Lighting

Ideal for truck cabins, buses, and RV interiors, including driver areas and passenger compartments.

Cargo Area Lighting

Provides clear illumination for cargo compartments and storage areas.

Emergency Lighting

Suitable for vehicle breakdown lighting or maintenance situations.

Ambient Lighting

Multiple color options allow use as decorative or mood lighting in RVs and camper vans.
