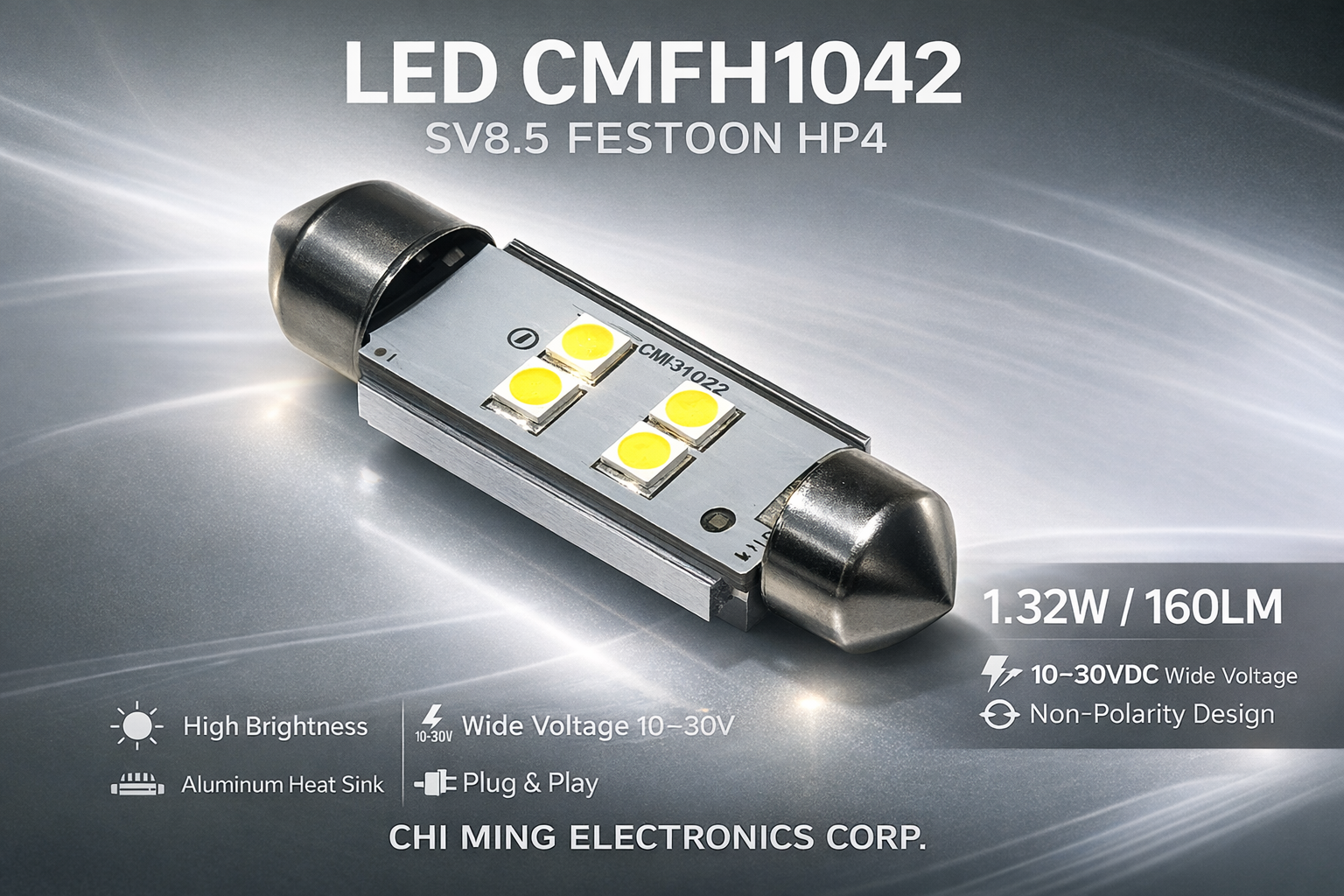

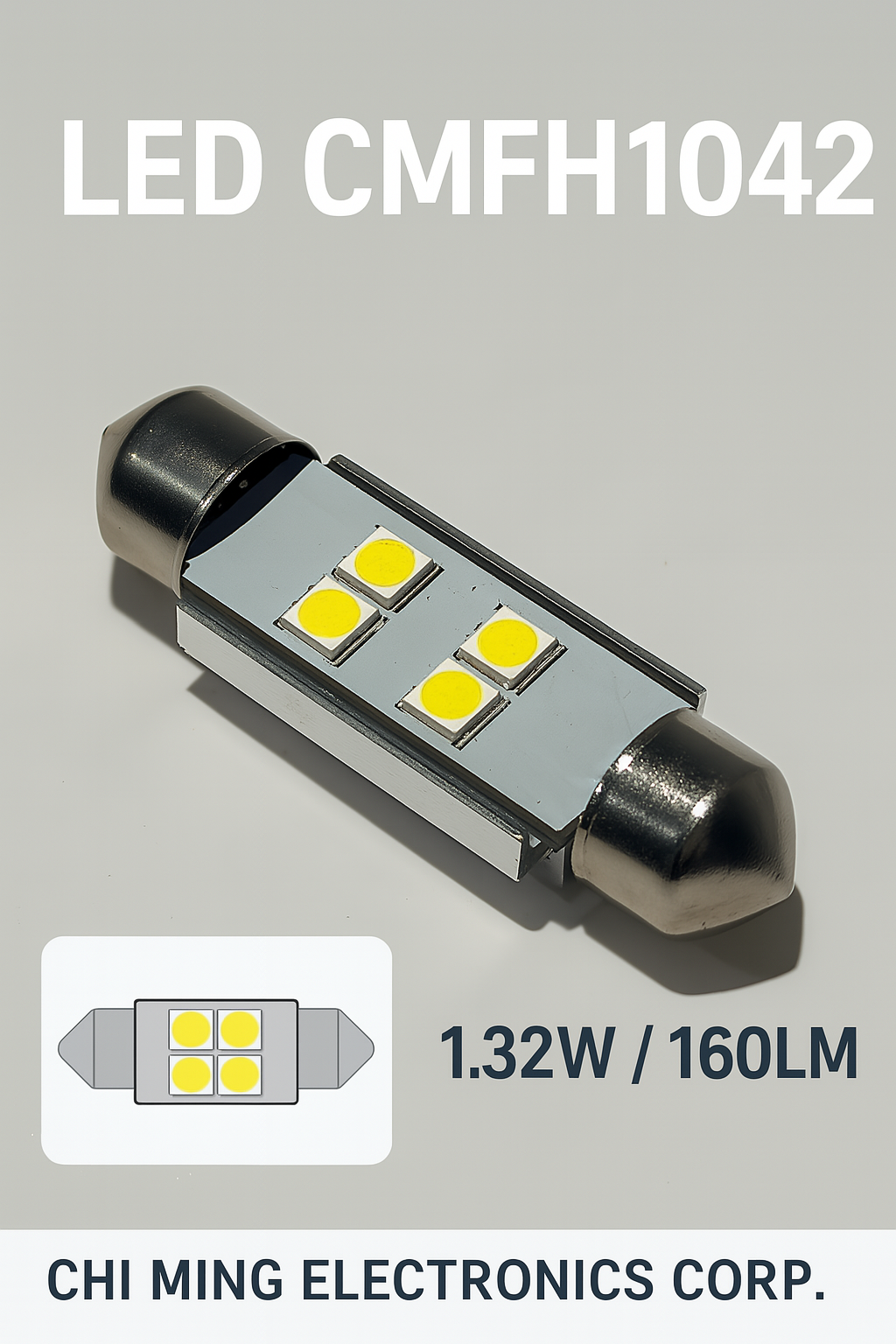

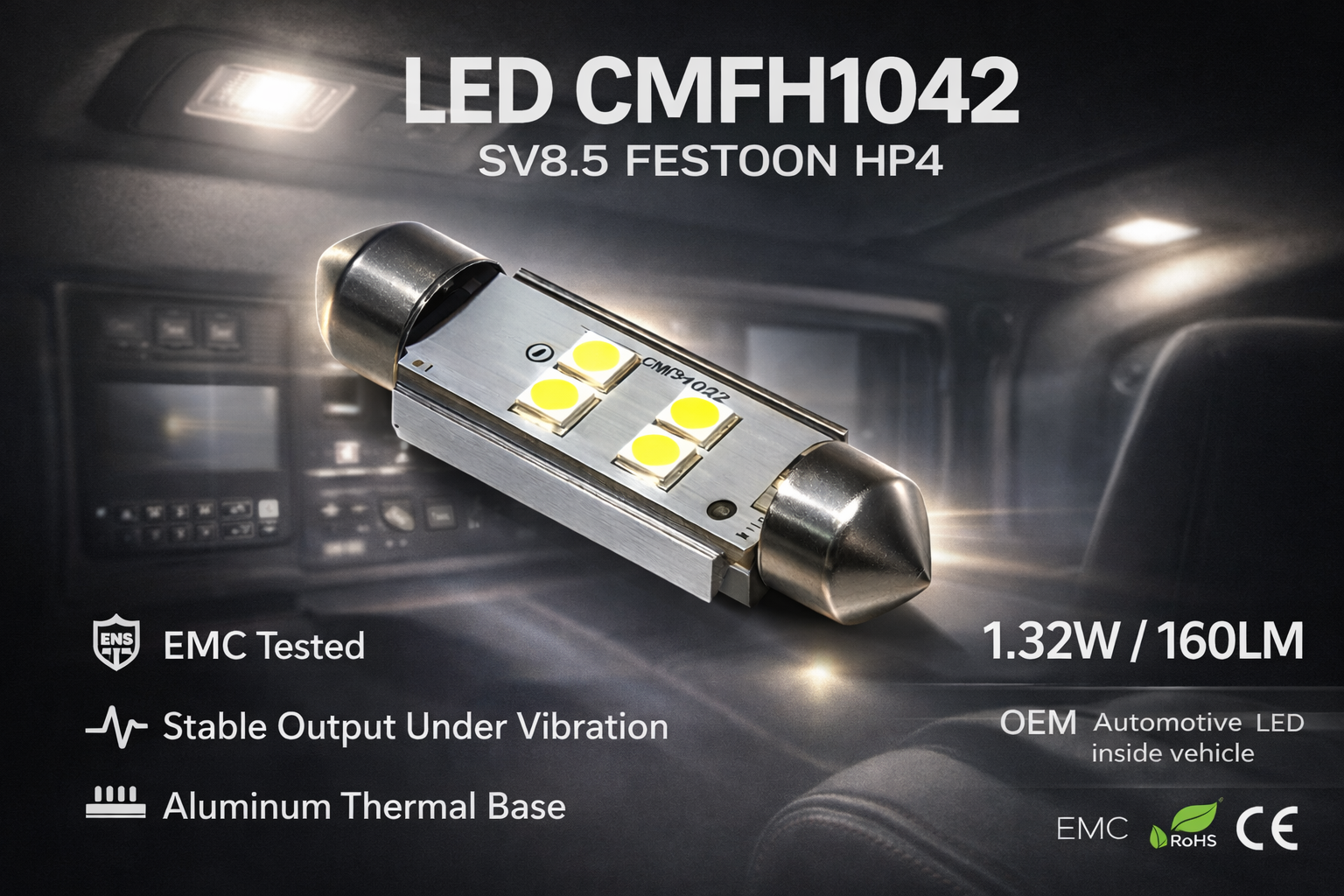

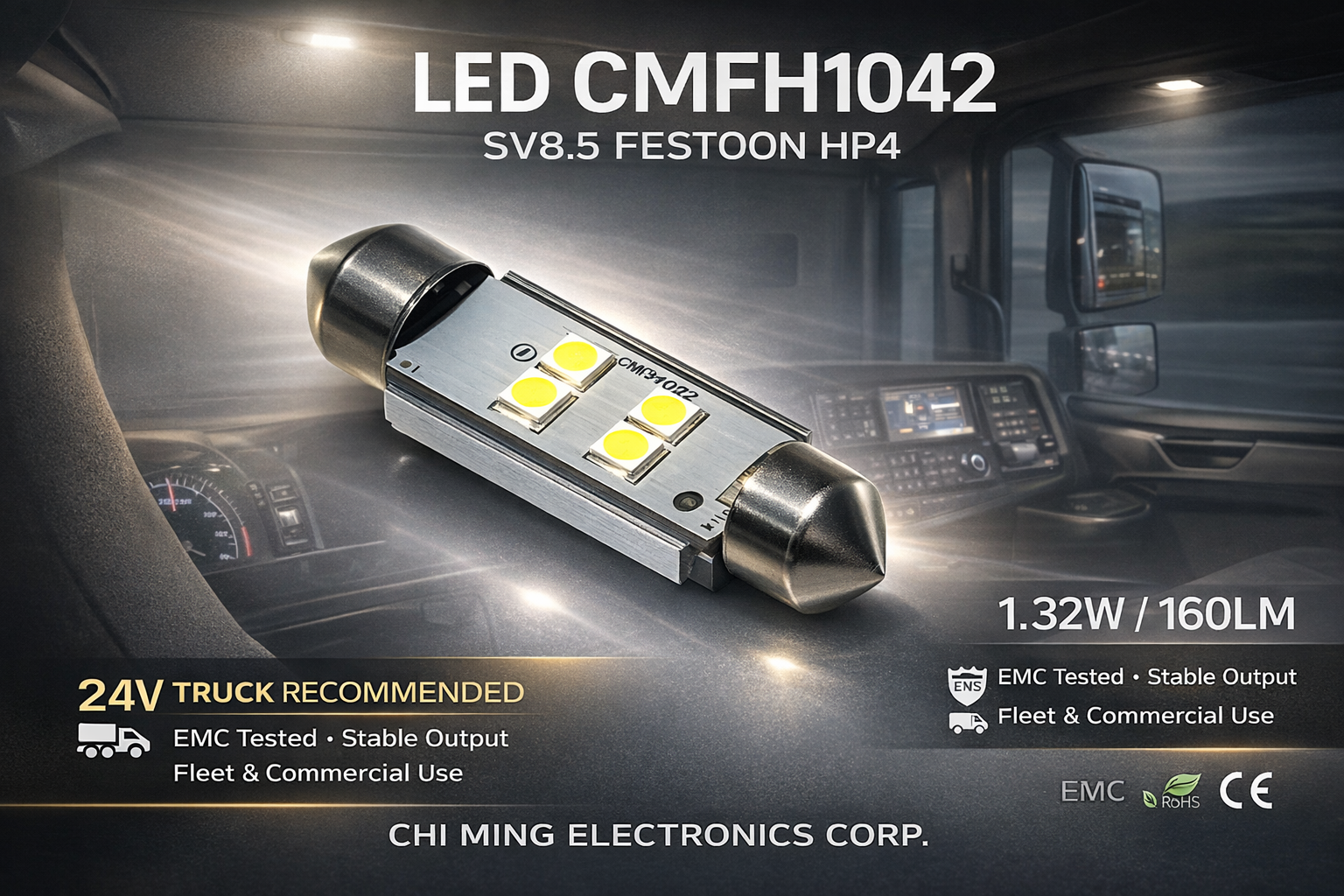

LED CMFH1042-SV8.5 FESTOON LED 4

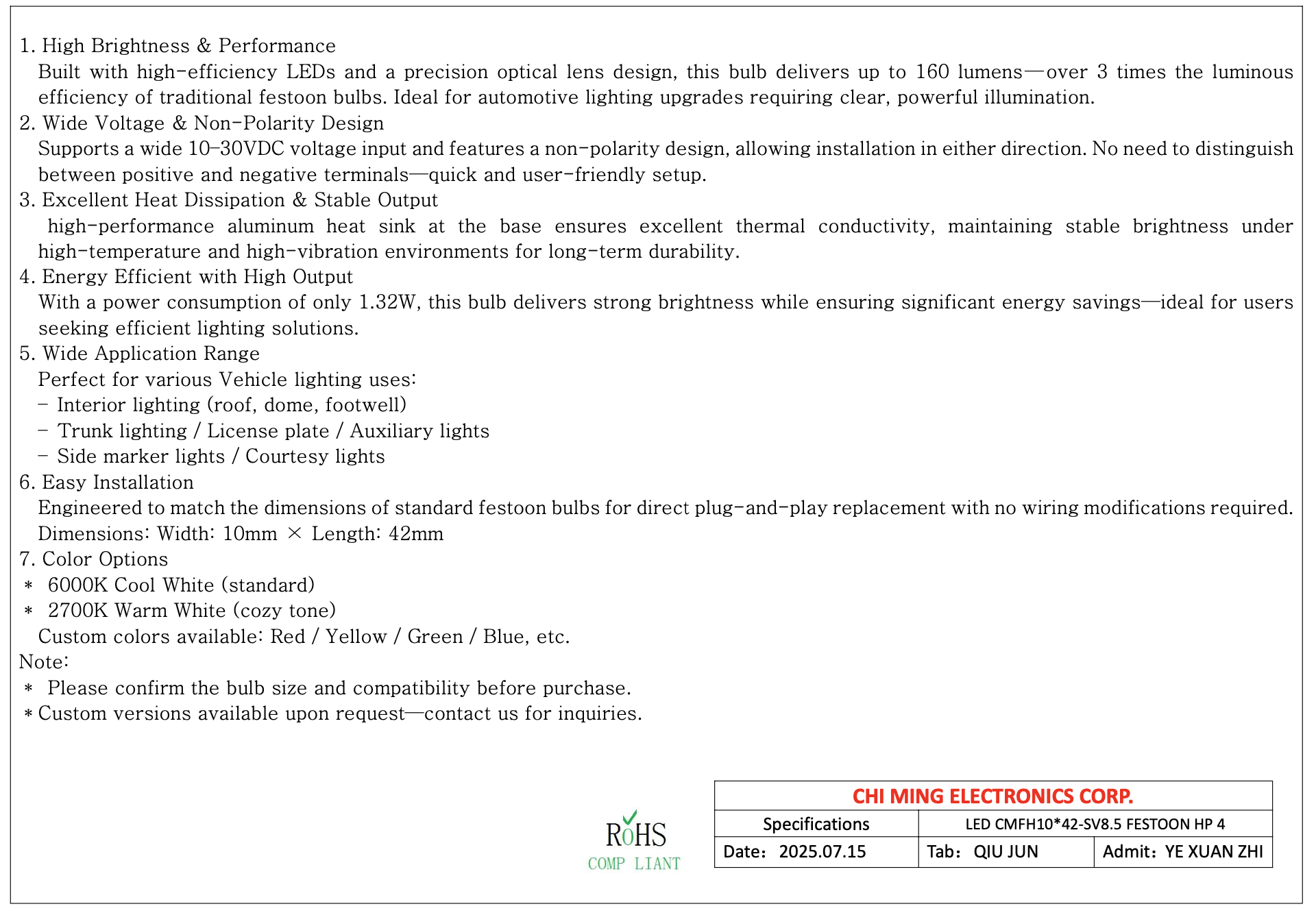

1. High Brightness & Superior Performance

The CMFH1042-SV8.5 FESTOON LED 4 is engineered with four high-power LEDs and precision optical design, delivering up to 160 lumens of stable output.

Compared with traditional festoon bulbs, it provides significantly higher luminous efficiency and enhanced interior visibility—ideal for professional vehicle lighting upgrades.

2. Wide Voltage & Non-Polarity Design (10–30VDC)

Designed with a true wide voltage circuit (10–30VDC), this model supports both 12V and 24V vehicle systems.

The non-polarity design allows installation in either direction without distinguishing positive and negative terminals—ensuring quick and user-friendly plug-and-play replacement.

3. Aluminum Thermal Base & FR4 Double-Sided PCB

To ensure long-term durability and stable performance:

• Integrated aluminum heat dissipation block at the base

• FR4 double-sided PCB structure

• Enhanced thermal conductivity path

• Improved heat distribution efficiency

This optimized thermal management system effectively reduces heat accumulation and maintains stable luminous flux during extended operation.

4. High Reliability & Strong Vibration Resistance

Built for demanding automotive environments:

• High vibration resistance

• Stable light output under high-temperature conditions

• Consistent luminous flux performance

• Long-term reliability

Suitable for passenger vehicles, commercial fleets, and professional automotive applications.

5. Energy Efficient with Strong Output

Power consumption: 1.32W
Luminous flux: Up to 160LM

Delivers strong brightness while maintaining low energy consumption—an efficient upgrade solution for modern vehicle interior lighting.

6. Wide Interior Lighting Applications

Ideal for various vehicle interior and auxiliary lighting uses:

• Interior dome lights

• Roof lighting

• Footwell illumination

• Trunk lighting

• License plate lights

• Side marker lights

• Courtesy lights

The wide voltage design increases compatibility across different vehicle systems.

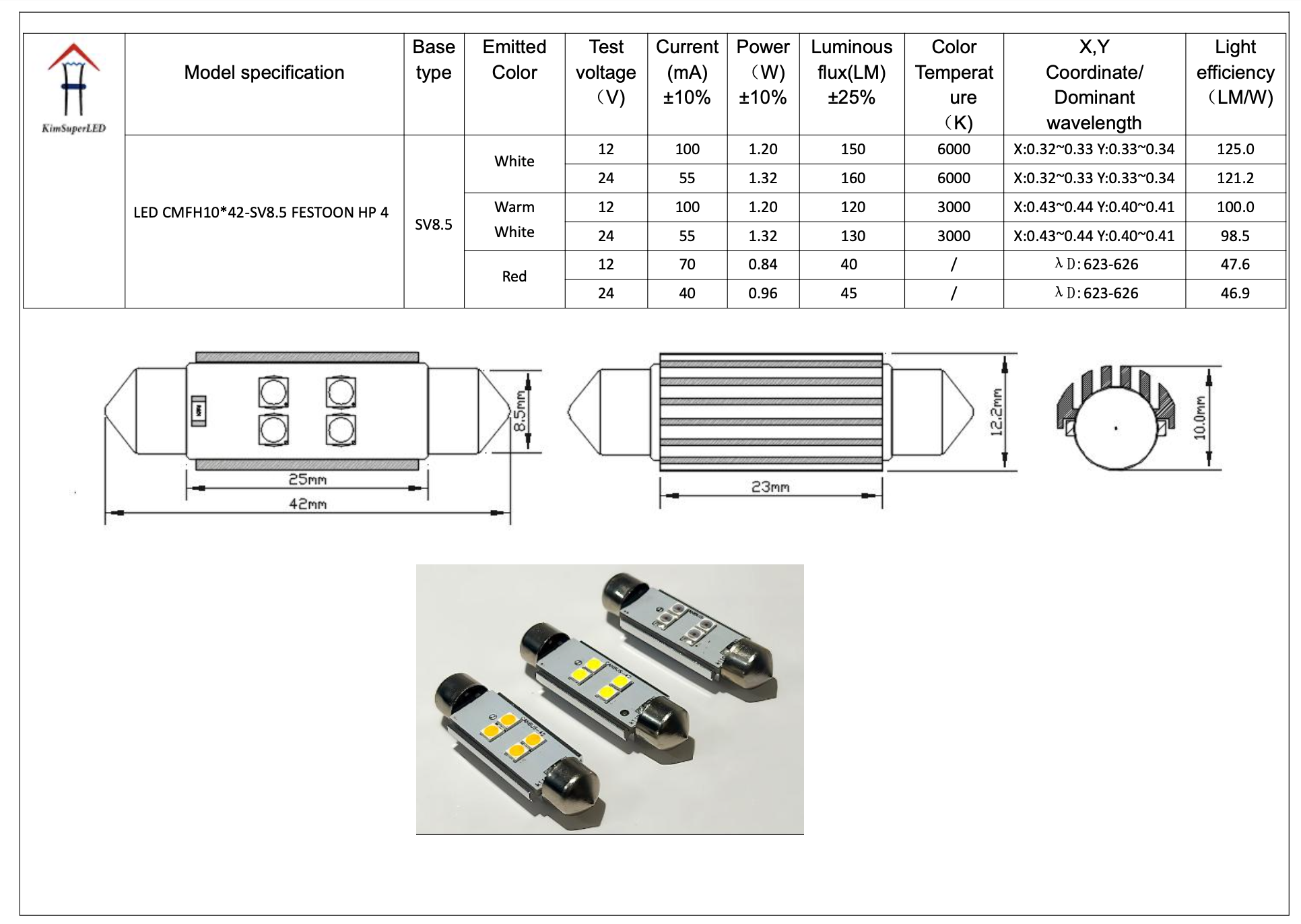

7. Dimensions & Installation

• Width: 10mm

• Length: 42mm

• Base Type: SV8.5 Festoon

Engineered to match standard festoon dimensions for direct plug-and-play replacement without wiring modifications.

8. Color Options

Available in multiple color variations upon request:

• 6000K Cool White (Standard)

• 2700K Warm White

• Blue

• Pink

• Lemon Yellow

• Red

• Green

• Custom colors available

Note

• Please confirm bulb size and socket compatibility before purchase.
• Custom versions are available upon request.
