CMF1531-SV8.5 FESTOON LED 9
CMF1531-SV8.5 FESTOON LED 9
1. High Brightness & Reliable Performance
The CMF1531-SV8.5 FESTOON LED 9 is equipped with high-efficiency LEDs and an optimized optical lens structure, delivering luminous output of up to 120 lumens. It provides bright, stable illumination suitable for demanding truck and automotive lighting applications.
2. Wide Voltage Design (10–30V DC) & Non-Polarity
Designed with a wide voltage input range of 10–30V DC, this LED bulb is fully compatible with 12V and 24V vehicle systems, especially commercial trucks.
The non-polarity design allows installation in either direction without concern for positive or negative terminals, ensuring quick and user-friendly installation.
3. Optimized Beam & Thermal Management
Integrated optical lens design ensures focused and uniform light distribution.
Advanced thermal management helps maintain brightness stability and long service life, even under vibration and elevated operating temperatures.
4. High Power Efficiency
With a power consumption of only 1.5W, the CMF1531-SV8.5 FESTOON LED 9 achieves excellent energy efficiency while maintaining high lumen output.
5. Applications
Ideal for a wide range of truck and automotive lighting applications, including:
-
Interior lighting (roof light, dome light, footwell light)
-
License plate lights
-
Trunk and cargo area lights
-
Side marker or courtesy lights
Fully compatible with SV8.5 festoon base sockets.
6. Easy Plug-and-Play Installation
Designed to match the dimensions of traditional festoon bulbs, allowing direct replacement without rewiring or modification.

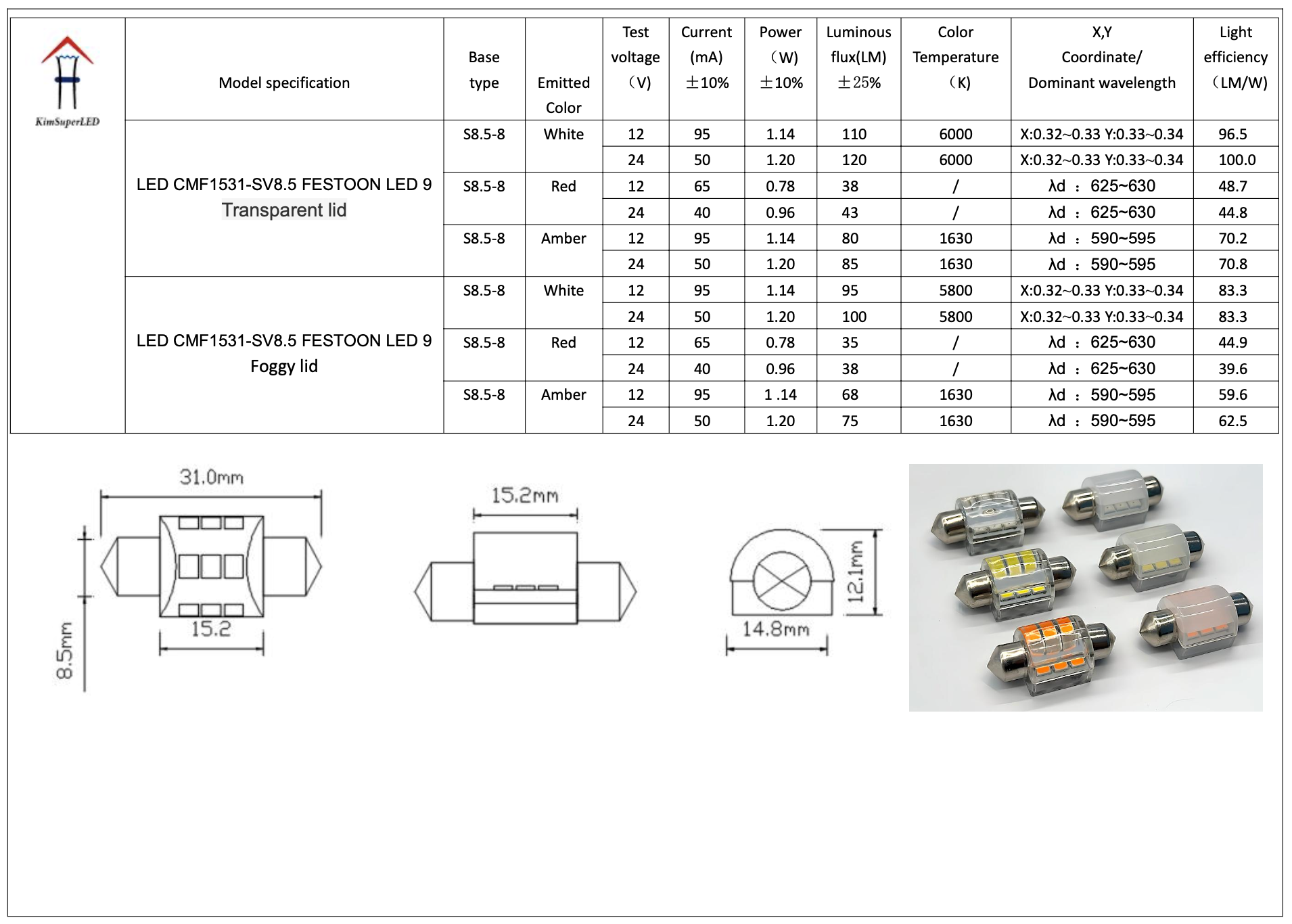

7. Product Dimensions
-
Length: 31 mm
-
Width: 15 mm
8. Color Options
-
6000K Cool White (standard)
-
2700K Warm White (soft and comfortable illumination)
-
Custom colors available upon request: Red, Yellow (Amber), Green, Blue, and more
9. Note
Please verify the bulb size and model before purchasing.
For truck-specific configurations, voltage requirements, or custom color options, feel free to contact us for technical support.
