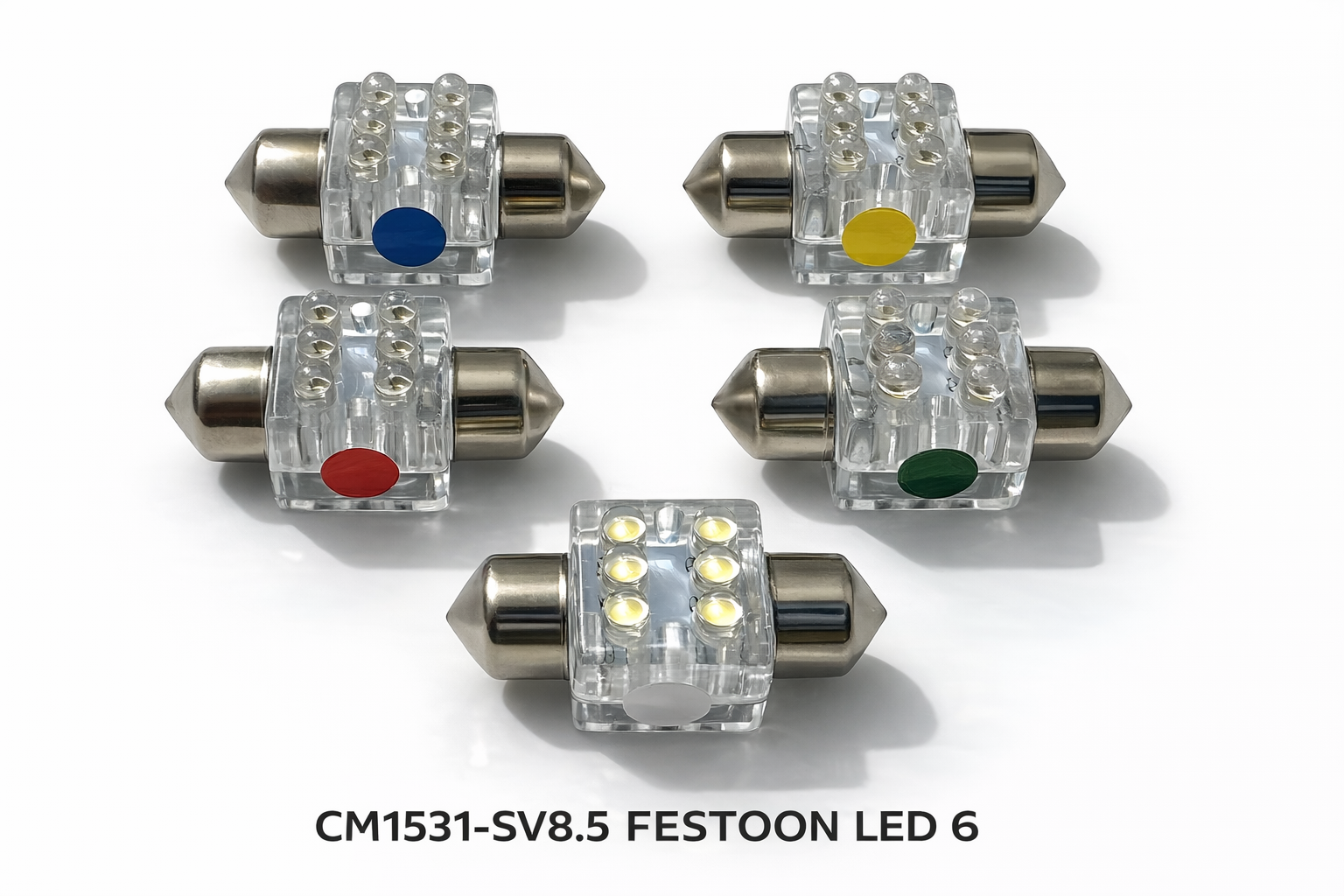

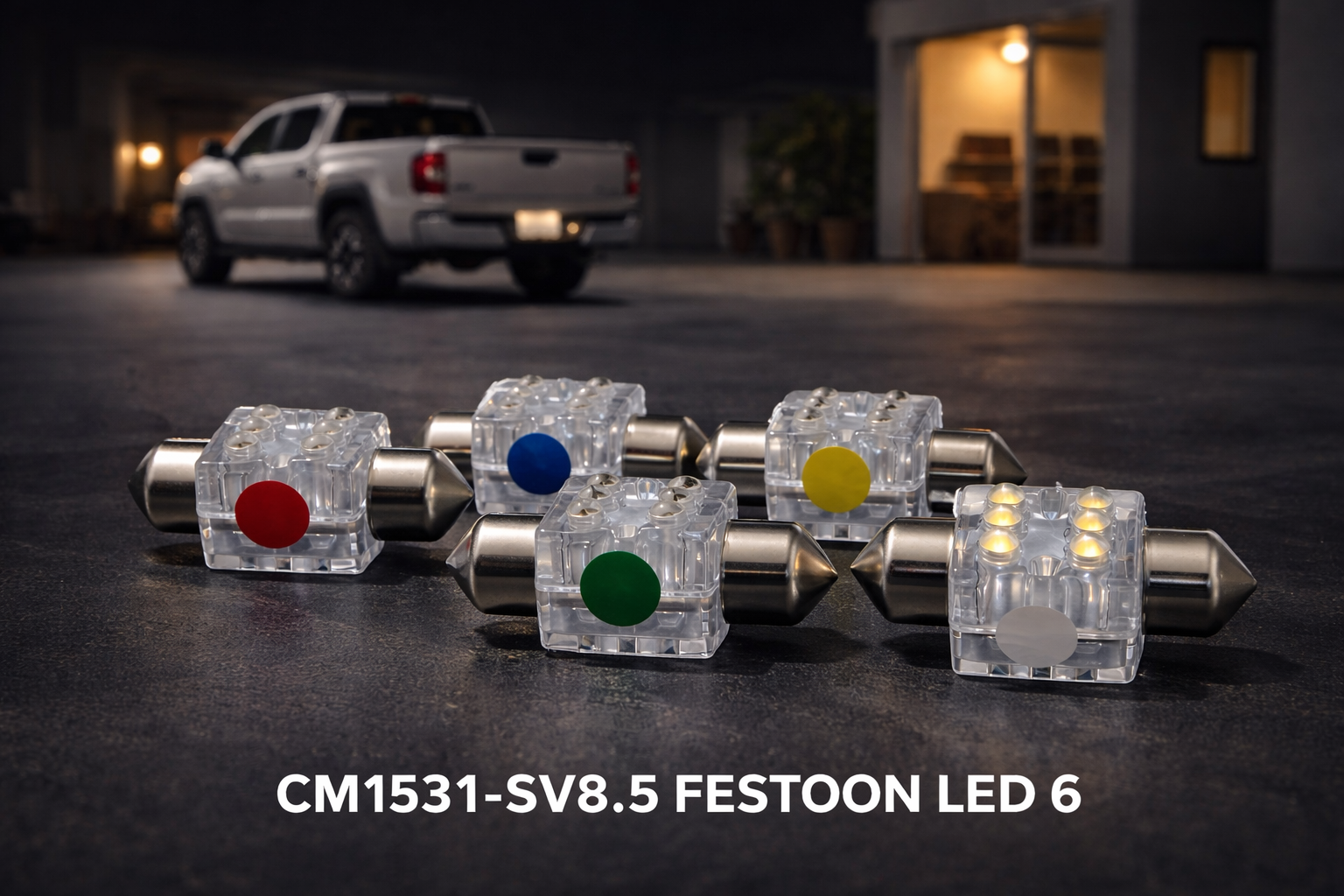

CM1531-SV8.5 FESTOON LED 6

L.E.D. CM1531-SV8.5 FESTOON LED 6

Specific Uses for Product

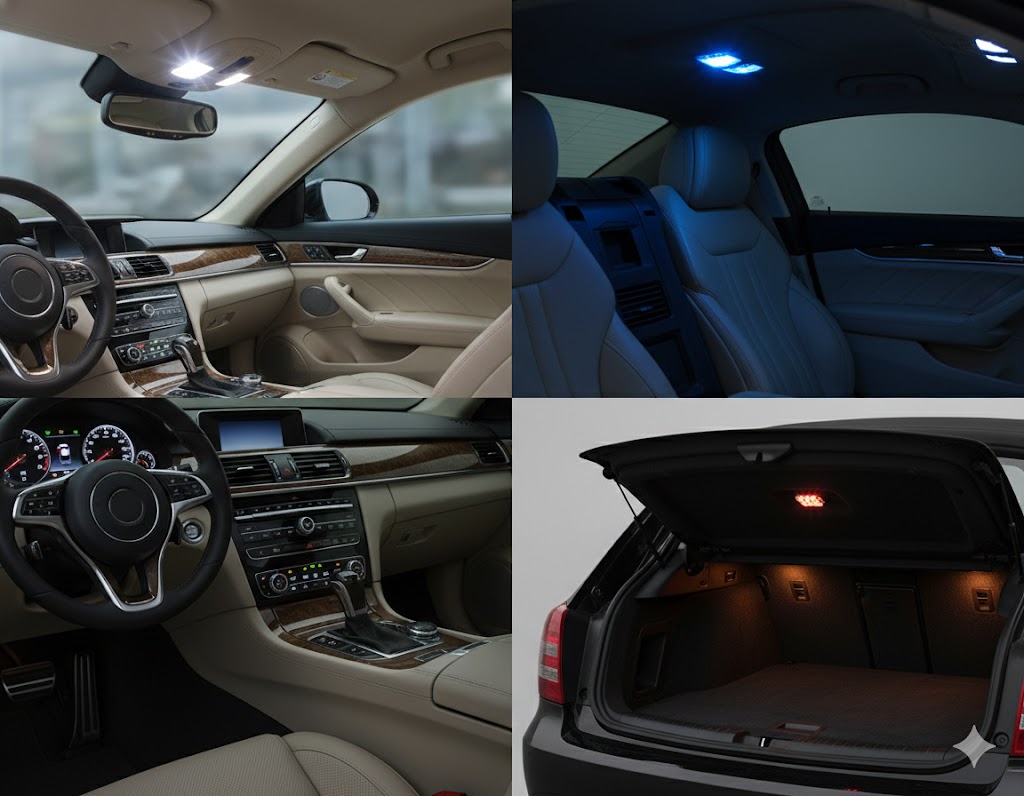

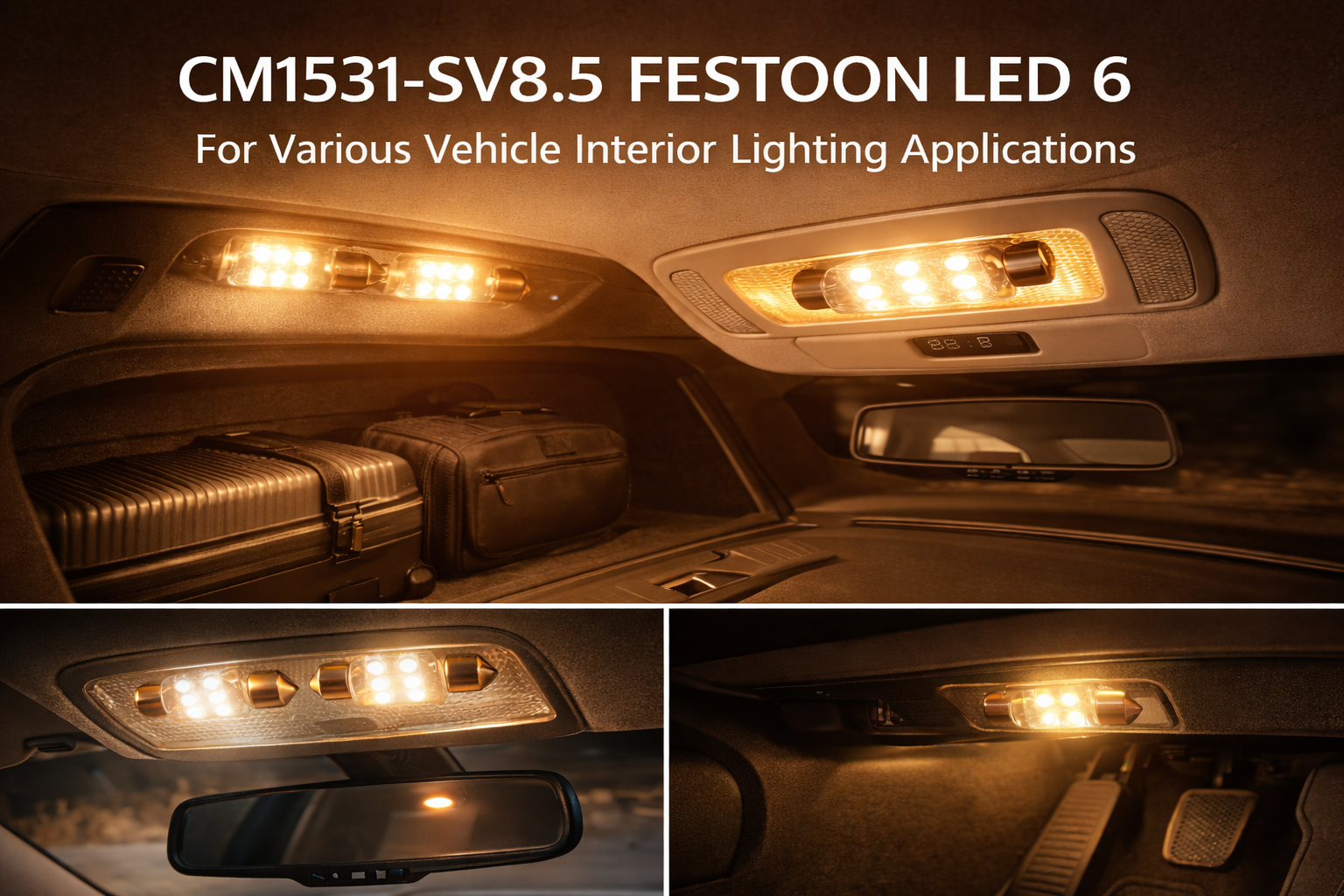

The L.E.D. CM1531-SV8.5 FESTOON LED 6 is designed for a wide range of automotive and commercial vehicle interior lighting applications, including:

＊ License plate tag light
＊ Interior map lights
＊ Dome light
＊ Trunk / cargo room lights
＊ Side door courtesy light
＊ Dashboard light
＊ Instrument panel & door indicator lights
＊ Reading lights
＊ Glove box lights
＊ Parking lights

High Brightness & Reliability

The L.E.D. CM1531-SV8.5 FESTOON LED 6 is equipped with high-brightness LEDs delivering up to 45 lumens, offering excellent illumination performance, proven reliability, and long-term customer trust in various vehicle lighting environments.

Beam Angle

With a 35-degree beam angle, the CM1531-SV8.5 FESTOON LED 6 provides focused yet sufficiently wide illumination, making it ideal for both functional and ambient vehicle lighting needs.

Energy Efficiency

Featuring low power consumption of only 0.48W, the L.E.D. CM1531-SV8.5 FESTOON LED 6 ensures high energy efficiency, reduced heat generation, and extended service life.

Voltage Design (Wide Voltage Compatibility)

Primarily designed for 24–30V DC vehicle electrical systems, the CM1531-SV8.5 FESTOON LED 6 is also available for higher voltage applications such as 48V DC, making it suitable for trucks, buses, commercial vehicles, and industrial equipment.

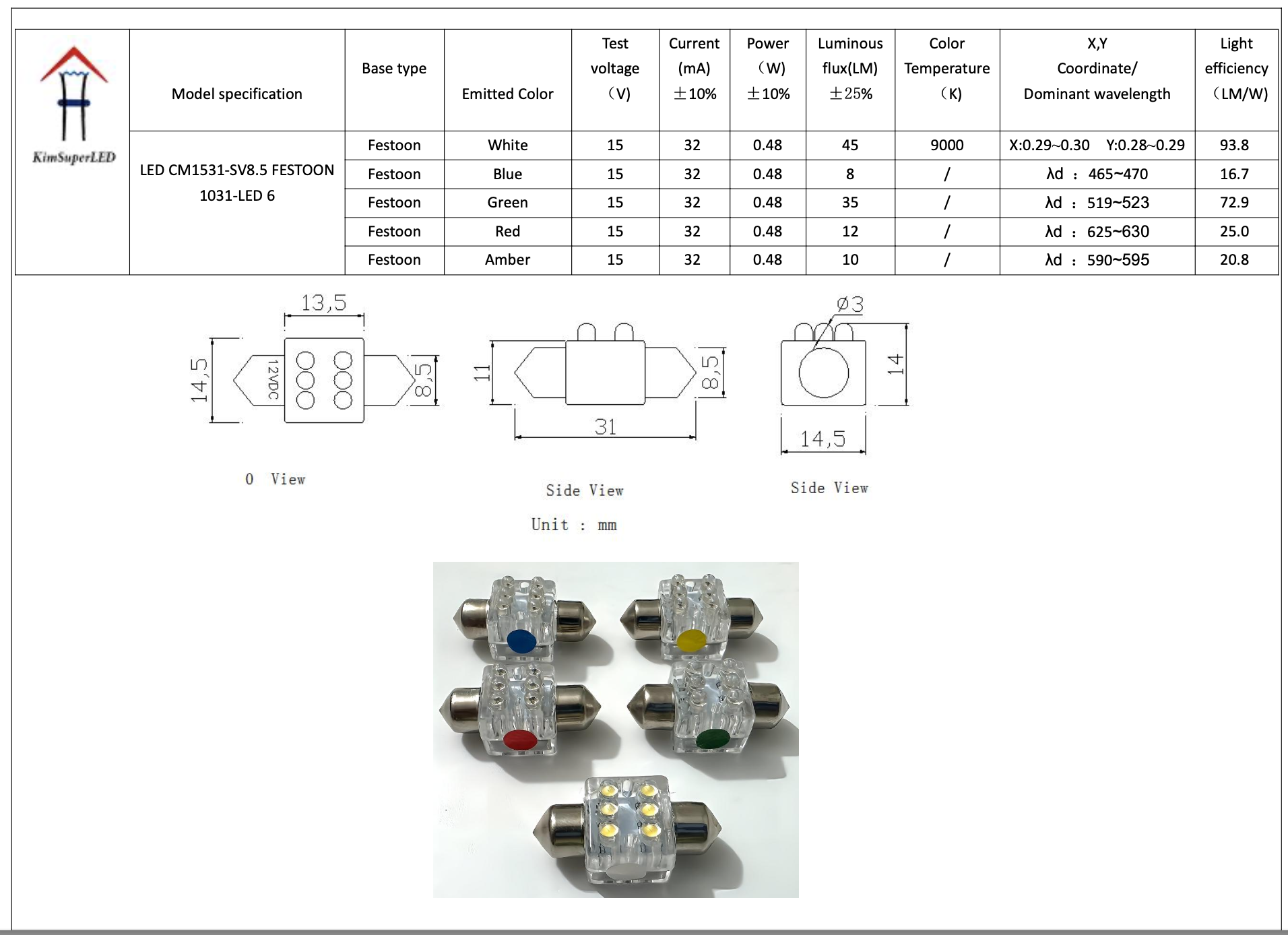

Dimensions

＊ Width: 14.5 mm
＊ Length: 31 mm

Special Features

The L.E.D. CM1531-SV8.5 FESTOON LED 6 is engineered for stable electrical performance, excellent durability, and consistent light output across diverse automotive and commercial lighting applications.

⚠️ Note:
Please carefully confirm the model number, dimensions, and operating voltage of the CM1531-SV8.5 FESTOON LED 6 before installation.
For 24V / 30V / 48V DC configurations, custom voltage options, or application compatibility support, feel free to contact us.
