CMH3655-Shaped Headlight LED

Product Overview

The CMH3655-Shaped Headlight LED is a compact and high-performance auxiliary headlight lighting solution designed for multiple vehicle applications including car and truck headlights, daytime running lights (DRL), and ground illumination lighting.

This model is equipped with a precision acrylic optical lens, which concentrates the LED light output into a focused beam. The concentrated beam significantly improves illumination distance and lighting efficiency, making it suitable for auxiliary lighting applications where additional brightness and visibility are required.

With its wide voltage design (10–30V DC), the CMH3655 provides stable performance across both 12V and 24V vehicle electrical systems, making it suitable for passenger vehicles, trucks, construction vehicles, and off-road applications.

The compact aluminum housing with integrated heat sink ensures excellent thermal dissipation and long service life, even in demanding environments.

Key Features

Acrylic Lens for Focused Beam

The integrated acrylic optical lens concentrates the LED light into a focused beam, improving illumination distance and providing more efficient light distribution.

Wide Voltage Design (10–30V DC)

The built-in circuit supports 10–30V DC, ensuring stable operation in 12V and 24V vehicle systems.

High Brightness Output

Provides up to 1000 lumens with 6000K white light, delivering clear and powerful illumination for nighttime operation.

Compact Size

Small and versatile design for flexible installation.

Length: 58 mm
Width: 55 mm

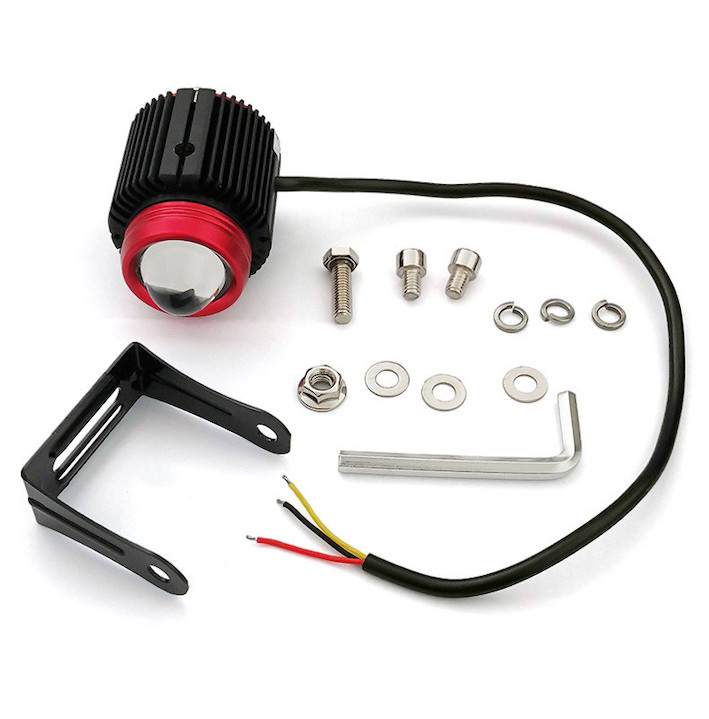

Easy Installation

Bracket mounting structure allows quick and convenient installation for various vehicle lighting positions.

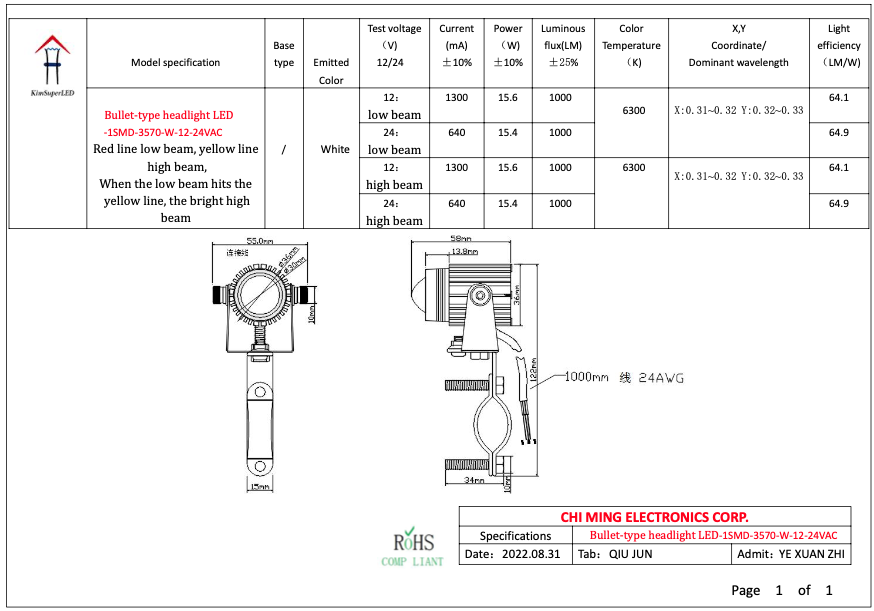

Technical Specifications

Model:
CMH3655-Shaped Headlight LED

Voltage Range:
10–30V DC

Brightness:
1000 Lumens

Color Temperature:
6000K White Light

Optical Design:
Acrylic Lens Focused Beam

Dimensions:
Length: 58 mm
Width: 55 mm

Applications

The CMH3655 LED light is suitable for various vehicle lighting applications:

• Auxiliary Headlight Lighting

• Car & Truck Headlights

• Daytime Running Lights (DRL)

• Truck Ground Illumination Light

• Construction Vehicle Lighting

• Off-road Auxiliary Lighting

• Fleet Safety Lighting

Safety Notice

The CMH3655 LED light is designed as an auxiliary headlight lighting device.

⚠ Important Installation Notice

When installing the light, please ensure that the beam is properly aimed and adjusted downward.
Avoid directing the light toward oncoming vehicles, as excessive glare may affect the visibility of other drivers and could lead to potential safety hazards.

Correct installation helps ensure safe and responsible use of the lighting system.
