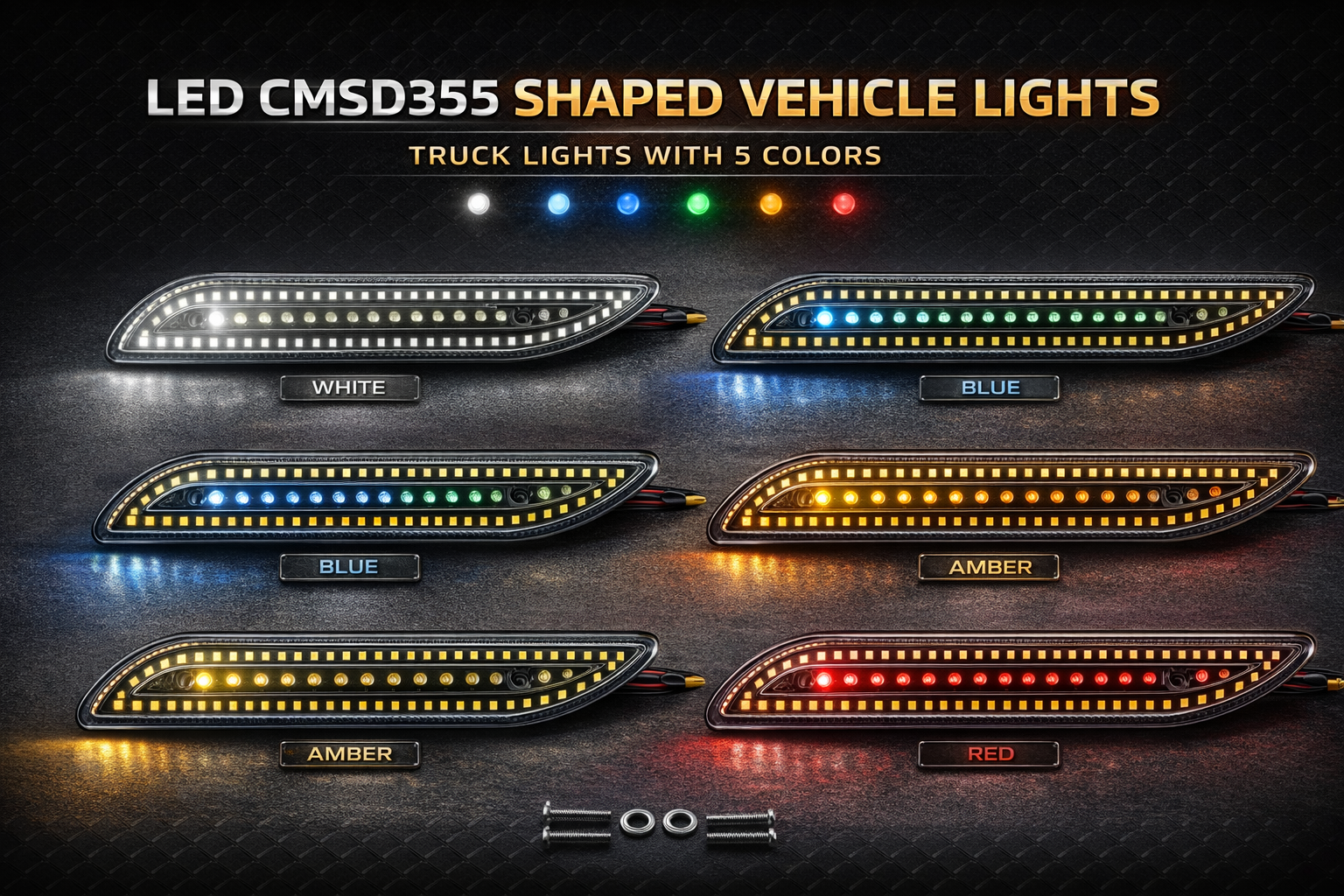

LED CMSD355-Shaped Vehicle Lights

LED CMSD355 Shaped Vehicle Lights

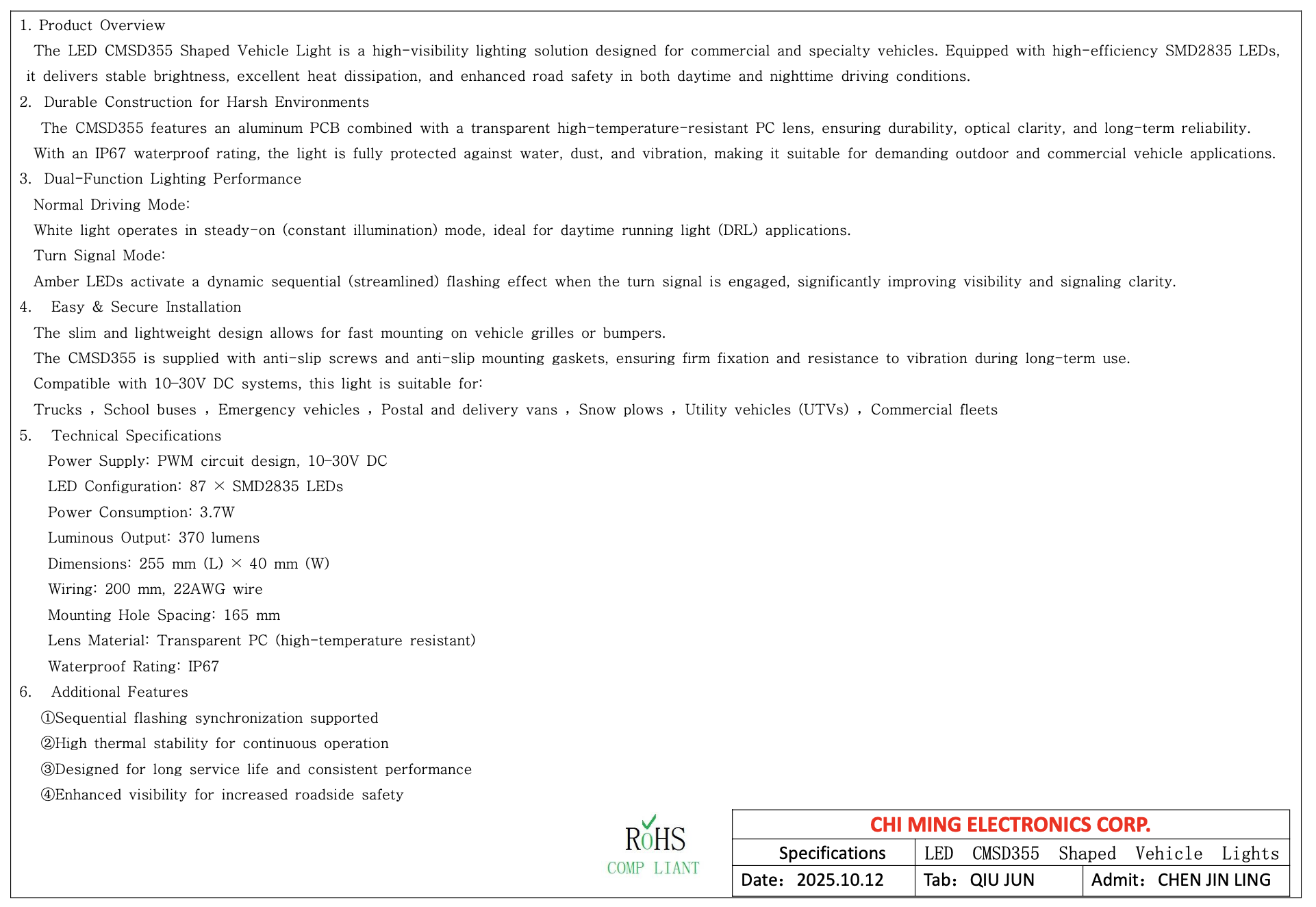

1. Product Overview

The LED CMSD355 Shaped Vehicle Light is a high-visibility lighting solution designed for commercial and specialty vehicles. Equipped with high-efficiency SMD2835 LEDs, it delivers stable brightness, excellent heat dissipation, and enhanced road safety in both daytime and nighttime driving conditions.

2. Durable Construction for Harsh Environments

The CMSD355 features an aluminum PCB combined with a transparent high-temperature-resistant PC lens, ensuring durability, optical clarity, and long-term reliability.

With an IP67 waterproof rating, the light is fully protected against water, dust, and vibration, making it suitable for demanding outdoor and commercial vehicle applications.

3. Dual-Function Lighting Performance

Normal Driving Mode:
White light operates in steady-on (constant illumination) mode, ideal for daytime running light (DRL) applications.

Turn Signal Mode:
Amber LEDs activate a dynamic sequential (streamlined) flashing effect when the turn signal is engaged, significantly improving visibility and signaling clarity.

4. Easy & Secure Installation

The slim and lightweight design allows for fast mounting on vehicle grilles or bumpers.
The CMSD355 is supplied with anti-slip screws and anti-slip mounting gaskets, ensuring firm fixation and resistance to vibration during long-term use.

Compatible with 10–30V DC systems, this light is suitable for:

• Trucks

• School buses

• Emergency vehicles

• Postal and delivery vans

• Snow plows

• Utility vehicles (UTVs)

• Commercial fleets

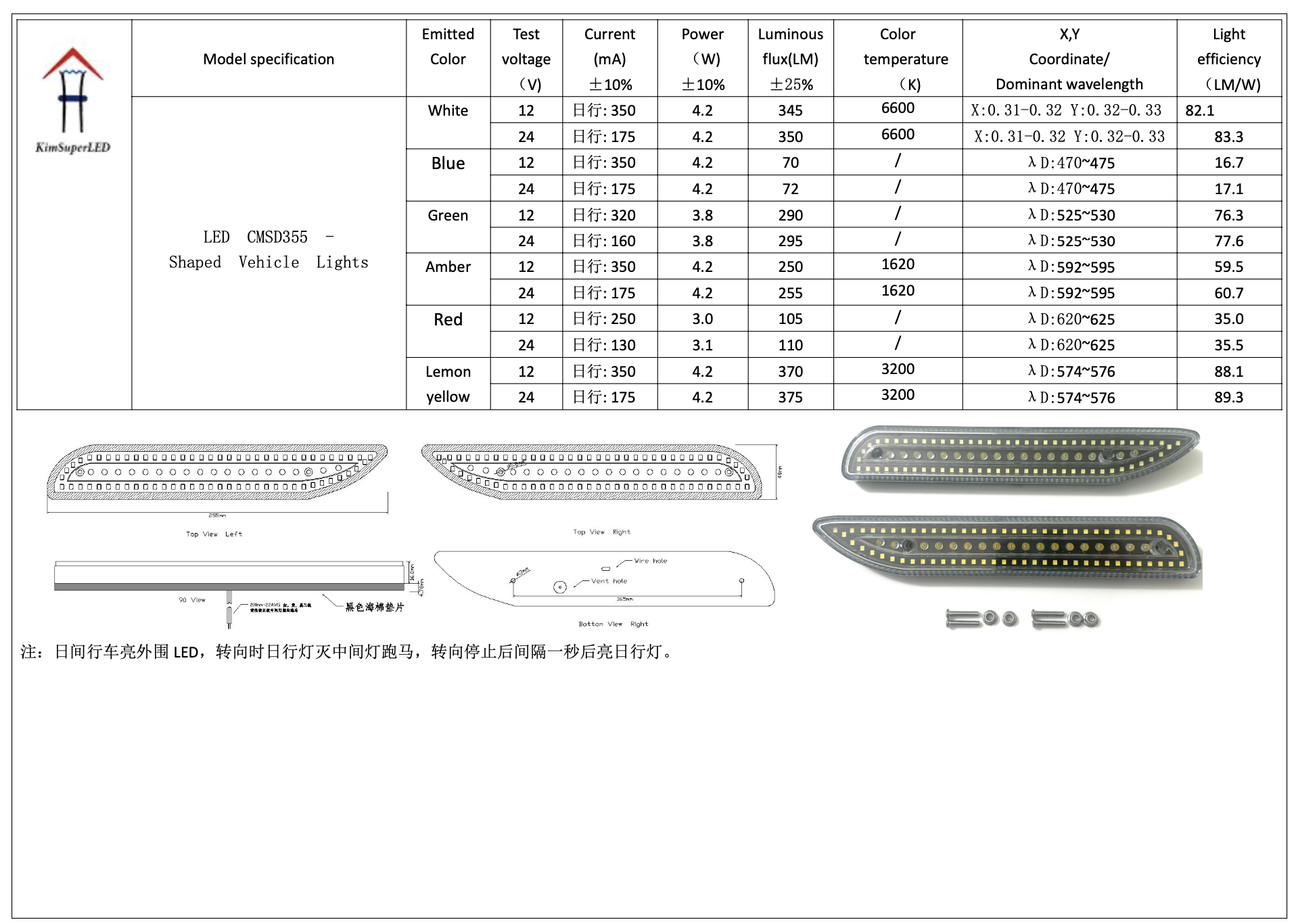

5. Technical Specifications

• Power Supply: PWM circuit design, 10–30V DC

• LED Configuration: 87 × SMD2835 LEDs

• Power Consumption: 3.7W

• Luminous Output: 370 lumens

• Dimensions: 255 mm (L) × 40 mm (W)

• Wiring: 200 mm, 22AWG wire

• Mounting Hole Spacing: 165 mm

• Lens Material: Transparent PC (high-temperature resistant)

• Waterproof Rating: IP67

6. Additional Features

• Sequential flashing synchronization supported

• High thermal stability for continuous operation

• Designed for long service life and consistent performance

• Enhanced visibility for increased roadside safe
