CM8532-LED Side Marker Light

CM8532-LED Side Marker Light

Product Description

Wide Voltage Input (10–30VDC)
Designed with a wide voltage range from 10 to 30VDC, the CM8532 utilizes PWM constant current technology to deliver stable, efficient, and reliable performance across different vehicle electrical systems. This wide voltage design makes it suitable for a broad range of applications, including mixed 12V and 24V vehicle fleets.

High-Performance LED with Optical Lens Design

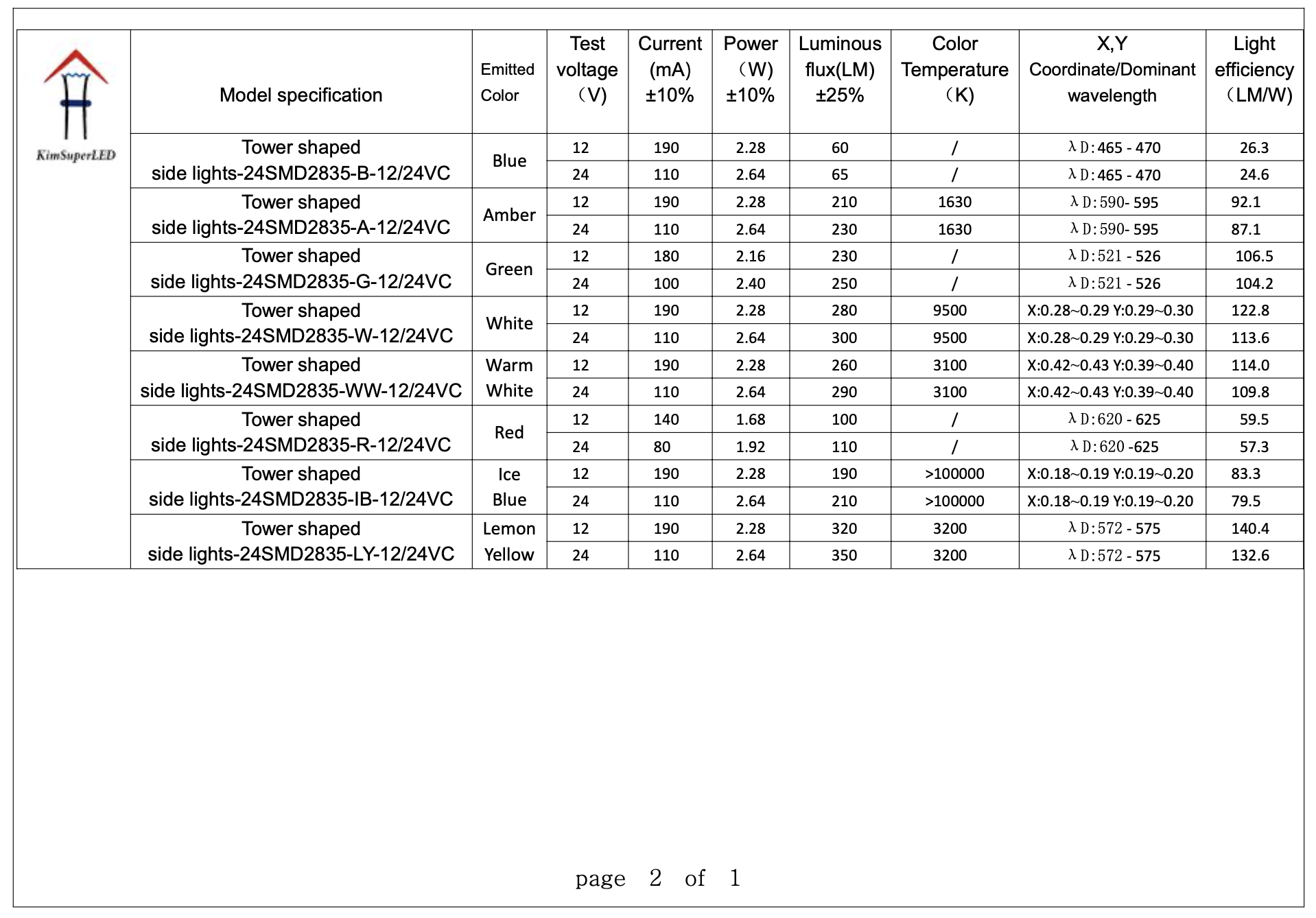

Equipped with 24 pcs SMD2835 LEDs (0.2W each), combined with a precision optical lens, the light delivers enhanced brightness and a wide beam angle. The lens design improves light distribution and luminous efficiency, ensuring excellent visibility from multiple viewing angles.

Compact, Durable & Heat-Efficient Structure

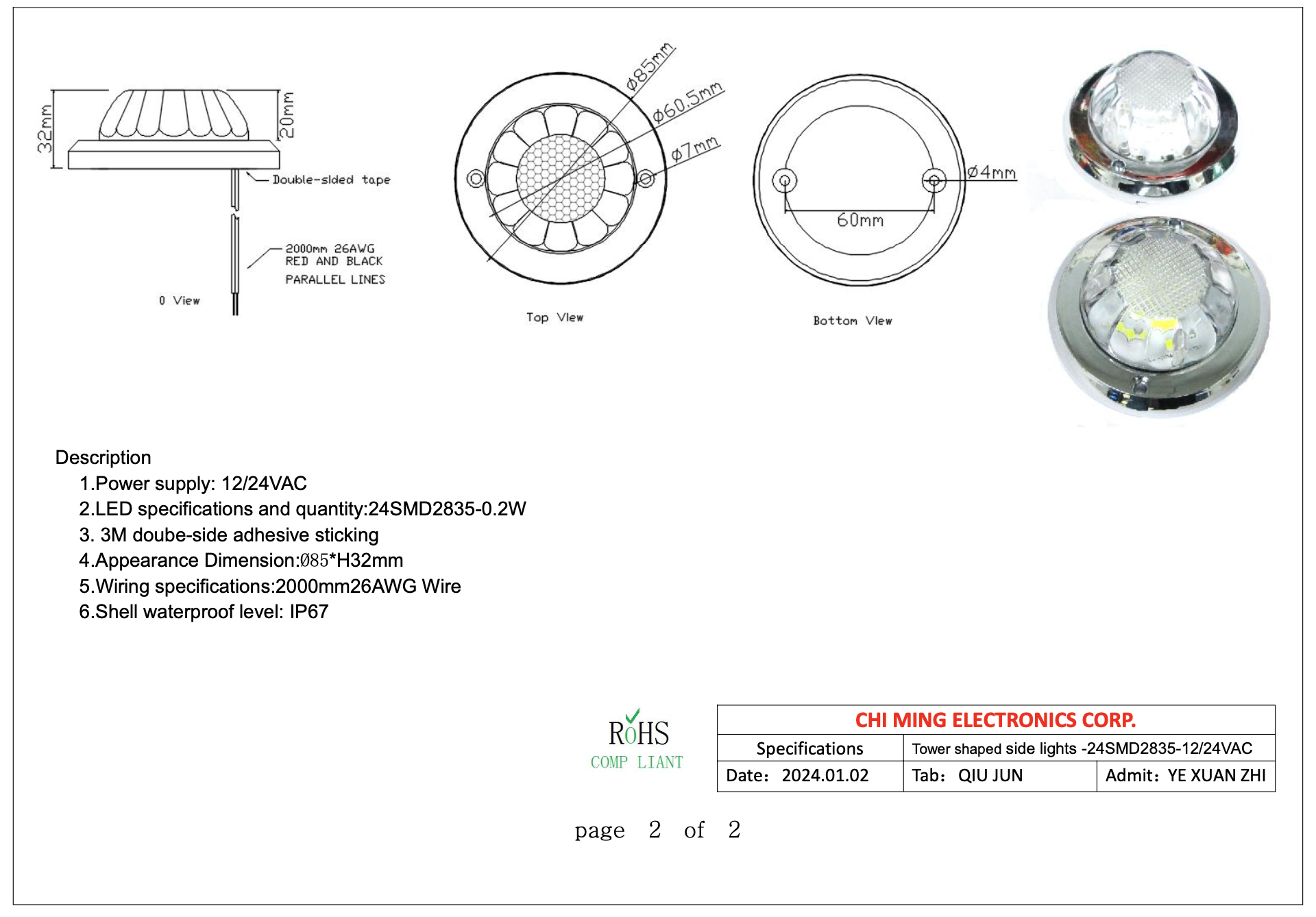

With a compact size of Ø85mm × H32mm, the CM8532 features an aluminum PCB base that provides superior heat dissipation, enhancing durability and extending product lifespan even under continuous operation.

Flexible & Easy Installation
Supports dual mounting options:

• 3M double-sided adhesive for fast and clean installation

• Screw mounting for permanent and vibration-resistant fixation
  (Installation surface should be clean and dry before mounting.)

IP67 Waterproof & Vibration-Resistant
The fully sealed housing meets IP67 waterproof standards, offering strong protection against water, dust, and harsh outdoor environments. Built to withstand vibration, making it ideal for commercial and heavy-duty vehicle use.

Premium Appearance & Robust Construction
Features a silver electroplated shell paired with a specially designed lens, combining modern aesthetics with rugged durability. The result is a clean, professional appearance with long-term reliability.

Applications

The CM8532-LED Side Marker Light is a versatile lighting solution suitable for use as side marker lights or indicator lights on:

• Trucks

• Trailers

• Buses

• RVs

• Pickups

• Commercial and specialty vehicles

Designed for applications that demand high brightness, wide visibility, durability, and long service life.
