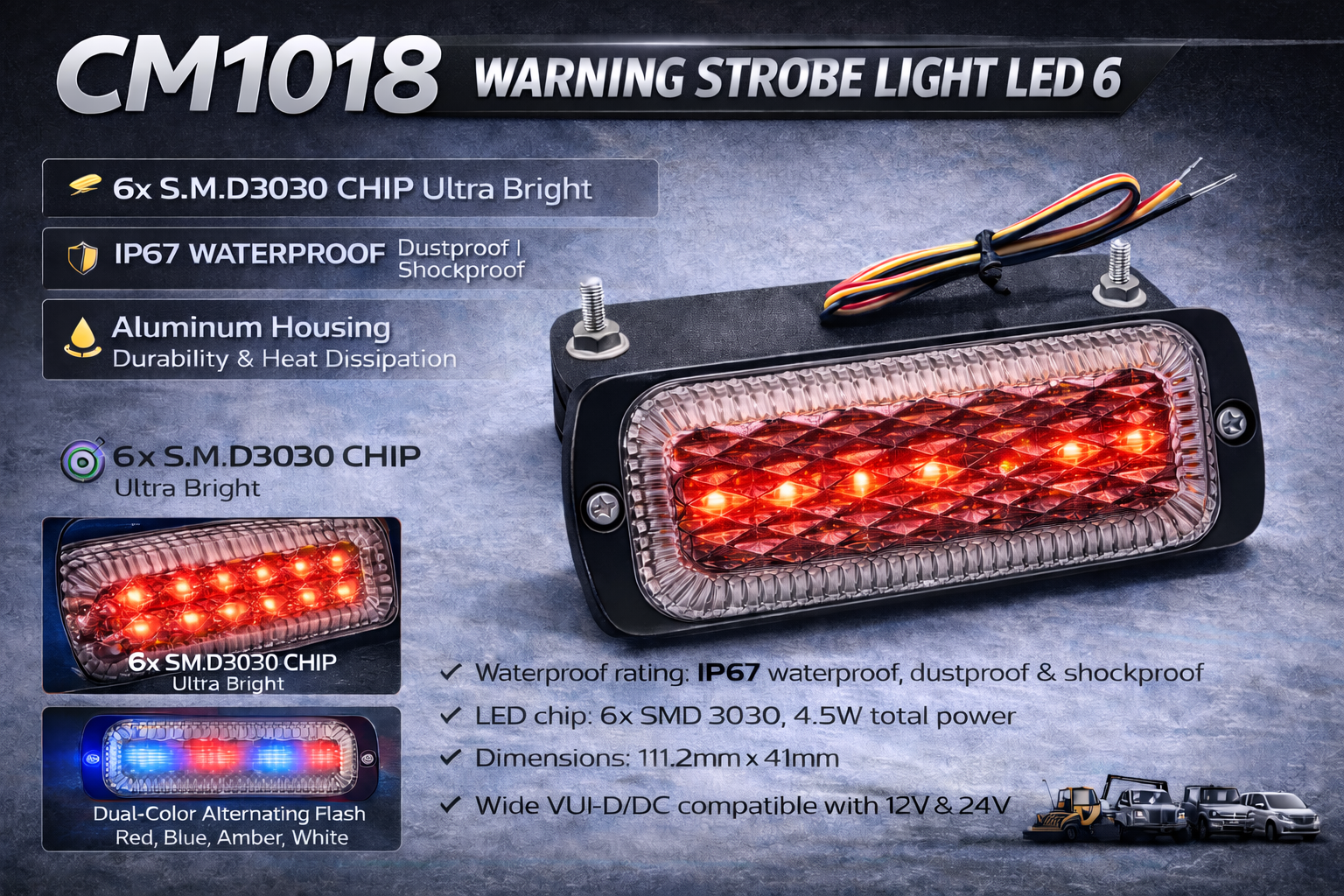

CM1018-Warning Strobe Light LED 6

CM1018 – Warning Strobe Light LED 6

Power Supply

＊ Wide voltage design: 10–30V DC
＊ Designed for 12V / 24V vehicle systems
＊ Ensures stable and reliable operation across a wide voltage range, ideal for commercial, emergency, and mixed-fleet vehicles

LED Specification

＊ Equipped with 6 high-power 1W Cree LEDs
＊ Proven Cree LED reliability ensures long lifespan and consistent luminous performance
＊ High stability design maintains optimal output under continuous operation

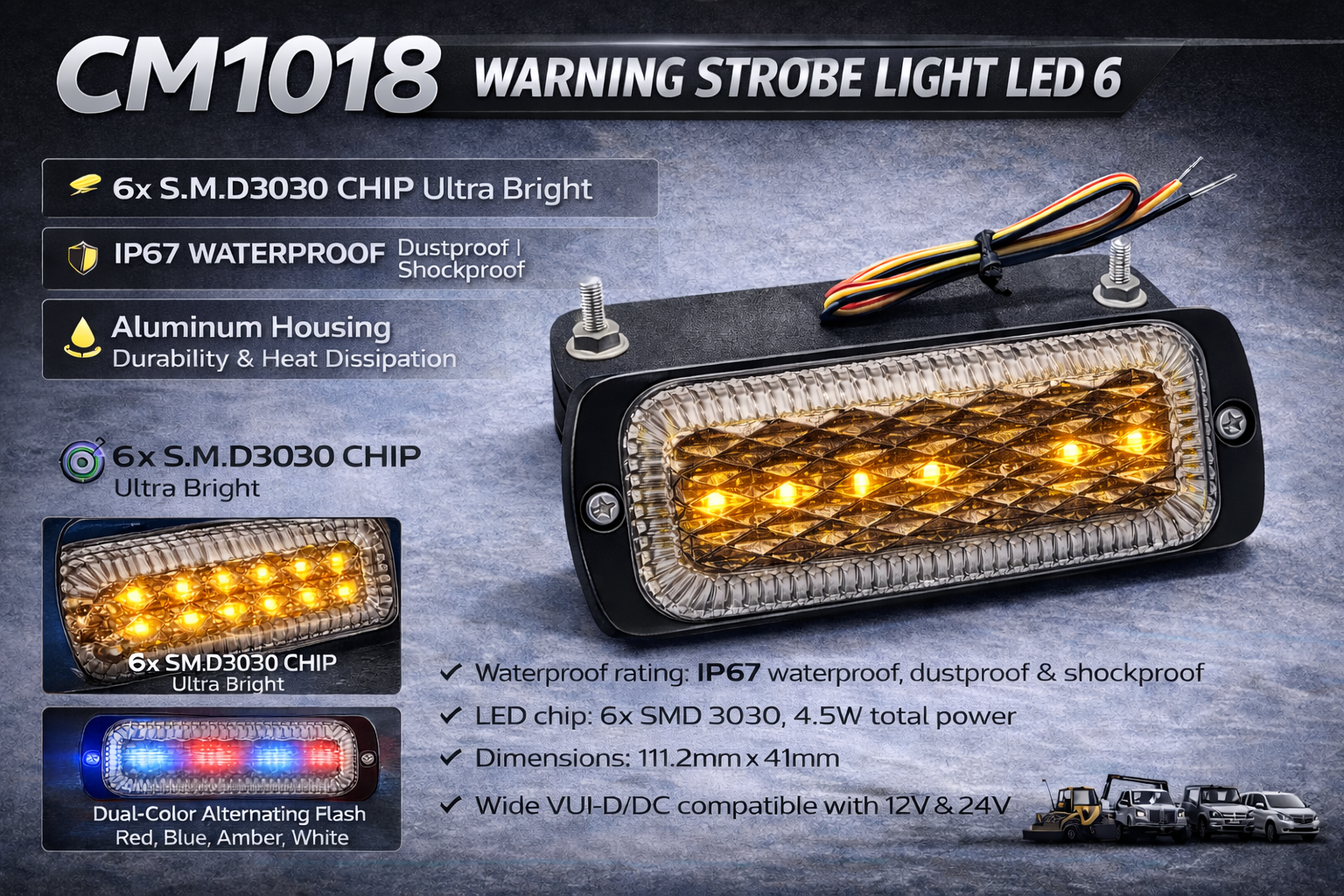

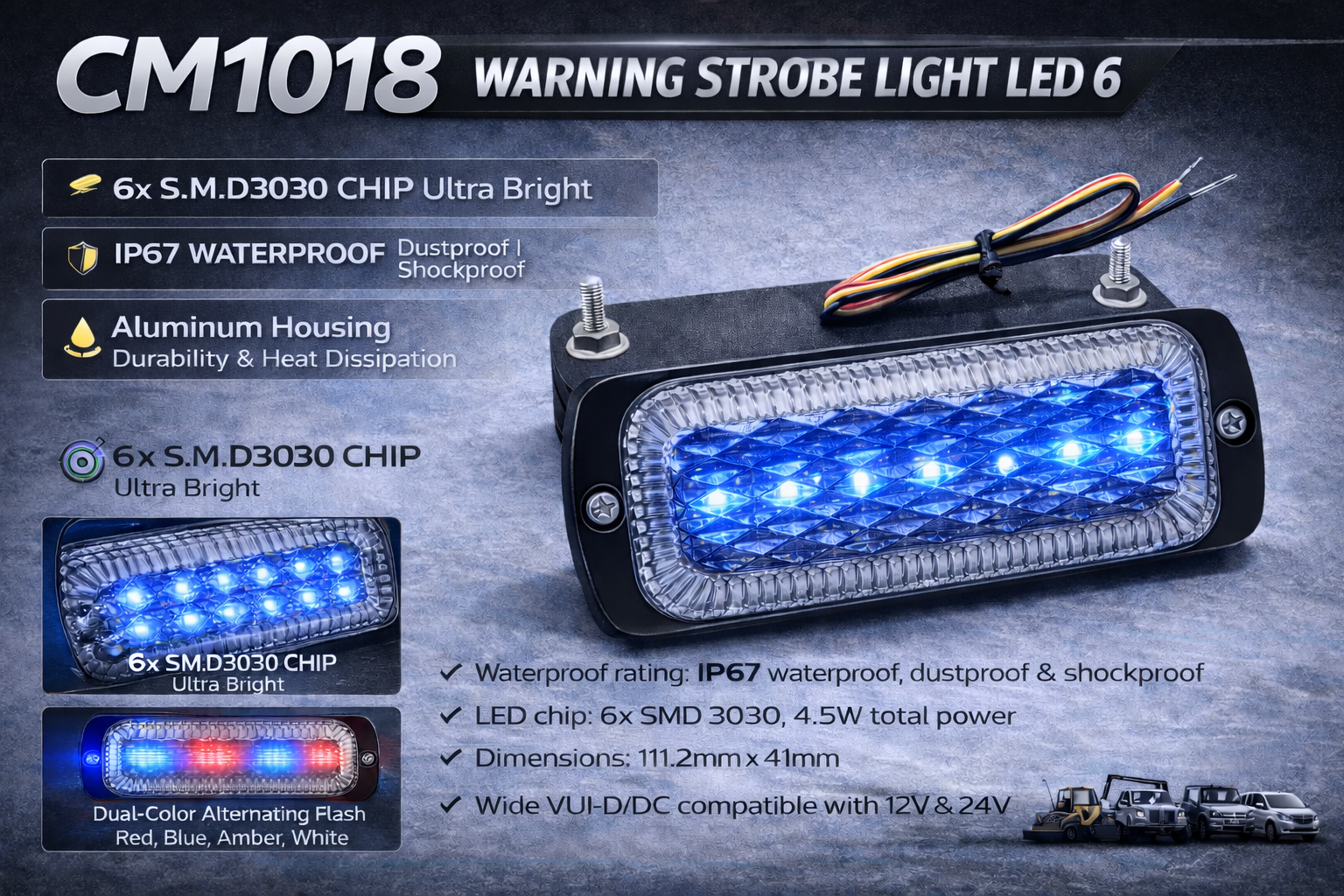

＊ Available colors: Amber (Yellow) / Red / Blue / White
＊ Dual-color configurations (Red/Blue, Red/White) available upon request

Optical Design

＊ Specially designed optical lens structure
＊ Enhances light concentration and increases overall brightness
＊ Improves warning visibility in both daytime and nighttime conditions

Appearance & Dimensions

＊ Compact rectangular warning strobe light design
＊ Dimensions: L111.2 mm × W41 mm

Wiring Specifications & Synchronization Function

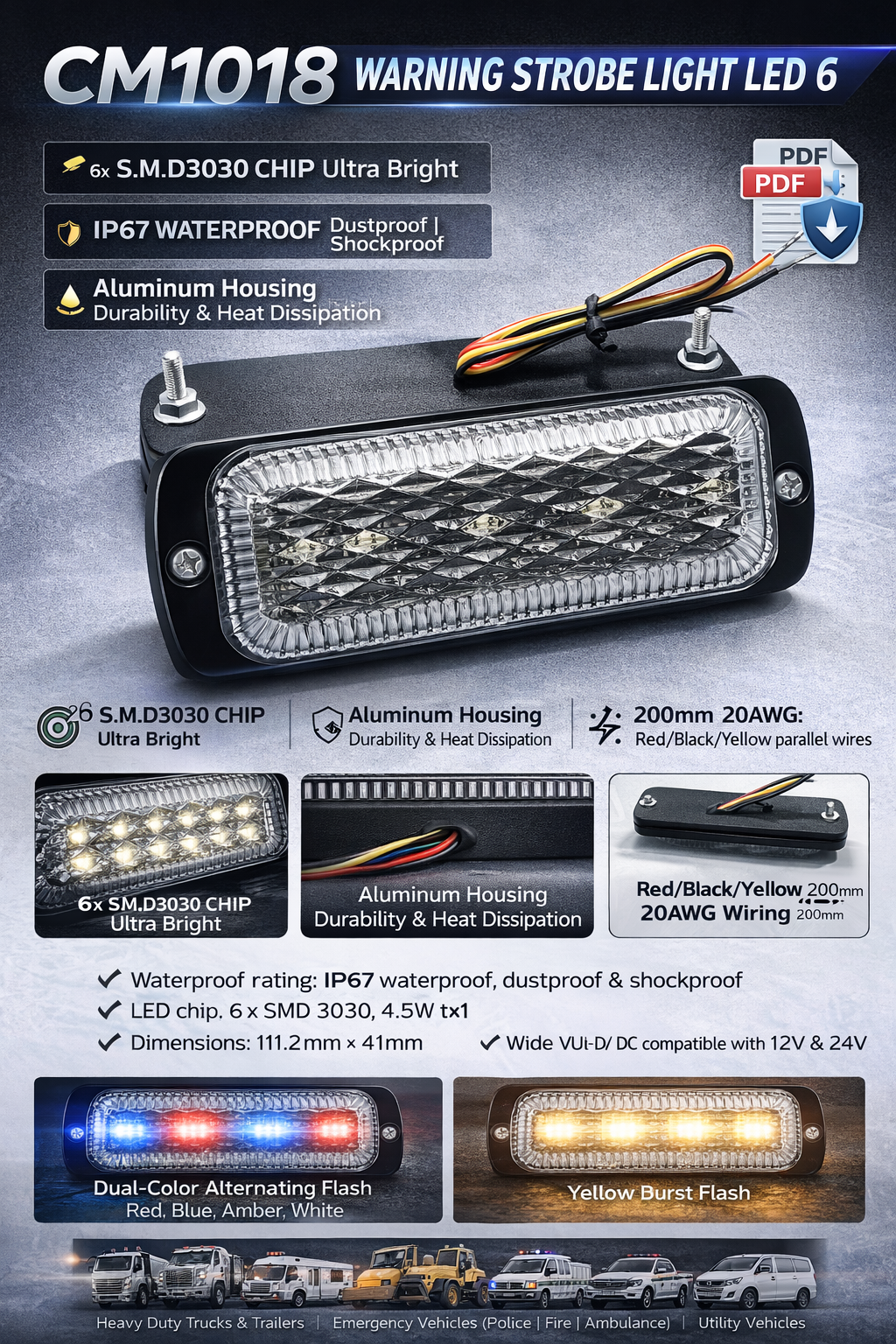

＊ Pre-wired with 200 mm 20AWG cables
＊ Three-wire design:
　– Red wire: Power (+)
　– Black wire: Ground (–)
　– Yellow wire: Trigger / Synchronization control

＊ The yellow wire functions as a trigger terminal
＊ When the yellow wires of multiple CM1018 lights are connected together, the strobe lights can operate in synchronized flashing mode
＊ Supports synchronized operation of 2, 5, 10, or more units, flashing simultaneously in the same pattern
＊ Ideal for multi-light installations requiring uniform and coordinated warning signals

Lighting Function

＊ Multiple warning light modes, customizable by customer request:
　– Strobe flash
　– Burst flash
　– Alternating flash
　– Red & Blue alternating flash
＊ Designed to deliver clear, powerful, and highly visible warning signals

Anti-Interference Design

＊ Built-in anti-electromagnetic interference (EMI) protection
＊ Ensures stable operation without affecting vehicle electronic systems

Waterproof Level

＊ IP67-rated enclosure
＊ Fully protected against water, dust, vibration, and harsh outdoor environments

Material & Structure

＊ Aluminum PCB for superior heat dissipation and thermal stability
＊ Durable PC lens & housing, impact-resistant and corrosion-resistant

Mounting & Installation

＊ Supplied with anti-slip mounting screws and nuts
＊ Rear anti-slip gasket included to reduce vibration and prevent loosening
＊ Designed for secure installation on metal and painted vehicle surfaces

Fitment & Applications

＊ Commercial trucks and trailers
＊ Construction and utility vehicles
＊ Emergency vehicles (police, fire, service fleets)
＊ Pickup trucks, vans, and special-purpose vehicles
＊ Vehicle warning, safety, and auxiliary strobe lighting

Special Notes

＊ Wide Voltage Compatibility – Reliable operation within 10–30V DC
＊ Cree LED Reliability – Trusted LED source ensures long-term performance
＊ Multi-Pattern Warning Light – Strobe, burst, and alternating flash modes
＊ Synchronization Capability – Multiple units can flash simultaneously via yellow trigger wire
＊ Anti-Interference Design – Stable performance in modern vehicle systems
＊ High-Brightness Optical Lens – Enhanced warning visibility
＊ IP67 Waterproof Protection – Suitable for demanding commercial environments
