LED CMA13555-Arrow Side Marker Lights
L.E.D. CMA13555-Arrow Side Marker Light
Applications
The L.E.D. CMA13555-Arrow Side Marker Light is designed for trucks, trailers, RVs, pickup trucks, construction vehicles, and other commercial or special vehicles requiring high visibility, clear signaling, and long-term reliability.
Key Features
-
Wide Voltage Input with PWM System
Operates on 12V / 24VDC with a built-in PWM constant-current system, ensuring stable brightness and reliable performance across various vehicle electrical systems. -

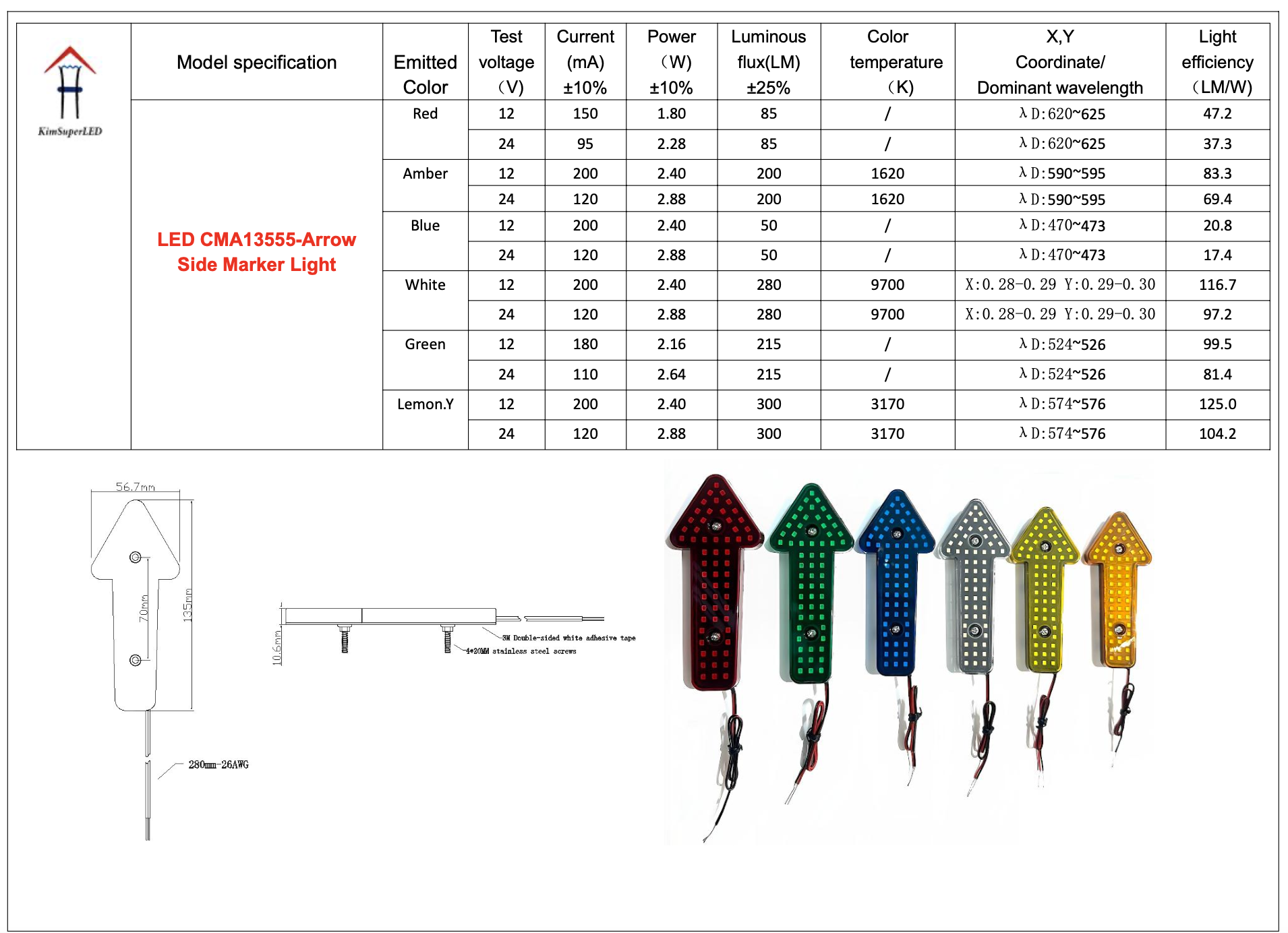

L.E.D. Specifications & Quantity
Built with 59 pcs S.M.D.2835 LEDs (0.2W each), delivering powerful illumination with high energy efficiency and low heat generation. -
Dual-Function Lighting with Sequential Arrow Effect
During normal driving conditions, the arrow light remains steady-on to provide continuous side marker visibility.
When the turn signal is activated, the light switches to a dynamic sequential arrow flow, illuminating in 4 flowing sections along the arrow direction to clearly indicate the intended turning direction.
Optional flashing or customized lighting patterns are also available upon request. -
High Brightness Color Options
Equipped with high-efficiency PC-Amber LEDs for strong yellow output.
Available colors include Red, Blue, Green, White, Amber, Lemon Yellow, or custom colors for OEM / ODM projects. -
Compact Appearance Dimensions
Slim design measuring L135 × W57 mm, suitable for multiple mounting positions on vehicle sides, rear panels, or auxiliary areas. -
Wiring Specifications
Supplied with 200 mm 26AWG red / black wires for quick and convenient electrical connection. -
Waterproof & Durable Construction
Rated IP67, providing excellent resistance to water, dust, vibration, and harsh outdoor environments. -
Flexible Installation Options
Features 3M double-sided adhesive for fast mounting, plus 4 mm screw holes for secure and permanent installation.
Versatile Use
＊ Vehicle side marker lights
＊ Direction indicator lights
＊ Warning lights for trucks, trailers, RVs, and construction vehicles
＊ Underbody lighting
＊ Parking lot and traffic direction indicators
Product Summary
The L.E.D. CMA13555-Arrow Side Marker Light combines steady illumination for continuous visibility with a dynamic sequential arrow signaling function when turning, significantly enhancing vehicle safety, directional clarity, and warning effectiveness in all driving conditions.
