LED CM7335-Vehicle Side Marker Lights

L.E.D. CM7335 – Vehicle Side Marker Lights

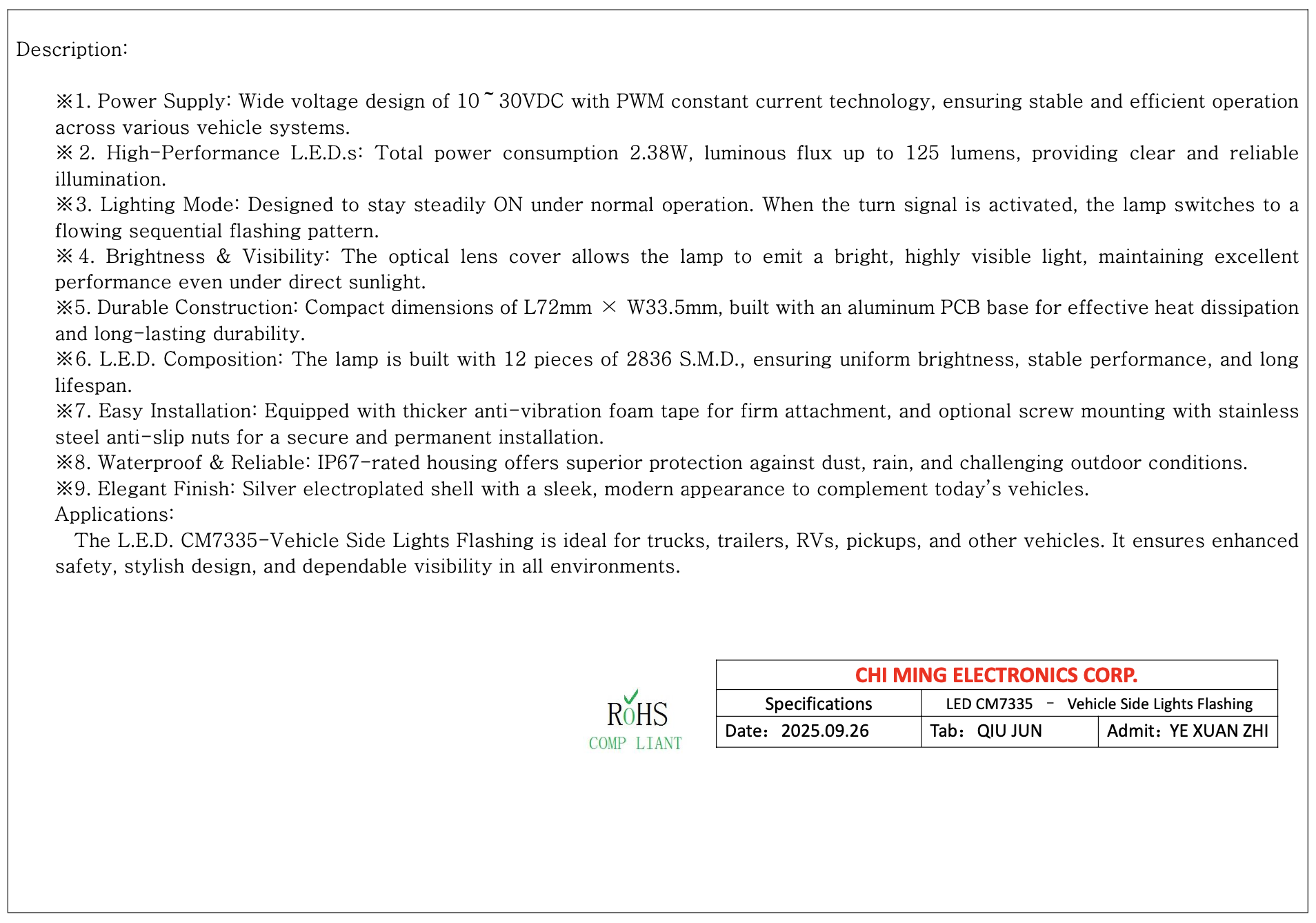

Description:

1. Power Supply
Wide voltage design of 10–30VDC with PWM constant current technology, ensuring stable and efficient operation across various vehicle systems.

2. High-Performance L.E.D.s
Total power consumption 2.38W, luminous flux up to 125 lumens, providing clear and reliable illumination.

3. Lighting Mode
Designed to stay steadily ON under normal operation. When the turn signal is activated, the lamp switches to a flowing sequential flashing pattern.

4. Brightness & Visibility
The optical lens cover allows the lamp to emit a bright, highly visible light, maintaining excellent performance even under direct sunlight.

5. Durable Construction
Compact dimensions of L72mm × W33.5mm, built with an aluminum PCB base for effective heat dissipation and long-lasting durability.

6. L.E.D. Composition
Built with 12 pcs of 2836 S.M.D., ensuring uniform brightness, stable performance, and long lifespan.

7. Easy Installation
Equipped with thicker anti-vibration foam tape for firm attachment, and optional screw mounting with stainless steel anti-slip nuts for a secure and permanent installation.

8. Waterproof & Reliable
IP67-rated housing offers superior protection against dust, rain, and challenging outdoor conditions.

9. Elegant Finish
Silver electroplated shell with a sleek, modern appearance to complement today’s vehicles.

Applications:

The L.E.D. CM7335 – Vehicle Side Marker Lights are ideal for trucks, trailers, RVs, pickups, and other commercial vehicles, delivering enhanced safety, refined styling, and dependable visibility in all environments.
