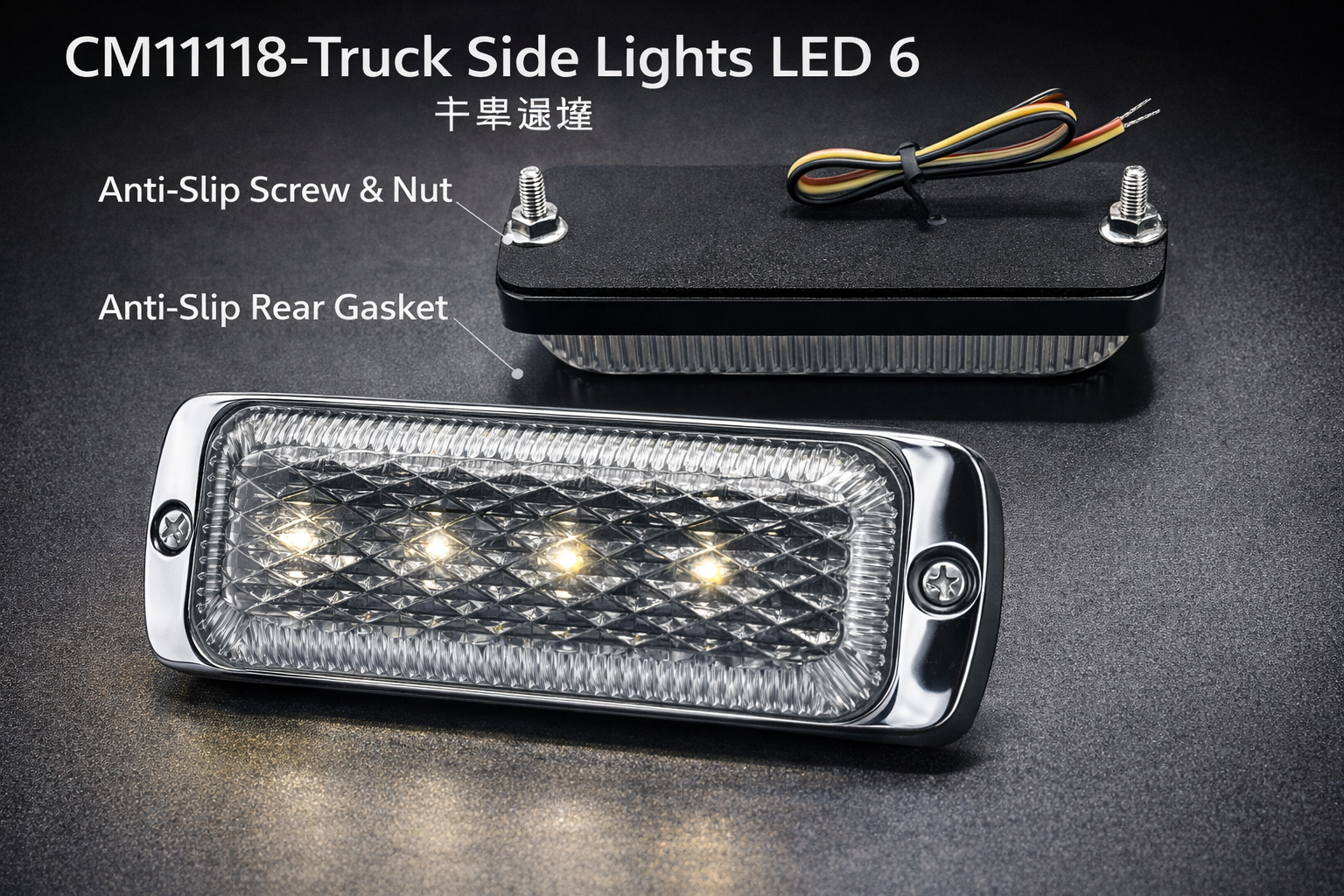

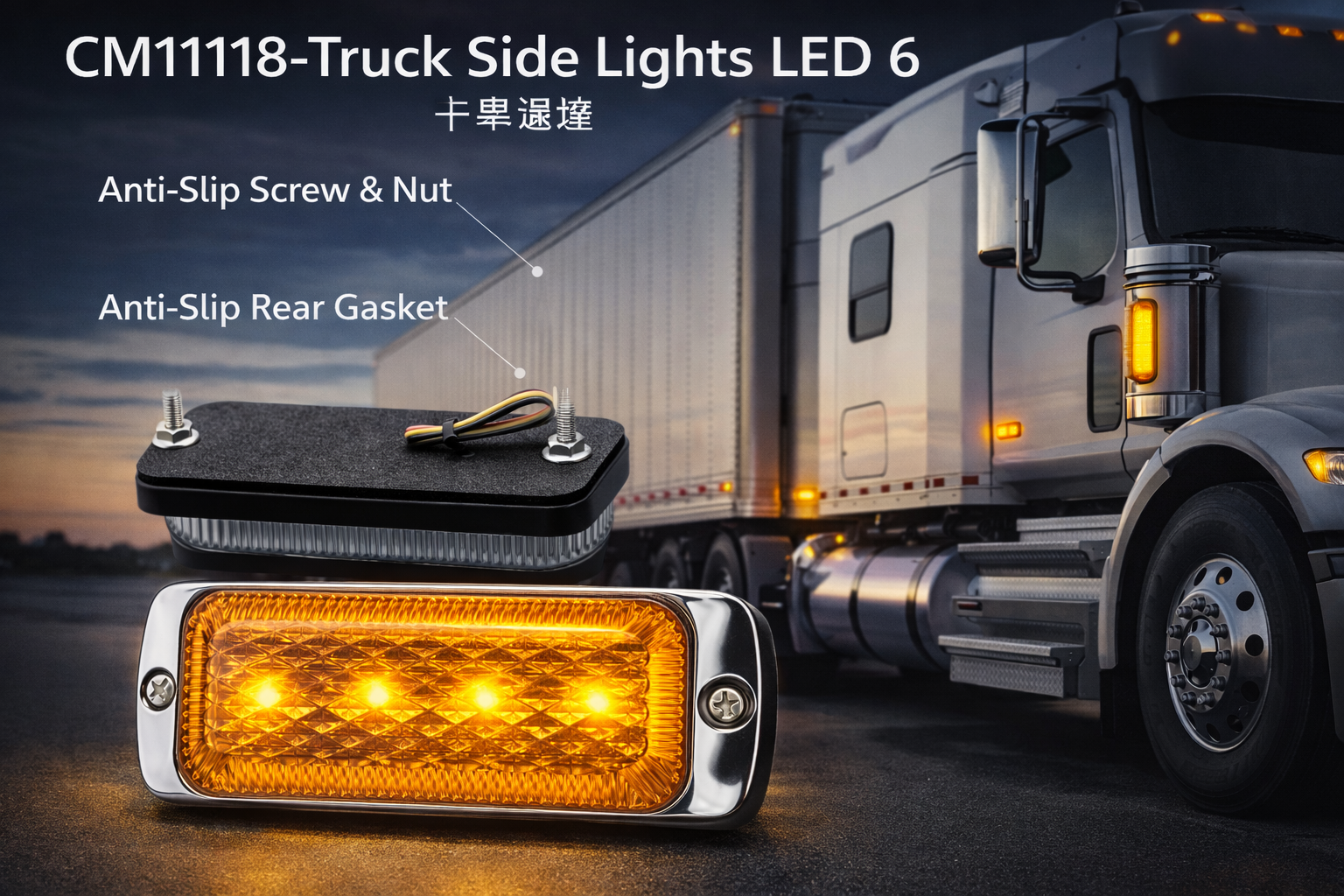

CM11118-Truck Side Lights LED 6

CM11118-Truck Side Lights LED 6

Description

Power Supply

＊ Wide voltage design: 10–30V DC
＊ Designed for 12V / 24V vehicle systems
＊ Ensures stable operation across a wide voltage range, ideal for commercial and mixed-fleet vehicles

LED Specification

＊ Equipped with 6 high-power 1W Cree LEDs
＊ High reliability, long lifespan, and consistent luminous performance
＊ Available colors: Red / Amber (Yellow) / White / Green / Blue
＊ Custom LED colors available upon request

Appearance Dimension

＊ Compact side-marker design
＊ L111.5 mm × W41 mm

Wiring Specifications

＊ Pre-wired with 190 mm 22AWG cables
＊ Wire colors: Red / Black / Yellow
＊ Yellow wire functions as turn signal / flash control input

Lighting Function

＊ Steady ON during normal vehicle driving
＊ Flashing mode activated when turn signal is engaged
＊ Improves side visibility and directional indication during operation

Waterproof Level

＊ IP67-rated enclosure
＊ Resistant to water, dust, vibration, and harsh outdoor conditions

Material & Structure

＊ Aluminum PCB for superior heat dissipation and thermal stability
＊ Electroplated PC plastic base for durability and corrosion resistance

Mounting & Installation

＊ Supplied with anti-slip mounting screws and nuts
＊ Rear anti-slip gasket included to reduce vibration and prevent loosening
＊ Designed for stable installation on metal and painted vehicle surfaces

Fitment & Applications

＊ Passenger cars
＊ Pickup trucks
＊ SUVs and vans
＊ UTVs and ATVs
＊ Trailers and construction vehicles
＊ Commercial trucks and special-purpose vehicles

Special Notes

＊ Wide Voltage Compatibility – Reliable operation within 10–30V DC
＊ Dual-Function Side Light – Steady illumination while driving, flashing during turn signal operation
＊ Cree LED Reliability – Proven LED source for long-term performance
＊ Anti-Vibration Design – Anti-slip screws, nuts, and rear gasket ensure secure mounting
＊ Truck Side Marker Compatible – Ideal for commercial vehicle side lighting applications
