CMU9418 – Under Car LED Lights

Product Overview

The CMU9418 Under Car LED Lights are high-performance, compact LED modules designed for vehicle underbody and ground illumination. Featuring excellent heat dissipation, focused optical output, and wide voltage compatibility, CMU9418 is ideal for modified vehicles, commercial fleets, and industrial applications requiring reliable and durable lighting solutions.

Key Features

Wide Voltage Compatibility
Designed with a wide voltage input range of 10–30V DC, suitable for most vehicle electrical systems.
For special applications, custom designs supporting 10–60V DC are available—ideal for forklifts and industrial vehicles.

High-Performance LED & Optical Design
Equipped with 1 high-power SMD3030 LED and a concentrated optical lens, delivering focused, high-intensity illumination with excellent light uniformity.
Designed for ground projection lighting, especially suitable for vehicle modification and underbody glow applications.

Efficient Thermal Management
Optimized heat dissipation design combined with a silver electroplated housing, ensuring stable performance and a long lifespan of up to 50,000 hours, even under continuous operation.

Compact & Low-Profile Design

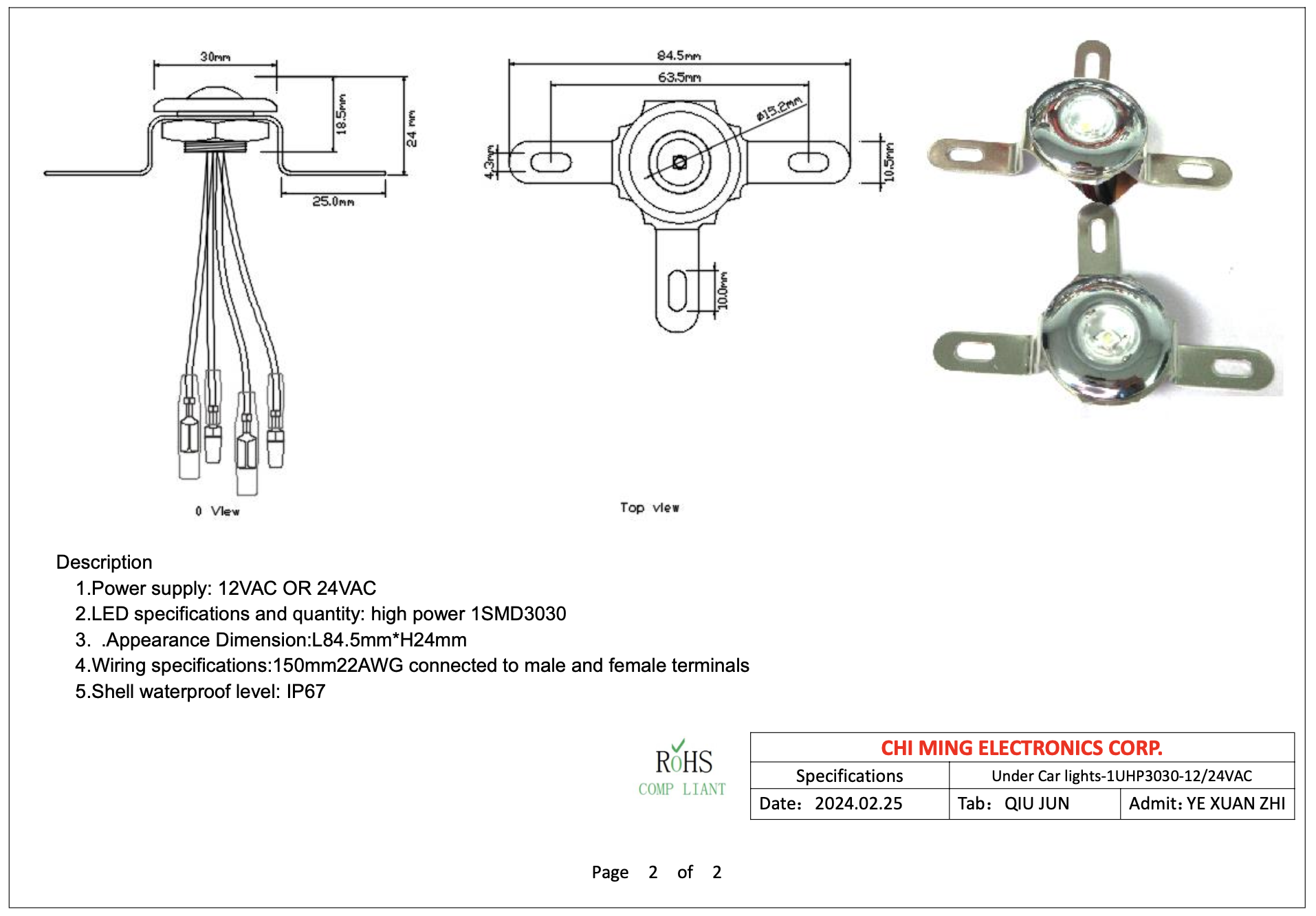

Slim dimensions of L84.5mm × H24mm, allowing seamless installation beneath vehicles without affecting clearance or aesthetics.

Durable & Waterproof Construction
Built with an IP67 waterproof rating, shock-resistant structure, and vibration-resistant performance—perfect for harsh road and industrial environments.

Secure & Easy Installation
Features a metal mounting bracket with screw-fixing design for stable and secure attachment.
Designed for fast installation on a wide range of vehicle chassis and frames.

Parallel Connection Ready
Designed with four output wires, allowing multiple units to be connected in parallel for synchronized illumination.
All connection wires include waterproof connectors, ensuring safe, reliable, and user-friendly installation.

Applications

• Modified vehicles & show cars

• Trucks & commercial vehicles

• RVs & trailers

• Forklifts & industrial vehicles

• Vehicle underbody & ground illumination

Conclusion

The CMU9418 Under Car LED Lights combine compact size, high light concentration, excellent heat dissipation, and wide voltage adaptability. With customizable voltage options and robust waterproof construction, CMU9418 is a versatile and reliable solution for both automotive and industrial ground lighting applications.
