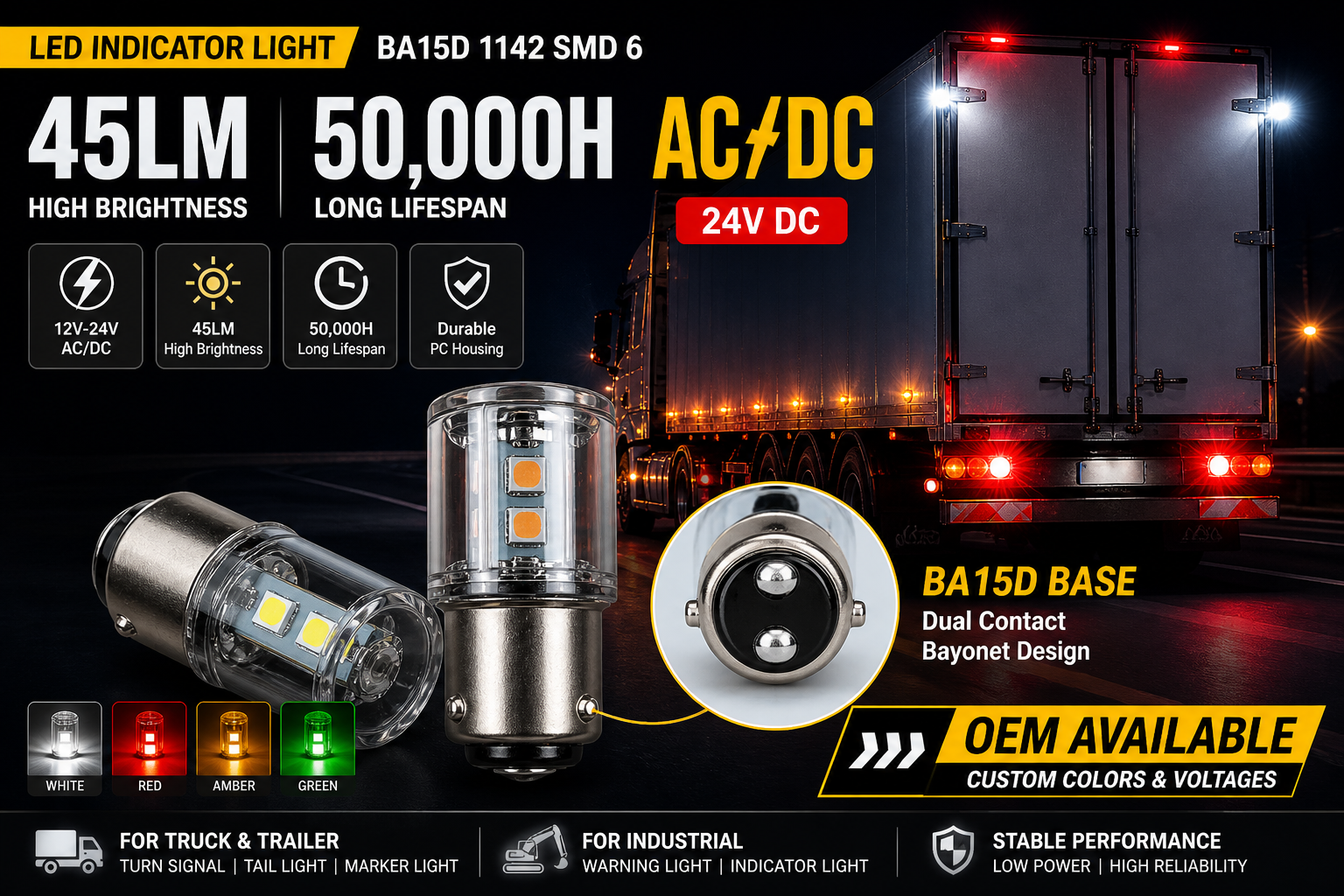

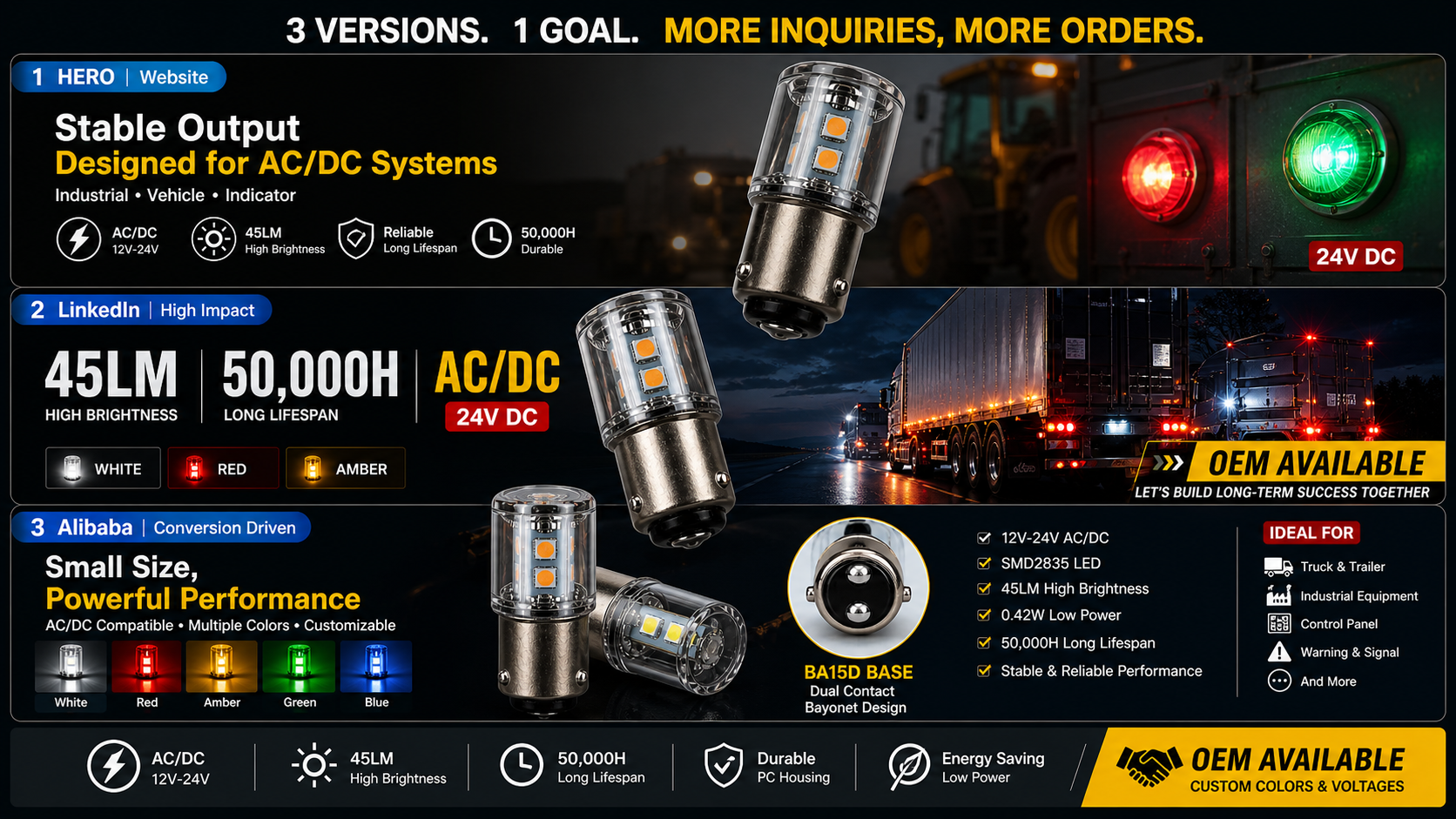

🔧 CMBD4520-LED BA15D 1142 SMD 6

Auto Warning Indicator Light

🔷 Product Overview

The CMBD4520-LED BA15D 1142 SMD 6 is a high-reliability LED indicator light designed for both automotive and industrial applications.

With AC/DC wide voltage compatibility, durable construction, and stable light output, this model is ideal for long-term use in demanding environments.

👉 Engineered for stability, efficiency, and long service life.

⚡ 1. Wide Voltage Compatibility

• Supports 12V–24V AC/DC as standard
• Custom voltage options available:
  • 110VAC / 220VAC
  • 12V AC / 24V AC / 48V AC
• Suitable for various electrical systems across vehicles and industrial equipment

👉 One model covers multiple applications

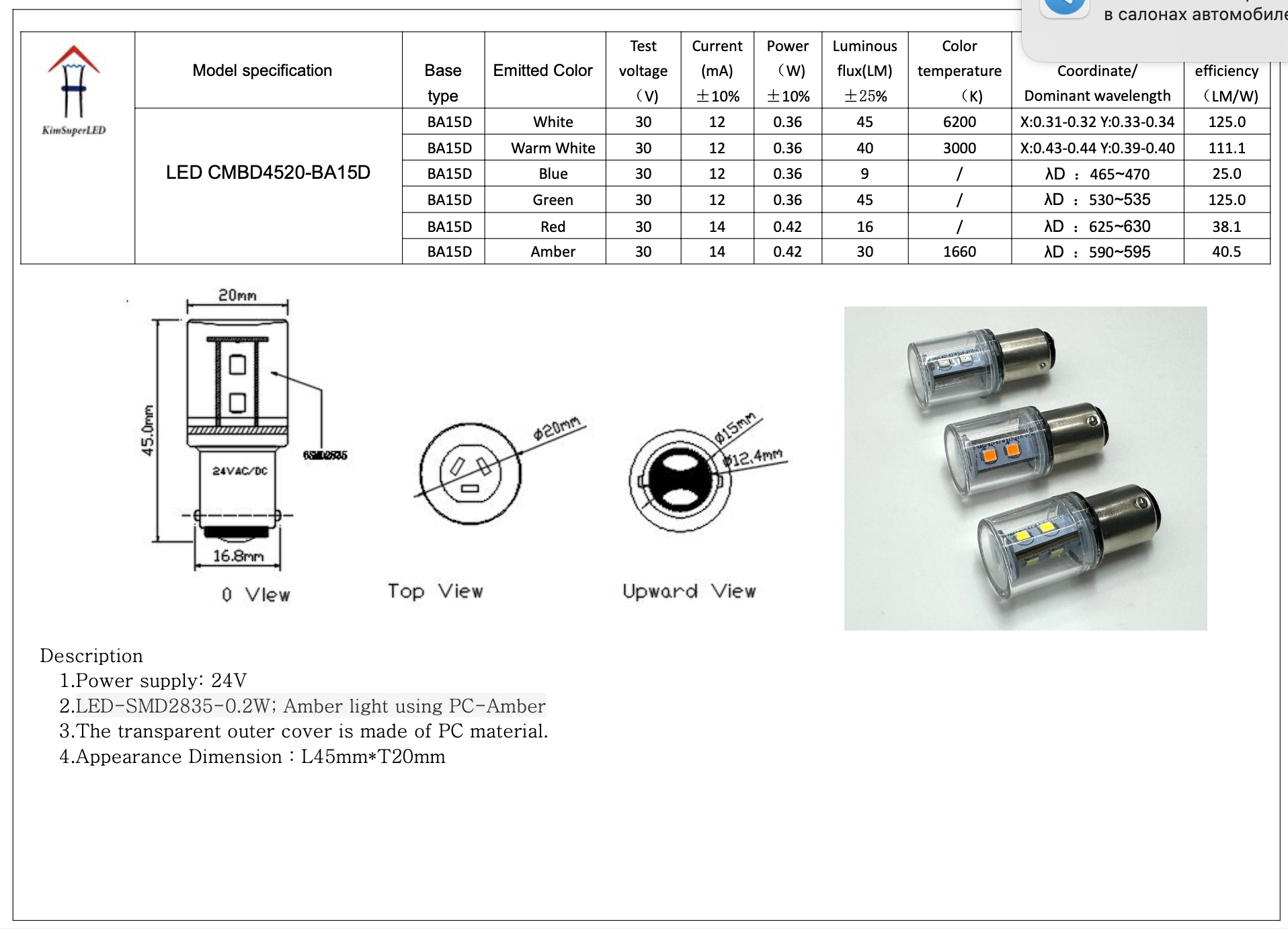

💡 2. LED Configuration & Materials

• LED Type: SMD2835
• Power per LED: 0.2W
• Total Power Consumption: 0.42W
• Luminous Flux: 45LM
• PCB: FR4 Double-Sided Copper Board
  • Excellent heat dissipation
  • Low lumen decay
• Housing Material: Transparent PC (Polycarbonate)
  • Durable & impact-resistant
  • Long-term clarity without yellowing

🚚 3. Wide Application Range

Ideal for a variety of lighting applications:

• Indicator lights
• Turn signal lights
• Brake lights
• Running lights
• Position lights

Applicable vehicles:
👉 Cars • Trucks • Trailers • RVs • Buses • Construction Machinery

Also suitable for:
👉 Industrial indicator systems / control panels

🔋 4. Energy Efficient & Long Lifespan

• Low power consumption: 0.42W
• High efficiency with stable output
• Lifespan: Up to 50,000 hours

👉 Reduced maintenance & replacement cost

🛠 5. Durable & Vibration-Resistant

• Built with high-quality components
• Strong resistance to vibration and shock
• Reliable performance under harsh environments

👉 Designed for 24V truck & industrial conditions

💡 6. 360° Surround Illumination

• Full 360° beam angle
• Uniform light distribution
• No dark spots

👉 Improved visibility and signaling safety

🎨 7. Customizable Options

• Available colors:
  • Amber
  • Red
  • Lemon Yellow
  • White
  • Blue
  • Green
• Custom voltage & specifications available

👉 OEM / ODM Supported

🔌 8. Circuit Design

• Capacitor step-down circuit
• Single voltage design
• Stable current output

👉 Ensures long-term reliability

⚙️ 9. Installation

• Base Type: BA15D (Dual Contact Bayonet)
• Plug & Play installation
• Easy replacement without modification

💼 10. Proven Quality & Market Acceptance

• Mass production for many years
• High cost-performance ratio
• Widely trusted by global customers

👉 Ideal for long-term supply & repeat orders

🚀

Stable Output • AC/DC Universal • Built for Long-Term Orders
