L.E.D. CMB3618-BA15S 67 LED 8

Compact High-Efficiency LED Indicator for Automotive & Industrial Applications

The CMB3618-BA15S 67 LED 8 is a compact, high-performance LED bulb designed for both automotive and industrial applications. Featuring a focused beam design, stable output, and durable construction, this model ensures enhanced visibility, safety, and long-term reliability.

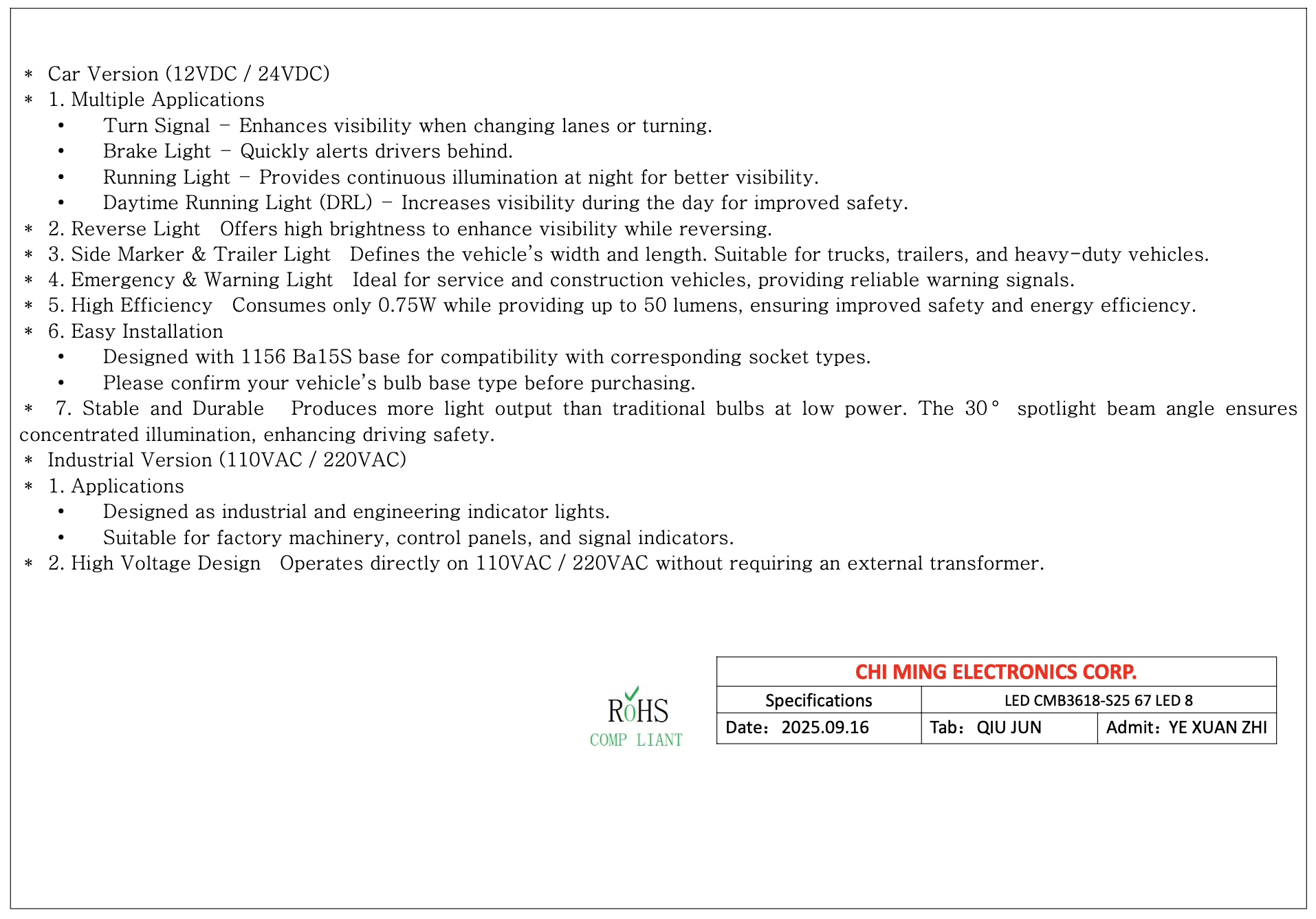

Car Version (12VDC / 24VDC)

1. Multiple Applications

Designed for versatile vehicle lighting applications:

• Turn Signal – Enhances visibility when changing lanes or turning

• Brake Light – Provides fast and clear warning to following vehicles

• Running Light – Ensures stable illumination for night driving

• Daytime Running Light (DRL) – Improves daytime vehicle visibility

2. Reverse Light

Delivers concentrated brightness to improve visibility and safety when reversing.

3. Side Marker & Trailer Light

Clearly defines vehicle width and length, making it ideal for trucks, trailers, and heavy-duty vehicles.

4. Emergency & Warning Light

Suitable for service vehicles and construction equipment, providing reliable and highly visible warning signals.

5. High Efficiency

• Low power consumption: 0.75W

• Light output: Up to 50 lumens
  → Ensures energy-saving performance with enhanced safety visibility

6. Easy Installation

• Standard BA15S base for direct replacement

• Compatible with common automotive sockets

• Simple plug-and-play installation

7. Stable and Durable Design

• Focused beam angle: 35° spotlight effect

• Concentrated light output improves visibility to oncoming traffic

• Enhances driving safety, especially in signaling applications

🔧 Advanced Structural Design (Key Differentiation)

✔ 3mm Thermal Gap Design

The LED is positioned with a 3mm فاص distance from the PCB, allowing:

• Better heat dissipation

• More stable luminous output

• Extended product lifespan

✔ PC Lens Protection Structure

• High-transparency PC plastic lens

• Securely fixes LED components

• Provides excellent anti-vibration performance

• Proven durability in harsh environments

👉 Widely recognized and trusted by customers in commercial vehicle applications

Industrial Version (110VAC / 220VAC)

1. Applications

Designed for industrial and engineering uses:

• Machinery indicator lights

• Control panels

• Signal and status indicators

2. High Voltage Design

• Operates directly on 110VAC / 220VAC

• No external transformer required

3. Long Lifespan

• Up to 50,000 hours

• Reduces maintenance cost and replacement frequency

4. Color Options

Available in:

• Blue

• Green

• White

• Warm White

• Amber

• Red

• Custom colors upon request

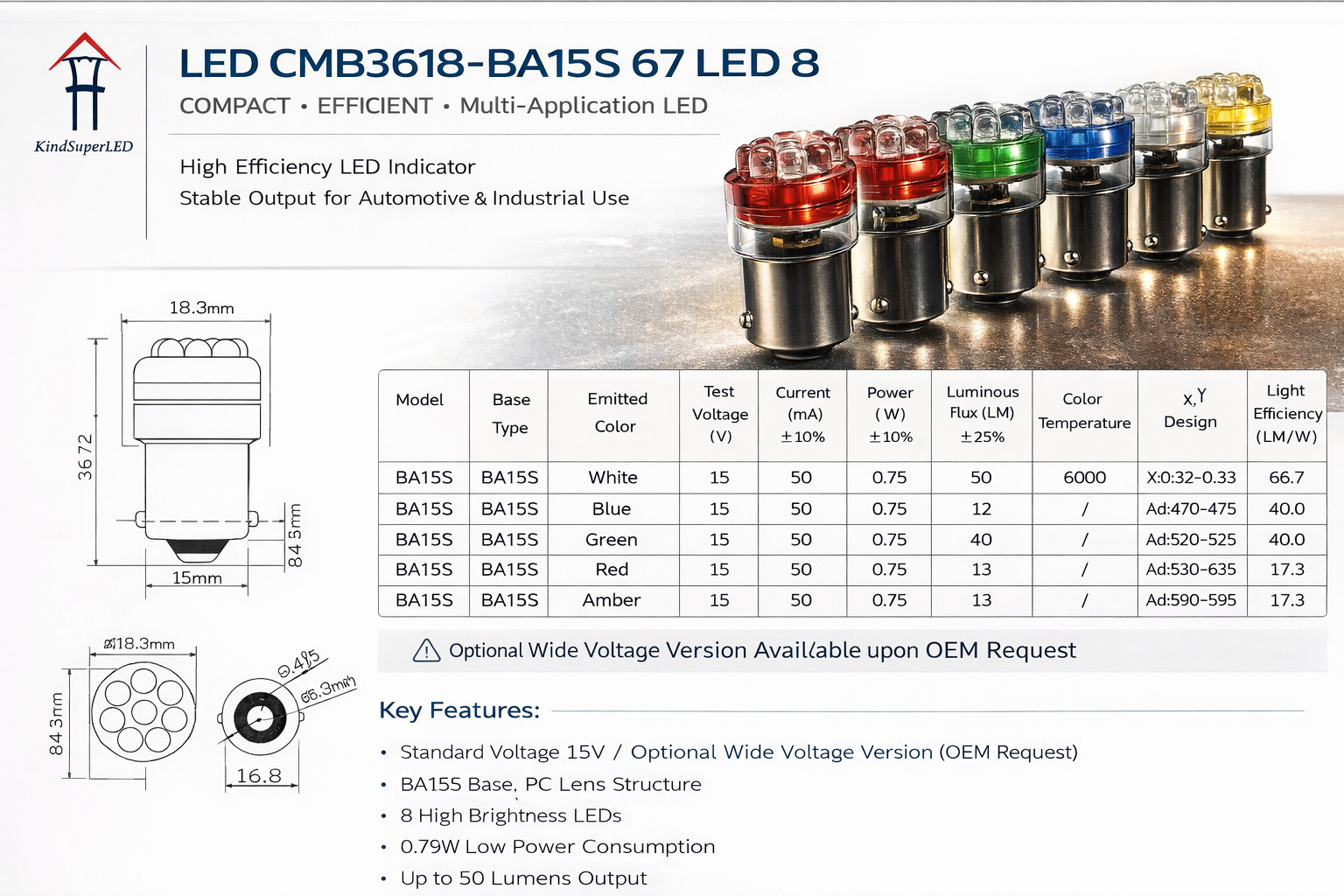

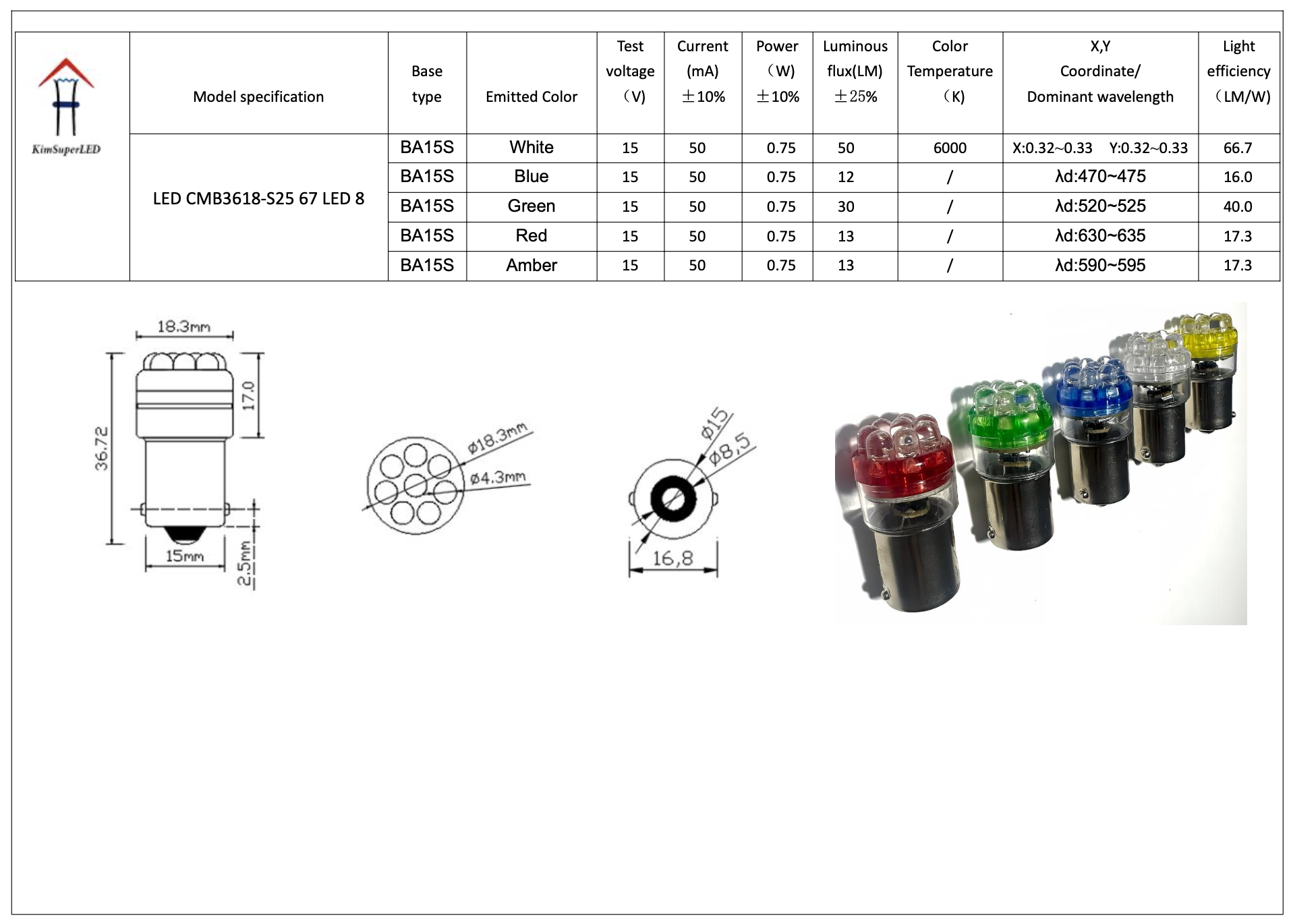

Technical Specifications

• Bulb Size: Ø18 mm × 37 mm

• Power Consumption: 0.75W

• Luminous Output: Up to 50 lm

• Beam Angle: 35° (Focused Spotlight)

• Light Source: High-Brightness LED

• Lifespan: 50,000 hours

⚠ Important Note (Car Version)

When upgrading to high-brightness LED bulbs for turn signal applications, a load resistor or compatible flasher relay may be required to prevent hyper flashing.

⚠ Important Notes Before Purchase

• Please confirm that your vehicle or application requires a BA15S base type before purchasing.

• Ensure the bulb dimensions (Ø18 mm × 37 mm) are compatible with your installation space.

• Always verify the operating voltage before use.

• For high-voltage versions (110VAC / 220VAC), the voltage specification is clearly marked on the bulb base—please check carefully before installation.
