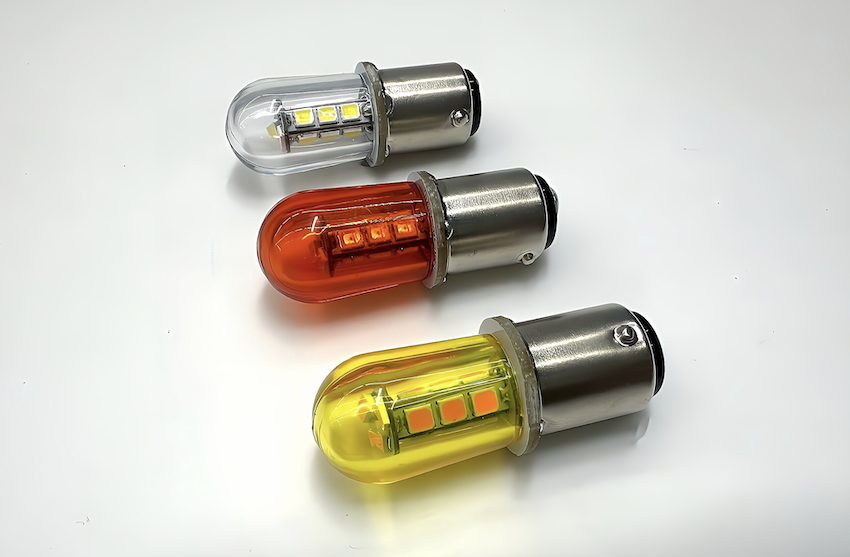

CMBD4617-LED BA15D 1142 SMD 15

LED CMBD4617-LED BA15D 1142 SMD 15

Stable Output • High Efficiency • Wide Voltage Design

The CMBD4617-LED BA15D 1142 SMD 15 is designed with high-efficiency LED chips, delivering up to 130 lumens with enhanced brightness and stable output.

🔧 Key Features

Wide Voltage Design
Supports DC10–30V, ensuring stable operation across various vehicle systems.
AC versions (24VAC / 48VAC / 110VAC / 220VAC) are available for industrial applications.

High Brightness & Efficiency
Utilizes high-efficiency LEDs to achieve superior luminous output with only 2.0W power consumption.

Compact Size & High Performance
Optimized structure design provides higher brightness in a compact form factor.

Durable & Reliable
Engineered for long lifespan with excellent vibration resistance, suitable for demanding environments.

High-Insulation Acrylic Housing
Equipped with high-transparency acrylic (PMMA) housing, offering:

• Excellent light transmittance

• Strong electrical insulation

• Suitable for high-voltage environments

Plug & Play Installation
Standard BA15D (1142) base allows quick and easy replacement.

⚙️ Applications

• Automotive signal / indicator lights

• Industrial machine warning lights

• Automation equipment signal lamps

• Control panel indicators

⚠️ Safety Notice

• Please ensure the correct voltage specification before installation to avoid potential hazards.

• Confirm the bulb base type is BA15D (1142) before purchase and installation.

• Check the bulb dimensions to ensure proper fitment.

• Verify the operating voltage before use—voltage marking is indicated on the bulb base.
