🔷 CMBD4820-LED

1142 T20 BA15D SMD 15

⚙️ Product Overview

High-Performance Multi-Voltage LED Solution for Automotive & Industrial Applications

The CMBD4820-LED 1142 BA15D SMD 15 is engineered for both vehicle lighting and industrial signal tower systems, featuring a robust structure, high insulation safety, and stable luminous output.

🔹 Key Features

🔌 Wide Voltage Compatibility

Supports AC/DC 12–24V (standard)
Custom versions available for:
👉 24VAC / 48VAC / 110VAC / 220VAC
Ideal for both automotive and industrial automation systems

💡 Advanced LED Structure

• 15 × SMD2835 LEDs (0.2W each)

• Five-side emission design (5-sided illumination)

• True 360° surround lighting
  👉 No dark spots, enhanced visibility

🛡 Durable PC Housing & Safety Design

• High-strength transparent PC lens

• High-insulation structure for high-voltage environments

• Prevents electrical leakage & accidental contact
  👉 Suitable for industrial machinery use

⚙️ Rugged & Reliable Performance

• Excellent vibration resistance

• Stable output under harsh conditions

• Long operational lifespan
  👉 Proven reliability in field applications

🌟 Energy Efficient

• Power consumption: 2.0W

• High brightness with low heat generation
  👉 Energy-saving & long-lasting

🔧 Easy Installation

• Standard BA15D dual-contact base

• Plug & Play – no modification required

🔹 Applications

🚛 Automotive Lighting

• Indicator lights

• Turn signals

• Brake lights

• Position lights

• Running lights

Applicable for:
👉 Cars / Trucks / Trailers / RV / Bus / Construction vehicles

🏭 Industrial Applications

• Installed inside Signal Tower Lights

• Automation machinery indicators

• CNC / factory equipment status lights

👉 Widely used in automated production lines

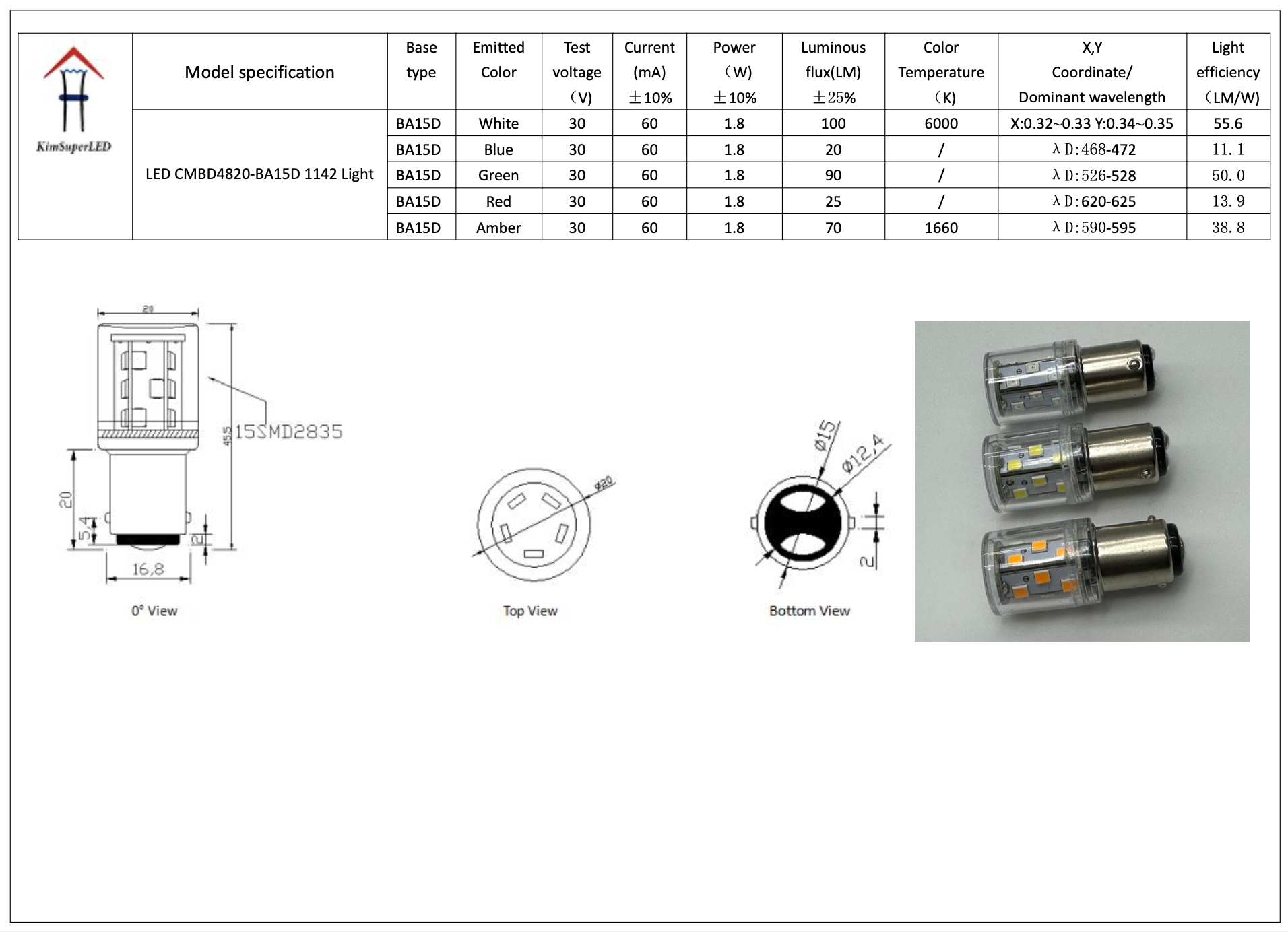

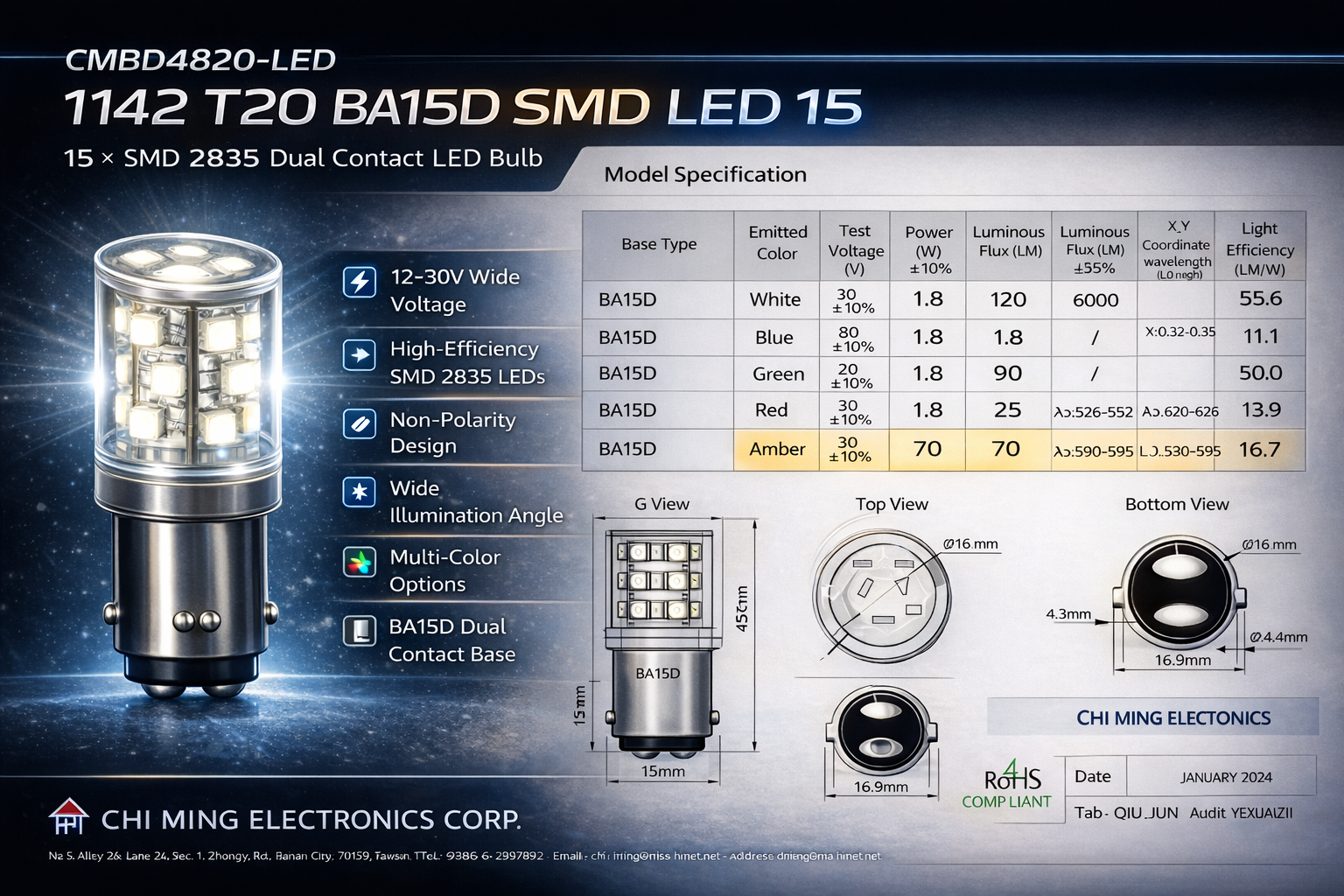

🔹 Dimensions

• Length: 45 mm

• Diameter: T20 (20 mm)

🔹 Optical Specification

• Color: Amber

• Lens: PC Amber Cover

• Light Distribution: 360° Uniform Output

⚠️ Important Notice

🔔 Please confirm voltage rating marked on the bulb base before use
👉 Incorrect voltage application may cause damage or safety risk
