CMW2110-LED T10 Wedge SMD 4

1. High Brightness & Reliable Performance

The CMW2110-LED T10 Wedge SMD 4 is equipped with four high-efficiency 3020 SMD LEDs, delivering up to 29 lumens of bright and stable illumination.

Designed for long-term durability, the LED provides a rated lifespan of up to 50,000 hours, ensuring reliable operation in various vehicle environments.

2. Wide Beam Angle Illumination

The lamp features a 120° wide beam angle, producing a soft and evenly distributed light output.

This wide-angle design improves visibility and ensures smooth illumination for interior and indicator applications.

3. Energy-Efficient Operation

With an ultra-low power consumption of only 0.45W, the CMW2110-LED T10 Wedge SMD 4 delivers excellent energy efficiency while maintaining stable and consistent brightness.

4. Voltage Compatibility

Available for both 12V DC and 24V DC vehicle electrical systems, making it suitable for a wide range of applications including:

• Passenger cars

• Trucks

• Buses

• RVs

• Agricultural vehicles

• Industrial and utility vehicles

5. LED Configuration

The lamp is built with four 2835 SMD LEDs, offering:

• High luminous efficiency

• Stable brightness output

• Excellent cost-performance ratio

6. High Transparency PC Housing

The LED lamp housing is made from high-quality PC (Polycarbonate) material, providing:

• High light transmittance

• Good impact resistance

• Long-term optical clarity

7. Advanced Heat Dissipation Structure

The internal circuit design uses a double-sided FR4 copper PCB, which improves heat dissipation and ensures:

• Stable luminous output

• Improved LED lifespan

• Reliable long-term operation

8. Applications

The CMW2110-LED T10 Wedge SMD 4 is widely used in:

• Interior lighting

• Reading lights

• Instrument panel illumination

• Dashboard indicators

• Side marker lights

• Turn signal indicators

• Trunk and cargo lighting

9. Color Options

Standard color temperature:

Cool White – 6000K

Other available colors:

• Warm White

• Red

• Green

• Amber

• Blue

Custom colors are available upon request.

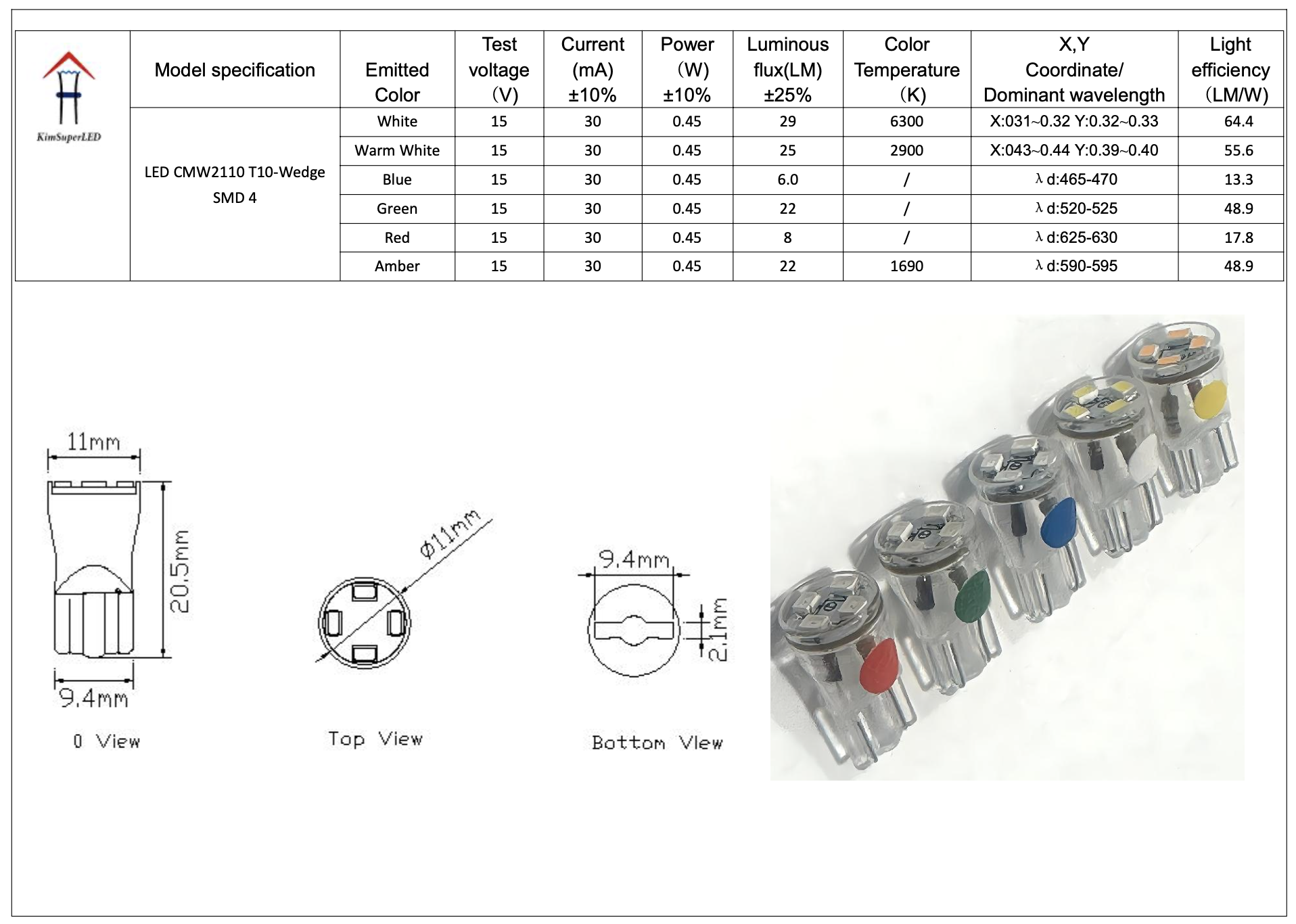

10. Dimensions

Width: 11 mm
Length: 21 mm

11. Note

Please confirm the correct model and dimensions before installation.
For compatibility information, please contact Chi Ming Electronics Corp.
