CMB3511-LED BA9S T10 LED 9

1️⃣ LED Miniature Indicator Lamp

The CMB3511-LED BA9S T10 LED 9 is designed for automotive and commercial vehicle lighting applications.

This compact BA9S miniature LED lamp is widely used for:

• Dashboard indicator lights
• Instrument cluster lighting
• Position lights
• Signal lights
• License plate lights
• Interior auxiliary lighting

The BA9S base ensures wide compatibility with passenger cars, trucks, buses, and industrial vehicles.

2️⃣ Wide Voltage Design (10–30VDC)

The CMB3511-LED BA9S T10 LED 9 features a true wide voltage input design of 10–30VDC.

This allows the lamp to operate stably even under voltage fluctuation conditions.

Compatible with both:

• 12V vehicle systems
• 24V commercial vehicle systems

Ideal for trucks, buses, fleet vehicles, and mixed-voltage platforms.

3️⃣ High Brightness & Stable Output

Equipped with 9 high-efficiency SMD LEDs, the lamp provides strong and consistent illumination.

Key advantages:

• Brightness up to 156 lumens
• Stable luminous output
• Low power consumption
• Excellent energy efficiency

The optimized LED arrangement ensures uniform light distribution and reliable performance.

4️⃣ Durable Structure & Vibration Resistance

The lamp is manufactured using environmentally friendly high-temperature solder paste and professional reflow soldering technology.

This ensures:

• Strong anti-vibration performance
• High reliability in vehicle environments
• Long service life

Designed to withstand harsh automotive operating conditions.

5️⃣ Proven Product Reliability

The CMB3511-LED BA9S T10 LED 9 has been in continuous production for many years.

It remains one of our factory’s best-selling products, widely recognized by customers for:

• Stable performance
• Consistent quality
• Excellent cost-performance ratio

This product has earned long-term trust and positive feedback from global customers.

6️⃣ Application Scope

Suitable for a wide range of vehicle lighting applications:

• Vehicle dashboard lights
• Instrument cluster indicators
• Signal / warning lights
• Position / parking lights
• Interior auxiliary lighting

Widely used in:

• Passenger vehicles
• Trucks
• Buses
• Commercial fleets
• Industrial vehicles

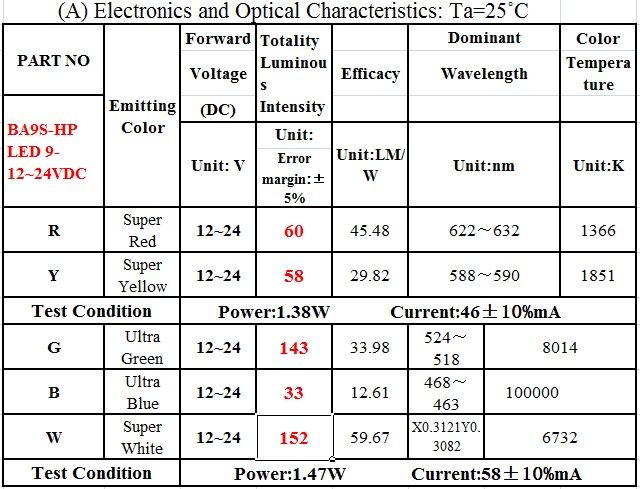

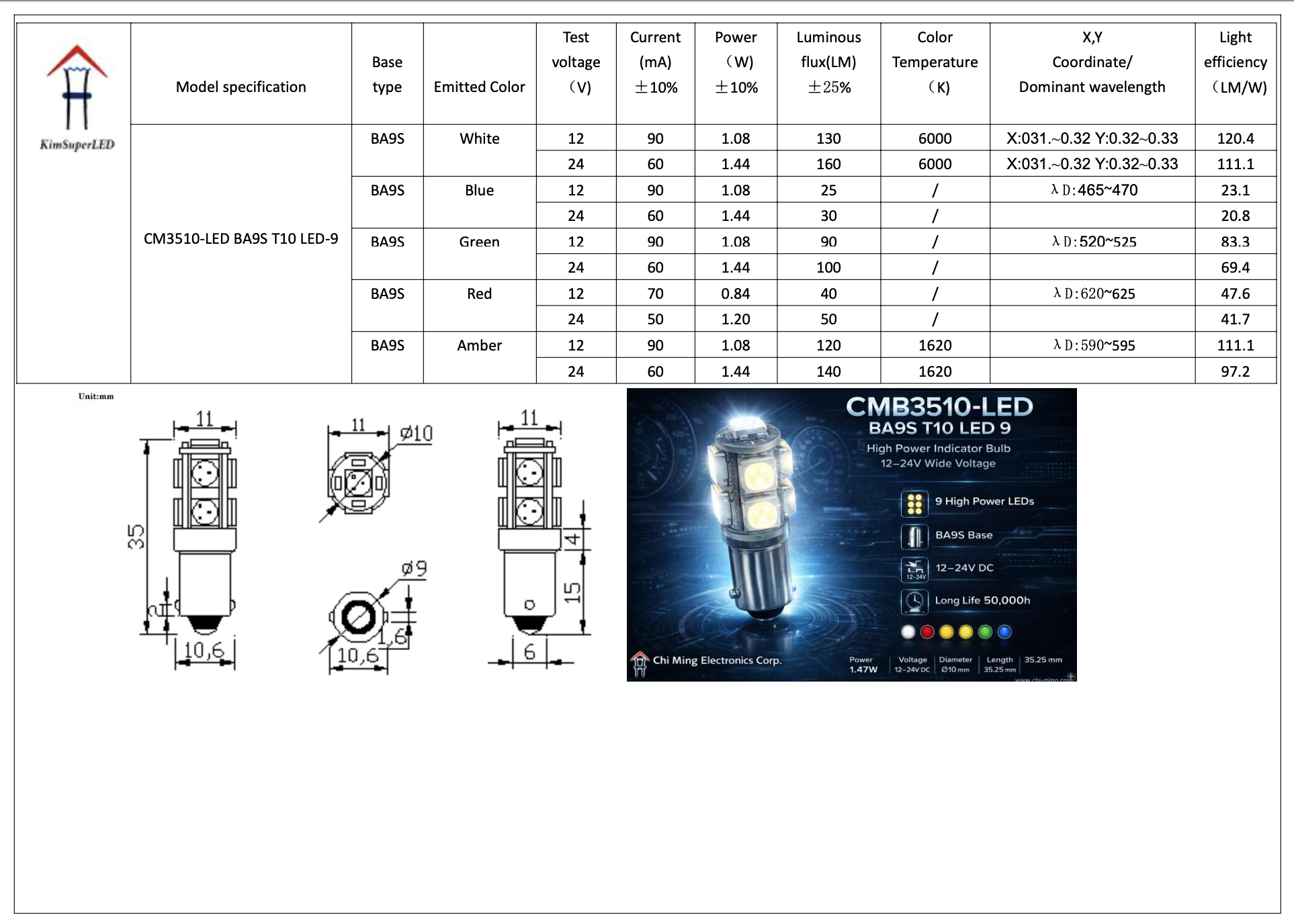

Technical Specifications

Base Type
BA9S

LED Type
SMD LED × 9

Input Voltage
10–30VDC

Vehicle System Compatibility
12V / 24V

Luminous Flux
Up to 156 lumens

Lamp Size
Approx. L34–35 mm × Ø11 mm
