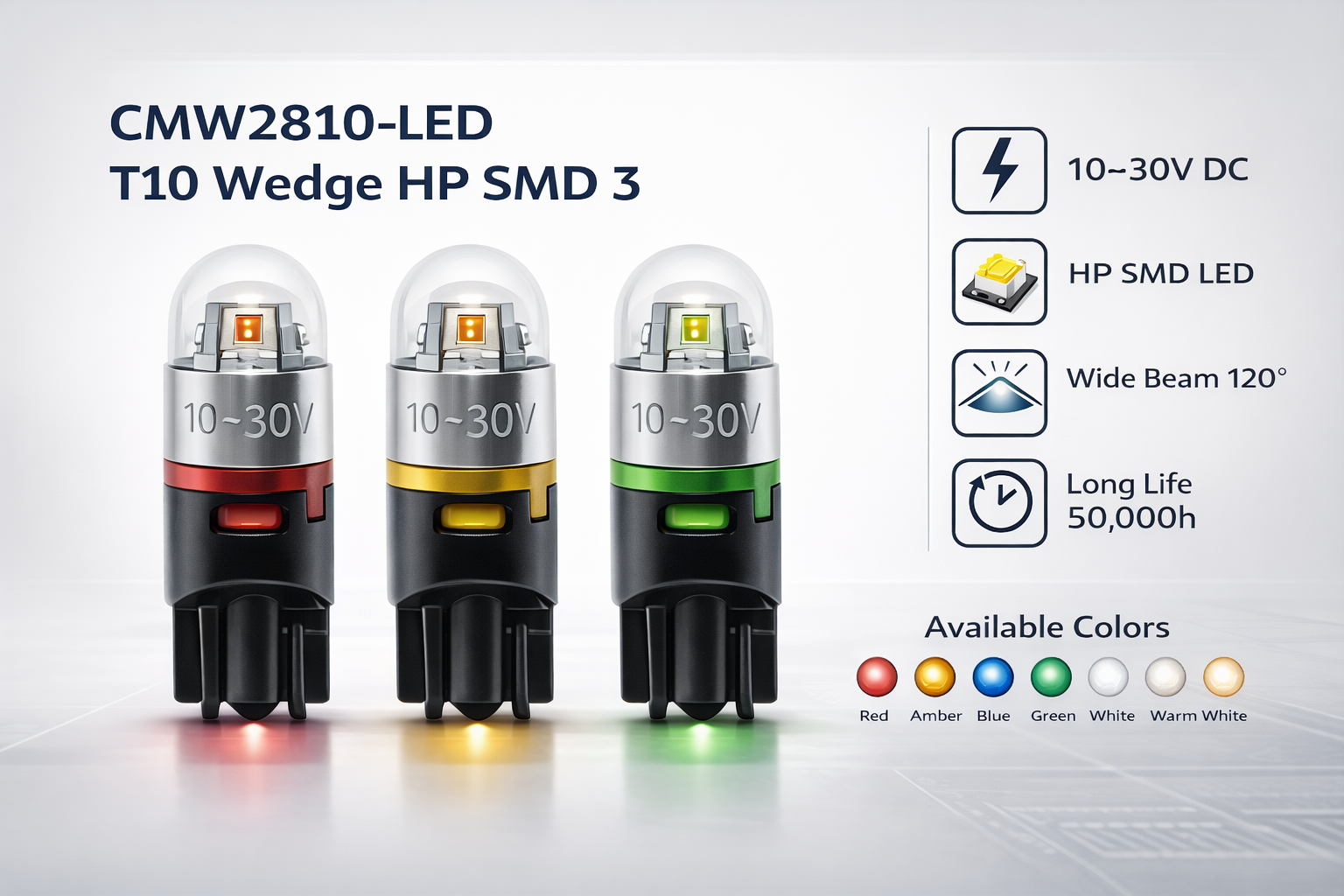

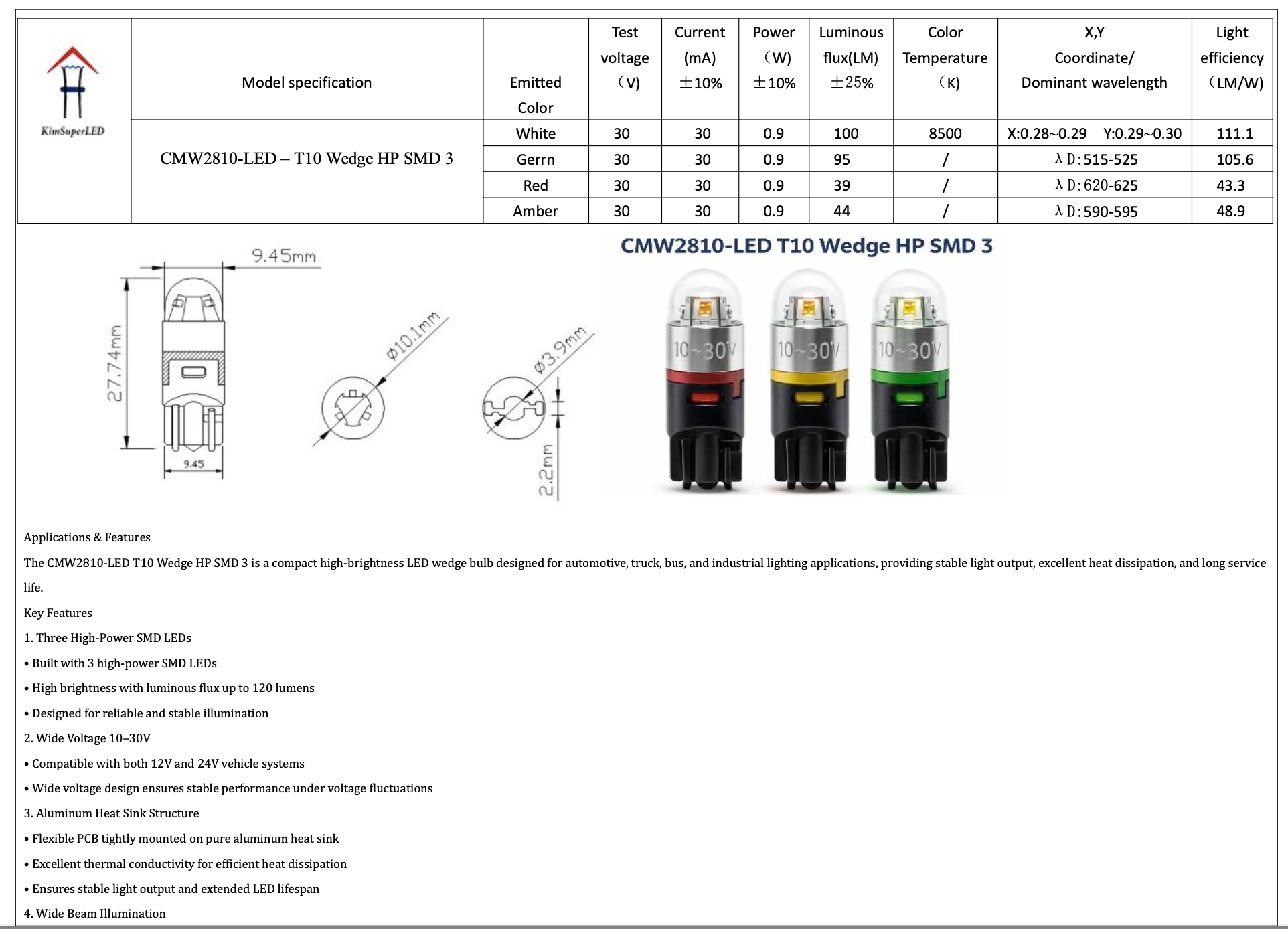

CMW2810-LED T10 Wedge HP SMD 3

CMW2810-LED – T10 Wedge HP SMD 3

Applications & Features

The CMW2810-LED T10 Wedge HP SMD 3 is a compact high-brightness LED wedge bulb designed for automotive, truck, bus, and industrial lighting applications, providing stable light output, excellent heat dissipation, and long service life.

Key Features

1. Three High-Power SMD LEDs

• Built with 3 high-power SMD LEDs
• High brightness with luminous flux up to 120 lumens
• Designed for reliable and stable illumination

2. Wide Voltage 10–30V

• Compatible with both 12V and 24V vehicle systems
• Wide voltage design ensures stable performance under voltage fluctuations

3. Aluminum Heat Sink Structure

• Flexible PCB tightly mounted on pure aluminum heat sink
• Excellent thermal conductivity for efficient heat dissipation
• Ensures stable light output and extended LED lifespan

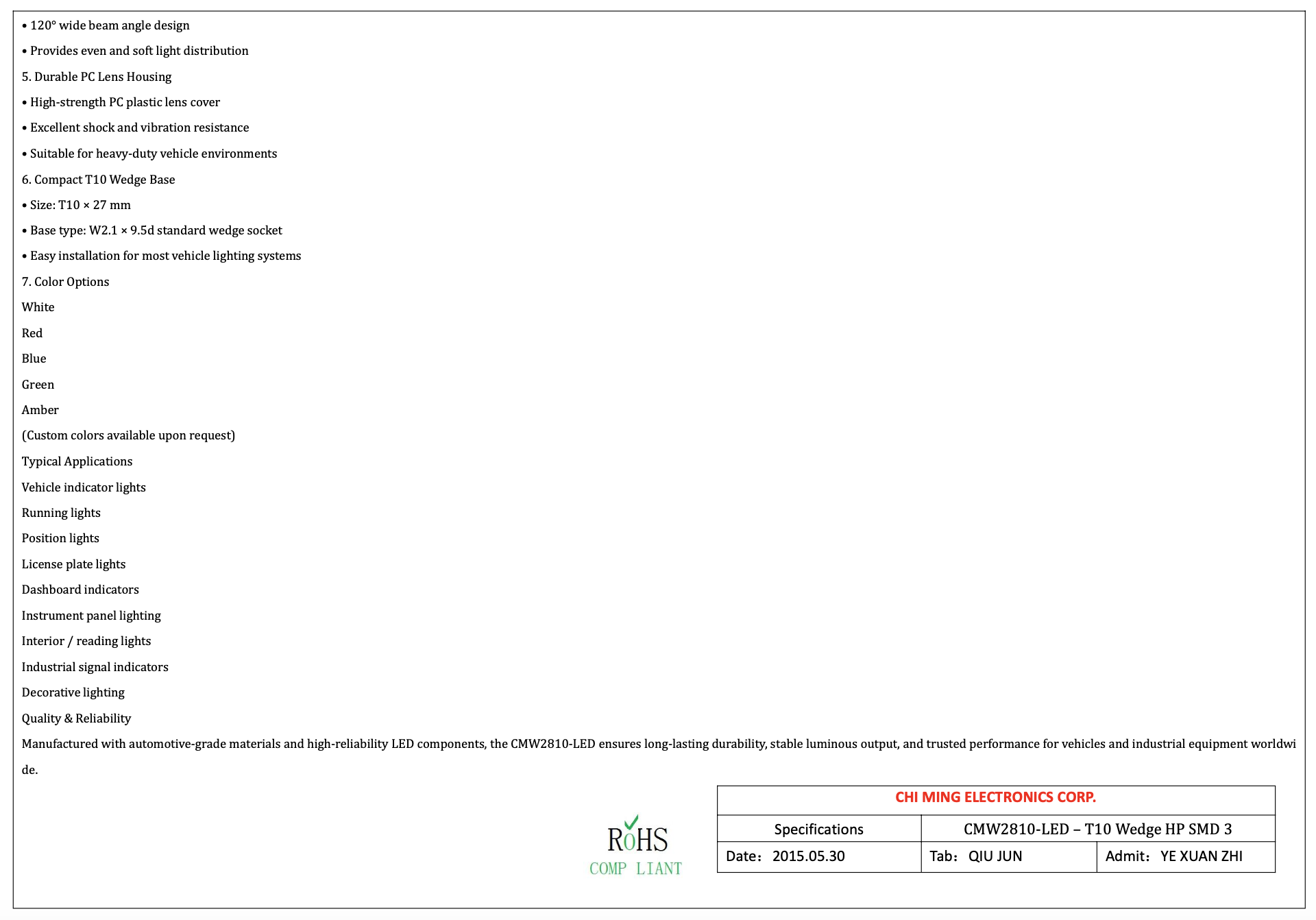

4. Wide Beam Illumination

• 120° wide beam angle design
• Provides even and soft light distribution

5. Durable PC Lens Housing

• High-strength PC plastic lens cover
• Excellent shock and vibration resistance
• Suitable for heavy-duty vehicle environments

6. Compact T10 Wedge Base

• Size: T10 × 27 mm
• Base type: W2.1 × 9.5d standard wedge socket
• Easy installation for most vehicle lighting systems

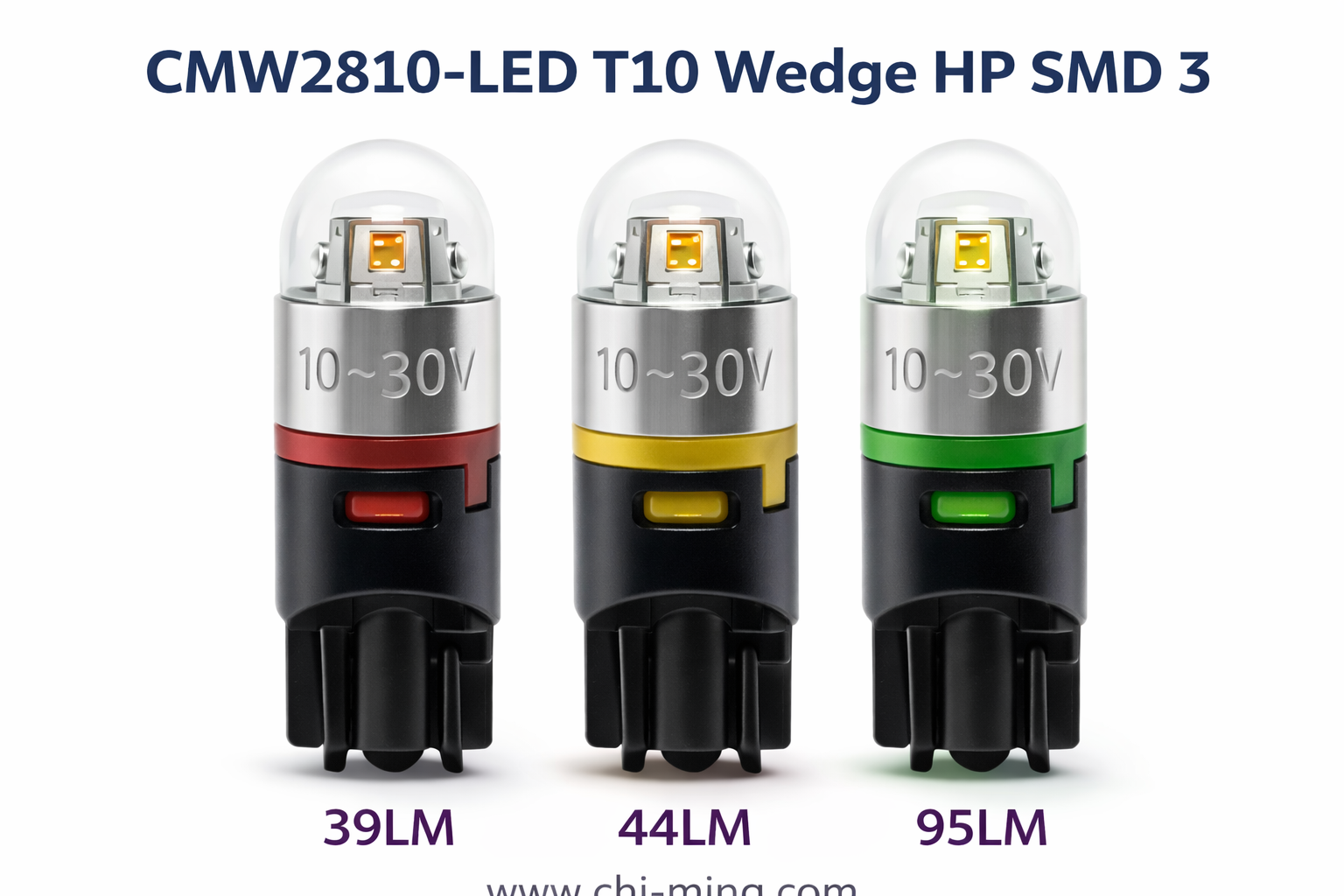

7. Color Options

White
Red
Blue
Green
Amber

(Custom colors available upon request)

Typical Applications

Vehicle indicator lights
Running lights
Position lights
License plate lights
Dashboard indicators
Instrument panel lighting
Interior / reading lights
Industrial signal indicators
Decorative lighting

Quality & Reliability

Manufactured with automotive-grade materials and high-reliability LED components, the CMW2810-LED ensures long-lasting durability, stable luminous output, and trusted performance for vehicles and industrial equipment worldwide.
