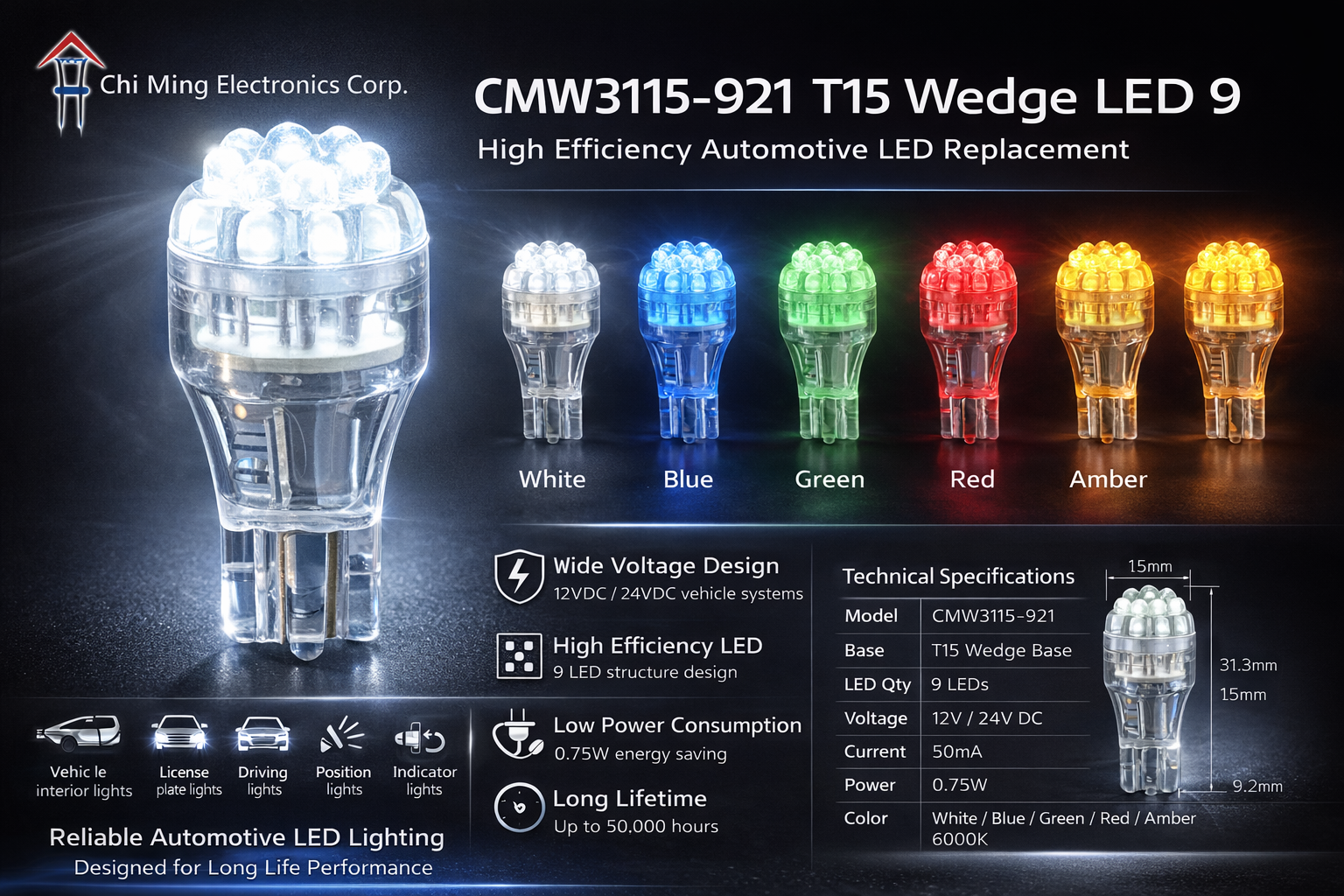

CMW3115-921 T15 Wedge LED 9

CMW3115-921 – T15 Wedge LED 9

1. High Brightness & Proven Reliability

Equipped with high-efficiency LEDs delivering up to 60 lumens.

The CMW3115-921 T15 LED 9 is one of our reliable LED miniature lamps, engineered for stable performance and long-term durability in automotive lighting applications.

Its optimized LED structure ensures consistent luminous output and dependable operation, making it suitable for both passenger and commercial vehicle lighting systems.

2. Focused LED Optical Design

• Small-angle LED emission design
• Concentrated beam effect for focused illumination
• Optimized LED arrangement for controlled light distribution

Unlike wide-beam LEDs, the small-angle LED structure creates a more focused beam, producing a mild spotlight effect.

This optical design is especially suitable for applications that require localized illumination, such as reading lights or interior lighting.

3. Improved Thermal Management Structure

The LED and PCB are designed with an approximately 3 mm spacing gap, which improves airflow and heat dissipation.

Benefits of this structure include:

• Enhanced thermal dissipation
• Stable luminous output
• Reduced lumen degradation during long-term operation

This design ensures the LED maintains consistent brightness even during extended continuous use.

4. Energy Efficiency & Long Lifespan

Low power consumption: approx. 0.75W – 0.9W

Service life: Up to 50,000 hours

Efficient heat management combined with stable current characteristics ensures long operational life and reliable performance.

5. Voltage Range

Available in:

12V DC
24V DC

Suitable for:

• Passenger vehicles
• Trucks
• Motorcycles
• Commercial fleet vehicles

6. Applications

Ideal for automotive lighting applications such as:

• Interior lighting
• Reading lights
• License plate lights
• Side marker lights
• Dashboard indicator lights
• Trunk lighting

The focused beam design makes it particularly suitable for reading lamps and interior illumination.

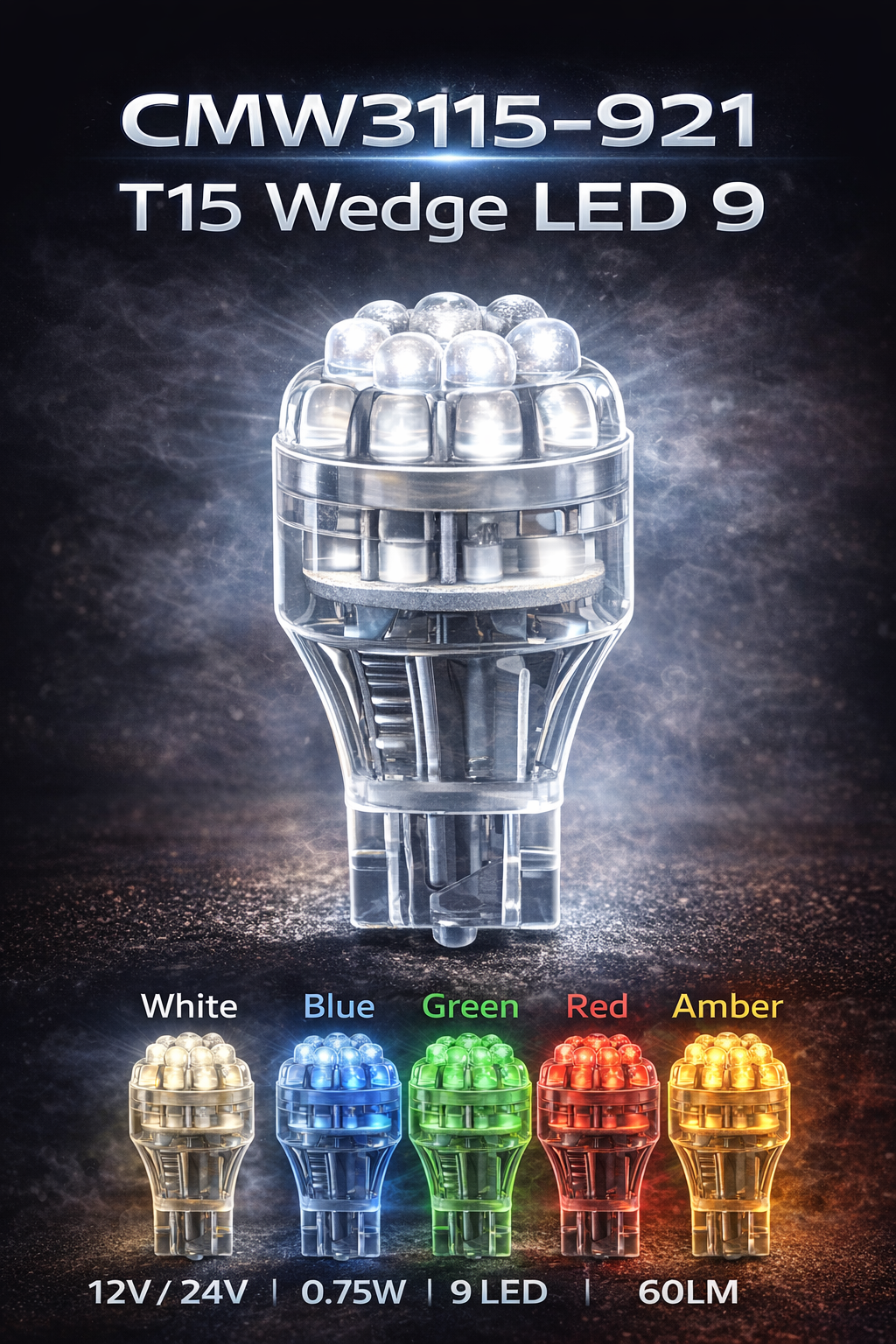

7. Color Options

Standard color:

6000K Cool White

Optional colors:

• Red
• Yellow (Amber)
• Blue
• Green

(Custom colors available upon request)

8. Compact & Durable Design

Compact T15 Wedge Base design ensures high compatibility with standard automotive sockets.

Features:

• Vibration-resistant structure
• Stable operation under varying temperature conditions
• Suitable for automotive environments

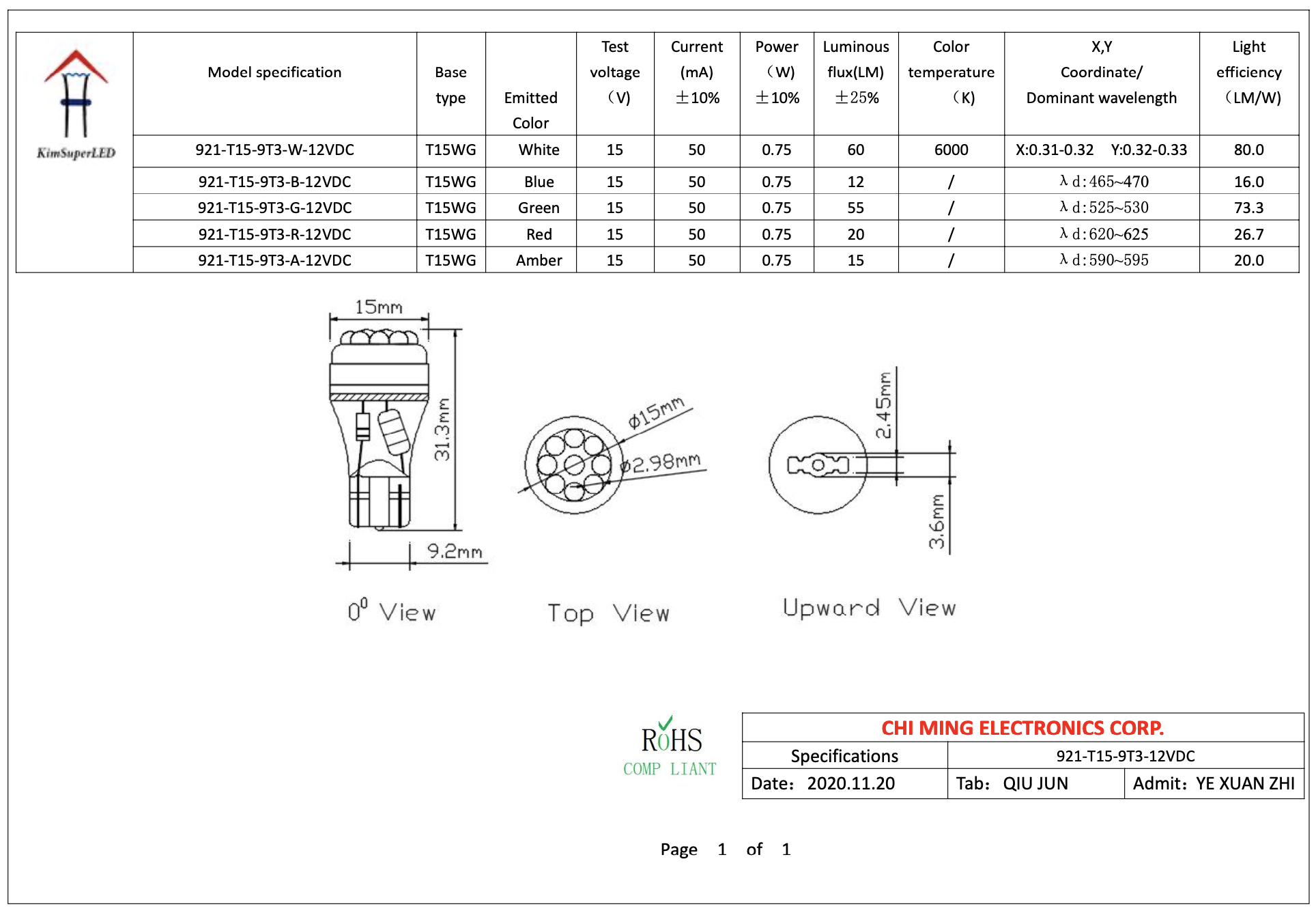

9. Material Specifications

Lamp housing material: Polycarbonate (PC)

Advantages:

• Excellent light transmission
• Strong structural stability
• High vibration resistance
• Heat resistance ≥ 80 °C

The PC plastic housing securely fixes the LED structure, providing durability and improved optical clarity.

Note

Base Type: WEDGE BASE T15

Please confirm base specifications and installation dimensions before purchasing.
