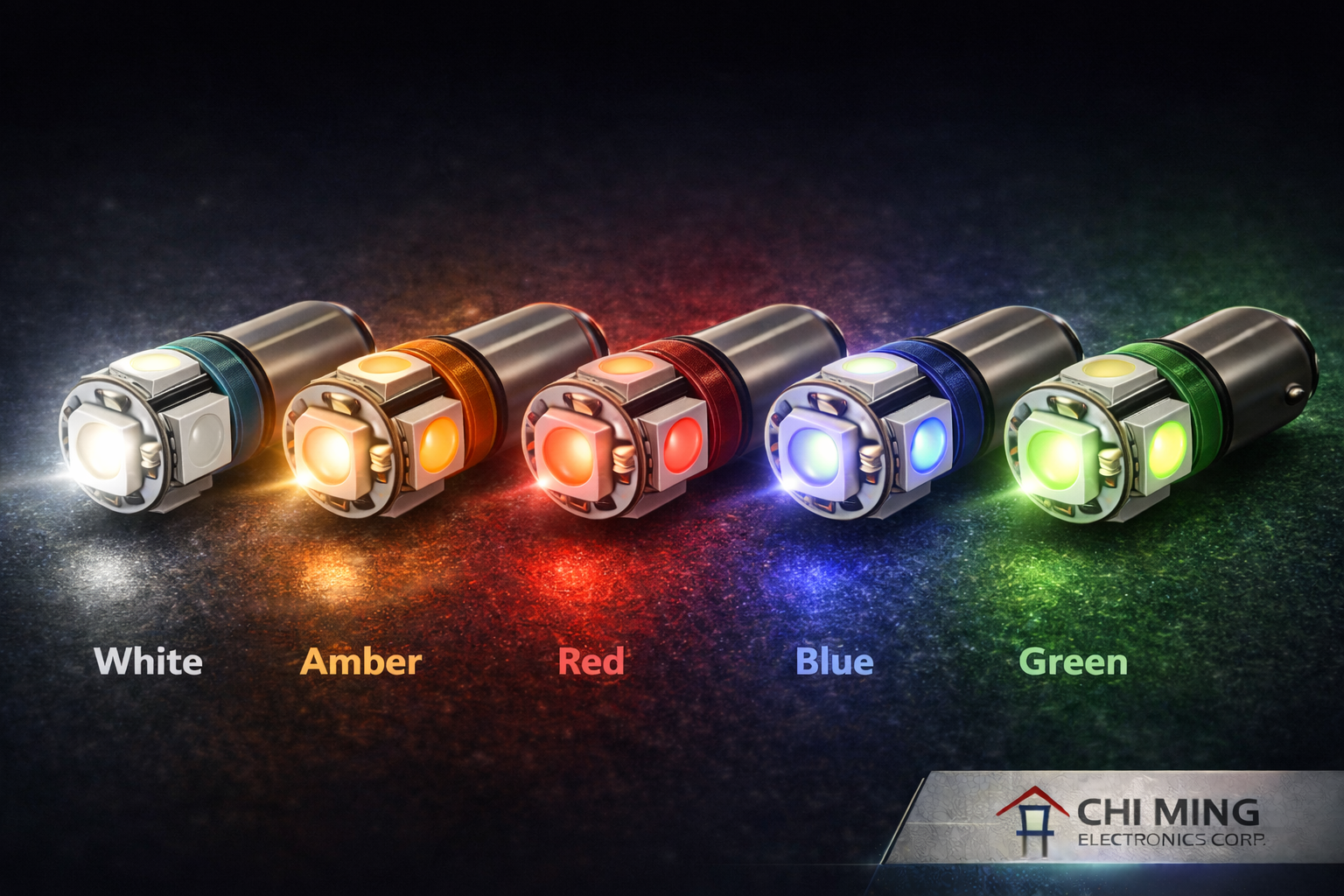

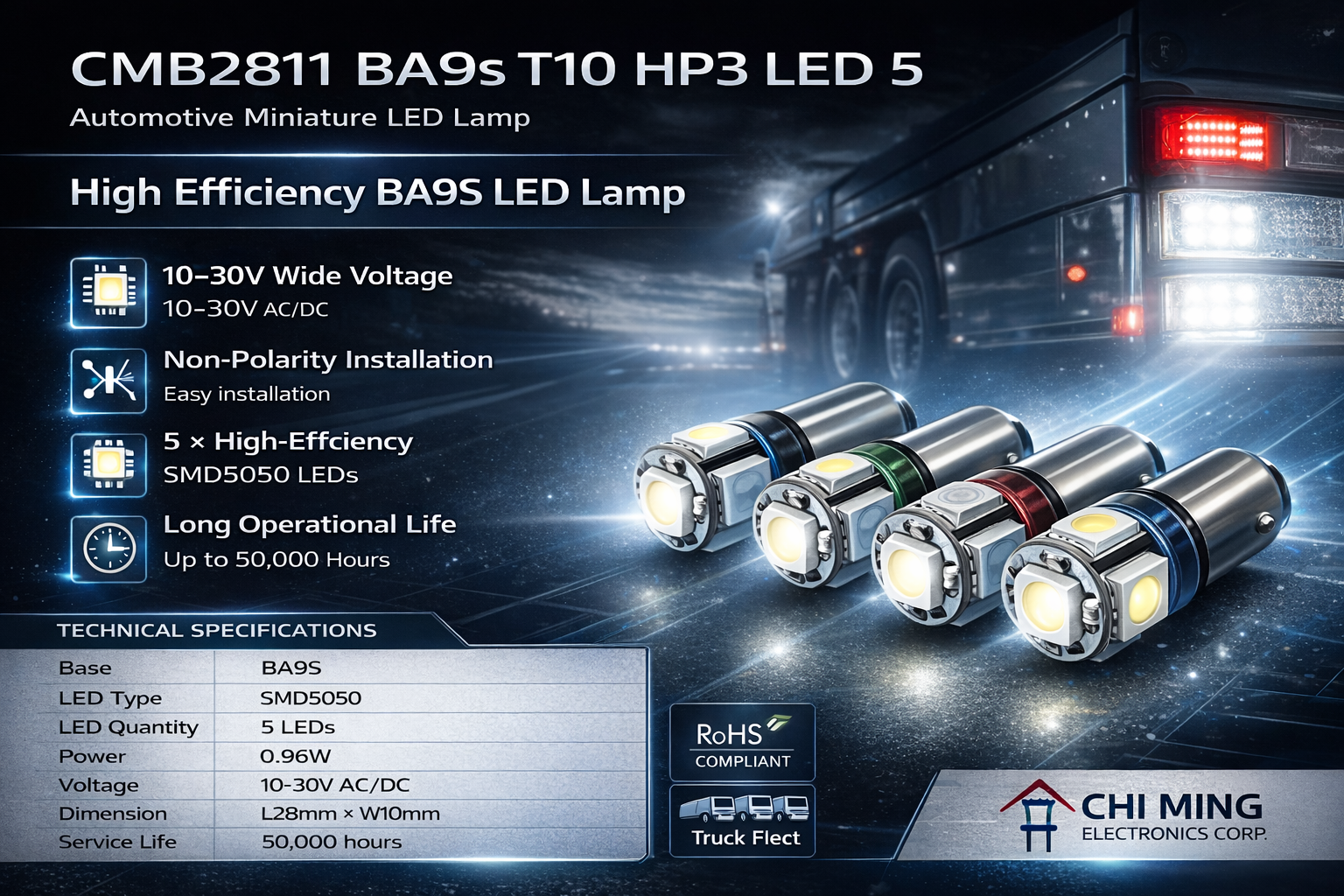

CMB2811-BA9s T10 HP3 LED 5

1. LED Miniature Lamp

The CMB2811-BA9s T10 HP3 LED 5 is a high-efficiency miniature LED lamp designed for automotive and industrial lighting applications.

It is suitable for:

• Vehicle rear lights

• Position lights

• Reading lights

• Side marker lights

• Interior lighting

Designed with a BA9S base and T10-LED 5 structure, the lamp ensures excellent compatibility with various vehicle, transportation, and industrial lighting systems.

2. 300° Wide Beam Angle

The LED chips are arranged in a multi-directional configuration, providing a wide 300° illumination angle.

This design allows the lamp to deliver:

• Soft and uniform lighting

• Reduced glare

• Comfortable illumination for interior environments

It is especially suitable for vehicle interior lighting, reading lamps, and instrument illumination.

3. High Compatibility & Non-Polarity Design

The BA9S single-contact base features a non-polarity electrical design, allowing installation without distinguishing positive or negative polarity.

Compatible with:

• 12V systems

• 24V systems

• AC/DC power supply

This ensures easy installation and high compatibility across different vehicles and equipment.

4. High Efficiency & Brightness

The lamp is equipped with 5 high-quality SMD5050 LEDs.

Key performance features:

• Brightness: up to 100 lumens

• Power consumption: only 0.96W

• Stable and efficient light output

This design ensures high brightness with low energy consumption.

5. Superior Heat Dissipation

The LED module uses a FR4 double-sided copper PCB design, which significantly improves thermal conductivity.

Benefits include:

• Better heat dissipation

• More stable LED operation

• Longer service life

6. Long Service Life & High Reliability

Manufactured using environmentally friendly high-temperature solder paste and reflow soldering technology.

Advantages:

• High vibration resistance

• Stable electrical connection

• Consistent performance

The LED lamp provides a long service life of up to 50,000 hours, reducing maintenance and replacement costs.

7. Wide Voltage Design

The product supports a wide voltage input of 10–30V DC, allowing stable operation across various vehicle electrical systems.

This makes it suitable for:

• Passenger cars

• Trucks

• Buses

• Industrial equipment

• Marine and specialty vehicles

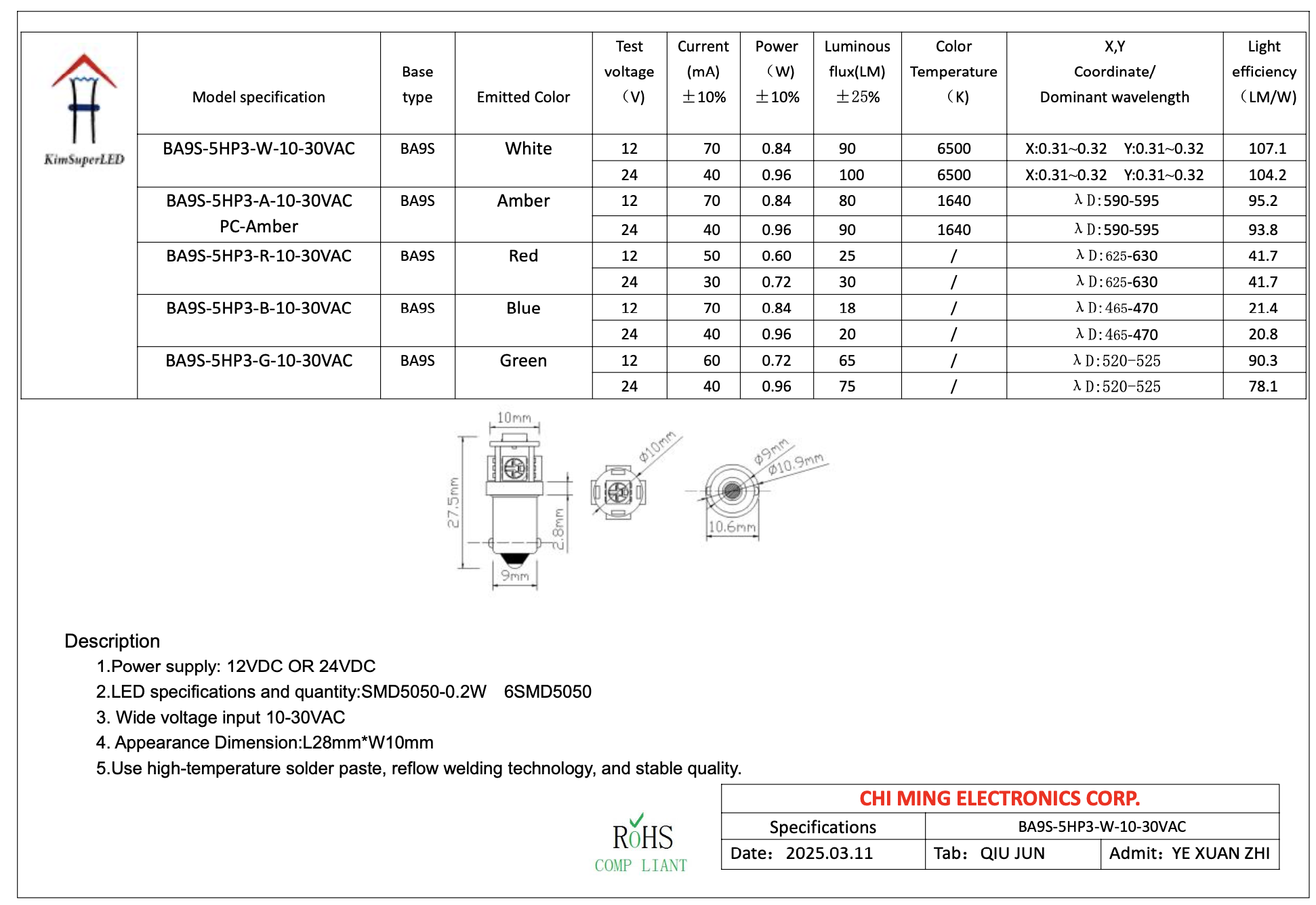

Technical Specifications
