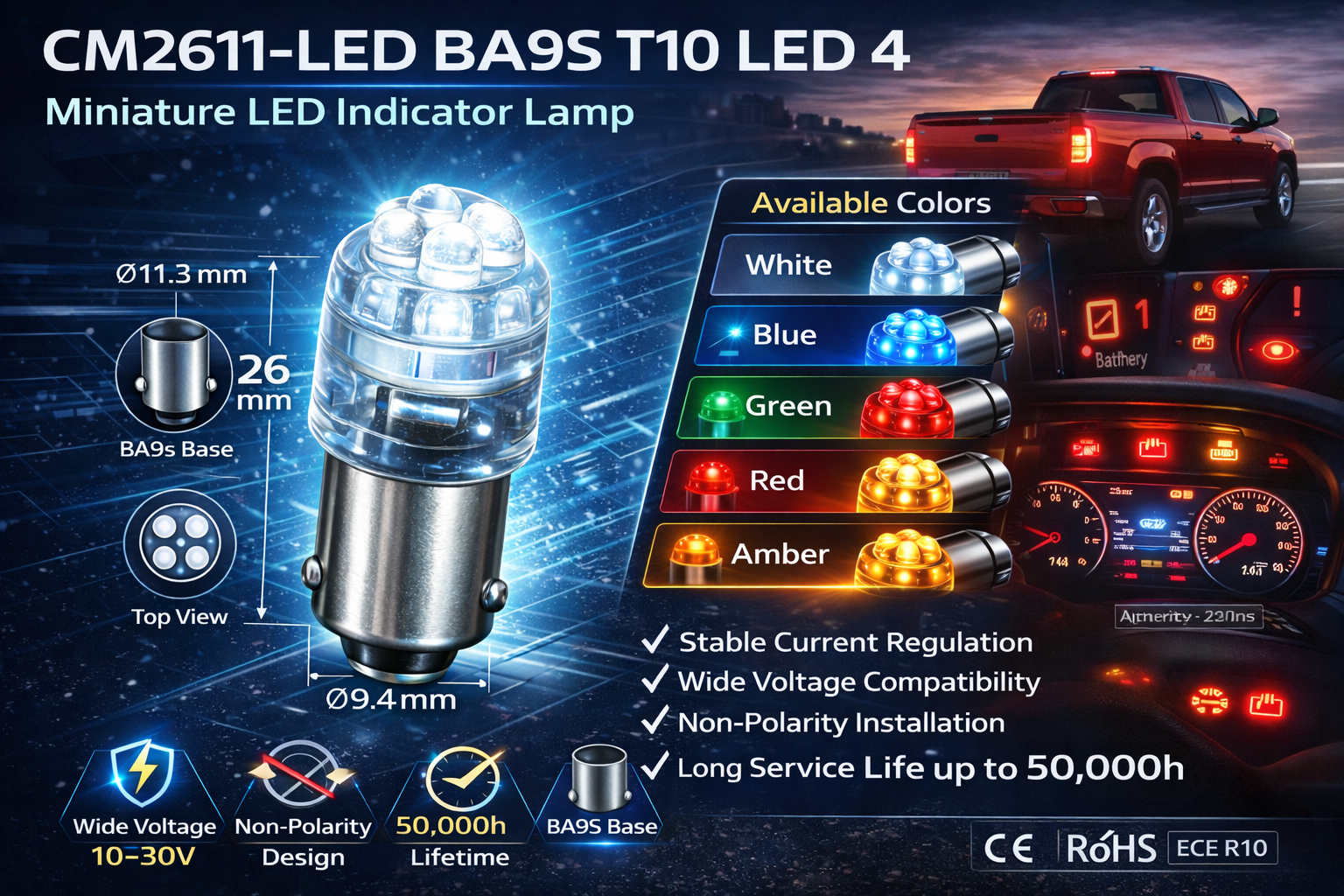

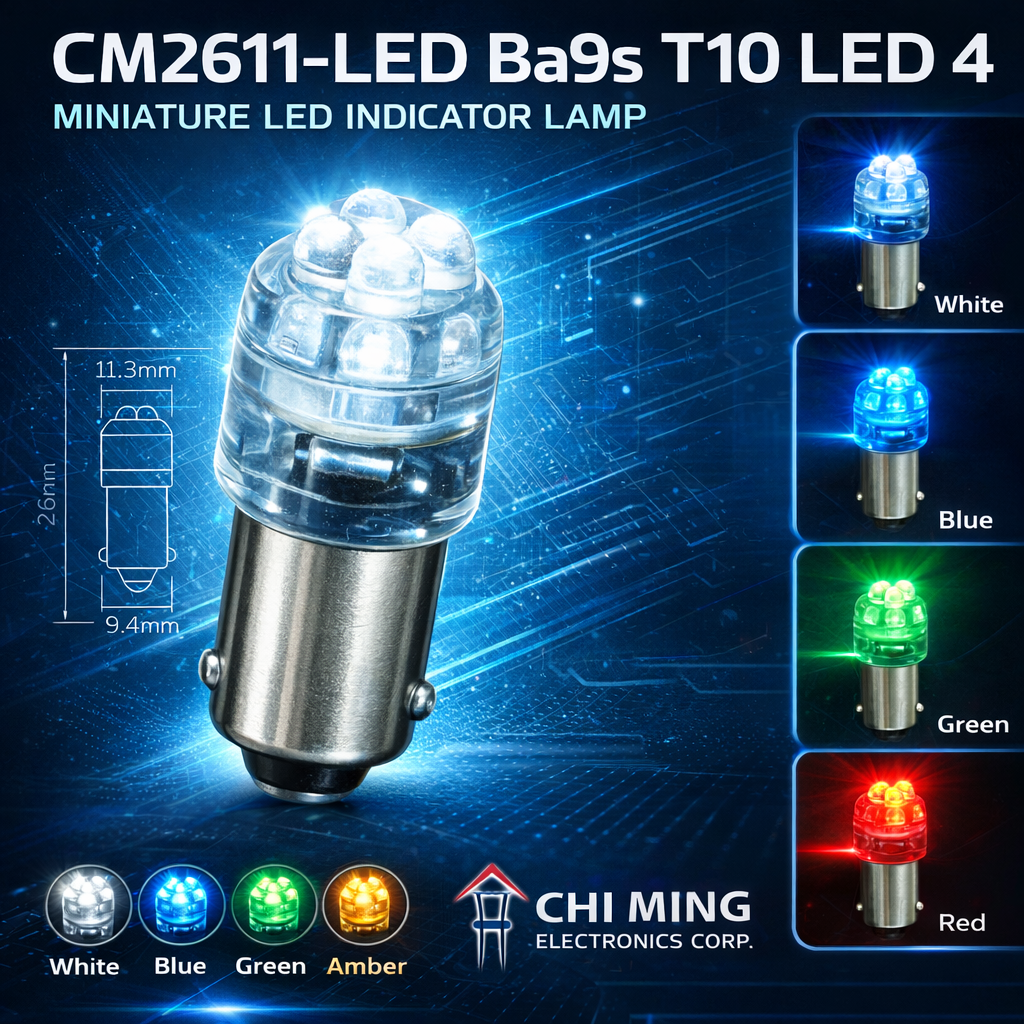

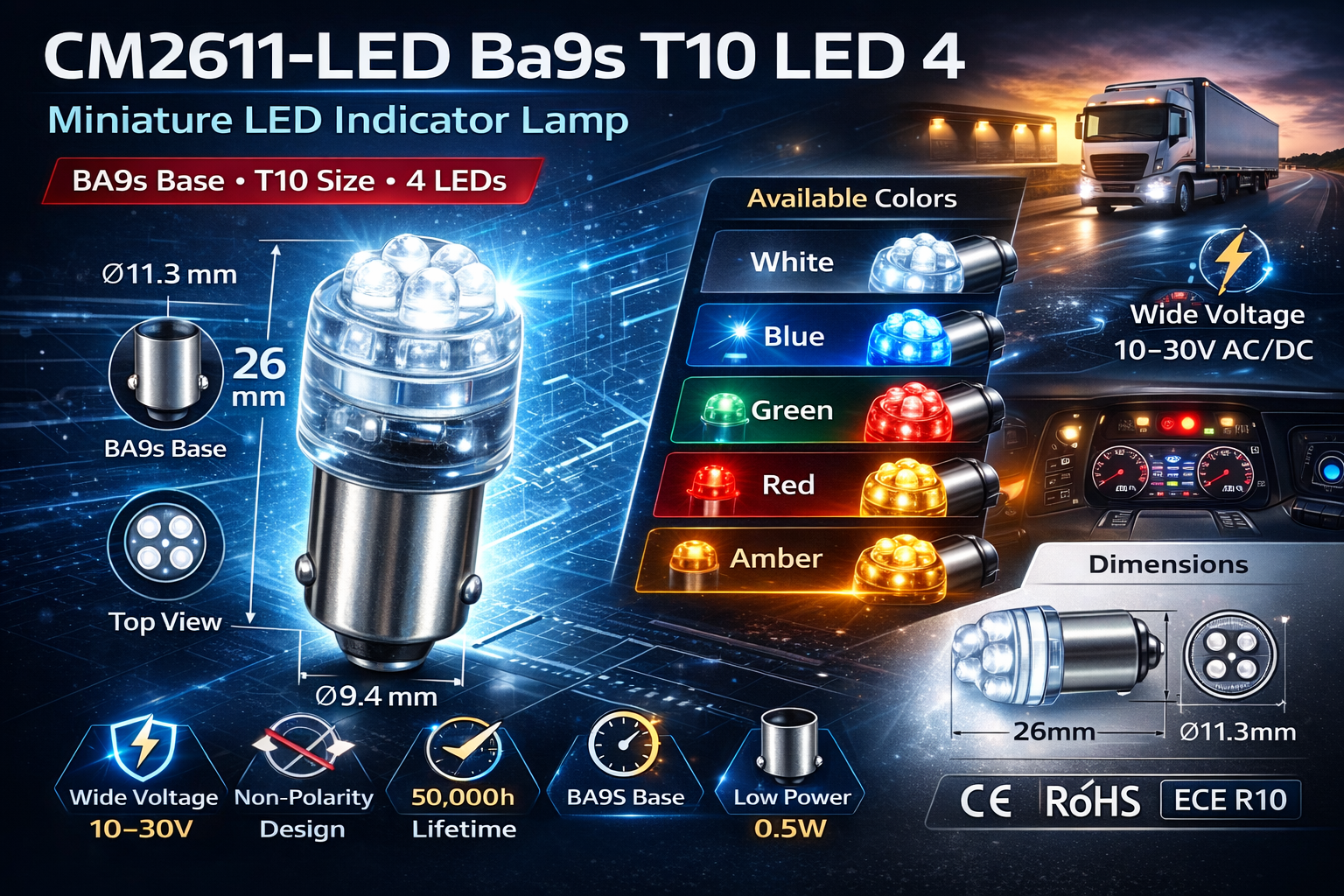

CM2611-LED BA9S T10 LED 4

Miniature LED Indicator Lamp

1. Product Overview

The CM2611-LED BA9S T10 LED 4 is a compact miniature LED lamp designed for automotive, truck, and industrial lighting applications.

It is widely used in vehicle rear lights, position lights, reading lights, side marker lights, and indicator lamps.

With its BA9S base and 4-LED structure, the lamp provides stable illumination and reliable performance for long-term operation.

2. BA9S Base & Non-Polarity Design

The CM2611 LED lamp features a BA9S single-contact base, allowing easy installation in various vehicle lighting systems.

The bulb is designed with non-polarity technology, making it compatible with both AC and DC power systems.

Supported voltage systems include:

• 12V

• 24V

• 48V

• AC / DC applications

Installation is simple and does not require polarity identification.

3. Concentrated Beam Design

The 4-LED optical structure features a focused beam angle design, providing concentrated illumination for indicator and signal lighting applications.

LEDs are securely fixed using high-strength PC plastic housing, which enhances structural stability and ensures excellent resistance to vibration.

A 3mm stepped LED mounting platform is integrated into the design to improve heat dissipation, allowing stable light output and extending the service life of the LEDs.

This structure greatly improves reliability and durability, especially in automotive and industrial environments.

4. Wide Application Range

The CM2611 LED miniature lamp is suitable for a wide range of lighting applications, including:

• Vehicle signal lights

• Corner lights

• Dashboard indicator lights

• Truck license plate lights

• Industrial equipment indicators

• Elevator control panels

• Aircraft instrument lighting

• Train instrument lighting

• Warning lights

It can also be used in industrial indicator lamps operating at higher AC voltages, including:

• 60VAC

• 110VAC

• 230VAC

5. Energy Efficiency & Long Lifespan

The CM2611 LED bulb consumes only 0.5W per lamp, delivering efficient illumination while maintaining extremely low energy consumption.

Key benefits include:

• Long service life up to 50,000 hours

• Stable luminous performance

• Reduced maintenance frequency

• Energy-saving and environmentally friendly design

6. Voltage Usage Notice

Please confirm the power supply voltage before installation.

If the supplied voltage exceeds the designed voltage rating of the LED bulb, it may cause permanent damage to the lamp.

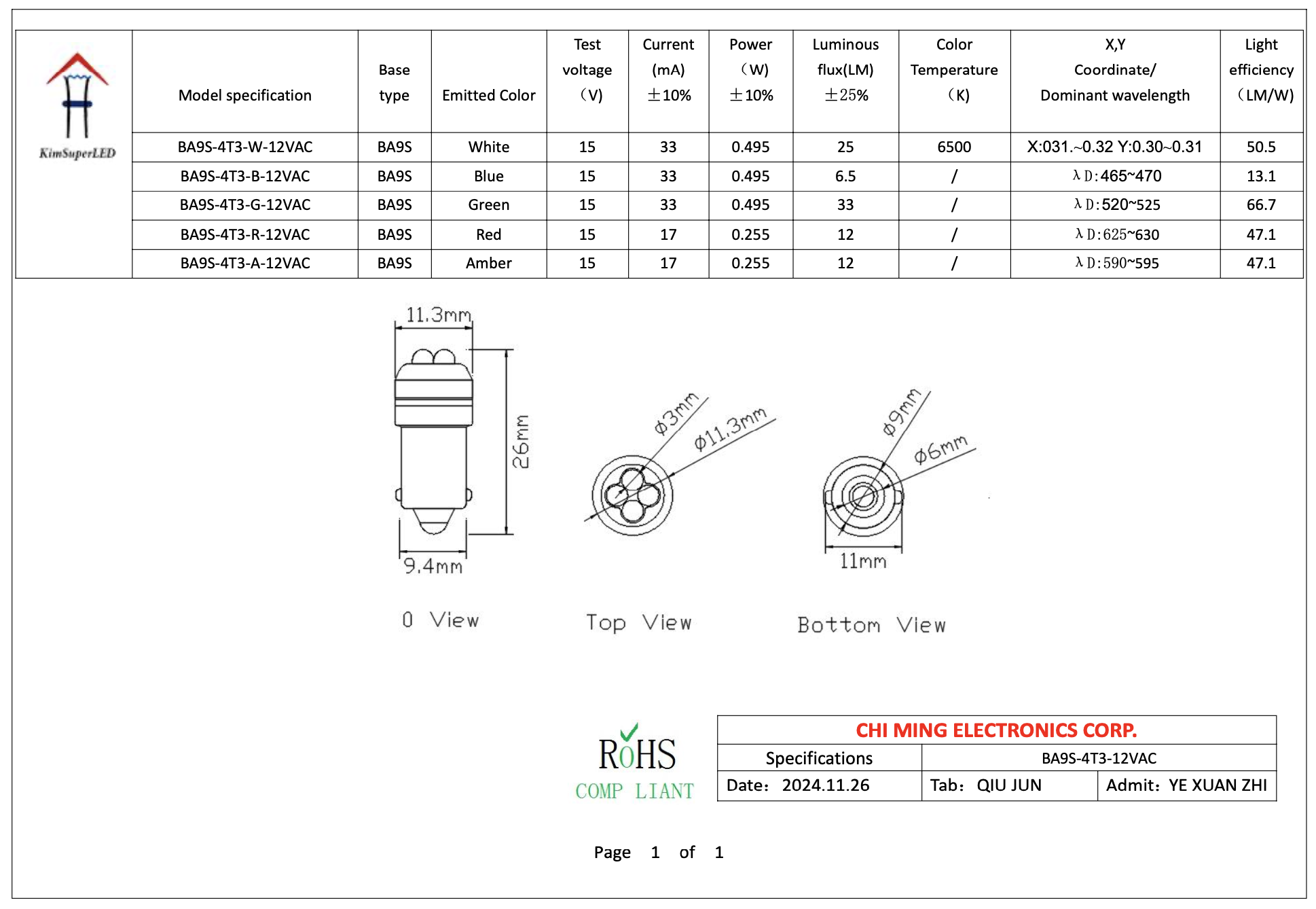

Each LED bulb base is marked with its operating voltage, so users should verify the voltage specifications before use.

7. Purchase & Installation Recommendation

Before purchasing or installing the product, we recommend carefully confirming:

• Bulb dimensions

• Voltage specifications

• Application requirements

For additional information or technical assistance, please contact Chi Ming Electronics Corp.
